1527-01
Terra Part # 1527-01
$328
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock soon
Terra Part # 1527-01
64997
$328
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock soon
Product Details

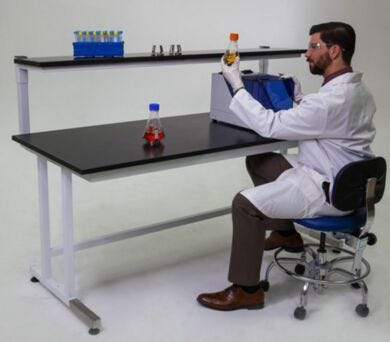

  • Shelf dimensions: 36"W x 12"D (1219 x 305 mm)
  • Shelf Material: Epoxy Resin
  • Note: Upper shelf accessories ship unassembled. Customer is responsible for installing uprights to tables, and shelf bracket assemblies to the uprights.

• Weight, Product: 47.06 Lbs

• Dimensions, Product: 36"W x 12"D x 1.25"H

• Weight, Shipping: 48 lb

• Dimensions, Shipping: 51"W x 17"D x 12"H

• Package Type: Crate

Epoxy Resin Work Stations

  • Ergoheightâ„¢ cleanroom work station ErgoHeightâ„¢ Auto Adjustable Cleanroom Work Station
Ergoheightâ„¢ cleanroom work station

Features and Benefits

Learn More: Epoxy Resin Tables

More Information

  • Applications for Epoxy Resin Lab Tables: Proteomics, biochemistry, New Lab Set Up and Wet Chemistry
  • Chemical Resistance Testing For Epoxy Resin Table Tops: Epoxy resin lab tabletops are individually tested for their corrosion resistance against organic compounds and volatile/non-volatile chemicals.
  • Test temperature for Method A and B: 23° +/- 2°C (73° +/- 4°F
  • Method A - Volatile chemicals A cotton ball saturated with the test solvent was placed in a one-ounce bottle (10 mm x 75 mm test tube or similar container). The bottle was inverted on the test material surface for a period of 24 hours.
  • Method B - Nonvolatile chemicals Five drops (1/4 cc) of the test chemical covered with a 25mm watch glass were placed on the test material surface for a period of 24 hours. This method was used for all chemicals listed below, other than the solvents.
Evaluation Method
Epoxy resin material was exposed to chemicals for 24-hours. Exposed areas were washed with three substances in the following order: water, detergent solution and isopropyl alcohol. Then, the material was rinsed with distilled water and dried with a cloth. Samples are numerically rated as follows:
  • 0 - No Effect: No detectable change in the material surface.
  • 1 - Good: Slight detectable change in color or gloss, but no change in function or life of the surface.
  • 2 - Fair: Slight surface etching or severe staining. Clearly discernible change in color or gloss but no significant impairment of surface life or function.
  • 3 - Poor: Pitting, cratering or erosion of the surface. Obvious and significant deterioration. Objectionable change in appearance due to discoloration.
Evaluation Results of Epoxy Resin Lab Table Work Surface on Compounds and Chemicals
Chemical Tested* Method Black Onyx
Amyl Acetone A 0
Ethyl Acetone A 0
Acetic Acid 98% B 0
Acetone A 1
Acid Dichromate 5% B 0
Butyl Alcohol A 0
Ethyl Alcohol A 0
Methyl Alcohol A 1
Ammonium Hydroxide, 28% B 0
Benzene A 1
Carbon Tetrachloride A 0
Chloroform A 1
Chromic Acid 60% B 2
Cresol A 0
Dichloride Acetic Acid A 0
Dimethylformamide A 0
Dioxane A 0
Ethyl Ether A 0
Formaldehyde 37% A 0
Formic Acid 90% B 0
Furfural A 1
Gasoline A 0
Hydrochloric Acid 37% B 0
Hydrofluoric Acid 48% B 2
Hydrogen Peroxide 28% B 0
Tincture of Iodine B 0
Methyl Ethyl Ketone A 0
Methylene Chloride A 0
Mono Chlorobenzene A 0
Naphthalene A 0
Nitric Acid 20% B 0
Nitric Acid 30% B 1
Nitric Acid 70% B 1
Phenol 90% A 0
Phosphoric Acid 85% B 1
Silver Nitrate, Saturated B 0
Sodium Hydroxide 10% B 1
Sodium Hydroxide 20% B 1
Sodium Hydroxide 40% B 1
Sodium Hydroxide Flake B 1
Sodium Sulfide, Saturated B 2
Sulfuric Acid 25% B 1
Sulfuric Acid 85% B 2
Sulfuric Acid 96% B 3
Sulfuric Acid 85% and Nitric Acid 70%, Equal Parts B 3
Toluene A 1
Trichloroethylene A 0
Xylene A 0
Zinc Chloride, Saturated B 0
*More information on independent test results available upon request. Call Terra Universal at 714-578-6100.
