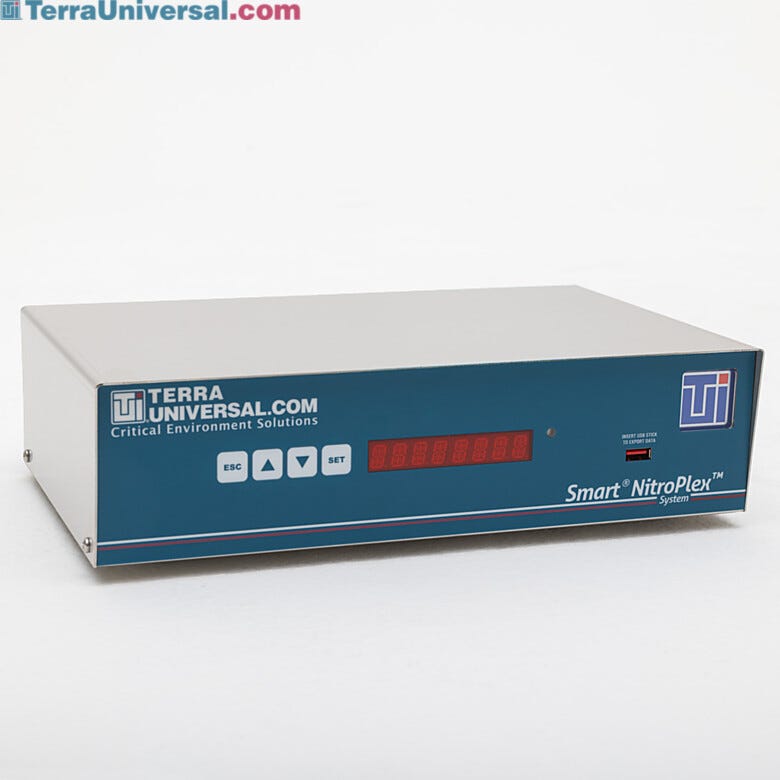

Terra's Smart® NitroPlex™ systems provide data logging capabilities and pressure sensor with set point alarm
Desiccator Accessories

Smart Nitroplex Controller, 1-5 Chambers

  • Available Certified ISO Rated Designs: ISO 8
  • Data Logging capabilities enhance data driven processes
  • Pressure sensor with set point for alarm optimizes user interface accessibility
  • Circuit Board, Manifold, and Solenoids included

• Data Logging: Yes

• Available Certified ISO Rated Designs: ISO 8

• Certified ISO Rated Design: ISO 8

• Unit of Measure: EA

Read more
Stocked
Terra Part #: 9500-11
Manufactured By: Terra Universal
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
9500-11
Terra Part # 9500-11
$3,198
Usually ships in 0-2 business days

Want it faster ? Read about FasTrak

Only 4 left in stock
Terra Part # 9500-11
83188
$3,198
Usually ships in 0-2 business days

Want it faster ? Read about FasTrak

Only 4 left in stock
Save For Later
Details & Specs
Manuals & Resources
Product Details
  • Available Certified ISO Rated Designs: ISO 8
  • Data Logging capabilities enhance data driven processes
  • Pressure sensor with set point for alarm optimizes user interface accessibility
  • Circuit  Board, Manifold, and Solenoids included
  • How NitroPlex™ System Works:
  • High-accuarcy, miniaturized humidity modules are installed in each chamber of the cabinet to provide independent monitor/control capability.
  • Each module is programmable to maintain a humidity set point from ambient down to 0%RH. Each module also features a miniature fan with super silent micro-motor technology to help mix and circulate nitrogen in the chamber.
  • Nitrogen is directed only where and when it's needed to keep the %RH level below the user-specified set-point.
  • The influx of nitrogen gas pressurizes a chamber, causing moisture-laden air to be displaced and released through the automatic relief/bleed (RB) valves. This steady bleed causes the concentration of dry nitrogen gas inside the desiccator to increase until the desired RH level is reached.
  • When the RH set-point is reached, the system reverts from high-flow to low-flow nitrogen gas supply to maintain the set-point and conserve nitrogen.
  • When a door is opened, or when the relative humidity (RH) climbs above set-point level, the system re-activates high-flow to accelerate moisture removal.
  • The LED displays on a module will flash warning signals any time a chamber's door is left open for too long or if the system remains in purge mode for too long.
Show more

• Data Logging: Yes

• Available Certified ISO Rated Designs: ISO 8

• Certified ISO Rated Design: ISO 8

• Unit of Measure: EA

• Dimensions, Product: 12.072" W x 7.611" D x 3.134" H

• Dimensions, Shipping: 18.072" W x 13.611" D x 9.13" H

Download Manual

Show more

Features and Benefits

Hands-Free Maintenance

Built-in solenoids allow for hands-free maintenance without opening the back of the cabinet, optimizing maintenance with its adaptive design.

Chamber-by-Chamber RH Control

Set different RH points in each chamber for optimal RH chamber control. Each chamber provides users the ability for different RH settings optimizing data collection and logging.

Built-In Alarm

To ensure that all contents in the cabinet are in their desired humidity levels, an audible alarm will sound for any zone exceeding the set point.
