Select Product

Viewing Surface Dimensions

Specific Light Source

Manufacturer SKU

Terra Part #PriceShips in
1206.6Visible LightSingleE4000 2808-09 64926 $5545-7 Days2
In stock
2406.6Visible LightSingleE4000-E 2808-09-220 64927 $5545-7 Days3
In stock
1203.9Visible LightE4100 2808-35 77348 $4102-4 Days4
2403.9Visible LightE4100-E 2808-36 77349 $4102-4 Days5
Viewing Surface Dimensions
Specific Light Source
Single or Variable Intensity
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
  • A safer alternative to UV light gel imaging systems, the blue light emitted by the SmartBlue will not damage nucleic acid or DNA samples and it protects operator from UV light damage
  • Emission of blue light at a wavelength of 465 nm ideal for new protein stains and green fluorophores (SmartGlow)
  • When compared to traditional UV light systems, the SmartBlue improves downstream cloning efficiency
  • Manufacturer: Accuris, Division of Benchmark Scientific
  • Brand: SmartBlue™ Blue Light Transilluminator

  • Blue light emission safe for nucleic acids and will not damage DNA samples
  • Evenly lit bottom up lighting of viewing surface for brighter and more balanced image
  • 30,000 hours instrument service light
  • Automatic 5-minute shutoff saves energy

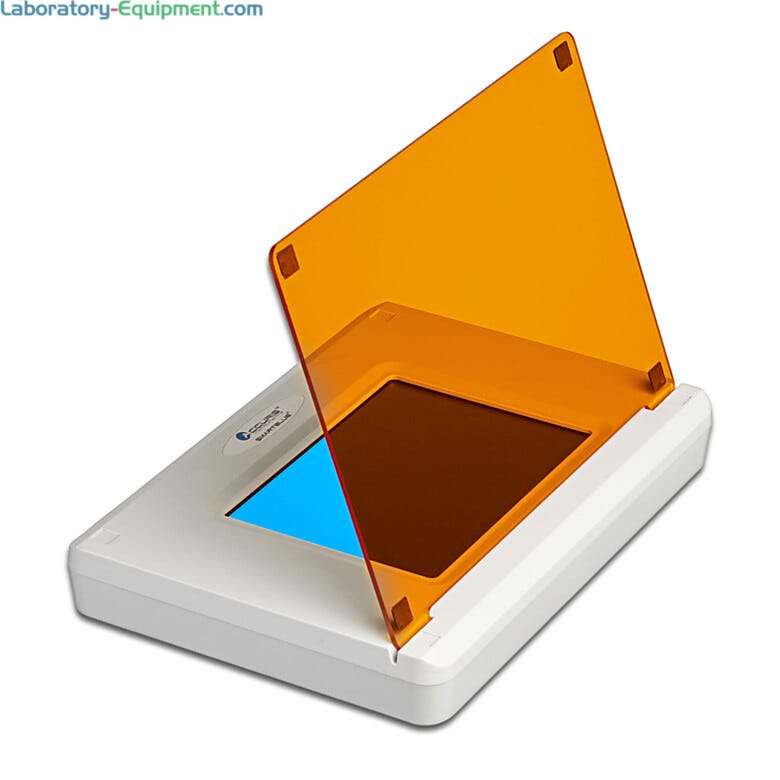

  • Includes two-position amber filter cover for easy access and gel removal
  • Compatible with SmartDoc Imaging System and SmartGlow™ reagents
Features & Benefits

Features & Benefits

Learn More: SmartBlue

Features and Specifications of SmartBlue Light Transilluminator

  • Output wavelength peak at 465 nm
  • Improves downstream cloning efficiency
  • Filters will not polarize
  • Ideal for green alternative to EtBr
  • Evenly lit surface with engineered diffusers and filters and bottom up lighting eliminates reflection
  • Viewing surface dimensions: 6.6" x 4.75" (170 x 120 mm)
  • Dimensions: 12.8" x 8.5" x 1.9" (305 x 215 x 50 mm)
  • Weight: 2.6 lbs. (1.2 kg)
  • Electrical: 120 volts, 60Hz
  • Light source: high-intensity LEDs
SmartBlue for use with SmartDoc 2.0 Gel Imager and SmartGlow Nucleic Acid Stains
SmartDoc Gel Imaging System
SmartDoc on SmartBlue
SmartGlow E4500-LD
Allows smart phones and tablets to obtain high quality image of electrophoresis gels.Use SmartBlue with SmartDoc to increase efficiency and obtain high quality images.Safe for nucleic acid gels.
