Select Product
Voltage

Specific Light Source

Manufacturer SKU

Terra Part #PriceShips in
1206.6Visible LightSingleE5001-SD 2808-17 68629 $3975-7 Days2
In stock
1206.6Visible LightSingleE5001-SDB 2808-18 68630 $6835-7 Days3
In stock
Voltage
Viewing Surface Dimensions
Specific Light Source
Single or Variable Intensity
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary
Product Details
  • Compact and affordable SmartDoc 2.0 Gel Imaging Systems capture high quality images of electrophoresis gels with any smartphone camera
  • Position units above a UV or blue light transilluminator
  • Manufacturer: Accuris, Division of Bebchmark Scientific
  • Brand: SmartDoc 2.0

  • Instantly capture gel images using your iPhone®, iPad®, or Android® device
  • Ideal for common safe stains (SmartGlow, SYBR Green, GelGreen, etc.)
  • Gel access for DNA band cutting
  • Orange filter included on all models: Optimized for smartphone imaging and blocks blue light for visualization of fluorescing samples and band cutting
  • Accommodates multiple gel sizes and thicknesses
  • Compatible with UV and blue light illuminators
  • Two filter options for most common DNA dyes
  • Model E5001-SDB with blue light illumination protects operator and DNA samples by eliminating EtBr and UV light source
Features & Benefits

Features and Benefits

Blue Light and Non-Toxic Dyes

SmartDoc 2.0 Helps Ensure Lab Safety with Blue Light and Non-Toxic Dyes

SmartDoc Green Band Pass Filter
535 nm Narrow Band Pass Filter
  • Peak emission: 535 nm
  • 40 nm bandwidth
  • Compatible DNA stain Type: SmartGlow™ SYBR® Green
  • Excitation source: UV transilluminator
SmartDoc Orange Band Pass Filter
590 nm Narrow Band Pass Filter
  • Peak emission: 590 nm
  • 60 nm band width
  • Compatible DNA stain Type: Ethidium Bromide
  • Excitation source: Blue illumination base

Ethidium Bromide (EtBr) a known carcinogen and mutagen has traditionally been used by laboratories in conjunction with UV light for staining DNA agarose gels. Exposure to UV light has been demonstrated to cause DNA lesions, which are associated with an increased incidence of cancer.

The SmartDoc 2.0 Gel Imaging System with blue light illumination (E5001-SDB) protects lab personnel by eliminating the need for EtBr and UV light. The E5001-SDB uses safe blue light and non-toxic green dyes for gel imaging purposes.

10 kb DNA ladder, stained with a green dye and imaged with 535nm filter
SmartDoc Gel 2.0 compatible with a UV or a blue light transilluminator
Diagram shows placement of peak transmission and band width of 535 nm and 590 nm band pass filters

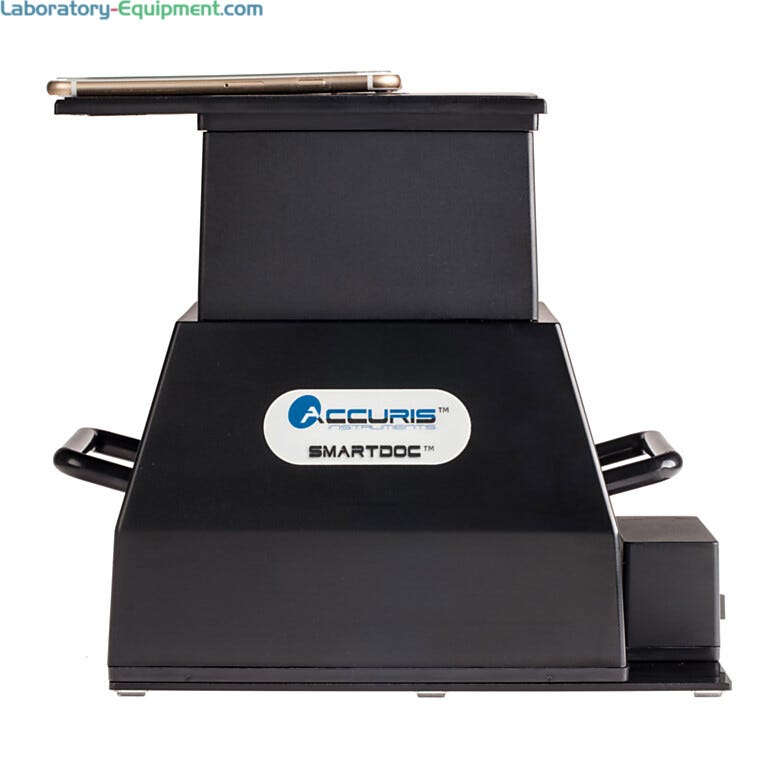

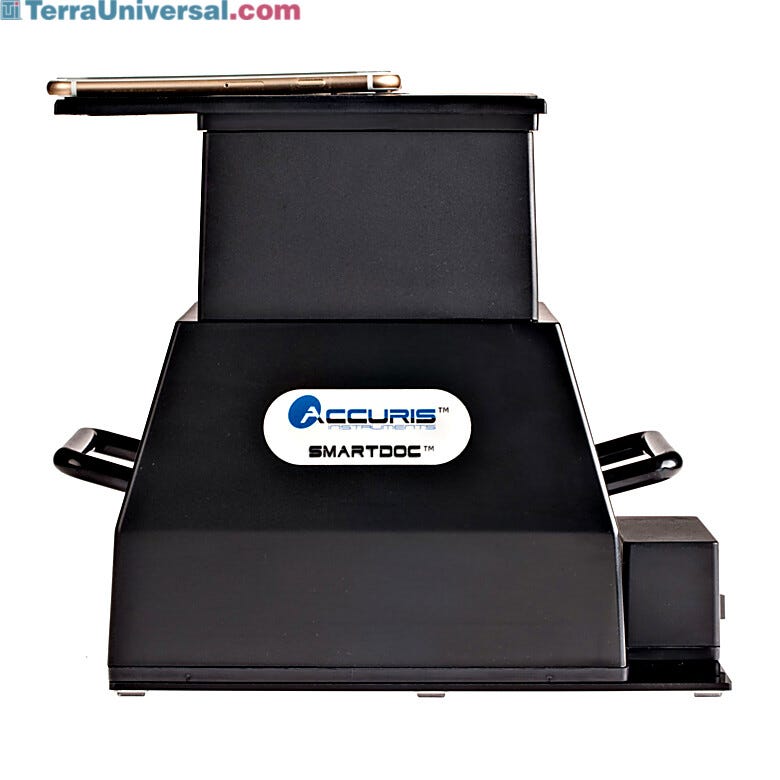

SmartDoc Compatible with Smartphones

Place smartphone on top of the SmartDoc 2.0 Gel Imaging System platform for instant high quality images

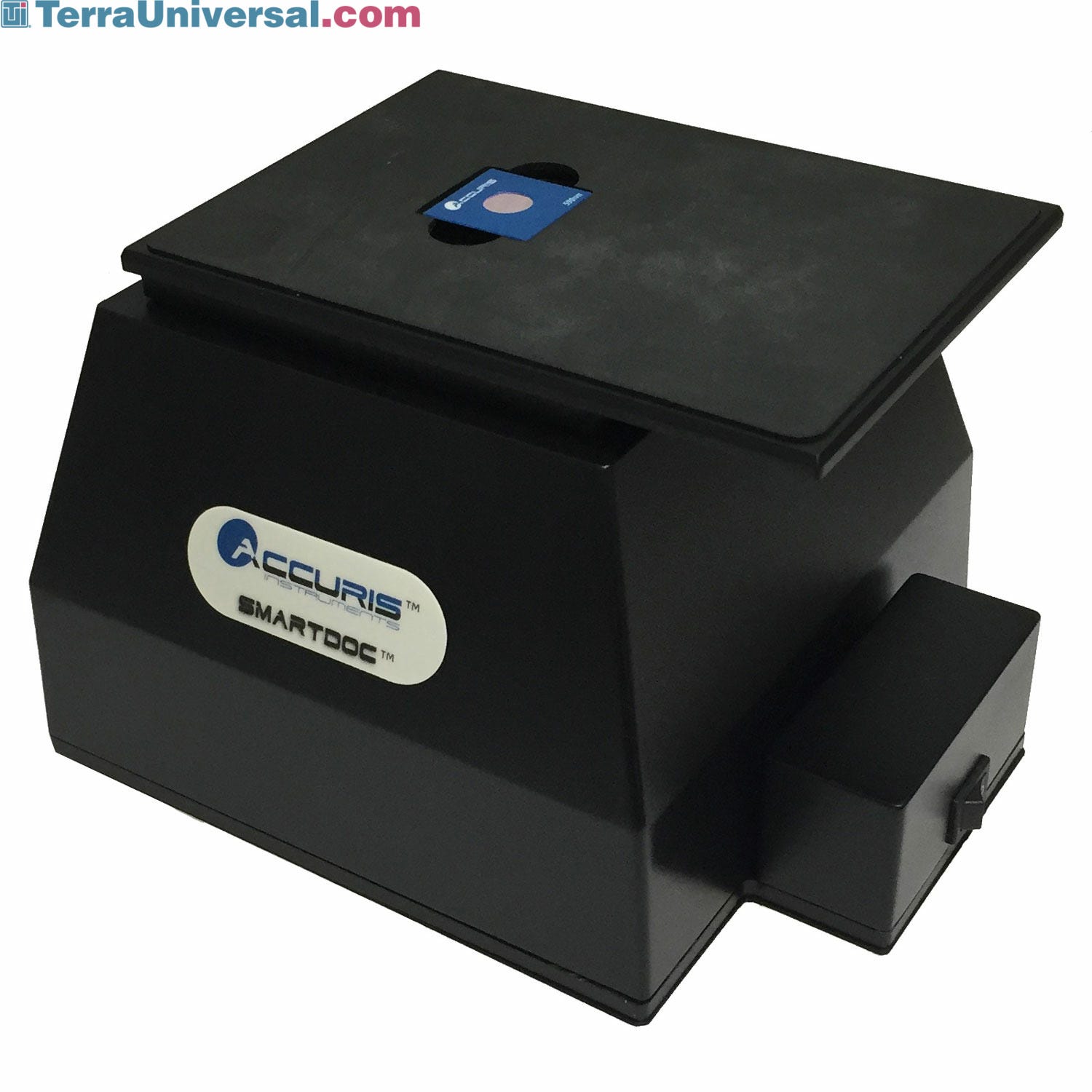

Removable Extender

Remove the extender to lower the platform for closer imaging

SmartDoc Illumination Base

Orange cover is optimized for smartphone imaging and blocks blue light for visualization of fluorescent samples and band cutting.

UV Transilluminator by Accuris

The SmartDoc 2.0 can be placed onto an Accuris UV Transilluminator (sold separately)

Included Blue Light Enclosure Base

Standard blue light illuminator protects operator and DNA samples by eliminating use of EtBr or UV light

Compact Gel Imaging System

Instantly capture gel images using an iPhone®, iPad®, or Android® device.
