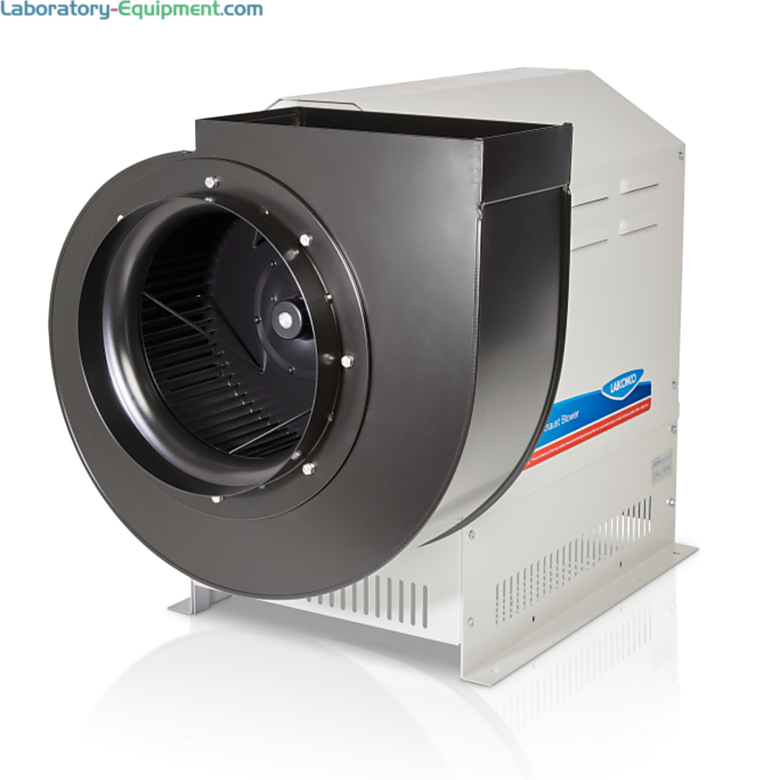

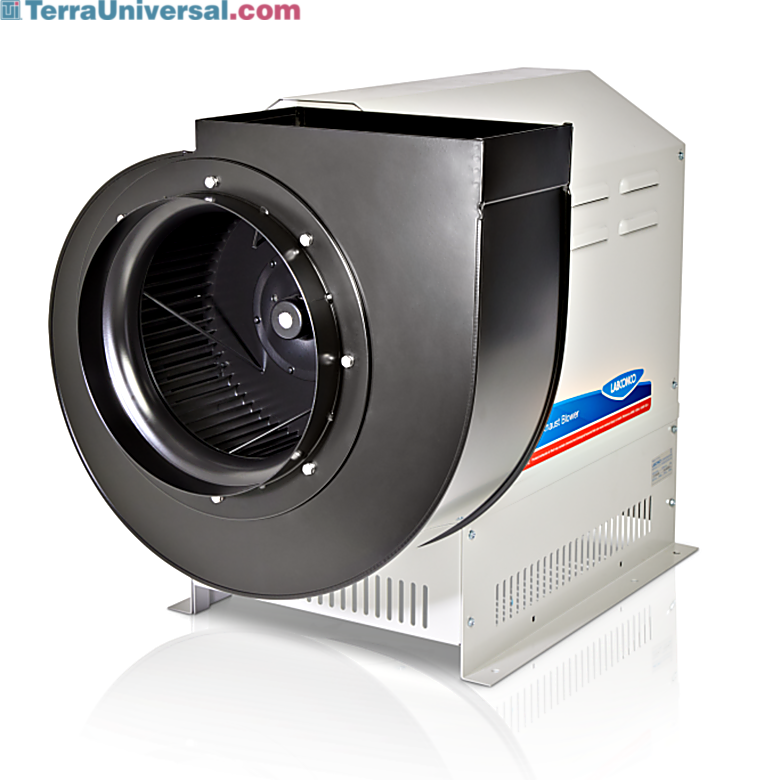

Coated Steel construction provides some acid and solvent resistance
Hood Accessories,Hood Accessories,Hood Accessories,Hood Accessories

Blower; Spectrum, Coated Steel, Smart, 1 HP, 300-1750 RPM, 10.9" Inlet, Outlet, Labconco, 120/240 V

Custom-configured product: Please request quote. Terra will contact you for requirements.
Manufacturer SKU: 177050100
Manufactured By: Labconco
Warranty: 1 Year
  • Use with Labconco Laboratory fume hoods, canopy-ducted Types A2, B2, and C1 cabinets
  • Spectrum blowers feature on-board OS to communicate with building management systems for remote operation
  • Remote monitoring-enabled software outputs data to your BMS about airflow and operation status
  • Low to moderately corrosive hood applications, Flow-through vent holes and louvers cools motor
  • Corrosion resistant phenolic-coated impeller and housing; coated steel base

• Type: Exhaust Blower

• Material: Coated Steel

• Configuration: Smart

• Power: 1 HP

• Manufacturer SKU: 177050100

• Manufactured by: Labconco

• RPM Range: 300-1750

• Inlet Dia.: 10.9"

• Outlet Size: 5.5" x 10"

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: 177050100
Manufactured By: Labconco
Warranty: 1 Year
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
3650-48
Terra Part # 3650-48
$3,354
Accessories related to Terra Part # 3650-48
85215
Blower; Spectrum, Coated Steel, Smart, 1 HP, 300-1750 RPM, 10.9" Inlet, Outlet, Labconco, 120/240 V
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Ships Free Free shipping in contiguous USA
Usually ships in 19-23 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • Use with Labconco Laboratory fume hoods, canopy-ducted Types A2, B2, and C1 cabinets
  • Spectrum blowers feature on-board OS to communicate with building management systems for remote operation
  • Remote monitoring-enabled software outputs data to your BMS about airflow and operation status
  • Low to moderately corrosive hood applications, Flow-through vent holes and louvers cools motor
  • Corrosion resistant phenolic-coated impeller and housing; coated steel base
  • Additional ductwork required
  • Inlet Dia.: 10.9", RPM Range: 300-1750
  • Power: 1 HP
  • CFM: up to 1300
  • Coated Steel construction suitable for use with Class II Type A2, B2, or C1 Biological Safety Cabinets
  • Uses RS232 and RS485 serial communication standards for data output
  • 1 HP model blowers can be installed on 115V and 230V single phase systems in 50 or 60 Hz
  • On-board screen displays blower status, alarm, RPM, temperature and input selection indicators
  • Allows 3 input options for RPM selection at-blower and remote selection
  • Flexible installation with variable exhaust adjusting to eight outlet positions
  • 1 HP electronically commutated motor (ECM) highlights energy efficiency over traditional belt-driven motors

• Type: Exhaust Blower

• Material: Coated Steel

• Configuration: Smart

• Power: 1 HP

• Manufacturer SKU: 177050100

• Manufactured by: Labconco

• RPM Range: 300-1750

• Inlet Dia.: 10.9"

• Outlet Size: 5.5" x 10"

• Unit of Measure: EA

• Electrical Specifications: 120/240 V, 11.6 A, 6.8 W, 6.8

• Dimensions, Product: 18" W x 29" D x 24.9" H

• Weight, Shipping: 150 lb

• Dimensions, Shipping: 33" W x 27" D x 29" H

Download Manual
