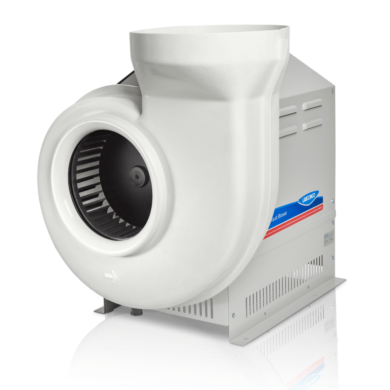

PVC spark-resistant construction is highly resistant to acids and suitable for perchloric acid wash-down
Hood Accessories,Hood Accessories,Hood Accessories,Hood Accessories

Blower; Spectrum, PVC, Smart Explosion Proof, 1 HP, 300-1800 RPM, 10.4" Inlet, 10.75" Outlet, Labconco, 120/240 V

Custom-configured product: Please request quote. Terra will contact you for requirements.
Manufacturer SKU: 177052100
Manufactured By: Labconco
Warranty: 1 Year
  • For use with Labconco fume hoods and biosafety cabinets
  • Spectrum blowers feature on-board OS to communicate with building management systems for remote operation
  • Remote monitoring-enabled software outputs data to your BMS about airflow and operation status
  • Provides optimum chemical resistance and able to handle perchloric acid and other high order oxidizers
  • Unplasticized Type I polyvinyl chloride housing; dry powder epoxy-coated base and weather cover

• Type: Exhaust Blower

• Material: PVC

• Configuration: Smart Explosion Proof

• Power: 1 HP

• Manufacturer SKU: 177052100

• Manufactured by: Labconco

• RPM Range: 300-1800

• Inlet Dia.: 10.4"

• Outlet Size: 10.75"

• Unit of Measure: EA

Read more
Manufacturer SKU: 177052100
Manufactured By: Labconco
Warranty: 1 Year
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
3650-50
Terra Part # 3650-50
$4,423
Accessories related to Terra Part # 3650-50
85217
Blower; Spectrum, PVC, Smart Explosion Proof, 1 HP, 300-1800 RPM, 10.4" Inlet, 10.75" Outlet, Labconco, 120/240 V
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Usually ships in 19-23 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • For use with Labconco fume hoods and biosafety cabinets
  • Spectrum blowers feature on-board OS to communicate with building management systems for remote operation
  • Remote monitoring-enabled software outputs data to your BMS about airflow and operation status
  • Provides optimum chemical resistance and able to handle perchloric acid and other high order oxidizers
  • Unplasticized Type I polyvinyl chloride housing; dry powder epoxy-coated base and weather cover
  • Additional ductwork required
  • Inlet Dia.: 10.4", Outlet Size: 10.75"
  • RPM Range: 300-1800
  • Power: 1 HP
  • CFM: up to 1300
  • AMCA 99 Type A spark-resistant construction is suitable for hazardous environments
  • Uses RS232 and RS485 serial communication standards for data output
  • 1 HP model blowers can be installed on 115V and 230V single phase systems in 50 or 60 Hz
  • On-board screen displays blower status, alarm, RPM, temperature and input selection indicators
  • Allows 3 input options for RPM selection at-blower and remote selection
  • Flexible installation with variable exhaust adjusting to eight outlet positions
  • 1 HP electronically commutated motor (ECM) highlights energy efficiency over traditional belt-driven motors

• Type: Exhaust Blower

• Material: PVC

• Configuration: Smart Explosion Proof

• Power: 1 HP

• Manufacturer SKU: 177052100

• Manufactured by: Labconco

• RPM Range: 300-1800

• Inlet Dia.: 10.4"

• Outlet Size: 10.75"

• Unit of Measure: EA

• Electrical Specifications: 120/240 V, 11.6 A, 1 Ph, 50/60 Hz

• Dimensions, Product: 22.7" W x 29.8" D x 28.3" H

• Weight, Shipping: 105 lb

• Dimensions, Shipping: 33" W x 27" D x 29" H

Download Manual
