Select Product
Voltage

Type

Controls

Capacity

Temperature Range

Model

RS-232

Manufacturer SKU

Terra Part # Price Ships in
208 V Muffle Setpoint 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes No F30428C 4003-01 59643 $9,213 45-54 Days 2
Ships Free Free shipping in contiguous USA
208 V Muffle Single Program 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes No F30428C-80 4003-04 59646 $10,346 45-54 Days 3
240 V Muffle Multi Program 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes Yes F30430CM 4001-83 14127 $11,101 45-54 Days 4
Ships Free Free shipping in contiguous USA
240 V Muffle Multi Program/RS232 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes Yes F30438CM 4003-07 59649 $11,101 45-54 Days 5
240 V Muffle Multi Program/RS232 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes Yes F30430CM-33 4003-08 59650 $11,101 45-54 Days 6
240 V Muffle Setpoint 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes No F30420C 4003-02 59644 $9,440 45-54 Days 7
Ships Free Free shipping in contiguous USA
240 V Muffle Setpoint 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes No F30420C-33 4003-03 59645 $9,440 45-54 Days 8
240 V Muffle Single Program 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes No F30420C-33-80 4003-06 59648 $10,195 45-54 Days 9
240 V Digital programmable w/1 program, 8 segments 1.6 cu. ft. 100° - 1,093°C Thermolyne Yes No F30420C-80 4003-09 83834 $11,760 45-54 Days 10
In stock soon
Voltage
Type
Controls
Capacity
Temperature Range
Model
Over-Temperature Protection
RS-232
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

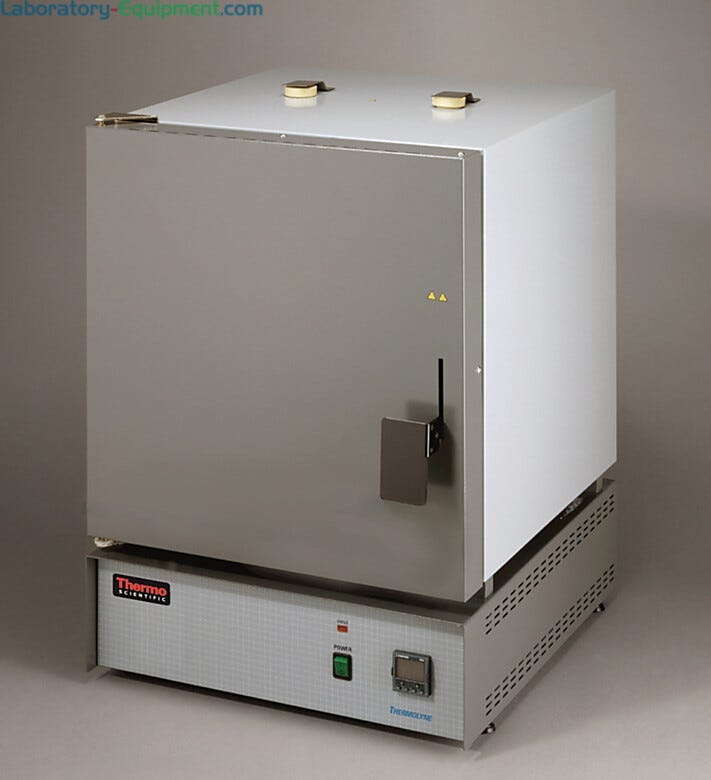

  • Three types of temperature control available: B1 single set-point with single ramp to set point and dwell; C1 programmable (single program of 8 segments); D1 programmable (4 programs of 16 segments and RS232 port)
  • Includes two refractory shelves that triple the inner working space
  • Mechanical over-temperature protection (built-in)
  • Enhanced temperature uniformity with heating elements on chamber top, bottom and sides
  • Vent port removes contaminants and moisture for longer operating life
  • LED displays both set point and actual furnace temperature in °C or °F
  • Safety features include open thermocouple protection and user-selectable over-temperature protection
  • Applications: annealing, ashing, catalysts, volatiles
  • 0.38"-diameter port in rear chamber for temperature probes
  • Capacity: 45L (1.6 cu. ft.)
  • Interior Dimensions: 14" x 14" x 14"
  • Temperature Range: 100° to 1093°C
  • Temperature Stability/Uniformity: ±1.2°C at 1000°C/±3.45°C
  • 35A circuit breaker protects critical electronic components and heating elements
  • Door safety switch turns heater off when door opens
  • Available accessories include hearth tray, extra shelves and exhaust tubing kits
  • Requires hard-wiring (no power cord)
