• Dimensions, Product: 11"W x 18"D x 5"H
• Assay Type: Protein
• Weight, Product: 7 Lbs
• Weight, Shipping: 15 Lbs
• Dimensions, Shipping: 17"W x 24"D x 10"H
• Package Type: Box
• Unit of Measure: EA

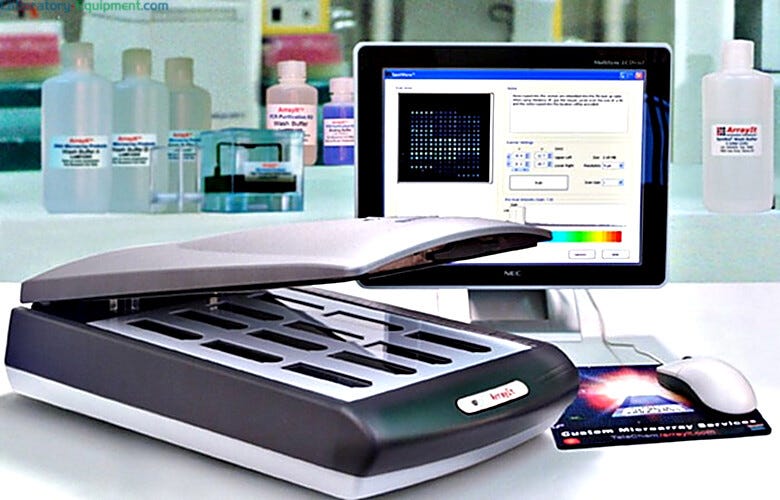

ArrayIt® SpotWare™ Colorimetric Microarray Scanner, 110V
Read more
Manufacturer SKU: SPW110
Manufactured By: Arrayit
Print
Want a quote quickly ?
Submit a QuickQuote request• Includes:
• SpotWare™ Colorimetric Microarray Scanner (110V or 220V)
• SpotWare™ Power Supply with Voltage Appropriate Cable
• SpotWare™ USB High- Speed Data Communications Cable
• SpotWare™ 12 Position Substrate Slide Bay
• SpotWare™USB Software Key
• Computer with Pre- Installed SpotWare™ Controller and Image Acquisition Software
• Flat Panel Display with Video Cable and Voltage Appropriate Power Cord
• Computer Keyboard
• Computer Mouse
• Computer Power Cord with Voltage Appropriate Cable
• Instrument Size: 10.63"W x 18.11"D x 4.53"H (270 x 460 x 115 mm)
• Instrument Weight: 6.83 lbs. (3.1 kg); Electrical: 110V, 50-60Hz
• Adjustable Scanning Resolutions: 5, 10, 20, 50 µm
• Operating System: Microsoft Windows XP
• Scan Area: 25 x 76 mm with separate barcode detection capability
• Scan Speed: 1.0 cm2 in 30 seconds at 10µm resolution
• Total Dynamic Range: >7 logs (10,000,000 fold)
• Standard Tiff Intensity Value Range: 0-65.536
• Image Format: 16-bit TIFF file format with 065,536 intensity values
• Reads up to 12 microarrays using 12-position substrate slide bay
• Combines throughput and versatility o fluorescence assays
• Light path produces zero background with white membrane substrates
• Performs chromatic detection of other protein assays such as Western blots
• Easily programmed to handle different size substrates, plates, gels and blots
• Reads up to 12 microarrays using the 12-Position Substrate Slide Bay
• Rainbow palette data display for easy viewing
• Images importable into any standard microarray analysis software package
• Compatible with alkaline phosphatase (AP) and horseradish peroxidase (HRP) labels
• Unique light path produces zero background with white membrane substrates
• Total set up time less than 30 minutes
• Ultra-sensitive charge coupled device line scanning technology
• Use for DNA, RNA, protein, antigen, and antibody microarrays
• Complements existing Arrayit Microarray Scanners
• Application: research and diagnostic high-speed colorimetric scanning of chromatic detection of microarrays, western blots, microwestern arrays
• Dimensions, Product: 11"W x 18"D x 5"H
• Assay Type: Protein
• Weight, Product: 7 Lbs
• Weight, Shipping: 15 Lbs
• Dimensions, Shipping: 17"W x 24"D x 10"H
• Package Type: Box
• Unit of Measure: EA
Other products you may find relevant
Some ship in 1 - 3 daysVibration-Free Work Stations
Buy Accessories
Usually Ships in 3 - 7 days- Usually Ships in 6 - 12 days
Features and Benefits
Specs and Resolution Settings
Microarray instruments work in conjunction to manufacture, detect and scan samples for quantitative detection analysis. The images below demonstrate how the SpotWare™ Colorimetric Microarray Scanner functions with other microarray instruments as well as showcasing the versatility of the SpotWare’s four resolution settings.
Sample 16-bit image was acquired with the SpotWare™ Colorimetric Scanner. Presented in a rainbow palette at a resolution of 5µm clearly demonstrates the 1 x 107 dynamic range of the SpotWare.
The scanned substrate image (left) with data obtained using alkaline phosphatase (AP) labeling is coded to a rainbow palette for easy viewing. Users have the choice to pre-scan all or a selection of the image. There is a text window (top right) for inputting experimental notes. The scanner settings (middle right) with a scan button is where users can input: scan area coordinates (x, y), file size (MB), scan resolution (µm) and scan gain (0.1100). The pre-scan intensity window (bottom right) indicates the scan gains and an intensity histogram coded to a rainbow palette.
Using the Arrayit Alkaline Phosphatase (AP) Kit (#CAT APK) to develop this microarray, this Pre-Scan Selection image is at a scan gain of 7.0 with a visible increase on signal intensity compared to Figure 7. while the background noise remains low.
Print Copy Copied
Specifications for SpotWare Colorimetric Scanner
| Instrument Size | 10.63W x 18.11D x 4.53H in. (270 x 460 x 115 mm) |
|---|---|
| Adjustable Scanning Resolutions | 5, 10, 20, 50 µm |
| Operating System | Microsoft Windows XP |
| Scan Area | 25 x 76 mm with separate barcode detection capability |
| Scan Speed | 1.0 cm2 in 30 seconds at 10µm resolution |
| Total Dynamic Range | >7 logs (10,000,000 fold) |
| Standard Tiff Intensity Value Range | 0-65.536 |
| Image Format | 16-bit TIFF file format with 065,536 intensity values |
| Electrical | 110V, 50-60Hz |
| Applications | Research and diagnostics, DNA, RNA, protein, antigen, and antibody microarrays, chromatic detection of microarrays, western blots, microwestern arrays |
| Operating System | Windows XP |
| Additional features |
|
| Product Contents |
|
Adjustable Resolution Settings of SpotWare Colorimetric Scanner
Microarray instruments work in conjunction to manufacture, detect and scan samples for quantitative detection analysis. The images below demonstrate how the SpotWare™ Colorimetric Microarray Scanner functions with other microarray instruments as well as showcasing the versatility of the SpotWare’s four resolution settings.
The above image represents the process of creating, detecting and scanning a microarray when conducting quantitative detection analysis. Protein microarray was manufactured using the ArrayIt® Protein Microarray Platform in conjunction with ArrayIt® SpotWare™ Colorimetric Microarray Scanner for detecting. By diluting antibodies in 1X Protein Printing Buffer, the antibodies were printed in quintuplicate onto SuperProtein Substrates using a microarray spotter incubated with patient sera, stained with a secondary antibody conjugated to Alkaline Phosphatase (AP), and developed with an AP Developing Kit prior to scanning at a gain setting of 1.0 and 10 µm Resolution.
Sample 16-bit image was acquired with the SpotWare™ Colorimetric Scanner. Presented in a rainbow palette at a resolution of 5µm clearly demonstrates the 1 x 107 dynamic range of the SpotWare.Main Software Window and Graphical User Interface
The scanned substrate image (left) with data obtained using alkaline phosphatase (AP) labeling is coded to a rainbow palette for easy viewing. Users have the choice to pre-scan all or a selection of the image. There is a text window (top right) for inputting experimental notes. The scanner settings (middle right) with a scan button is where users can input: scan area coordinates (x, y), file size (MB), scan resolution (µm) and scan gain (0.1100). The pre-scan intensity window (bottom right) indicates the scan gains and an intensity histogram coded to a rainbow palette.SpotWare Options Window
Using the Arrayit Alkaline Phosphatase (AP) Kit (#CAT APK) to develop this microarray, this Pre-Scan Selection image is at a scan gain of 7.0 with a visible increase on signal intensity compared to Figure 7. while the background noise remains low. Other products you may find relevant
