Select Product
Detection Wavelength

Detection Modes

Manufacturer SKU

Terra Part # Price Ships in
1 White Light Colorimetric APXC1 3031-32 61279 $35,549 20-26 Days 2
Ships Free Free shipping in contiguous USA
2 550/650 nm Fluorescent APXF1 3031-31 61278 $48,022 20-26 Days 3
Ships Free Free shipping in contiguous USA
Detection Channels
Detection Wavelength
Detection Modes
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

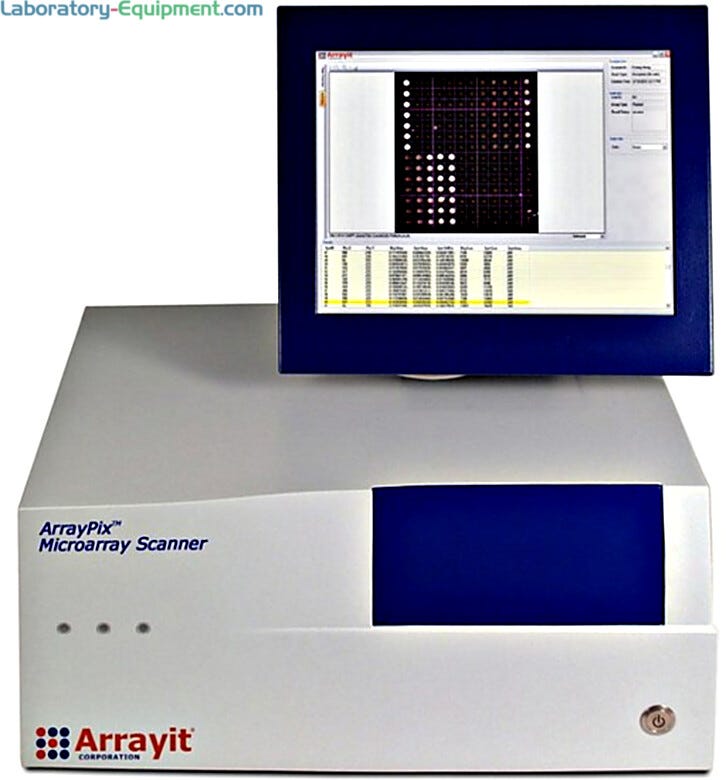

  • ArrayPix™ Microplate Microarray Scanners in colorimetric and fluorescence models provide scanning and quantification of microarrays printed in microplates and microplate footprinted microarray hardware
  • Compact units combine the ease and throughput of microplate assays with the performance of microarrays for high-level assay multiplexing, rapid image acquisition, and easily quantifiable and high quality data
  • Models function as a stand alone unit or integrated with automated systems for multi-plex assays
  • Compatibility: all standard SBS 96-well and 384-well microplates; Arrayit AHC4x24, AHC4x16 and MMH96 hybridization cassettes; all types of transparent plastic and glass microarray surface chemistries
  • Applications: life science, microarray manufacturing, processing, detection, quantification and reporting, ELISA arrays, DNA microarray genotyping
  • Scans 96 microarrays in less than 3 minutes
  • Standard detection wavelengths: White light 550 nm (colorimetric) and 650 nm/Cy3 and Cy5 (fluorescence)
  • Microarray detection wavelengths: 6 µm CCD (colorimetric) and cyanine 3 (550 nm) and cyanine 5 (650 nm) (fluorescence)
  • Format: 1 microplate or 4 standard 25 x 76 mm glass substrate slides
  • Low heat and energy consumption using cool excitation technology
  • Includes: Product components, controller and Mapix Software
  • Optional Equipment: Array Plate Hybridization Station
  • Extended Warranties sold separately
Features & Benefits

Features and Benefits

Learn More: Colorimetric and Fluorescence Models

More Information

Parameter ArrayPix™ Colorimetric Scanner ArrayPix™ Fluorescence Scanner
Number of Channels Single channel colorimetric 2-channel fluorescence
Standard Detection Wavelengths White light 550 nm and 650 nm (Cy3 and Cy5)
Microarray detection wavelengths 6 µm CCD cyanine 3 (550 nm) and cyanine 5 (650 nm)
Capacity 4 standard 25 x 76 mm glass substrate slides or 1 microplate
Maximum Scan Area 4.72" x 3.15" (120 x 80 mm)
Single Image Scan Size 0.24" x 0.24" (6 x 6 mm)
Electrical 120 or 240 Vac, 50-60Hz
Format 1 microplate or 4 standard 25 x 76 mm slides
Resolution 6 µm
Sensitivity 0.1 fluors per µm2 and 1,000 fluors per spot
Standard Tiff Intensity Value Range 0 – 65, 536 counts
Display Built-in CPU and touch screen flat panel
External BioBlue Mini Computer and LED Flat panel display
Product Components
    • ArrayPix™ Plate Based Two-Color Fluorescence or Colorimetric Microarray Scanner
    • Power supply with Voltage Appropriate Power Cable
    • Controller, Quantification and Reporting Software Included
    • Built-in CPU with Touch Screen Display
    • External BioBlue Bioinformatics Computer and LED Flat Panel Display
    • Computer and Display DVI Cable and Power Cords
    • Computer Power Cord with Voltage-Appropriate Connector
    • Computer Keyboard
    • Computer Mouse
    • Computer Mouse Pad
    • Microarrays for Test Scanning

Microarray Scanners Compatible with Liquid Handling Systems

Integrate ArrayPix Microarray Scanner with lab automation system for a complete platform in hybridization, microarray manufacturing, automated processing, detection, quantification and reporting
