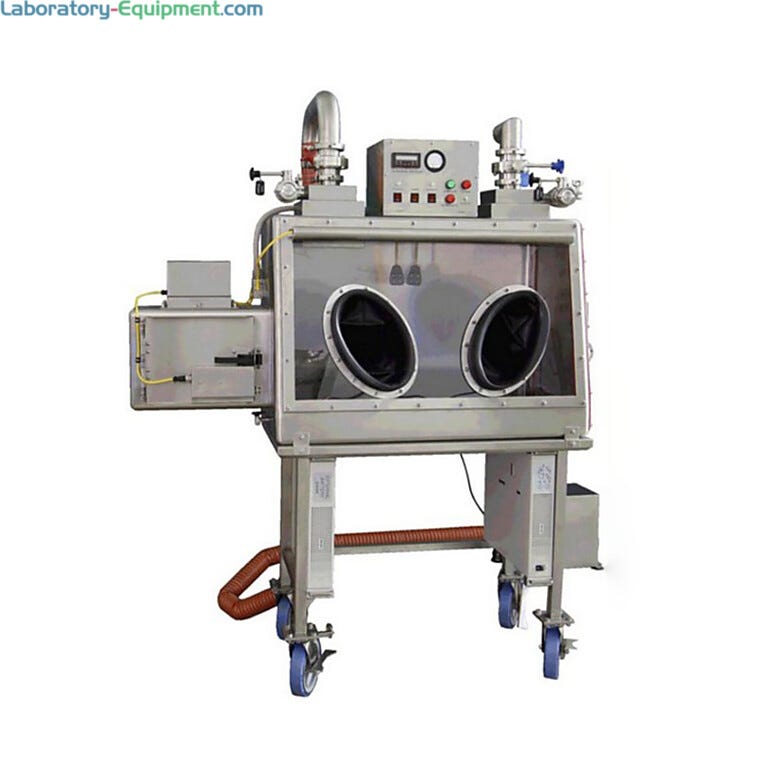

Terra Part # 5607-25
$49,572
Usually ships in 22-28 business days

Want it faster ? Read about FasTrak

• Exhaust System Requirements: 50 cfm @ 2” H2O (8.5 M3/hr. @ 500 Pa)

• Construction: Interior coved corners and radius bends

• Angled and sealed viewing window to glovebox with airtight gaskets

• Complies with standard EN 12469-2000

• Interior airlock door opening: 12" W x 13" H (305 x 330 mm)

• Front facing airlock door opening: 12" W x 10" H (305 x 250 mm)

• Fitted with one set of 815 mm long Hypalon(R) (CSM) gloves, size 9.75 ambidextrous

• Gloveports: Sealed into the window at an ergonomic “V” angle

• Double groove gloveports allow glove changes without breaking containment

• Inlet and exhaust HEPA filters: Rated at 99.99% efficient at a 0.3μm particle size

• HEPA filters can be individually aerosol tested

• Sealed to glovebox with stainless steel frame

• 76mm diameter inlet and exhaust ducts with sanitary shut off butterfly valves

• Airlock doors include PLC controlled, double-door interlocking mechanism

• 180-grit pharmaceutical grade (#4) finish facilitates cleaning and decontamination

• Removable bolt on side panel for setup of equipment prior to use (After decontamination)

• Easy to access panel features: digital and mechanical pressure gauges

• Low-pressure alarm with audible and visual functions

• Separate main and light on/off power switches and circuit breaker reset

• Product categorized by the Export Administration Regulations (EAR) under Export Control Classification Number (ECCN) 2B352: Biological Processing Equipment. Export of this product outside of the United States may require a license to be obtained by the exporter, unless the client holds an active license exemption. Any fees associated with obtaining an export license will be borne by the customer.

• 180-grit pharmaceutical grade (#4) finish facilitates cleaning and decontamination

• Removable bolt on side panel for setup of equipment prior to use (After decontamination)

• Easy to access panel features: digital and mechanical pressure gauges

• Low-pressure alarm with audible and visual functions

• Separate main and light on/off power switches and circuit breaker reset

Material: 304 Stainless Steel

Window Material: Acrylic

Maximum Working Height: 30"

Marks & Listings: CE, UL, USP 797

Electrical Specifications: 120 V, 15 A, 1,500 W, 60 Hz

Weight, Shipping: 716 lb

Dimensions, Product: 62" W x 25" D x 38" H

Dimensions, Shipping: 68" W x 31" D x 42" H

Package Type: Palletized

Unit of Measure: EA
