Select Product
Type

Material

Configuration

Model

Terra Part #PriceShips in
WetStainless SteelVertical 3” BrushBSX600-DAF 5608-25 81160 $14,90210-16 Days2
WetStainless SteelVertical 6” BrushBSX600-DAF-6 5608-26 81161 $17,15910-16 Days3
Type
Material
Configuration
Model
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details

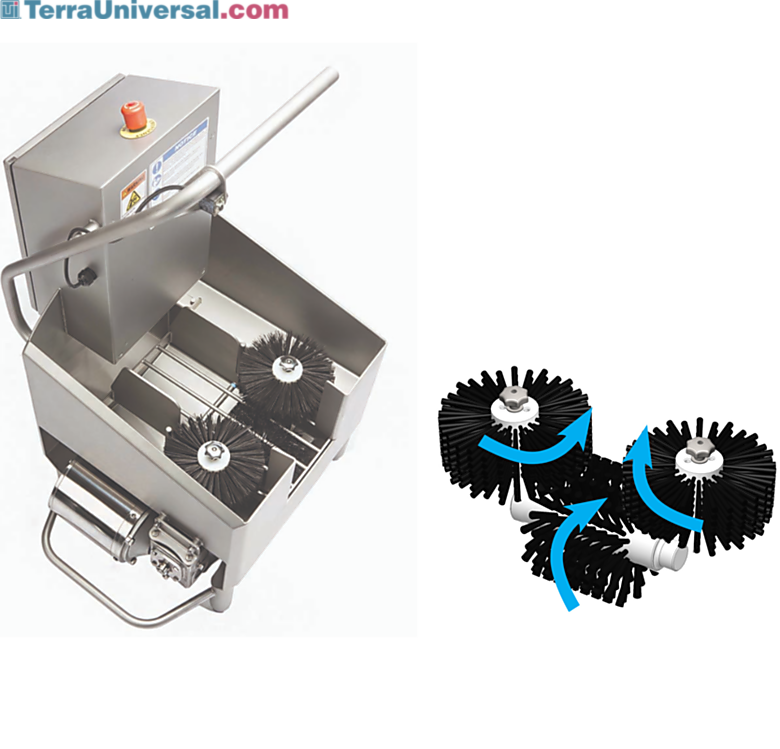

  • BSX600 Wet, Single Boot Scrubbers with three rotating brushes built with a solid stainless steel frame and handrail
  • Features two rotating side brushes and one rating sole brush
  • Stainless steel Venturi dilution valve and metering tip spray water and cleaning solution to clean and disinfect rubber footwear
  • Two stainless steel right angle gearboxes accommodate vertical side brushes
  • Recommended: Alpet® No-Rinse Quat Sanitizer
  • Use in manufacturing and processing plants with a limited to medium open space, access to water lines and accessible floor drains
  • BSX600-DAV includes standard 3” vertical brush
  • BSX600-DAV-6 includes 6” vertical brush
  • Features:
  • Three rotating brushes cleans along bottom and sides of rubber boot
  • Self-draining tub design
  • Four adjustable dairy approved feet
  • Stainless steel electrical enclosure with variable speed drive, time and e-stop enable user to set washdown parameters
  • Unit activation with photo eye sensor mounted on handle
  • Removable brushes and stainless steel access grate
  • Stainless steel washdown rated 1/2 hp motor and worm gear reducer
  • Solenoid activated brush spray system with Venturi injector for sanitizer with
  • flow rated at 1.5 Gpm
  • Throughput:
  • 1 user at a time; user places one foot at a time on unit
  • Slow walk through: 2-3 users per minute
  • Fast walk through: 3-6 users per minute
  • Replacement Brushes for BSX600:
  • USP20110: Vertical Brush 8″ Diameter x 2.5″ Wide (for use with BSX600-DAF, BSX800V-DAF, BSX1000V-DAF)
  • USP20113: Horizontal Brush 8″ Diameter x 6″ Wide (for use with BSX600-DAF, BSX800V-DAF, BSX1000V-DAF)
  • USP20118: Brush Vertical Cyl 8″ x 6″ (for use with BSX600-DAF-6, BSX800V-DAF-6, BSX1000V-DAF-6)

Shoe Cleaners & Sticky Mats

  • BSX600 Single Boot Scrubber Video by Best Sanitizers BSX600 Single Boot Scrubber Video by Best Sanitizers
BSX600 Single Boot Scrubber Video by Best Sanitizers
Features & Benefits

Features and Benefits

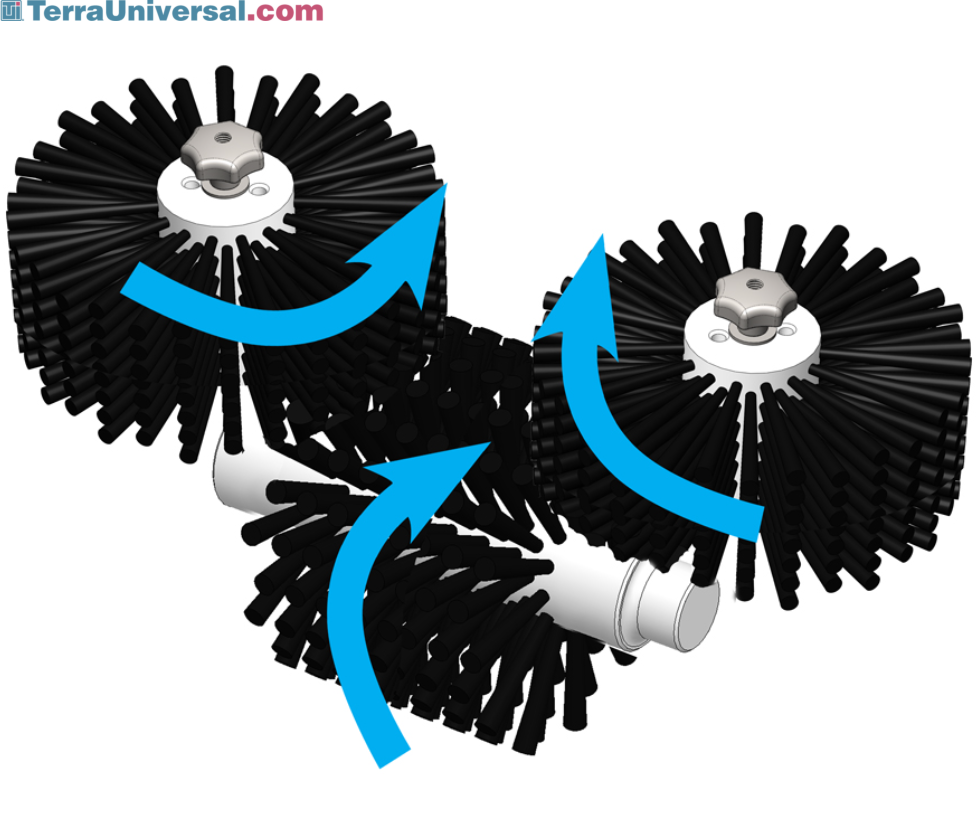

Triple Rotating Brushes

Three rotating brushes thoroughly slough off dirt and grime and sanitize the bottom and sides of rubber footwear

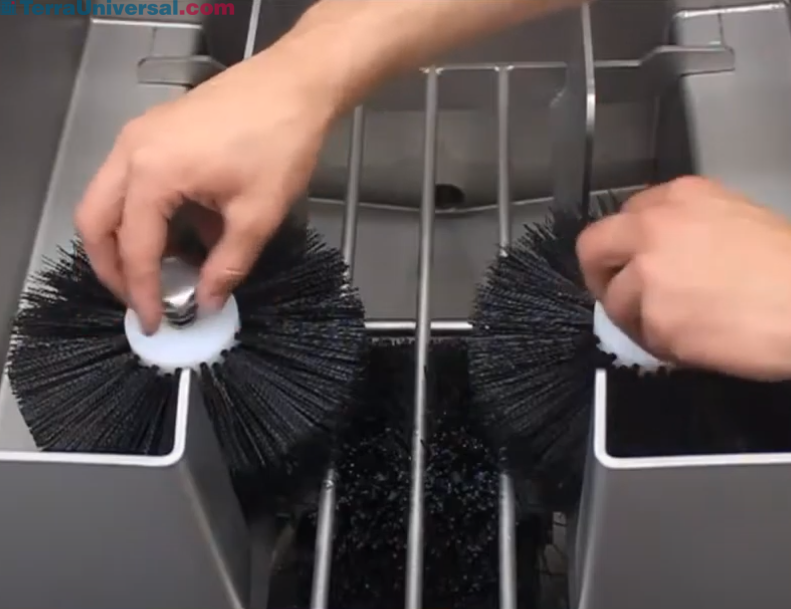

Removable Components

Tool less removal of brushes and stainless steel components for easy cleaning and efficient brush replacement promotes hygienic conditions in busy plants

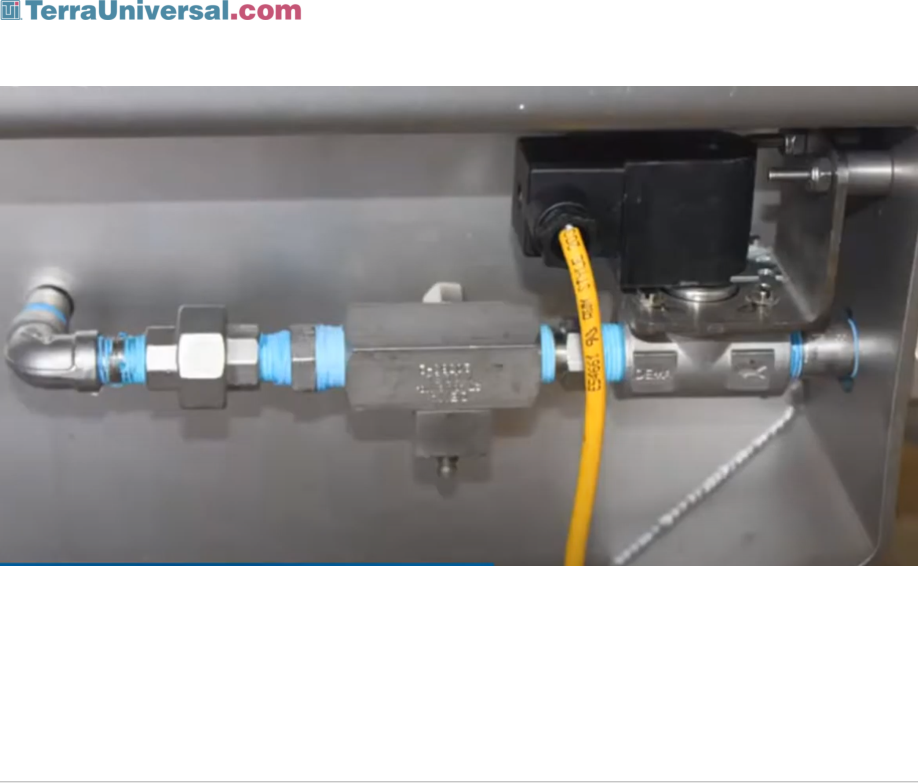

Automated Brush Spray System

Built-in Solenoid activated brush spray and Venturi injector sanitize with a flow rate at 1.5 Gpm; use with Alpet No-Rinse Quat Sanitizer

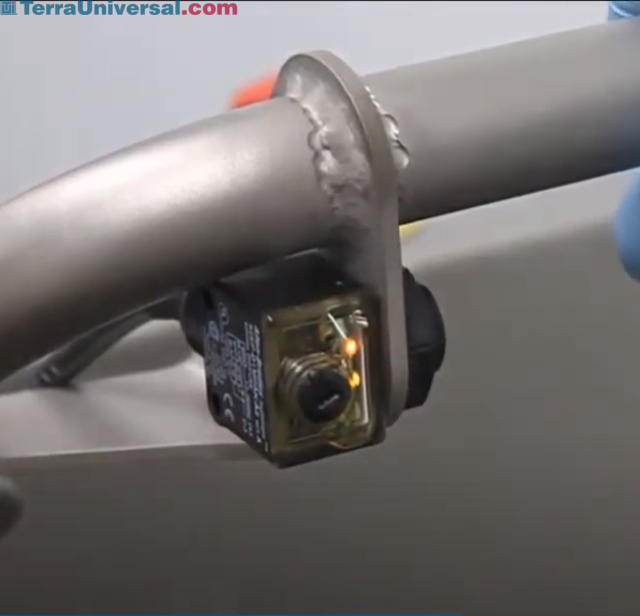

Optical Sensor

BSX600 models, activated by a photo eye sensor mounted on handrail, spray cleaning liquid through brushes and onto rubber footwear
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Four 1-Gallon Containers Alpet No-Rinse Quat Surface Sanitizer by Best Sanitizers

  • 5-Gallon Alpet No-Rinse Quat Surface Sanitizer by Best Sanitizers

  • 50-Gallon Drum Alpet No-Rinse Quat Surface Sanitizer by Best Sanitizers
