Select Product

Voltage

Cooling Method

Modes

Chiller

Halogen Resistant

Model

Manufacturer SKU

Terra Part #PriceShips in
120/240 VOxygen BombIsoperibol, Dynamic, Manual, TimedNoNo25°CC2008802501 6926-38 63884 Request Quote10-14 Days2
120/240 VWater FlowIsoperibol, Dynamic, Manual, TimedYesYes25°CC20000088033701 6926-39A 75822 Request Quote10-14 Days3
Voltage
Cooling Method
Modes
Chiller
Halogen Resistant
Maximum Working Temperature
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

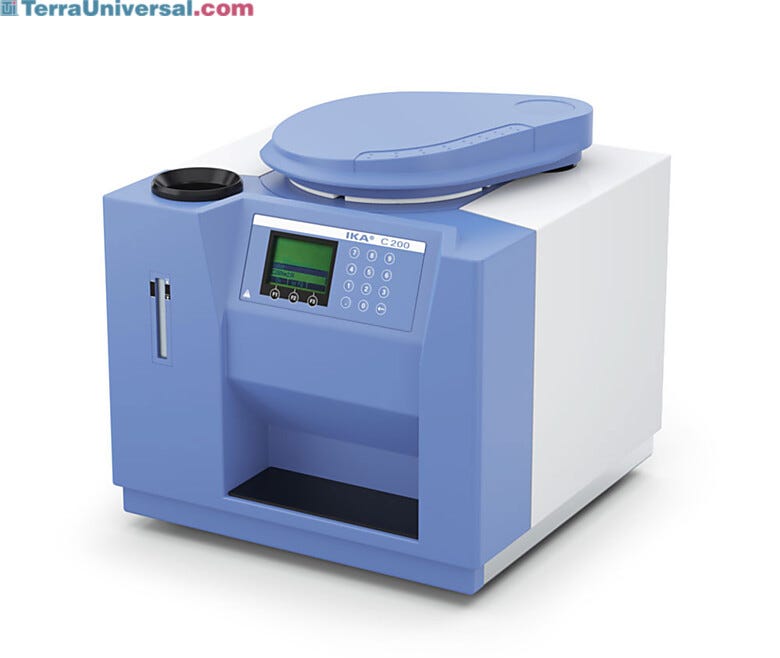

Product Details

  • Semi-automated determination of caloric values of samples (liquid or solid)
  • Ideal in educational institutions and labs with low sample throughput
  • Able to operate in four calorimetric procedures: isoperibol, dynamic, manual and time-controlled
  • Manual (educational) operating mode for manual calculations, activating ignition and end of measurement; displays changes in one minute intervals
  • Reproducibility (using NIST benzoic acid 39j): 0.1% RSD
  • User-friendly display shows four test modes, automatic ignition and calculation of calorific value
  • GOST-Certified
  • Includes decomposition vessel C 5010 (or C 5012), oxygen station C 248 and power supply
  • Max working temperature: 25°C
  • Operating Oxygen Pressure: 30 bar
  • Compliance: DIN 51900, ISO 1928, ASTM D240, ASTM D4809, ASTM, D5865, ASTM D1989, ASTM D5468, ASTM E711
  • RS232 port for PC connection
  • Manual oxygen filling of decomposition vessel
  • Automated water filling of internal vessel for accuracy (user refills the water reservoir)
  • Includes consumables needed for installation and calibration
  • Available accessories include crucibles, consumables and more!

Features & Benefits

Features and Benefits

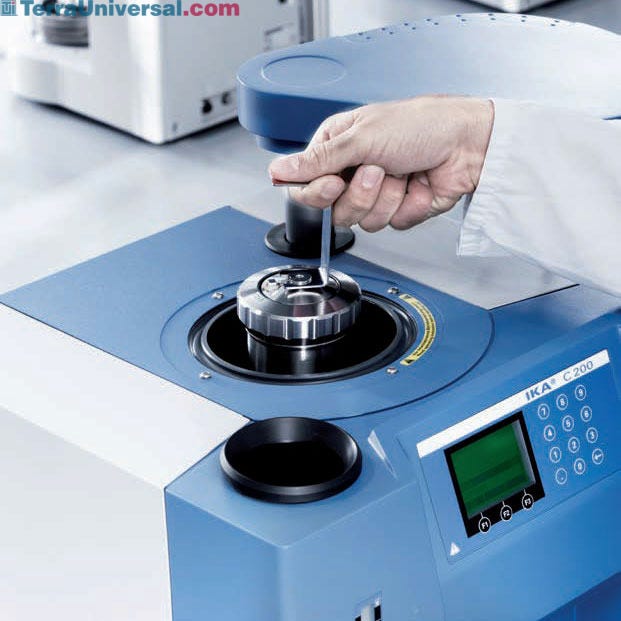

Decomposition Vessel for C 200 Calorimeter

The included screw-top decomposition vessel (C 5010) is constructed from stainless steel and has a fixed ignition wire. These vessels have a 260mL usable volume and can be safely filled with up to 30 bar of oxygen.

Oxygen Filling Station for C 200 Calorimeter

The included oxygen filling station has a manometer with a 6.5’ pressure hose, designed for operation with C 5010 decomposition vessels.

Compact, Low-Volume Instrument

The lid of the C 200 Calorimeter automatically closes shut after rotating it back over the opening (LCD screen prompts the user to close the lid when ready). After operation, the lid can be gently lifted out of the way.
