Select Product

Configuration

Seal Length

Seal Width

Gas Purge

Series

Voltage

PriceShips in
Pneumatic Vacuum No 20" 0.25" Yes CAVN-20 120 V $2,7705-11 Days
Pneumatic Vacuum No 20" 0.25" Yes CAVN-20 220 V $3,0315-11 Days
Pneumatic Vacuum No 20" 0.25" No CAVS-20 120 V $2,3885-11 Days
Pneumatic Vacuum No 20" 0.25" No CAVS-20 220 V $2,6505-11 Days
Configuration
Programmable
Seal Length
Seal Width
Gas Purge
Series
Voltage
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

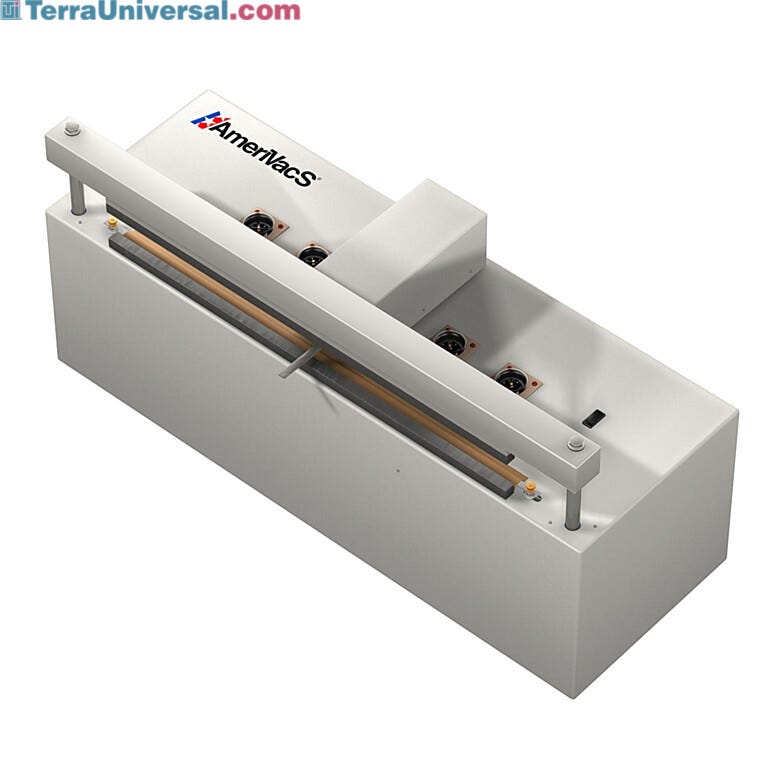

Product Details

• Operate by pressing the convenient hands-free foot pedal

• Equipped with a built-in air compressor/vacuum pump

• Available in gas-purge and non-gas purge models

• Industrial sealing applications include sensitive electronics components, food, medical devices, biotech components, and aerospace parts

• 2-year limited manufacturer warranty

• Cleanroom-compatible powder-coated steel housing resists damaging rust

• Compact portable design

• Retractable stainless steel nozzle

• Pneumatic seal is performed when jaws are safely locked

• 0.25” seal width

• Seal Length: 20" (508 mm)

• Seal Width: 0.25" (10mm opt.)

• Vacuum Flow: 3 CFM (5.1 m³/hr)

• Max. Vacuum Pressure: 27”Hg

• Air Requirements: 5 CFM (8.5 m³/hr) @ 90 PSI

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Vacuum Sealer Digital Temperature Module
    Control temperature this push-button AmeriVacS control module. East-to-see digital readout displays temperature, alarms and other menu options. Cannot be field retrofitted to existing models.
  • Vacuum Sealer Product Support Tray
    AmeriVacs work tray provides support for product being sealed, and greater control over the sealing process. Attachable and adjustable tray is compatible with CAV, and AVP, AVN and AVS sealers up to 35".
