5607-19
Terra Part # 5607-19
Request Quote
Usually ships in 22-28 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 5607-19
57878

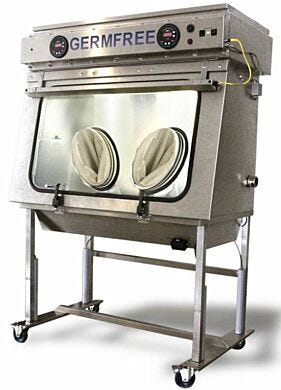

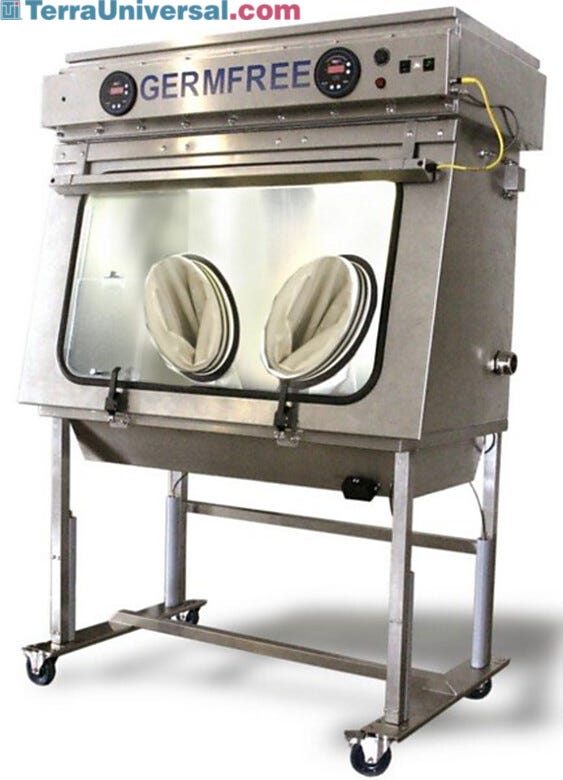

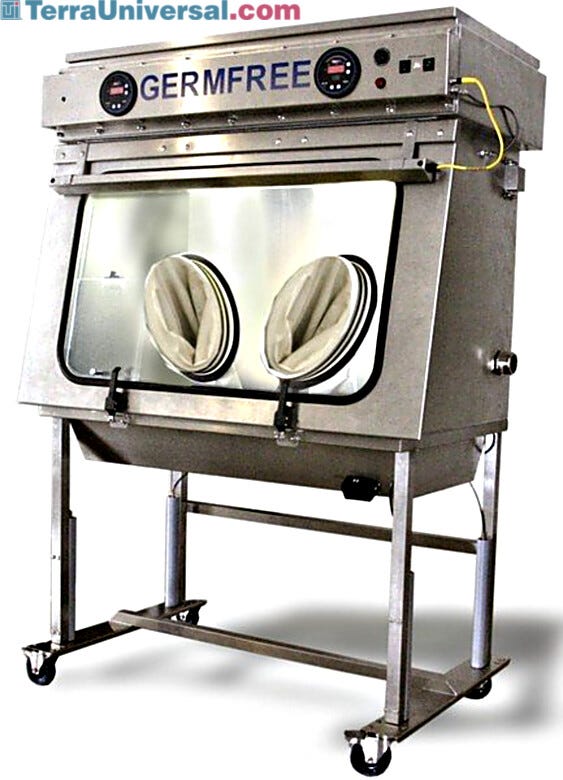

Compounding Aseptic Isolator; VersaFlow, 304 Stainless Steel, 63" W x 32" D x 79.5" H, 2 Glove Ports, GermFree, 120 V
Product Details
  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • Work Area Dimensions (W x D x H) in.  (mm): 33 x 27.5 x 32 in.  (838.5 x 698.5 x 813 mm)
  • Antechamber Dimensions(W x D x H) in.  (mm): 14 X 27.5 x 32 in.  (356 x 698.5 x 813 mm)
  • Material: 100% stainless steel pharmaceutical grade finish; acrylic viewing panel
  • Glove ports: 2
  • Meets USP 797 regulations and provides ISO 5/Class HEPA filtered unidirectional vertical (laminar) airflow for positive pressure (non-hazardous compounding
  • Functions as a Compounding Aseptic Isolator (CAI) and can be converted to a Vertical Laminar Flow Workstation
  • Designed to fit through standard door and elevator openings
  • HEPA filter removes organisms and particulates 0.3 microns in size with 99.99% efficiency
  • Work area accommodates various sizes and types of pharmacy equipment and automated compounders
  • Large antechamber; 1” IV bar adjustable in 2 positions; removable filter diffuser/guard panels; top-hinged and self-supporting front viewing panel, cleaning and equipment ingress; all corners within unit are easy to access and clean; fully adjustable shelf and a stainless steel stand with locking cleanroom grade casters
  • WASTE REMOVAL: 4" diameter Trash tube, 3" diameter Sharps Tube, fully adjustable Sharps Container Shelf
  • SAFETY: Inward/Outward face velocity of 95-100 linear feet per minute at gloveport opening; lock-out handle and key for work area access; digital pressure readout with low pressure alarm; easy glove changes; includes integrated stainless steel stand with clean room grade locking caster; seismic anchors sold separately
  • ERGONOMICS: Two part sleeve/glove system fits various glove types and sizes, accommodates various body types; 3” arm rest of gloveports; large viewing panel
  • FILTRATION: Full framed, standard-size Minipleat HEPA Filters are easy to replace by certifier; filters 100% of inlet and exhaust air from work area and antechamber; pre-filter extends the life of the work area supply HEPA filter
  • ELECTRICAL: High capacity motor/blower system with speed control; includes 10 ft.  Hospital grade powercord; sealed outlet in work area; lighted power ON/OFF indicator switches for blower and lighting; externally mounted fluorescent lights
  • Product categorized by the Export Administration Regulations (EAR) under Export Control Classification Number (ECCN) 2B352: Biological Processing Equipment.  Export of this product outside of the United States may require a license to be obtained by the exporter, unless the client holds an active license exemption.  Any fees associated with obtaining an export license will be borne by the customer.

Material Type: Stainless Steel

Application: Sterile Drug Compounding (USP 797)

Material: 304 Stainless Steel

Number of Glove Ports: 2

Window Material: Acrylic

Maximum Working Height: 29"

Chamber Width: 33"

Chamber Depth: 28"

Chamber Height: 32"

Unit of Measure: EA

Marks & Listings: CE, UL, USP 797

Electrical Specifications: 120 V, 15 A, 1,500 W, 60 Hz

Weight, Product: 576 lb

Dimensions, Product: 63" W x 32" D x 79.5" H

Weight, Shipping: 784 lb

Dimensions, Shipping: 64" W x 43" D x 88" H

Package Type: Palletized
