Terra Part # 6923-32A
$11,719
Usually ships in 30-34 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6923-32A
73356

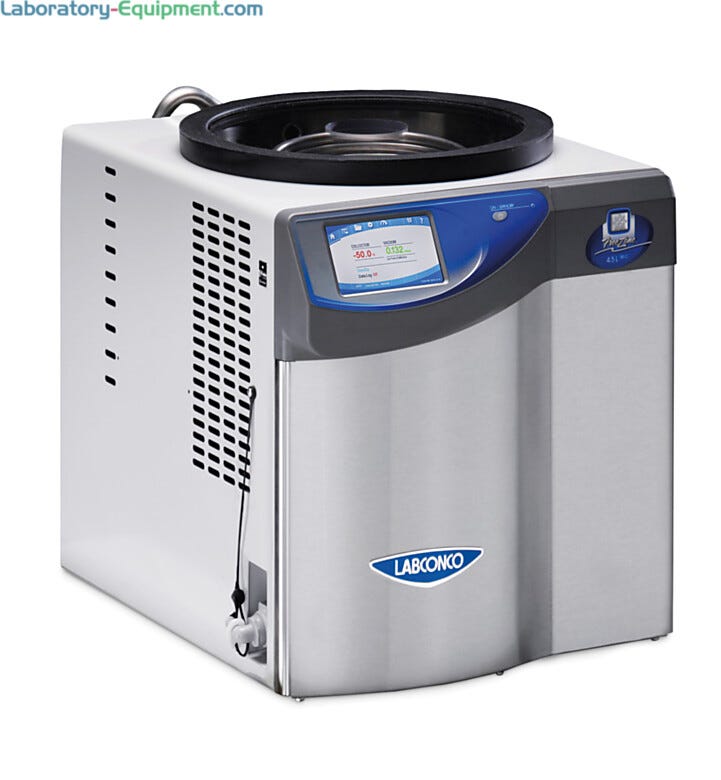

Freeze Dryer; Benchtop, 4.5L, -84°C, PTFE-Coated Collector, Labconco, FreeZone, 120 V

• Removes a maximum of 2.5 liters of water in 24 hrs

• Two 1/2 hp HCFC/CFC-free refrigeration systems

• FreeZone lyophilizer with 5” full color Lyo-works touchscreen display

• Stainless steel chamber and collector coil

• Requires: vacuum pump displacement, drying accessory and freeze dry glassware

• ¾” thick collector lid with neoprene gaskets

• Program storage: 30 with up to 16 steps each

• Hot gas defrost with auto shut off at +65° C (+149° F)

• 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps

• 3” diameter port connects drying accessories

• On/standby switch, moisture sensor and USB port

• Quick-disconnect drain hose fitting and lanyard with hose connector

• Electrical receptacle

Lyo-Works 5” touch screen features:

Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time

Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)

Operating mode (standby or run)

Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)

Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters

Data logging storage and display: table or chart format exportable via USB or Ethernet

Programmable alerts can be sent via Ethernet connection to user-entered email addresses.

Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)

Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset

Level-specific security lock-out prevents program changes

Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug

Vacuum control valve and vacuum break valve

Ice Holding Capacity: 4.5L

Aqueous or Solid Samples?: Low Eutectic Point

Material: PTFE

Included Accessories: PTFE-Coated Collector

Model: FreeZone

Manufactured by: Labconco

Collector Temperature: -84°C

Configuration: Benchtop

Options: 12-Port Drying Chamber/PTFE Collector

Manufacturer SKU: 710402000

Unit of Measure: EA

Marks & Listings: UL, CSA

Electrical Specifications: 120 V, 16 A, 60 Hz

Weight, Product: 178 lb

Dimensions, Product: 22.5" W x 26.5" D x 18.5" H

Weight, Shipping: 197 lb

Dimensions, Shipping: 32" W x 26" D x 28" H

Package Type: Crate

Buy Accessories
  1. Provides a convenient means to attach samples to a freeze dry system | 3647-84 displayed
    Drying Chamber, 12-port, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $1,673
    Increase Down Increase Up
  2. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds. | 3647-87 displayed
    Fast-Freeze Flask, 40ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $78
    Increase Down Increase Up
  3. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 80ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $110
    Increase Down Increase Up
  4. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 120ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $150
    Increase Down Increase Up
  5. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 150ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $155
    Increase Down Increase Up
  6. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 300ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $184
    Increase Down Increase Up
  7. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 600ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $230
    Increase Down Increase Up
  8. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 900ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $246
    Increase Down Increase Up
  9. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 1200ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $278
    Increase Down Increase Up
  10. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 2000ml, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $325
    Increase Down Increase Up
  11. Adaptor, 0.5" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems
    Adaptor, 0.5" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $11
    Increase Down Increase Up
  12. Adaptor, 0.5" flask to 0.5" valve, Borosilicate, 45 Angle, for FreeZone systems
    Adaptor, 0.5" flask to 0.5" valve, Borosilicate, 45 Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $18
    Increase Down Increase Up
  13. Adaptor, 0.75" flask to 0.75" valve, Borosilicate No Angle, for FreeZone systems
    Adaptor, 0.75" flask to 0.75" valve, Borosilicate No Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $14
    Increase Down Increase Up
  14. Adaptor, 0.75" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems
    Adaptor, 0.75" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $19
    Increase Down Increase Up
  15. Borosilicate glass or stainless steel adapters are available either straight or in a 45 degree angle | 3647-99-45 displayed
    Adaptor, 0.75" flask to 0.5" valve, Borosilicate, 45 Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $31
    Increase Down Increase Up
  16. Adaptor, 0.5" flask to 0.5" valve, SS, No Angle, for FreeZone systems
    Adaptor, 0.5" flask to 0.5" valve, SS, No Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $28
    Increase Down Increase Up
  17. Adaptor, 0.5" flask to 0.5" valve, SS, 45 Angle, for FreeZone systems
    Adaptor, 0.5" flask to 0.5" valve, SS, 45 Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $36
    Increase Down Increase Up
  18. Adaptor, 0.75" flask to 0.75" valve, SS, No Angle, for FreeZone systems
    Adaptor, 0.75" flask to 0.75" valve, SS, No Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $29
    Increase Down Increase Up
  19. Adaptor, 0.75" flask to 0.75" valve, SS, 45 Angle, for FreeZone systems
    Adaptor, 0.75" flask to 0.75" valve, SS, 45 Angle, for FreeZone systems Stocked Item is in stock and ready for immediate shipping
    $36
    Increase Down Increase Up
  20. Provide easy transfer of equipment from countertop to cart. | 3647-79 displayed
    Portable Table, for FreeZone Benchtop Stocked Item is in stock and ready for immediate shipping
    $539
    Increase Down Increase Up
  21. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

  • FreeZone 4.5L -50C Freeze Dryers by Labconco FreeZone 4.5L -50C Freeze Dryers by Labconco
  • FreeZone 4.5L -84C Freeze Dryers by Labconco FreeZone 4.5L -84C Freeze Dryers by Labconco

Features and Benefits

FreeZone 4.5L Features

Additional Features

  • 3” diameter port (for connecting drying accessories)
  • Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
  • Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
  • Operating mode (standby or run)
  • Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
  • Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
  • Data logging storage and display: table or chart format exportable via USB or Ethernet
  • Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
  • Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
  • Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
  • Level-specific security lock-out prevents changes to programs and other system parameters
  • Hot gas defrost with auto shut off at +65° C (+149° F)
  • On/standby switch
  • Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
  • USB port (side-mounted) and Ethernet connection (rear-mounted)
  • Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector
  • Rear-mounted electrical receptacle for vacuum pump connection
  • Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
  • 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
  • Vacuum control valve maintains vacuum level set point
  • Vacuum break valve bleeds air into the system in event of power outage
-50°C Collector Temperature
  • For aqueous samples
  • Single 1/3 hp HCFC/CFC-free refrigeration system
  • Removes over 2 liters of water in 24 hours
-84°C Collector Temperature
  • For samples with low eutectic points including acetonitrile
  • Two 1/3 hp HCFC/CFC-free refrigeration system
  • Removes 4 liters of water in 24 hours
-105°C Collector Temperature
  • For samples with very low eutectic points including acetonitrile and diluted methanol or ethanol
  • Two 1/2 hp HCFC/CFC-free refrigeration systems
  • Removes 2.5 liters of water in 24 hours
