6923-70A-220
Terra Part # 6923-70A-220
$18,869
Usually ships in 18-22 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6923-70A-220
73330

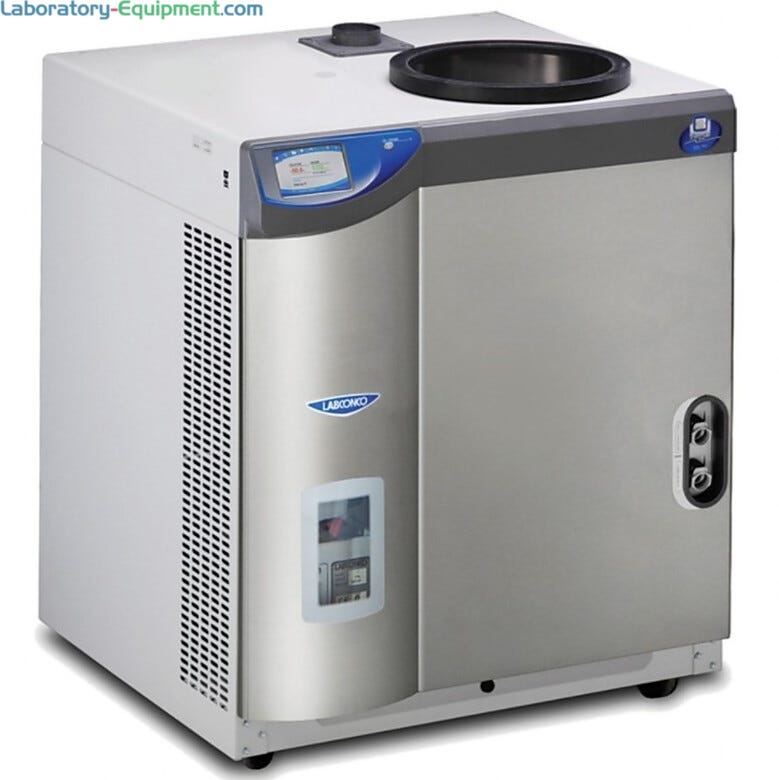

Freeze Dryer; Console, 12L, -50°C, Labconco, FreeZone, 240 V
Product Details
  • Removes a maximum of 8 liters of water in 24 hrs
  • 1 hp HCFC/CFC-free refrigeration systems
  • FreeZone lyophilizer with 5” full color Lyo-works touchscreen display
  • Stainless steel chamber and collector coil
  • Required: vacuum pump displacement, drying accessory and freeze dry glassware
  • ¾” thick collector lid with neoprene gaskets
  • Program storage: 30 with up to 16 steps each
  • Hot gas defrost with auto shut off at +65° C (+149° F)
  • 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
  • 3” diameter port connects drying accessories
  • On/standby switch, moisture sensor and USB port
  • Quick-disconnect drain hose fitting and lanyard with hose connector
  • Electrical receptacle
  • Lyo-Works 5” touch screen features:
  • Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
  • Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
  • Operating mode (standby or run)
  • Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
  • Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
  • Data logging storage and display: table or chart format exportable via USB or Ethernet
  • Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
  • Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
  • Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
  • Level-specific security lock-out prevents program changes
  • Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
  • Vacuum control valve and vacuum break valve

Ice Holding Capacity: 12L

Aqueous or Solid Samples?: Aqueous Only

Material: Stainless Steel

Included Accessories: None

Model: FreeZone

Manufactured by: Labconco

Collector Temperature: -50°C

Configuration: Console

Options: None

Manufacturer SKU: 701211010

Unit of Measure: EA

Marks & Listings: UL, CSA

Electrical Specifications: 240 V, 9 A, 60 Hz

Weight, Product: 225 lb

Dimensions, Product: 31.8" W x 29.6" D x 36.6" H

Weight, Shipping: 310 lb

Dimensions, Shipping: 32" W x 36" D x 43" H

Package Type: Crate

Buy Accessories
  1. Provides a convenient means to attach samples to a freeze dry system  |  3647-84 displayed
    Drying Chamber, 12-port, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $2,327
    Increase Down Increase Up
  2. Tall Clear Chamber, 24.6" H, for FreeZone Freeze Dryer, Labconco
    Tall Clear Chamber, 24.6" H, for FreeZone Freeze Dryer, Labconco Ships Free Free shipping in contiguous USA In stock soon
    $2,921
    Increase Down Increase Up
  3. Short Clear Chamber,16.8" H, for FreeZone Freeze Dryers, Labconco
    Short Clear Chamber,16.8" H, for FreeZone Freeze Dryers, Labconco Ships Free Free shipping in contiguous USA In stock soon
    $2,324
    Increase Down Increase Up
  4. Adapters for connection of flasks  |  3648-50 displayed
    20-Port Manifold for FreeZone Ships Free Free shipping in contiguous USA
    $3,295
    Increase Down Increase Up
  5. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds.  |  3647-87 displayed
    $109
    Increase Down Increase Up
  6. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds  |  3647-88 displayed
    $154
    Increase Down Increase Up
  7. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds  |  3647-88 displayed
    Fast-Freeze Flask, 120ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $210
    Increase Down Increase Up
  8. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds  |  3647-88 displayed
    Fast-Freeze Flask, 150ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $217
    Increase Down Increase Up
  9. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds  |  3647-88 displayed
    Fast-Freeze Flask, 300ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $256
    Increase Down Increase Up
  10. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds  |  3647-88 displayed
    Fast-Freeze Flask, 600ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $317
    Increase Down Increase Up
  11. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds  |  3647-88 displayed
    Fast-Freeze Flask, 900ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $341
    Increase Down Increase Up
  12. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds  |  3647-88 displayed
    Fast-Freeze Flask, 1200ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $382
    Increase Down Increase Up
  13. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds  |  3647-88 displayed
    Fast-Freeze Flask, 2000ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $455
    Increase Down Increase Up
  14. Adaptor, 0.5" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems
    $15
    Increase Down Increase Up
  15. Adaptor, 0.5" flask to 0.5" valve, Borosilicate, 45 Angle, for FreeZone systems
    $27
    Increase Down Increase Up
  16. Adaptor, 0.75" flask to 0.75" valve, Borosilicate No Angle, for FreeZone systems
    $20
    Increase Down Increase Up
  17. Adaptor, 0.75" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems
    $27
    Increase Down Increase Up
  18. Borosilicate glass or stainless steel adapters are available either straight or in a 45 degree angle  |  3647-99-45 displayed
    $45
    Increase Down Increase Up
  19. Adaptor, 0.5" flask to 0.5" valve, SS, No Angle, for FreeZone systems
    $39
    Increase Down Increase Up
  20. Adaptor, 0.5" flask to 0.5" valve, SS, 45 Angle, for FreeZone systems
    $51
    Increase Down Increase Up
  21. Adaptor, 0.75" flask to 0.75" valve, SS, No Angle, for FreeZone systems
    $39
    Increase Down Increase Up
  22. Adaptor, 0.75" flask to 0.75" valve, SS, 45 Angle, for FreeZone systems
    $51
    Increase Down Increase Up
  23. Provide easy transfer of equipment from countertop to cart.  |  3647-79 displayed
    $713
    Increase Down Increase Up
  24. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

  • FreeZone 12 Liter -84C Console Freeze Dryer by Labconco FreeZone 12 Liter -84C Console Freeze Dryer by Labconco
  • Labconco FreeZone 6L -84C Console Freeze Dryer with Stoppering Tray Labconco FreeZone 12L -84C Console Freeze Dryer with Stoppering Tray
  • FreeZone 12 Liter -50C Console Freeze Dryer by Labconco FreeZone -50C Console Freeze Dryer by Labconco

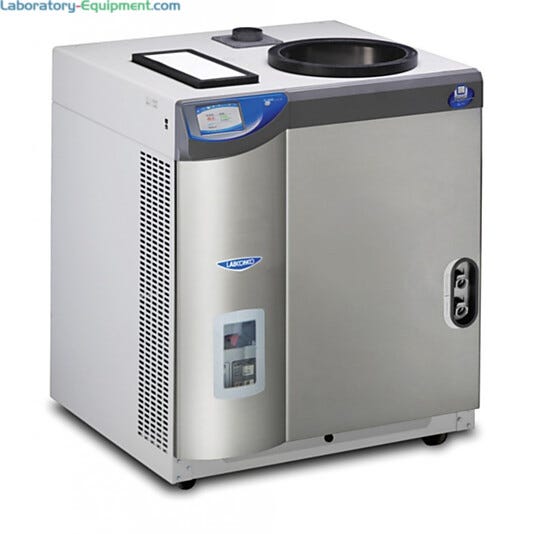

  • Labconco FreeZone 6L -84C Console Freeze Dryer with Stoppering Tray Labconco FreeZone 6L -84C Console Freeze Dryer with Stoppering Tray

Features and Benefits

Learn More: FreeZone 12L

Additional Features

  • 3” diameter port (for connecting drying accessories)
  • Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
  • Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
  • Operating mode (standby or run)
  • Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
  • Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
  • Data logging storage and display: table or chart format exportable via USB or Ethernet
  • Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
  • Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
  • Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
  • Level-specific security lock-out prevents changes to programs and other system parameters
  • Hot gas defrost with auto shut off at +65° C (+149° F)
  • On/standby switch
  • Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
  • USB port (side-mounted) and Ethernet connection (rear-mounted)
  • Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector
  • Rear-mounted electrical receptacle for vacuum pump connection
  • Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
  • 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
  • Vacuum control valve maintains vacuum level set point
  • Vacuum break valve bleeds air into the system in event of power outage
-50°C Collector Temperature
  • For aqueous samples
  • Single 1 hp HCFC/CFC-free refrigeration system
  • Removes over 8 liters of water in 24 hours
  • Available Options: Purge Valve and Mini Chamber
-84°C Collector Temperature
  • For samples with low eutectic points including acetonitrile
  • Two 3/4 hp HCFC/CFC-free refrigeration system
  • Removes 6.5 liters of water in 24 hours
  • Available Options: Purge Valve and Mini Chambe
-105°C Collector Temperature
  • For samples with very low eutectic points including acetonitrile and diluted methanol or ethanol
  • Two 1/2 hp HCFC/CFC-free refrigeration systems
  • Removes 2.5 liters of water in 24 hours
