Select Product
Voltage

Material

Collector Temperature

Options

Manufacturer SKU

Terra Part # Price Ships in
120 V PTFE -50°C PTFE Collector 700612000 6923-59A 73391 $15,078 18-22 Days 2
120 V PTFE -50°C Purge Valve/Mini Chamber/PTFE Collector 700612200 6923-54A 73379 $18,543 18-22 Days 3
120 V PTFE -50°C Purge Valve/PTFE Collector 700612100 6923-53A 73376 $16,349 18-22 Days 4
120 V PTFE -50°C Purge Valve/Shell Freezer/PTFE Collector 700612300 6923-55A 73381 $21,123 18-22 Days 5
120 V PTFE -50°C Tray Dryer/PTFE Collector 700622000 6923-48A 73365 $43,761 18-22 Days 6
240 V PTFE -50°C Tray Dryer/PTFE Collector 700622010 6923-48A-220 73366 $43,761 18-22 Days 7
120 V Stainless Steel -50°C 700611000 6923-49A 73367 $13,713 18-22 Days 8
240 V Stainless Steel -50°C 700611010 6923-49A-220 73368 $13,713 18-22 Days 9
120 V Stainless Steel -50°C Purge Valve 700611100 6923-50A 73369 $14,991 18-22 Days 10
240 V Stainless Steel -50°C Purge Valve 700611110 6923-50A-220 73370 $14,991 18-22 Days 11
120 V Stainless Steel -50°C Purge Valve/Mini Chamber 700611200 6923-51A 73371 $17,181 18-22 Days 12
240 V Stainless Steel -50°C Purge Valve/Mini Chamber 700611210 6923-51A-220 73372 $17,181 18-22 Days 13
120 V Stainless Steel -50°C Purge Valve/Shell Freezer 700611300 6923-52A 73374 $19,769 18-22 Days 14
240 V Stainless Steel -50°C Purge Valve/Shell Freezer 700611310 6923-52A-220 73375 $19,769 18-22 Days 15
240 V PTFE -50°C Purge Valve/PTFE Collector 700612110 6923-53A-220 73378 $16,349 18-22 Days 16
240 V PTFE -50°C Purge Valve/Mini Chamber/PTFE Collector 700612210 6923-54A-220 73380 $18,543 18-22 Days 17
240 V PTFE -50°C Purge Valve/Shell Freezer/PTFE Collector 700612310 6923-55A-220 73382 $21,123 18-22 Days 18
120 V Stainless Steel -50°C Stoppering Tray Dryer 700621000 6923-56A 73383 $42,396 18-22 Days 19
240 V Stainless Steel -50°C Stoppering Tray Dryer 700621010 6923-56A-220 73384 $42,396 18-22 Days 20
120 V Stainless Steel -50°C Purge Valve/Tray Dryer 700621100 6923-57A 73385 $43,675 18-22 Days 21
240 V Stainless Steel -50°C Purge Valve/Tray Dryer 700621110 6923-57A-220 73386 $43,675 18-22 Days 22
120 V PTFE -50°C Purge Valve/Tray Dryer/PTFE Collector 700622100 6923-58A 73387 $45,033 18-22 Days 23
240 V PTFE -50°C Purge Valve/Tray Dryer/PTFE Collector 700622110 6923-58A-220 73388 $45,033 18-22 Days 24
240 V Stainless Steel -84°C 710611030 6922-08A-220 73445 $17,328 25-29 Days 25
240 V PTFE -84°C PTFE Collector 710612030 6922-09A-220 73446 $18,678 25-29 Days 26
240 V Stainless Steel -84°C Purge Valve 710611130 6922-10A-220 73447 $18,603 25-29 Days 27
240 V PTFE -84°C Purge Valve/PTFE Collector 710612130 6922-11A-220 73448 $19,956 25-29 Days 28
240 V Stainless Steel -84°C Purge Valve/Mini Chamber 710611230 6922-12A-220 73449 $20,793 25-29 Days 29
240 V PTFE -84°C Purge Valve/Mini Chamber/PTFE Collector 710612230 6922-13A-220 73450 $22,146 25-29 Days 30
120 V Stainless Steel -84°C 710611000 6923-60A 73451 $17,328 30-34 Days 31
240 V Stainless Steel -84°C 710611010 6923-60A-220 73452 $17,328 30-34 Days 32
120 V Stainless Steel -84°C Purge Valve 710611100 6923-61A 73453 $18,603 30-34 Days 33
240 V Stainless Steel -84°C Purge Valve 710611110 6923-61A-220 73454 $18,603 30-34 Days 34
120 V Stainless Steel -84°C Purge Valve/Mini Chamber 710611200 6923-62A 73456 $20,793 30-34 Days 35
240 V Stainless Steel -84°C Purge Valve/Mini Chamber 710611210 6923-62A-220 73457 $20,793 30-34 Days 36
120 V PTFE -84°C Purge Valve/PTFE Collector 710612100 6923-63A 73458 $19,956 30-34 Days 37
240 V PTFE -84°C Purge Valve/PTFE Collector 710612110 6923-63A-220 73459 $19,956 30-34 Days 38
120 V PTFE -84°C Purge Valve/Mini Chamber/PTFE Collector 710612200 6923-64A 73460 $22,146 30-34 Days 39
240 V PTFE -84°C Purge Valve/Mini Chamber/PTFE Collector 710612210 6923-64A-220 73461 $22,146 30-34 Days 40
120 V PTFE -84°C PTFE Collector 710612000 6923-65A 73463 $18,678 30-34 Days 41
240 V PTFE -84°C PTFE Collector 710612010 6923-65A-220 73464 $18,678 30-34 Days 42
Voltage
Material
Collector Temperature
Options
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

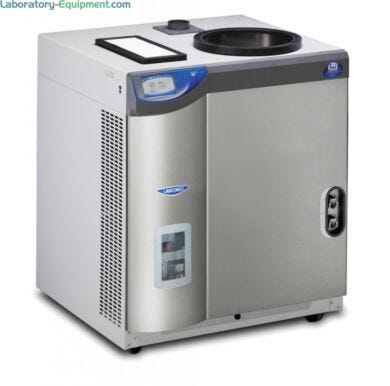

  • FreeZone 6-Liter Console Freeze Dryers by Labconco in two collector cooling temperatures for aqueous and low eutectic point samples
  • Console models with Stoppering Tray feature front viewing window, inner chamber space for a vacuum pump and space for a large tray dryer
  • Features: large touch screen display, data logging, temperature sensors, manual or programmed tray dryers shelf temperature control, end point detection, USB port and Ethernet connection, vacuum break valve and patented moisture sensor and upright stainless steel collector coil
  • Available options: purge valve, mini vacuum drying chamber, shell freezer (for -50° C only)
  • Required accessories: vacuum pump, drying chambers and freeze dry glasswares
  • Material: stainless steel collector coil and glacier white, powder-coated steel exterior
  • Removes 4L of water in 24 hours
  • Collector temperature: -50° C (-58° F) or -84° C (-119° F)
  • Ice Holding Capacity: 6 liter
  • ¾" thick collector lid with neoprene gaskets
  • Touchscreen: 5” full color Lyo-Works touch screen display provides convenient programming and useful insights
  • Program storage: 30 with up to 16 steps each

  • FreeZone 6 Liter -50C Console Freeze Dryer by Labconco FreeZone 6 Liter -50C Console Freeze Dryer by Labconco
  • FreeZone 6 Liter -84C Console Freeze Dryer by Labconco FreeZone 6 Liter -84C Console Freeze Dryer by Labconco
  • Labconco FreeZone 6L -50C Console Freeze Dryer with Stoppering Tray Labconco FreeZone 6L -50C Console Freeze Dryer with Stoppering Tray
Features & Benefits

Features & Benefits

Learn More: FreeZone 6L

Additional Features

  • 3” diameter port (for connecting drying accessories)
  • Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
  • Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
  • Operating mode (standby or run)
  • Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
  • Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
  • Data logging storage and display: table or chart format exportable via USB or Ethernet
  • Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
  • Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
  • Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
  • Level-specific security lock-out prevents changes to programs and other system parameters
  • Hot gas defrost with auto shut off at +65° C (+149° F)
  • On/standby switch
  • Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
  • USB port (side-mounted) and Ethernet connection (rear-mounted)
  • Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector
  • Rear-mounted electrical receptacle for vacuum pump connection
  • Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
  • 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
  • Vacuum control valve maintains vacuum level set point
  • Vacuum break valve bleeds air into the system in event of power outage
-50°C Collector Temperature
  • For aqueous samples
  • Single 1/3 hp HCFC/CFC-free refrigeration system
  • Removes over 2 liters of water in 24 hours
-84°C Collector Temperature
  • For samples with low eutectic points including acetonitrile
  • Two 1/3 hp HCFC/CFC-free refrigeration system
  • Removes 4 liters of water in 24 hours
