1501-05
Terra Part # 1501-05
$225
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Terra Part # 1501-05
85313
$225
In stock
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

In stock
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Product Details

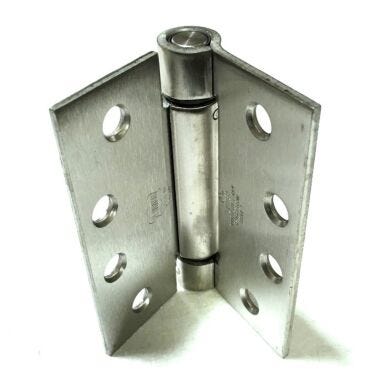

  • Hinge for Terra fire-rated doors
  • Consult a Terrra support agent for more info
  • Pivot point aligns with commercial butt hinges gauge .123 to .134
  • Dimensions: 2" W x 4" H door leaf, 2" W x 4" H frame leaf, 4" overall width
  • Screw Size (and Quantity Per Hinge) Wood: #10 x 3/4" (8)
  • Contract Grade
  • ANSI K81071F
  • ANSI templated screw hole pattern
  • UL Listed for fire door applications
  • BHMA certified Grade 1 for one million cycles
  • Non-handed
  • Mounting: Reversible
  • Gauge: 0.13
  • Machine: #10-24 x 1/2" (8)
  • Recommended Maximum Labeled Door Size: 3' Wide by 7' High
  • Recommended Maximum Door Weight: 85 lbs with two spring hinges and one butt hinge, 110 lbs with three spring hinges

Marks & Listings: UL

Compatibility: Fire-Rated Pass-Throughs

Hinge Type: Butt, Full-Mortise

Material: 304 Stainless Steel

Finish: Satin

Bearing: Self-Lubricated

Screw Holes: 8

Screw Holes?: Yes

Knuckles: 3

Unit of Measure: EA

Marks & Listings: UL
