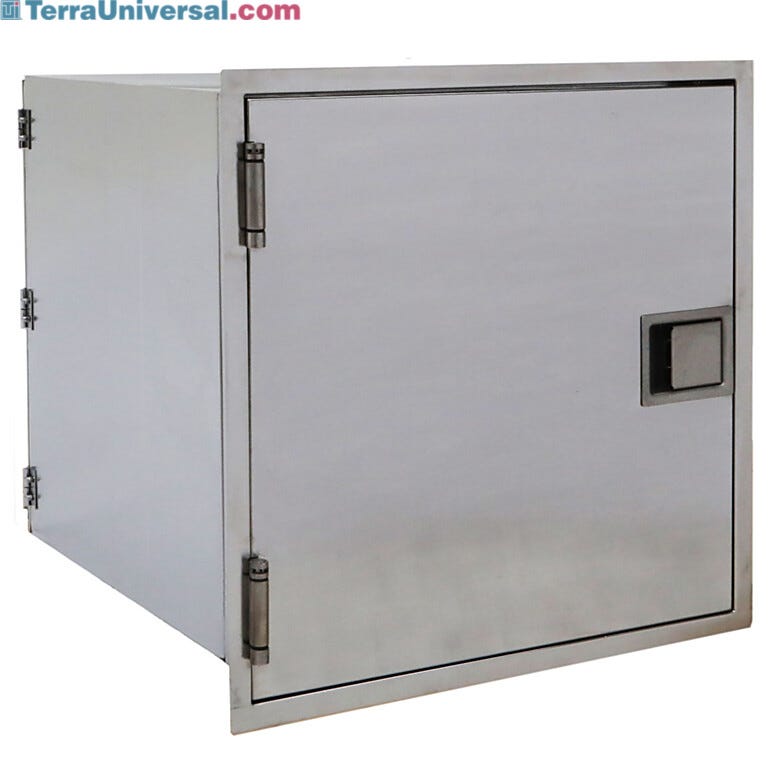

Fire-rated pass-through chamber, 24
Fire-Rated Pass-Through Chambers,Passthroughs for Architects
Product Group:
1993-PP-02
1993-PP-02 74926

CleanSeam™ Fire-Rated Pass-Through Chambers

  • Available Certified ISO Graded Designs: ISO 6, ISO 7, ISO 8
Read more
Stocked ULus Listed Fire Rated Icon ISO 6 Icon
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Material

Sort Order:
Certified ISO Grade™ Design

Sort Order:
Mounting Position

Sort Order:
Viewing Window

Sort Order:
Inside Width

Sort Order:
Inside Depth

Sort Order:

 Terra Part # Price Ships in
304 Stainless Steel ISO 6 Flush Wall No 12" 12" 1993-77A 60488 $8,210 1-3 Days 2
Quick Ship+ Available Only 7 left in stock
304 Stainless Steel ISO 6 Flush Wall No 18" 24" 1993-87A 79789 $10,531 1-3 Days 3
In stock soon
304 Stainless Steel ISO 6 Flush Wall No 18" 18" 1993-78A 60489 $10,271 1-3 Days 4
Quick Ship+ Available In stock
304 Stainless Steel ISO 6 Flush Wall No 24" 24" 1993-79A 60490 $12,232 1-3 Days 5
Quick Ship+ Available Only 2 left in stock
304 Stainless Steel ISO 6 Flush Wall No 36" 36" 1993-81A 60492 $15,156 15-25 Days 6
304 Stainless Steel ISO 6 Flush Wall Yes 18" 24" 2641-16 79790 $14,280 5-9 Days 7
304 Stainless Steel ISO 6 Flush Wall Yes 24" 24" 2641-12 58753 $22,274 1-3 Days 8
Quick Ship+ Available Only 5 left in stock
304 Stainless Steel ISO 6 Flush Wall Yes 24" 18" 2641-11A 59450 $16,085 1-3 Days 9
Quick Ship+ Available Only 4 left in stock
304 Stainless Steel ISO 6 Flush Wall Yes 36" 36" 2641-14 58755 $30,554 15-25 Days 10
Material
Certified ISO Grade™ Design
Mounting Position
Viewing Window
Inside Width
Inside Depth
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available Certified ISO Graded Designs: ISO 6, ISO 7, ISO 8
  • Designed for installation in a fire-rated cleanroom or laboratory wall
  • Features rounded corners with no cracks; ideal for strict sterilizing protocol
  • Allows transfer of materials into and out of the controlled environment
  • Fire-rated door carries the UL 10B label for 90-minute fire exposure (suitable for 2-hour wall rating)
  • Fire-rated door does not include a window
  • Opposite-side door has a standard LiftLatch and static-dissipative PVC window
  • 304 stainless steel chamber provides durable, chemical-resistant surfaces for easy cleaning
  • Automatic interlock mechanism offers high reliability with no maintenance and minimizes contamination exposure while materials are transferred to and from cleanroom
  • To maintain UL fire-rating certification, maximum fire-rated door dimensions not to exceed 36"W x 48"H
Show more

• Marks & Listings: UL, ULC

Show more

Fire-Rated Pass-Through Chambers

  • Cleanroom Pass-Through Chamber Video Overview Cleanroom Pass-Through Features and Selection Guide
  • Fire-Rated Pass-Through Chamber
  • CleanSeam+ Pass-Through
  • Fire Rated Chamber, 24 FIre-Rated Pass-Through, 24"W x 26.5"D x 24"H
  • Fire-Rated Pass-Through Door with No Window Fire-Rated Pass-Through Door
  • Pass-Through; EP 304 SS, CleanSeam, 18 Fire-Rated Pass-Through Chamber, 18"W x 20.5"D x 24"H
Cleanroom Pass-Through Chamber Video Overview
Video introduction to pass-through chamber designs, construction and accessories | 1948-20D displayed Cleanroom Pass-Through Features and Selection Guide Video introduction of pass-through chamber designs, construction and accessories. Discover how these chambers increase efficiency and reduce contamination during between-room transfer of samples and supplies.
Video overview of Terra's fire-rated pass-through chambers | 2641-38 displayed Fire-Rated Pass-Through Chamber Fire-rated pass-through chambers from Terra are UL-10B fire-rated for 90-minute fire exposure (suitable for 2-hour wall rating). Watch this video to learn about more features and their advantages, including the self-closing door and rugged, high-use construction.
| 1686-12 displayed CleanSeam+ Pass-Through This video outlines the design features and benefits of CleanSeam+ pass-through chambers. Watch the brief, non-time-lapse installation of a chamber and learn about the non-isolated automated door interlock.
Fire Rated Chamber, 24
Fire-rated pass-through chamber designed for installation in a fire-rated cleanroom or laboratory wall | 2641-12 displayed FIre-Rated Pass-Through, 24"W x 26.5"D x 24"H Fire-Rated Convenience Doors are self-closing and carry the UL 10B label for 90-minute fire exposure (suitable for a two-hour fire wall).
Fire-Rated Pass-Through Door with No Window
Designed for installation in a fire-rated cleanroom or laboratory wall | 1993-82A displayed Fire-Rated Pass-Through Door Fire-Rated Convenience Doors are self-closing and carry the UL 10B label for 90-minute fire exposure (suitable for a two-hour fire wall).
Pass-Through; EP 304 SS, CleanSeam, 18
Fire-rated pass-through chamber designed for installation in a fire-rated cleanroom or laboratory wall | 1993-78A displayed Fire-Rated Pass-Through Chamber, 18"W x 20.5"D x 24"H Fire-rated pass-through doors are self-closing and carry the UL 10B label for 90-minute fire exposure (suitable for a two-hour fire wall); chamber shown: 18"W x 20.5"D x 24"H
Features & Benefits

Features and Benefits

Learn More: Fire-Rated Pass Throughs
Print Copy Copied

Fire-Rated Pass-Through Chambers Without Windows

Chambers Tailored to Your Requirements

Modifications are no problem, as long as you keep these points in mind to retain the UL-B fire-rating:

  • Door thickness cannot be modified
  • Window dimensions cannot be modified
  • Pass-through chamber width and height dimensions other than what is shown in the ordering chart are possible, but are restricted to the outside dimensional (OD) range between 24"W x 18"H and 36"W x 48"H

Discuss your specific needs with a Terra Product Specialist.

Fire-Rated Pass-Through Installation

Fire-rated doors are designed to be mounted flush with the wall, with the body of the pass-through extending into the unclassified room (see illustration).

Access Clearances
  • Width = (Nominal Chamber Width) – 1.88"
  • Depth = (Nominal Chamber Depth) – 0.12"
  • Height = (Nominal Chamber Height) – 1.25"
  • Wall Cut-Out = Add 0.5" to chamber width and add 0.5" to chamber height
Pass-Through Support Brackets

Terra offers support brackets and hardware to ensure secure mounting (order separately). In most cases, a bracket kit provides ample support. Select support brackets for 36"D (914 mm) wall-mount models to brace the larger chamber. Two brackets are recommended for wide chambers (installed side-by-side on the wall).

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Top-Tier Clients

Terra’s key customers include some of the largest research labs, production facilities and universities in the world

Long-Standing Industry Expertise

For 45 years, Terra has served the life science, academic research, pharmaceutical, biotechnology, medical device, semiconductor and aerospace markets. We intimately understand the cGMP, GLP, ISO, ASTM , IEST and OSHA requirements.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.

Terra's QuickBuild Program

Build your system using in-stock components and accessories. We’ll assemble your system, package and ship your order in 6 business days.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Cleanroom Pass-Through Chamber Support Brackets

    Support Brackets for Pass-Through Chambers

    Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
    Pricing starting at $542
  • Passthrough Chamber Door Stop

    Passthrough Chamber Door Stop

    This stainless steel door stop limits the arc of the pass-through door's swing to 90°, preventing damage to wall, door latch and other components. Door stops can be adjusted to allow other angles.
