Fire-Rated Pass-Through Chambers
2635-PP-07 74922
Smart® CleanMount® Fire-Rated Pass-Through Chambers
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details

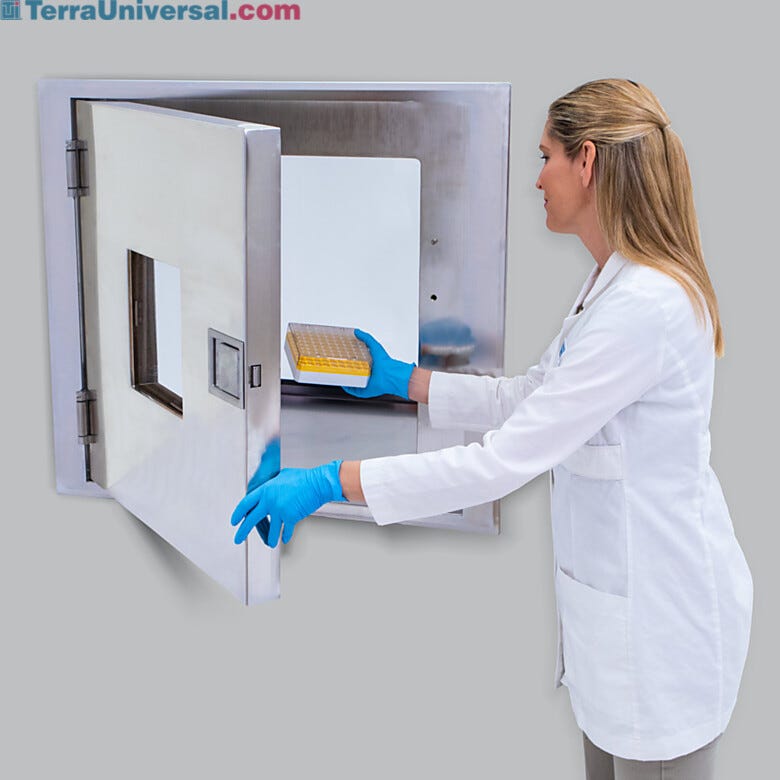

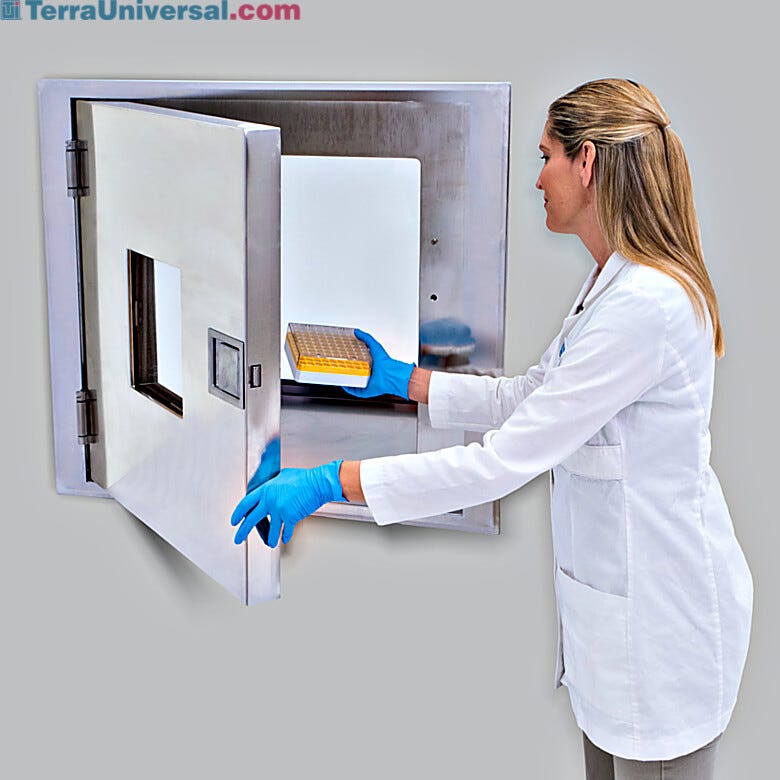

• The front panel of these models bears the UL 10B label for 90-minute fire exposure (suitable for 2-hour wall rating).
• Fire-rated doors include 2" of insulation and a paddle-style pull-latch
• Models include viewing windows for convenient monitoring of pass-through contents
• Electronically controlled door interlocks with audible/visible door-opening alerts
• Mix-and-match unique electronic options
• Built-in power source supports any combination of accessories
• Double-wall construction with isolated interlock
• Smooth interior with coved corners
• CleanMount® system installs without fasteners
• Easy to remove and reinstall if needed
• Frame sits flush against the wall surface to minimize ledges
• LED light bar glows red when the electronic door interlock is active
• Includes two wireless alarm bells that plug into a wall outlet up to 200 feet away
• Stainless steel construction ensures a durable, corrosion-resistant surface
• To maintain UL fire-rating certification, maximum fire-rated door dimensions not to exceed 30”W x 45”H
• Marks & Listings: UL, ULC
Fire-Rated Pass-Through Chambers
Smart® Pass-Through Chambers by Terra Universal- Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
- Cleanroom Pass-Through Features and Selection Guide
- Fire-Rated Pass-Through Chamber
- CleanSeam+ Pass-Through
- Hands-Free, Automatic Pass-Through Door
- Smart Pass-Through Chamber, 24"W x 24"D x 24"H
Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day Smart® Pass-Through Chambers by Terra Universal Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day. When first introduced to the market, the pass through chamber had one-specific purpose: to reduce personnel traffic by providing a convenient means for sample transfer into and out of the cleanroom. With the Smart Pass Through, Terra has reimagined the jobs a pass through can perform by offering a menu of standard, add-on features compatible with every unit. These features are mounted external to the work area, so the integrity of the internal chamber is not impacted. Beyond sample transfer, the Smart Pass Through can disinfect products, log environmental conditions, track personnel or sample lots, streamline employee communication and add layers of security to your cleanroom.
Smart® pass-through with “T” shape 3-door design, for USP 800 hazardous compounding; interconnects chemo room, USP 800 room, and ante room | 2635-10B-2-316 displayed Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding Terra’s Smart® pass-through chambers can be configured as a “T” or “X” shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.
Video introduction to pass-through chamber designs, construction and accessories | 1948-20D displayed Cleanroom Pass-Through Features and Selection Guide Video introduction of pass-through chamber designs, construction and accessories. Discover how these chambers increase efficiency and reduce contamination during between-room transfer of samples and supplies.
Video overview of Terra's fire-rated pass-through chambers | 2641-38 displayed Fire-Rated Pass-Through Chamber Fire-rated pass-through chambers from Terra are UL-10B fire-rated for 90-minute fire exposure (suitable for 2-hour wall rating). Watch this video to learn about more features and their advantages, including the self-closing door and rugged, high-use construction.
| 1686-12 displayed CleanSeam+ Pass-Through This video outlines the design features and benefits of CleanSeam+ pass-through chambers. Watch the brief, non-time-lapse installation of a chamber and learn about the non-isolated automated door interlock.
This video shows how the hands-free operation of the Automatic Pass-Through Door minimizes the potential for touch contamination. Hands-Free, Automatic Pass-Through Door The Automated Pass-Through Door (exclusive to Terra's Smart Pass-Through Chambers) prevents personnel from inadvertantly contaminating their gloves or surfaces around the cleanroom.
Smart Pass-Throughs include audible/visible status alerts to indicate when the opposing door is open (interlock engaged). | 2635-10B-2-316 displayed Smart Pass-Through Chamber, 24"W x 24"D x 24"H Smart Pass-Through Chambers feature 316L stainless steel construction, an electronic interlock, and audio/visual status alerts to indicate when the opposing door is open (interlock engaged).
Features & Benefits
Features and Benefits
CleanMount Basics
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications.
A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall)
Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination
Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Print Copy Copied
CleanMount Smart Pass-Through Chamber
Don't risk operational delays or cleanroom shutdown because of a damaged door!
Terra's pass-through chambers last indefinitely, much longer than our standard product revision cycle. Pass-Through doors, however, are subject to damage, and ordering a legacy replacement can be costly and disrupt cleanroom operation. To avoid these problems, order replacements at the time you purchase the pass-through chamber; simply add “-RH” (for right-side hinge) or “-LH” (for left-side hinge) to the part number of the chamber.CleanMount™ Design Allows Servicing or Replacement without Cleanroom Shutdown!
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications. A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall)
Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination Access Clearances Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Fire-Rated CleanMount® Pass-Through Chamber
Fire-rated pass-throughs protect personnel, equipment, and facility by maintaining the integrity of the fire-rated wall. They bear the UL 10B label for 90-minute fire exposure.
Removable Cart Ramps on Floor-Mount Models
Floor-mount pass-through chambers include dual-side stainless steel cart ramps, sloped on three sides, that are removable for easy cleaning.
Interlock Status Lights
A green light bar indicates the door is available for use, with the electronic interlock disengaged. The bar turns red when the opposing door is open to indicate the electronic interlock is engaged.
Wireless Door Alert
Alarm bell rings when its assigned door is open (two bells per chamber); plugs into a standard wall outlet.
CleanMount™ Quick Install System
Clean-Mount™ clamping design allows pass-through installation flush against a cleanroom wall in a few minutes, without drilling into the finished wall; mounting brackets clamp flush against walls of any thickness.
Flush-Mount Design Prevents Dust Accumulation
CleanMount® pass-throughs hug the cleanroom wall, eliminating gaps that collect germs and particle and making them ideal for critical bio/pharmaceutical cleanroom use.
Stainless Steel-Reinforced Removable Pass-Through Door
Stainless steel-reinforced CleanMount® doors provide superior strength and durability. Heavy-duty barrel hinges allow the doors to lift off for easy replacement or more thorough cleaning/decontamination.
CleanMount® Lipless Chamber Eliminates Clearance Obstructions
Instead of welded seams, the corners of the CleanMount® pass-through interior are coved to eliminate dust and germ traps. The lipless opening presents no clearance obstructions and further simplifies cleaning.
Fire-Rated Pass-Through Glass Window
The wire-free glass-ceramic incorporate a surface-applied, fire-rated film and is impact rated for additional safety. These windows feature a high level of clarity and offer protection from either side.
Spring-Loaded Fire-Rated Passthrough Hinge
Spring-loaded hinges provide the self-closing capability required in a fire-rated wall. Automatic closing doors also simplify operation for operators with hands full.
Insulated Fire-Rated Pass-Through Door
Terra’s fire-rated door meets UL 10B requirements for 90-minute fire exposure, including hose-stream testing. The inside of the door is lined with 2”-thick SuperWool® Plus insulation to reduce heat transfer from elevated room temperatures.
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Comprehensive Product Portfolio
Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.
Long-Term Customers
Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
LED Recessed Light
Activates when either pass-through door opens; flush with the wall surface, covered by a static-dissipative PVC lens. -
ULPA-Filtered Air Shower
High-velocity, ULPA-filtered air dislodges surface-deposited contaminants and exits the chamber through a filtered exhaust. -
Video Camera
Interior HD video camera records continuously or upon door-opening; can also be used for remote monitoring the transfer chamber. -
Infrared Load Sensor
Infrared beams detect objects placed inside the transfer chamber; can be used to trigger an audible alert. -
Iris Scanner
Fully automated iris scanner for secure, hands-free access (includes datalogging and optional secondary keycard reader). -
Automatic Door
Hands-free operation of the pass-through door, governed by the electronic interlock; automatically closes based on delay timer. -
LCD Message Panel
Displays critical environmental information related to the interior chamber such as temperature and relative humidity (customizable). -
UV Sanitizing Module
Provides a timed cycle of 254 nm Ultra-Violet (UV) radiation to neutralize bacteria, viruses and mold spores within line-of-sight of the light fixture. -
Support Brackets for Pass-Through Chambers
Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
