Terra Part # 9300-35B
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping

• Shank: .020"

• Hook Length: .011"

• Hook Angle: 60 degrees

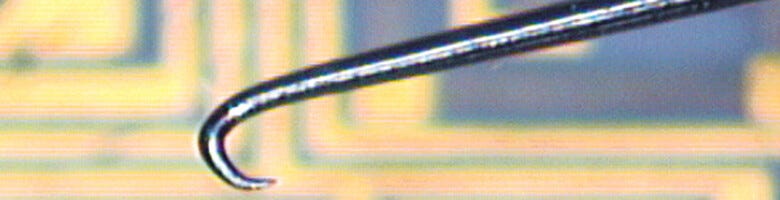

• Hook, Blue

• Used in Universal Tool Kit 9300-35

• Ideal for dressing of gold wire and removal of bond wire.

Weight, Product: 1 Lbs

Weight, Shipping: 4 lb

Package Type: Box

Unit of Measure: EA

Features and Benefits

Universal Tool Kit

Universal Tool Kit

  • Allows accurate manipulation of wire bonds, gold ribbon, and aids in dressing and tuning
  • Indispensable for laying down and removing epoxy, removing foreign material
  • Convenient color-coded handles for easy tip identification

This Universal Tool Kit comes with four hand tools: two pointed, one hooked end, and one chisel-end. The color-coded handles make it easy to grab the right tool for the right job. Handles are 4" (102 mm) long and .8125" (21 mm) in diameter. Unless specified, dimensions indicated below are inches.

  • A. Hook (Blue)
    • Ideal for dressing of gold wire and removal of bond wire.
    • Shank: .020"
    • Hook Length: .011"
    • Hook Angle: 60 degrees
  • B. Fine Point (White)
    • Handy for applying small amounts of epoxy and removing foreign materials in small areas. It also helps in dressing of gold wire.
    • Shank: .020"
    • Taper Angle: 5 degrees
    • Taper Length: .150"
    • Tip Radius: .0003"
  • C. Medium Point (Black)
    • For applying epoxy in small areas, removing foreign materials and tuning gold ribbon.
    • Shank: .020"
    • Taper Angle: 10 degrees
    • Taper Length: .050"
    • Tip Radius: .0005"
  • D. Chisel (Gray)
    • Great for removal of bond wire, dressing gold pads prior to bonding, and removal of large foreign material. Chisel edge is razor sharp.
    • Shank: .020"
    • Taper Angle: 5 degrees
    • Taper Length: .070"
    • Tip Radius: .0015"
