120 V Reach In 29 cu. ft. Ambient +5°C to 50°C Forced Air Thermocoupler (TC) Large Capacity 3950 >20 cubic feet 3615-38 54500 $19,201 10-20 Days 2
240 V Reach In 29 cu. ft. Ambient +5°C to 50°C Forced Air Thermocoupler (TC) Large Capacity 3951 >20 cubic feet 3615-39 54501 $17,849 10-20 Days 3
Temperature Range
Convection Type
Sensor Type
Manufacturer SKU
Capacity Range
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

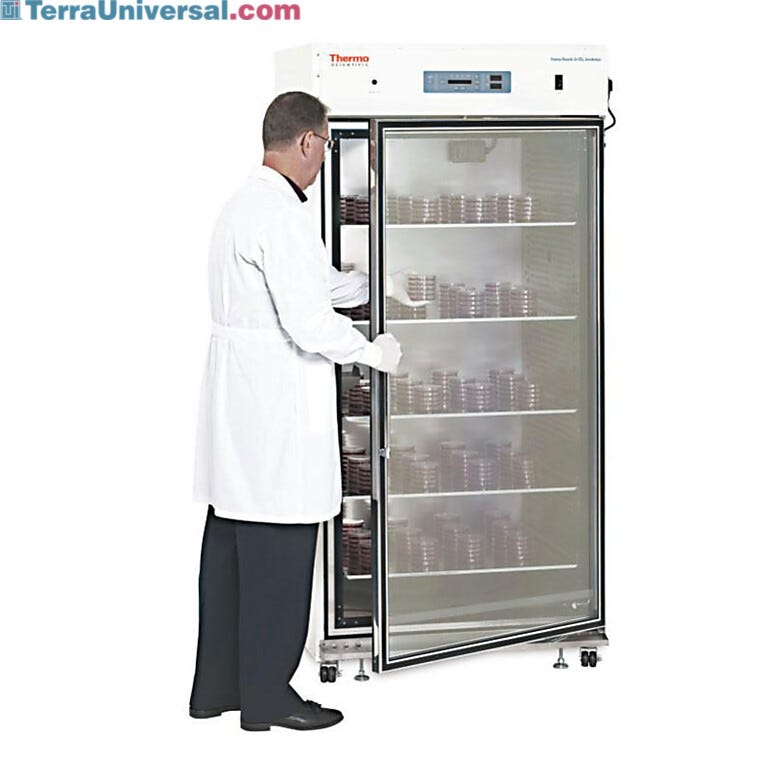

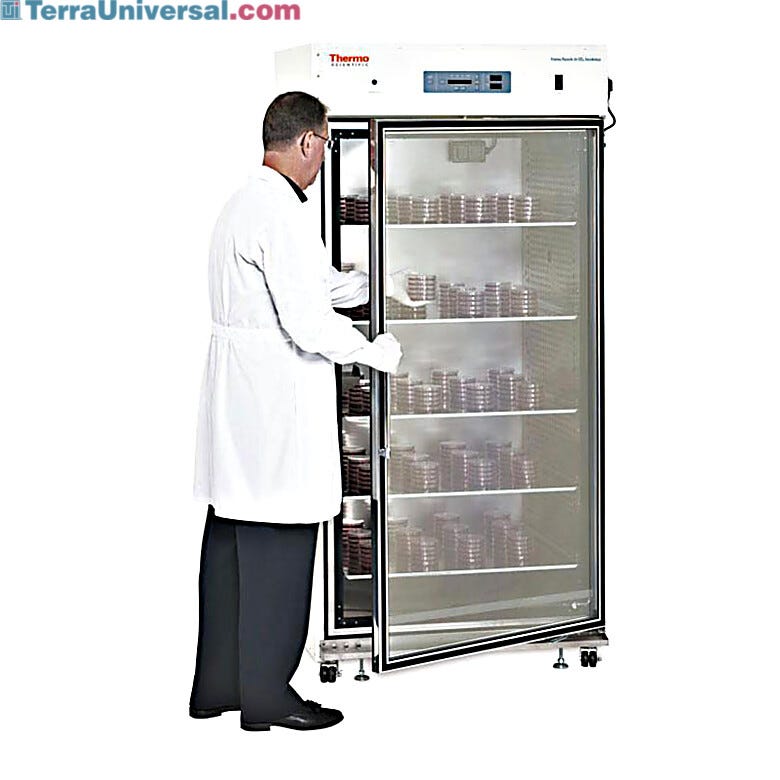

  • Large Capacity Reach-In CO2 Incubators for high-throughput labs culture large volumes of samples for bacterial growth and short-term growth studies
  • Directed horizontal laminar airflow system creates ideal growth environment; minimizes desiccation of product and supports temperature recovery and uniformity
  • Tight temperature uniformity ensures ideal culturing environment even when chamber is full or when equipment is installed in chamber
  • Heated triple-pane glass door prevents condensation
  • Convenient access ports and interior outlet for probes, sensors and power
  • Elevated RH prevents product desiccation in medium-term cultures
  • Enviro-Scan Microprocessor Message Center allows for simple parameter control via alphanumeric display of messages, processes and Humidity level indicators

  • Forma 11 Cubic-Foot Environmental Chamber Ideal for Drug Stability Studies, Biological Research
Features & Benefits

Features and Benefits

Learn More: Reach-In CO2 Incubators

More Information

  • Leveling feet provides stability and added safety
  • Airflow prevents product desiccation
  • Easy to configure and use; audible/visual alarm and alarm silence; remote alarm contacts and available data outputs connects to in-house monitor/alarm to track chamber conditions (helps with meeting internal and regulatory documentation requirements)
  • Data outputs help meet internal and regulatory documentation requirements
  • Built-in features eliminate need for expensive add-ons
  • Interior Dimensions (W x D x H): 31 x 27 x 60 in. (787 x 686 x 1524 mm)
  • Exterior Dimensions (W x L x H): 38 x 33 x 80 in. (965 x 838 x 2032 mm)
  • Available accessories, built-in gas guards, factory-installed data outputs, 2-stage gas regulators and shelves
  • Humidity System: 15.1L pan
  • Relative Humidity Range: Off, med. >80%, high >90%
  • Temperature Control: ± 0.1°C
  • Temperature Uniformity: ± 0.3°C at 37°C
  • Temperature Range: + 5°C above ambient to 60°C
Cell Roll System

The optional cell roll system (shown installed within the incubator chamber) allows extensive production of monolayer cell cultures in standard roller culture vessels.

  • Improves oxygenation and exposure of the cells to the media growth area
  • Increases culture yields by the uniform temperature control and cellroller system's continuous, gentle rotation
  • Accommodates a cell roller up to 7 decks high with 5 positions per deck—maximum total of 35 positions or bottles.
  • Requires three tier models 4862 or 4868 to achieve maximum capacity:
  • three tier cell roller base (15 positions)
  • four add-on tiers (20 positions)
  • and a reinforced floor/ramp to achieve

Directed Horizontal Laminar Airflow System

  • Promotes ideal growth environment by releasing positive pressure feed plenum on the left side of the chamber and a negative pressure return plenum on the right side
  • The combination of airflow directs air across the surface of each solid shelf
  • Each shelf receives a consistent flow of conditioned air when filled with samples or equipment
  • Chamber contents will not block feed plenum
  • Minimizes risk of product desiccation and loss
  • The directed airflow saves time and money by minimizing the risk of product desiccation and loss

Applications for Heratherm Advanced Protocol Security Microbiological Incubators
  • Clinical and Medical labs: microbiological diagnostic testing
  • Pharmaceutical: quality control testing, safety and testing efficacy of manufactured products
  • Food: screening for bacterial contamination
  • Research and biotech labs: bacterial growth, gene expression studies, production of recombinant proteins


Directed airflow passes over the surface if each shelf, ensuring temperature uniformity throughout the chamber.

Forma Environmental Chamber Airflow Diagram

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Three Tier Cell Roller Base for 120V Reach-In CO2 Incubator

    Three Tier Cell Roller Base by Thermo Fisher Scientific for 120V Large Capacity Reach-In CO2 Incubator accommodates 15 culture vessels; add-on tiers available.
  • 5-Position Add-On Tier for Incubator Cell Roller Base

    1619-55 Customer installed 5-Position Add-On Tier for use with Cell Roll System compatible with Large Capacity Reach-In CO2 Incubator by Thermo Fisher Scientific.
  • Carboy Kit for Large Capacity Reach-In CO2 Incubator

    Carboy Kit by Thermo Fisher Scientific can be mounted on left or right side of CO2 incubator; kit includes an autoclavable 2 gallon (7.8 liters) carboy, valve, adapter, hose, and mounting bracket.
