1735-03
Terra Part # 1735-03
$4,213
Accessories related to Terra Part # 1735-03
86675

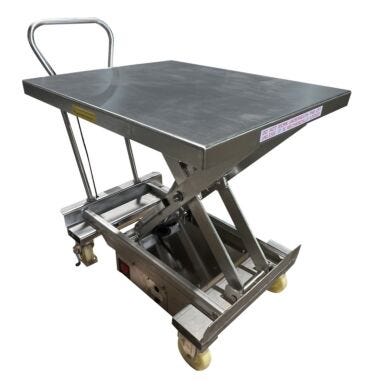

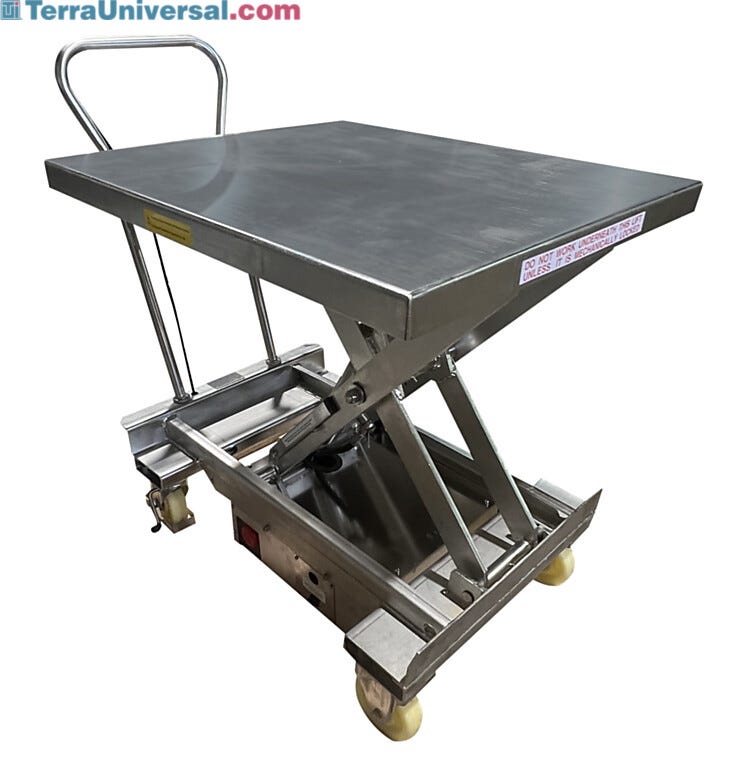

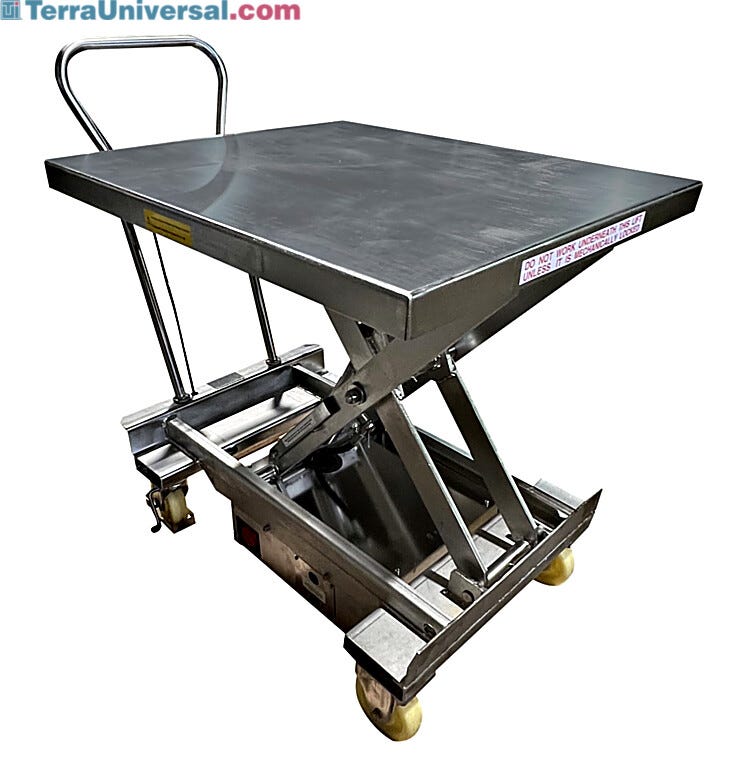

Scissor Lift Table, 316L Stainless Steel, 50" W x 36" D Top Platform, 14.5" - 43.5" Height Range, 500 lbs Capacity
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Product Details
  • Available Certified ISO Grade Designs: ISO 8
  • Supports loads up to 500 lbs, (277 kg) making it easy to transport and position heavy materials wherever the job demands
  • Adjusts from 14.5" to 43.5" (368 mm to 1105 mm), bringing materials to the ideal working height and reducing strain across a wide range of tasks
  • Lifts at a consistent 0.4"/sec (11 mm/sec), giving operators precise control when positioning sensitive or heavy materials
  • 316L stainless steel construction withstands harsh chemicals, moisture, and rigorous cleaning protocols without compromising integrity
  • Engineered to meet the strict requirements of food processing, pharmaceutical, cleanroom, and chemical handling facilities
  • Ideal for applications that require elimination of manual lifting and positioning of heavy items
  • Lift Type: Single scissor
  • Control Typel: 316L Stainless steel foot pedal

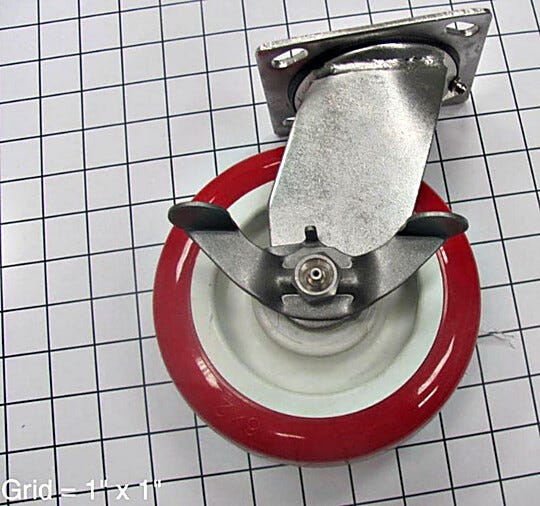

  • Optional Accessory: High-capacity polyurethane swivel casters with brakes (7.5"/191 mm wheels)

Top Platform: 50" W x 36" D

Load Capacity: 500 lbs

Raised Height: 43.5"

Material: 316L Stainless Steel

Low Height: 14.5"

Platform Top Surface: Smooth Plate

Available Certified ISO Grade Designs: ISO 8

Certified ISO Grade Design: ISO 8

Manufactured by: Terra Universal

Unit of Measure: EA

Electrical Specifications: 24V DC

Dimensions, Product: 50" W x 36" D x 32" H

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
