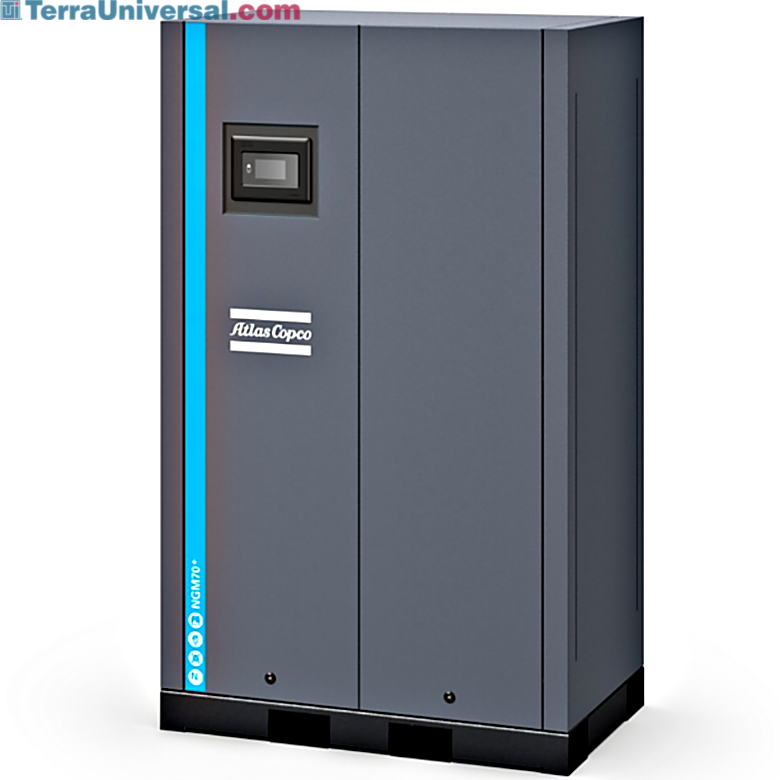

Robust and cost-efficient on-site NGM+ 7-70 Membrane Nitrogen Generators by Atlas Copco with a 95% to 99.50 nitrogen purity | 1989-PP-03 displayed
Gas Generators,Gas Generators,Gas Generators
Product Group:
1989-PP-03
1989-PP-03 82642

On-Site Nitrogen Generators by Atlas Copco

  • Cost-effective, Atlas Copco On-Site Nitrogen Generators guarantee 24/7 continuous flow of nitrogen at desired purity
  • Pressure Swing Adsorption (PSA) NGP+ models ideal for high purity and high flow applications up to 99.999%
  • Membrane NGMs and NGM+ models for low purity applications from 95% to 99.5% Purity
  • Easily integrates within existing compressed air installations
  • Reduces the cost of nitrogen by up to 80%
Read more
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Type

Sort Order:
Model

Sort Order:
ISO Class

Sort Order:

 Terra Part # Price Ships in
Membrane NGM7+ ISO 8 1989-24 82644 Request Quote 5-10 Days 2
Membrane NGMs 1 ISO 8 1989-27 82649 Request Quote 5-10 Days 3
Membrane NGMs 2 ISO 8 1989-26 82651 Request Quote 5-10 Days 4
Membrane NGMs 3 ISO 8 1989-25 82646 Request Quote 5-10 Days 5
PSA NGP12+ ISO 8 1989-29 82653 Request Quote 20-25 Days 6
PSA NGP20+ ISO 8 1989-30 82654 Request Quote 20-25 Days 7
PSA NGP8+ ISO 8 1989-28 82652 Request Quote 20-25 Days 8
PSA NGP30+ ISO 8 1989-31 82655 Request Quote 20-25 Days 9
PSA NGP50+ ISO 8 1989-32 82658 Request Quote 20-25 Days 10
PSA NGP70+ ISO 8 1989-33 82659 Request Quote 20-25 Days 11
PSA NGP300+ ISO 8 1989-34 82661 Request Quote 20-25 Days 12
PSA NGP550+ ISO 8 1989-35 82662 Request Quote 20-25 Days 13
PSA NGP1000+ ISO 8 1989-36 82663 Request Quote 20-25 Days 14
Type
Model
ISO Class
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Cost-effective, Atlas Copco On-Site Nitrogen Generators guarantee 24/7 continuous flow of nitrogen at desired purity
  • Pressure Swing Adsorption (PSA) NGP+ models ideal for high purity and high flow applications up to 99.999%
  • Membrane NGMs and NGM+ models for low purity applications from 95% to 99.5% Purity
  • Easily integrates within existing compressed air installations
  • Reduces the cost of nitrogen by up to 80%
  • Applications: pharmaceuticals, semiconductor manufacturing, food and beverage (storage and packaging), chemical, metal heat treatment, plastic injection molding, electronics, laser cutting, cable and optical fiber industries, glass industries, fire prevention, aquaculture
  • Benefits of Atlas Copco On-Site Nitrogen Generators:
  • Eliminates rental and transport expenses
  • Guarantees 24/7 nitrogen source
  • Eliminates safety hazards when handling high pressure cylinders
  • Cheaper than nitrogen tank rental
  • Enables consumers to produce nitrogen purity at their desired level
  • Only pay for the purity level set
  • Reduces downtime, labor, injuries, eliminates the need to store additional tanks
  • Stationary on-site nitrogen generators reduce the risk of burns and projectiles
  • Helps reduce carbon footprint
  • Reduces waste by producing nitrogen at the exact desired level and eliminates gas bleed off
  • Features of NGP+ Pressure Swing Adsorption (PSA) Nitrogen Generators:
  • N2 Purity from 95% to 99.999%
  • Monitors 24/7 quality of feed air and gas output protects N2 applications and products
  • Variable Cycle Saver (VCS): eliminates energy waste during low demand and in colder temperatures for up to 40% in energy savings
  • Heavy-duty valves for long service life
  • Minimum energy consumption per unit of N2
  • Adsorbent media utilization for maximum feed air efficiency, even in low-load condition
  • Operational savings with easy nitrogen purity selection via controller
  • Safeguards integrity of adsorbent with automated monitoring and routing of feed air
  • Can be combined with a cylinder or bulk gas supply system
  • Maximum up time with heavy-duty vales with a long service life
  • Easy operation avoids energy waste with automatic start-up and stand-by mode
  • Elektronikon touch controller with large HD touchscreen: plug-and-play installation, easy gas purity selection, alarm, alerts, feed air monitoring,  interception, and connectivity options
  • Application protection system: ensures only gas that meets the minimum purity requirement will reach your application
  • Generator software: utilizes premium Carbon Molecular Sieve adsorbent with maximum efficiency
  • Features of NGM+ 7-130 Membrane Nitrogen Generators
  • N2 Purity from 95% to 99.5%
  • Eliminates the need of wasteful feed air heater
  • Requires 20% less feed air compared to traditional generators
  • Membrane features: Dry, high-quality N2 at the lowest air consumption; pre-aged membranes eliminate performance loss after
  • Commissioning: soft start protects membrane and extends lifetime
  • Elektronikon touch controller: plug-and-play installation, easy set-up of purity, alerts, feed air monitoring, and optional interception and connectivity
  • Eliminates the need of internal tanks
  • Built-in premium filtration with low pressure drop
  • Can be combined with a cylinder or bulk gas supply system
  • Advanced control and monitoring optimize the uncluttered build and stable performance
  • Easy purity adjustment pm controller
  • East and fast start-up and commissioning
  • Compact, quiet and dependable
  • Features of NGMs 1-3 Membrane Point-of-Use Nitrogen Generators
  • N2 Purity from 95% to 99.5%
  • Meets low flow N2 requirements
  • Compact plug-and–play model
  • Fully integrated with low pressure drop filtration, pressure gauges, and built-in gas purity sensor
  • Only requires a supply of dry compressed air to start generating nitrogen
  • Requires no electrical supply to generate nitrogen
  • Long lifetime and low maintenance intervals
  • Benefits of Nitrogen Generators in Labs:
  • Nitrogen (inert gas) does not react to chemicals and other substances in labs; increases lab safety
  • Provides atmospheric blanketing by creating a non-combustible environment
  • Helps control temperature and humidity levels
  • Maintains integrity of fragile and sensitive equipment such as dry boxes, IVF incubators and spectrometers
Show more

Show more

Gas Generators

  • Nitrogen Filling Systems | Atlas Copco Compressors
  • Nitrogen and Atlas Copco Brew up Quality and Savings for Mac and Jack’s Brewery Video of Nitrogen and Atlas Copco Brew up Quality and Savings for Mac and Jack’s Brewery
  • Atlas Copco Compressors | What is The P.R.I.C.E. of Your Nitrogen Supply? Atlas Copco Compressors | What is The P.R.I.C.E. of Your Nitrogen Supply?
Video on the benefits of producing on-site nitrogen generators Nitrogen Filling Systems | Atlas Copco Compressors Benefits, and cost-efficiency of installing nitrogen filling systems for on-site nitrogen generation with Atlas Copco nitrogen generators
Nitrogen and Atlas Copco Brew up Quality and Savings for Mac and Jack’s Brewery
Atlas Copco nitrogen generator solution for cost-efficient brewing at Mac and jack’s Brewery Video of Nitrogen and Atlas Copco Brew up Quality and Savings for Mac and Jack’s Brewery Cost-efficient and no waste solution offered by Atlas Copco Nitrogen Generators to Mac and Jack’s Brewery
Atlas Copco Compressors | What is The P.R.I.C.E. of Your Nitrogen Supply?
Overview on the cost-efficiency of on-site nitrogen generators presented by Atlas Copco Atlas Copco Compressors | What is The P.R.I.C.E. of Your Nitrogen Supply? Industrial Gases Business Development Manager of Atlas Copco presents the various cost benefits of on-site nitrogen generation
Features & Benefits

Features and Benefits

Pressure Swing Absorption (PSA)

PSA Nitrogen and Oxygen Generators by Atlas Copco provide highly pure N2 up to 99.999% ideal for electronics, chemical, pharmaceutical, and food and beverage applications

Membrane Separation Technology

NGM, NGM+ and NGMs nitrogen generators with membrane technology with a 95% to 99.9% nitrogen purity ideal for oil and gas, mining, and marine applications

Advanced Control and Monitor

On-site Oxygen and Nitrogen Generators with an advanced control monitor optimizes performance and efficiency, and connects to the optional SMARTLINK Data Monitoring Program

Complete Scope of Supply

NGP+ Nitrogen Generators include a standard nitrogen flow meter, a long-life Zirconia oxygen meter, an outlet pressure reducing valve and an optional nitrogen dew point sensor

Laser Cutting

Delivers a reliable supply of high pressure nitrogen ideal for use in laser cutting requiring lower-purity nitrogen
