- ISO Rating: ISO 6, ISO 7, ISO 8
- Gas-purge plastic glove box provides controlled low-humidity environment for manufacturing, testing
- Pre-configured to integrate with Terras automated RH control systems: Dual Purge and NitroWatch
- Fully gasketed removable back panel facilitates transfer of large equipment and materials
- To maintain RH levels below 1%, purchase nitrogen generator catalog number 2700-12B
- To maintain RH levels as low as 7%, purchase nitrogen generator catalog number 2700-99

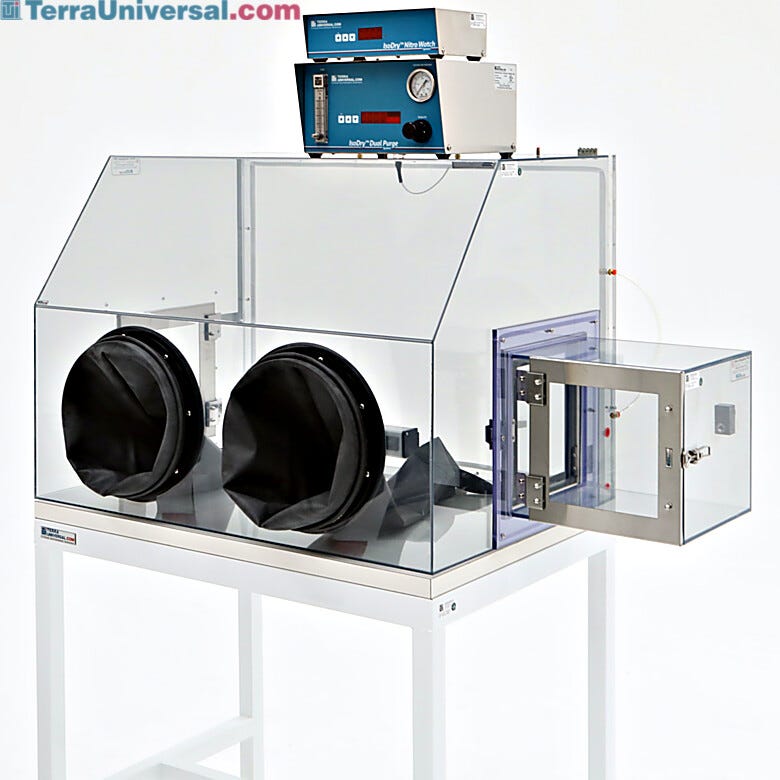

Gas-Purged Plastic Glove Box Isolators
1689-PP-01
1689-PP-01 71922
Gas-Purged Plastic Glove box Isolators
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote request
Product Details
Product Details
- • ISO Rating: ISO 6, ISO 7, ISO 8
- Gas-purge plastic glove box provides controlled low-humidity environment for manufacturing, testing
- Pre-configured to integrate with Terras automated RH control systems: Dual Purge and NitroWatch
- Fully gasketed removable back panel facilitates transfer of large equipment and materials
- To maintain RH levels below 1%, purchase nitrogen generator catalog number 2700-12B
- To maintain RH levels as low as 7%, purchase nitrogen generator catalog number 2700-99
- Stainless steel-reinforced doors with rubber gasket for tight seal, mounted on left and right side
- 55° front slope allows the operator an uninterrupted overview of work in progress
- Dual side access doors open inward to allow easy parts transfer from inside the chamber
- Optional gas purge controls automatically establish a clean environment and maintain a humidity set point down to 3% RH
- Optional air locks maintain the integrity of the controlled environment without sacrificing convenience
- Select the single or twin model; twin glove boxes feature two pairs of glove ports to accommodate two operators (order gloves separately)
- Available in five materials: acrylic, static-dissipative PVC, non-dissipative PVC, polypropylene and polycarbonate
- Removable plastic 10" -diameter glove ports accept a wide variety of gloves and can be interchanged to meet specific requirements; integral stainless steel round and oval ports also available
- Optional closed- or open-loop filtration modules establish a particle-free environment
- Other system options include ionizing equipment, Humex humidification module, and tilt-up viewing window
- Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures; unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals
Series 100: Plastic Glove Box Isolators
Standard Features
-
A Changeable sleeve and glove combinationChangeable sleeve and glove combination
-
B Universal air lockUniversal air lock (other designs available)
Optional Features
-
1 NitroWatch RH Control SystemNitroWatch RH Control System
-
2 Dual Purge Nitrogen Purge ControllerDual Purge Nitrogen Purge Controller
-
3 Powder-Coated StandPowder-Coated Stand
-
4 CastersCaster set (two with locking brakes)
Not Shown: Relief/Bleed valve - Relief/Bleed valve
Not Shown: Range of Materials - Choice of plastics include dissipative PVC and acrylic
Not Shown: Range of Options - Options include ionizing module, fluorescent illuminator, UV light, tilt-up viewing window and nitrogen generator
Gas-Purged Plastic Glove Box Isolators
-
Glove Box Isolators and Containment Chambers
-
Customized to Your Requirements!
-
Series 100 Plastic Glove Box Isolators
-
Acrylic Series 100 Glove Box, Four Glove Ports
-
Polypropylene Twin Laboratory Glove Box
Glove Box Isolators and Containment Chamber
Glove Box Isolators and Containment Chambers
Video overview of Terra's nitrogen-purged glove box isolators and containment chambers designed to provide a clean, dry processing environment
Custom work is no problem! Shown: nitrogen-purged isolator for up to six operators working at individual test/assembly stations | 3305-00G displayed
Customized to Your Requirements!
Custom work is no problem! Shown: nitrogen-purged static-dissipative PVC glovebox isolator for up to six operators working at individual test/assembly stations. Configured with automated gas controls and ionizing bars.
Series 100 Plastic Glove Boxes provide a low-humidity, particle-free environment; acrylic twin model shown with optional gloves, RH controls | 1689-16G-RH displayed
Series 100 Plastic Glove Box Isolators
Series 100 Plastic Glove Boxes provide a low-humidity, particle-free environment; acrylic twin model shown with optional gloves and Dual Purge and NitroWatch nitrogen controllers.
Acrylic Series 100 Glove Box, Four Glove Ports
Polypropylene laboratory glove box includes four glove ports (shown with optional air lock and bleed valves) | 1681-30H displayed
Polypropylene Twin Laboratory Glove Box
Polypropylene laboratory glove box for inert gas bleeding includes four 10" (254 mm)-diameter glove ports and dual-side stainless steel-reinforced access doors (shown with optional bleed valve).
Features & Benefits
Features and Benefits
View Glovebox Dimensions
Print
Copy Copied
More Information
| Type | A in. (mm) | D in. (mm) | F in. (mm) | H in. (mm) | I in. (mm) | L in. (mm) | M in. (mm) | N in. (mm) |
|---|---|---|---|---|---|---|---|---|
| Single | 16.75 (425) | 24 (610) | 35 (889) | 25 (635) | 10.5 (267) | 10 (254) | 10 (254) | 14 (356) |
| Twin | 16.75 (425) | 24 (610) | 59 (1499) | 25 (635) | 10.5 (267) | 10 (254) | 10 (254) | 14 (356) |
Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.
Positive Pressure Isolation vs. Biohazard Containment
Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Side Access Doors for Plastic Glove Boxes
Dual-side access doors features stainless steel reinforcement frames that increase structural rigidity and built-in LiftLatch™; acccommodate standard air locks to allow contamination-free parts transfer.
Glove Ports with Detachable Iris Port and Covers
Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities
Removable Rear Wall
Gasketed rear wall allows transfer of large equipment into the main glove box chamber
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Comprehensive Service Provider
Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis
Custom Product Designs
Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
Products Compliant With Your ISO Rating
Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and certify it with the serial numbers appended to your invoice, to be included in your compliance package.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
Quickly Evacuates Ambient Air
Terra's MicroVac rapidly evacuates ambient air from glove boxes to allow for backfilling with Nitrogen gas, shortening time to reach setpoint -
Air Locks Minimize Cross-Contamination
Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (static-dissipative PVC model shown). -
Pass-Through Air Lock for Series 100 Glove Box
Pass-through air lock is available with wire racks is ideal for transferring shelves or trays with kitted components (order shelves & trays separately). -
Universal Air Lock for Series 100 Glove Box
Universal air locks allow connection of multiple glove boxes in series (polypropylene model shown); mounts to either right or left side of glove box. -
Automatic RB (Relief-Bleed) Valve
One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air. Available in several sizes, materials for process combatibility (acrylic shown). -
Glove Box Stand, Powder-Coated Steel
Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor -
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship. -
Glove Box Iris Port Adapter for 10" Ports
The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately). -
Relative Humidity and Temperature Data Logger
Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data. -
Laboratory Nitrogen Generator
Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes. -
3-inch Diameter Caster Set
Casters are easily retrofitted for mobility. Products can be rolled out of the way when cleaning or relocated as workflow changes. -

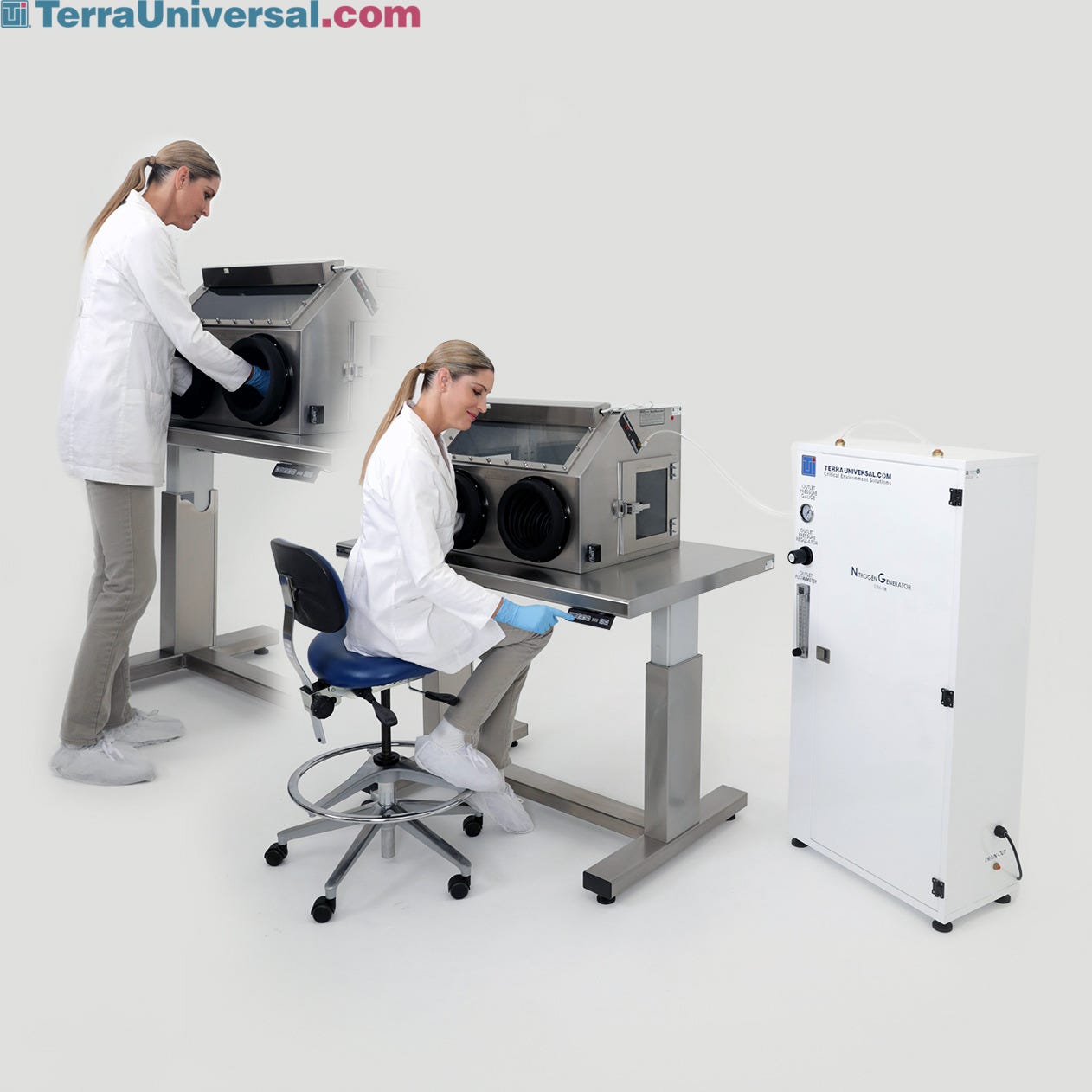

Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply. -
Stainless Steel Work Surface Improves Safety and Service Life
Installed inside on the floor of a plastic glove box, a conductive stainless steel surface improves ESD-safety, simplifies cleaning, and extends service life by protecting from scratches and heavy impacts of dropped items. -
Ionizing Module for Glove Boxes
Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction -
Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control
Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change. -
Data Logging with 113,000 Readings at User Defined Intervals
Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new. -
Plug & Play Data Logging
Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
