Terra Part # 2701-32
$20,864

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2701-32
53937

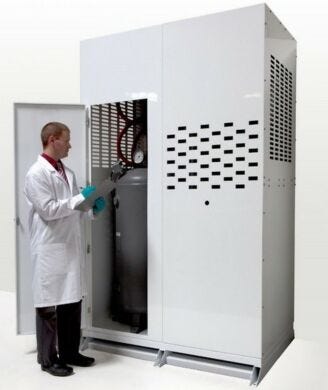

Nitrogen Generator; High Capacity, 120 V

• Nitrogen Purity: 99%+ (depending on inlet pressure)

• Footprint: 90” x 72”

• Power Requirements: 208/230/460 VAC, 60Hz, 3 phase (for compressor) – prewired for 460V operation

• Max. Power: 4kW

• Provides high-volume of Nitrogen for a wide range of process requirements

• Includes 2 compressed air tanks: (1) 60 Gal. (1) 200 Gal.

• Max Inlet Pressure: 200 PSI

• Compact housing requires a minimum amount of floor space; order separately

• Terra's nitrogen generators are third-party certified to the USP30-NF25 specification for 99%-pure medical grade nitrogen

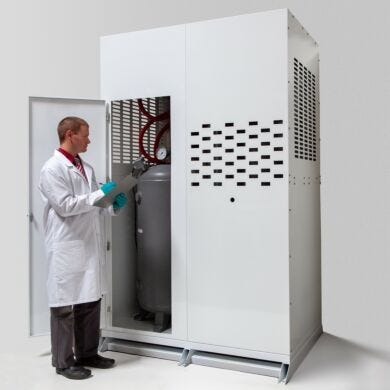

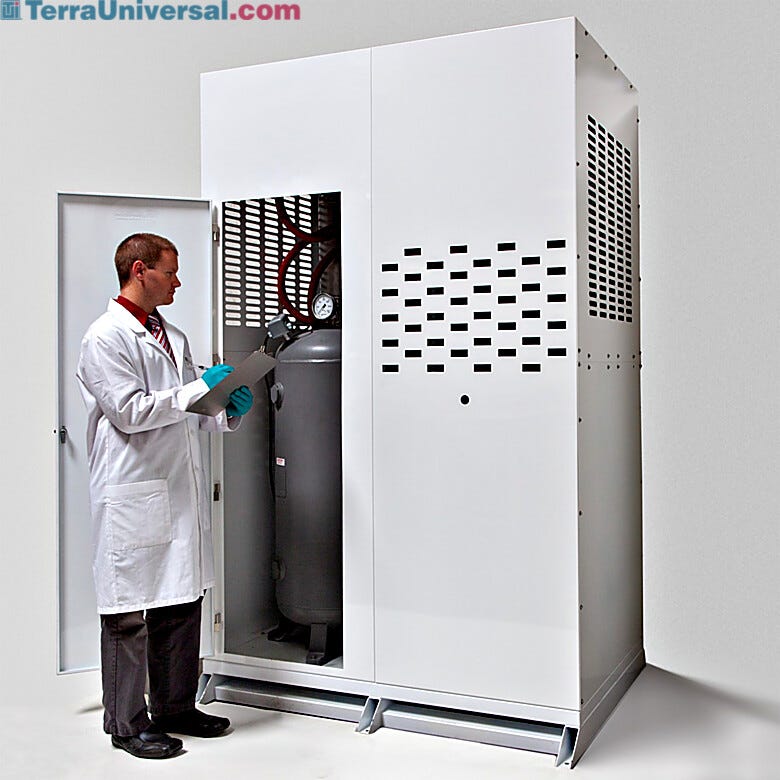

• Terra’s HC (high-capacity) Nitrogen Generator provides a continuous flow of 99%+ Nitrogen, providing a reliable alternative to re-fillable storage tanks.

• A combination compressor/dryer (sold separately) provides feed air for the nitrogen-producing membrane and prefilters.

Note: Nitrogen membrane systems produce both nitrogen and oxygen enriched air. Nitrogen enriched air can cause suffocation and oxygen enriched air increases fire hazards. The nitrogen enriched air produced should be treated as pressurized air; refer to compressed air safety protocols to avoid injury.

Electrical Specifications: 120 V

Weight, Product: 1348 Lbs

Dimensions, Product: 90"W x 72"D x 96"H

Weight, Shipping: 1,850 lb

Dimensions, Shipping: 95" W x 77" D x 100" H

Package Type: Crate

Buy Accessories

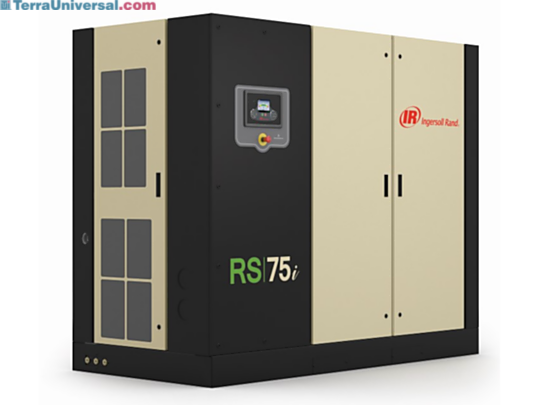

  1. High-capacity rotary screw air compressor is ideal for use with Nitrogen Generators | 2701-33 displayed
    Compressed Air System Stocked Item is in stock and ready for immediate shipping
    $37,688
    Increase Down Increase Up

Features and Benefits

High-Capacity Nitrogen Generators

High-Capacity Nitrogen (N2) Applications

Nitrogen's inert properties make it a necessity for many industries. It's widely used for drying, purging, cooling, and to create protective barriers between sensitive parts and the damaging environment.

In pharmaceutical or life science laboratories, N2 works within desiccators and glove boxes to protect moisture-sensitive parts and samples. Other industries that rely on the drying properties of N2 are semi-conductor and electronics.

Food packaging lines are a good example of where high volumes of nitrogen are used to protect consumables from spoiling by contact with oxygen. The N2 creates a protective barrier. The same idea can be applied to flammable raw materials: contact with oxygen would be harmful.

Nitrogen is incorporated into heat-treating, welding and laser-cutting processes in the steel and aerospace industries. For chemicals production, pressurized N2 can propel liquids through pipelines and help remove volatile organic chemicals (VOCs) from manufacturing environments.

Nitrogen is the most abundant gas present in the air we breathe. By separating it into a pure gas, many useful applications have been developed. Generating large quantities of N2 as needed is a convenient, cost-effective practice.

N2 Generator System Components:
  • 1. 200-gallon compressed air holding tank
  • 2. 60-gallon nitrogen holding tank
  • 3. Hydrocarbon filter
  • 4. Two (2) nitrogen membranes and one (1) exit filter
  • 5. Coalescing pre-filters
  • 6. High-volume rotary screw compressor
Specifications
  • Nitrogen Purity: 99%+ (depending on inlet pressure)
  • Power Requirements (compressor): 208/230/460 VAC, 60Hz, 3-phase, prewired for 460V operation
  • Power Requirements (generator): 120VAC / 240VAC
  • Generator Max. Power: 4kW
  • Footprint: 60"W x 44"D (generator); 90W" x 72"D (generator and compressor)
  • Maximum height: 96"
  • Generator Tank Capacity N2 holding tank: 60 gal.; Compressed air storage: 200 gal.
  • Compressor* pressure range: 217 psig
  • Compressor* Capacity: 157 ACFM
  • Compressor* Motor Power: 50 HP
  • Compressor* Dimensions: 78.375"L x 40.5"W x 67"H
  • Compressor Weight: 2,458 lb
High-Capacity Nitrogen Membrane Performance
Test #Inlet Pressure (psi)Pressure Entering N2 Membrane (psi)Pressure in N2 Holding Tank (psi)Outlet Flow Rate (cfm)% N2Comments
11201202513990% RH
21201203518990% RH
31201208030990% RH
41201006018990% RH
51201005015990% RH
6120905020990% RH
7120904013990% RH

USP Compliant Medical Grade Nitrogen

Terra's Nitrogen gas generator is third-party certified to USP 30 NF 25 for ≥ 99% pure medical grade nitrogen
