1410-01
Terra Part # 1410-01
$1,860
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 1410-01
70452

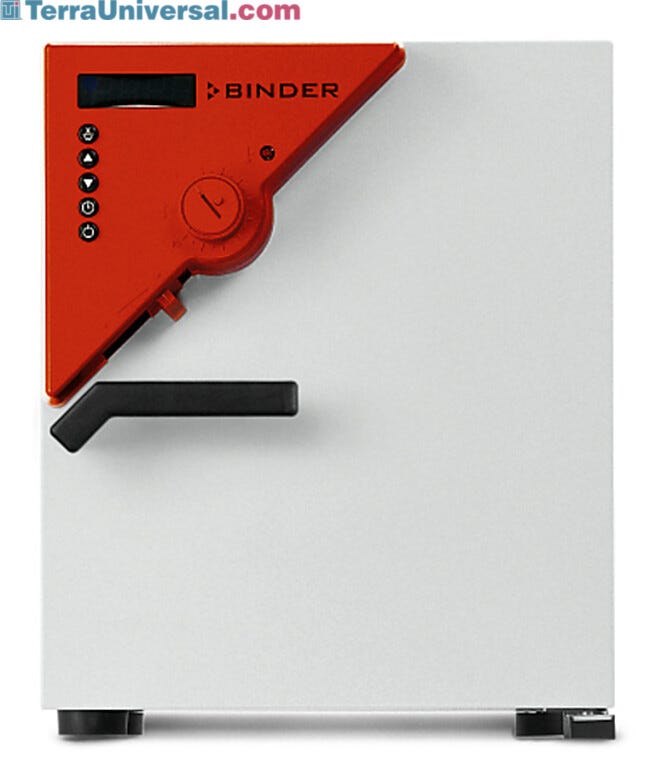

Oven; 0.7 cu. ft., Heating and Drying Chamber, ED 23, Classic.Line, Binder, Coated Steel, 120 V, RS422
Product Details
  • Maximum Temperature: 300°C
  • Internal Dimensions W" x D" x H" (mm): 8.75 x 11.82 x 13 in. (222 x 300 x 330 mm)
  • Single door 0.7 cu. ft. interior volume gravity convection ED Series Classic..Line
  • Includes 2 chrome-plated racks and RS422
  • Temperature range 5 °C above ambient temperature to 300°C
  • Interior volume: 0.7 cu.ft. (19.82 L)
  • Temperature variation at 150 °C [± K]: 2.8
  • Temperature fluctuation at 150 °C [± K]: 0.5
  • Heating-up time to 150 °C [min]: 28
  • Recovery time after 30 seconds door open at 150 °C [min]: 28
  • Air change (approx.) at 150 °C [x/h]: 13
  • Permitted load: 55 lbs. (25 kg)
  • Load per rack: 26 lbs. (11.8 kg)
  • Energy consumption at 150 °C [Wh/h]: 148
  • Unit doors: 1
  • Number of shelves (std./max.): 2/4
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Includes 2 chrome-plated racks
  • Gravity convection
  • APT.line preheating technology for optimal temperature uniformity and faster recovery
  • Accommodates maximum of 4 shelves
  • Ramp function, Time Delayed OFF and Adjustable exhaust air flap
  • LED Controller with timer functions
  • UL listed
  • List of Options and Accessories
  • Access port with silicone plug
  • Alarm function for overheating
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Class 3.1 independent temperature safety device
  • Data Logger Kit
  • Data Logger Software
  • Door Gasket
  • Door Lock
  • Instrument Tray
  • Interface Converter
  • Interface Converter, USB/RS422
  • Measurement of Air Exchange Rate
  • pH- Neutral Detergent
  • Pt 100 Temperature Sensor
  • Rack (Stainless Steel or Chrome-Plated)
  • RS 422 Interface
  • RS 422 Interface, Cable (15 in.)
  • RS 422 Interface, Cable (50 in.)
  • Software
  • Viewing Window and Interior Lighting

Type: General Protocol

Maximum Temperature: 300°C

Material: Coated Steel

Capacity: 0.7 cu. ft.

Convection Type: Mechanical

Controls: Digital

Model: ED Series

Manufacturer SKU: 9010-0193

Capacity Range: <4 cubic feet

Unit of Measure: EA

Marks & Listings: UL

Electrical Specifications: 120 V, 60 Hz

Dimensions, Product: 17.14"W x 20.5"D x 19.5"H

Weight, Shipping: 60 lb

Dimensions, Shipping: 17.14205195"W

Package Type: Palletized

Buy Accessories
  1. Equipment Testing
    Request Quote
    Increase Down Increase Up

Ovens

  • BINDER Classic Line ED 720 Heating and Drying Chamber BINDER Classic Line ED 720 Heating and Drying Chamber
  • BINDER Classic Line ED 23 Heating and Drying Chamber BINDER Classic Line ED 23 Heating and Drying Chamber
  • BINDER Classic Line ED 400 Heating and Drying Chamber BINDER Classic Line ED 400 Heating and Drying Chamber

Features and Benefits

Learn More: ED Series Drying Chambers

ED Series Drying and Heating Chambers Options and Accessories

The ED Series drying and heating chambers feature a wide range of options to satisfy numerous applications. Contact a sales engineer for pricing on the complete listing of options.



  • Access port with silicone plug
  • Alarm function for overheating
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Class 3.1 independent temperature safety device
  • Data Logger Kit
  • Data Logger Software
  • Door Gasket
  • Door Lock
  • Instrument Tray
  • Interface Converter
  • Interface Converter, USB/RS422
  • Measurement of Air Exchange Rate
  • pH- Neutral Detergent
  • Pt 100 Temperature Sensor
  • Rack (Stainless Steel or Chrome-Plated)
  • RS 422 Interface
  • RS 422 Interface, Cable (15 in.)
  • RS 422 Interface, Cable (50 in.)
  • Software
  • Viewing Window and Interior Lighting
Model ED 23 ED 400 ED 720
Electrical 120V 60Hz 208V 60Hz 208V 60Hz
Net weight of the unit (empty) 60 lbs. (27.2 kg) 276 lbs. (125.2 kg) 384 lbs. (174.2 kg)
Overall Dimensions 17.17 x 20.5 x 19.5 in.
(435 x 521 x 495 mm)
48.7 x 30.14 x 40.4 in.
(1237 x 766 x 1026 mm)
48.7 x 34.1 x 60.3 in.
(1237 x 866 x 1532 mm)
Internal Dimensions 8.75 x 11.82 x 13 in.
(222 x 300 x 330 mm)
39.4 x 20.5 x 31.5 in.
(1000 x 520 x 800 mm)
39.4 x 24.4 x 47.3 in.
(1000 x 621 x 1201 mm)
Interior volume [cu. ft.] 0.7 cu. ft. (19.82 L) 14.1. (400 L) 25.4. (719.3 L)
Temperature range 5 °C above ambient temperature to [°C] 300 300 300
Temperature variation at 150 °C [± K] 2.8 3 3.6
Temperature fluctuation at 150 °C [± K] 0.5 0.5 0.5
Heating-up time to 150 °C [min] 28 71 84
Recovery time after 30 seconds door open at 150 °C [min] 28 31 34
Air change (approx.) at 150 °C [x/h] 13 10 9
Permitted load 55 lbs. (25 kg) 198 lbs. (89.8 kg) 265 lbs. (120 kg)
Load per rack 26 lbs. (11.8 kg) 77 lbs. (34.9 kg) 99 lbs. (44.9 kg)
Energy consumption at 150 °C [Wh/h] 148 672 750
Unit doors 1 2 2
Number of shelves (std./max.) 2/4 2/10 2/16

Uniform Heating and Temperature Distribution

Select BINDER Heating and Drying Chambers feature forced air convection for efficient drying and sterilization tasks

ED Series Temperature Range

Wide temperature range from 5 °C above ambient temperature to 300 °C suitable for many heating and drying applications.

ED 720 Drying Hrating Chamber Chrome Racks

The temperature uniformity is a result of the Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm.
