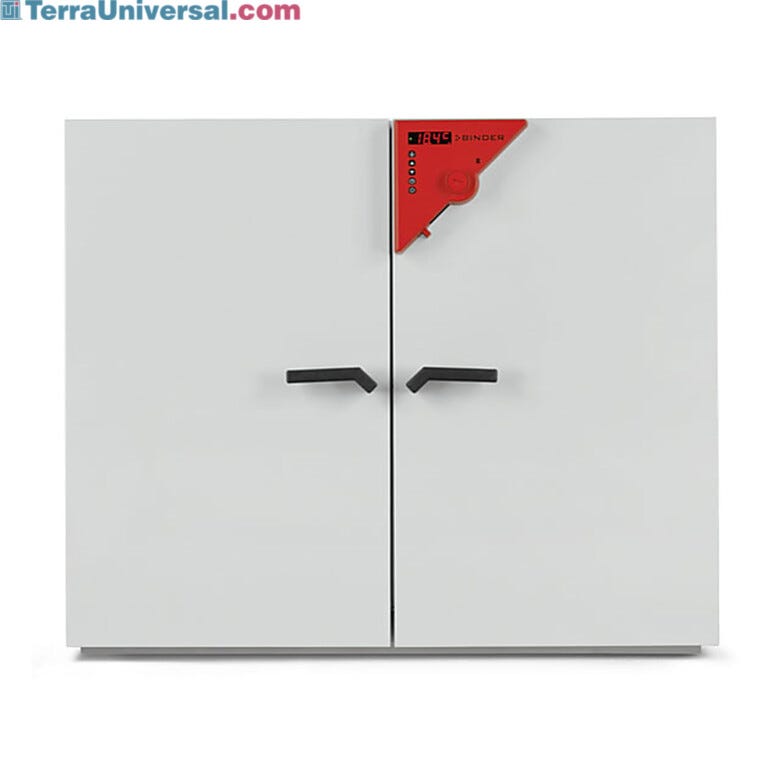

ED 400 model with double doors includes 2 chrome-plated shelves and accepts a maximum of 10 shelves | 1410-02 displayed
Ovens,Ovens

Oven; 14.1 cu. ft., Heating and Drying Chamber, ED 23, Classic.Line, Binder, Coated Steel, 208 V, RS422

  • Maximum Temperature: 300°C
  • Internal Dimensions W" x D" x H" (mm): 39.4 x 20.5 x 31.5 in. (1000 x 520 x 800 mm)
  • Two-door 14.1 cu. ft. interior volume gravity convection ED Series Classic.Line
  • Includes 2 chrome-plated racks and RS 422
  • Temperature range 5 °C above ambient temperature to 300°C

• Type: General Protocol

• Maximum Temperature: 300°C

• Material: Coated Steel

• Capacity: 14.1 cu. ft.

• Convection Type: Mechanical

• Controls: Digital

• Model: ED Series

• Manufacturer SKU: 9010-0168

• Capacity Range: 9 to 15 cubic feet

• Unit of Measure: EA

Read more
Manufacturer SKU: 9010-0168
Manufactured By: Binder
Warranty: Two year warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1410-02
Terra Part # 1410-02
$4,947
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1410-02
70454
Oven; 14.1 cu. ft., Heating and Drying Chamber, ED 23, Classic.Line, Binder, Coated Steel, 208 V, RS422
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Maximum Temperature: 300°C
  • Internal Dimensions W" x D" x H" (mm): 39.4 x 20.5 x 31.5 in. (1000 x 520 x 800 mm)
  • Two-door 14.1 cu. ft. interior volume gravity convection ED Series Classic.Line
  • Includes 2 chrome-plated racks and RS 422
  • Temperature range 5 °C above ambient temperature to 300°C
  • Interior volume: 14.1 cu.ft. (400 L)
  • Temperature variation at 150 °C [± K]: 2.8
  • Temperature fluctuation at 150 °C [± K]: 0.5
  • Heating-up time to 150 °C [min]: 28
  • Recovery time after 30 seconds door open at 150 °C [min]: 28
  • Air change (approx.) at 150 °C [x/h]: 13
  • Permitted load: 55 lbs. (25 kg)
  • Load per rack: 26 lbs. (11.8 kg)
  • Energy consumption at 150 °C [Wh/h]: 148
  • Unit doors: 2
  • Number of shelves (std./max.): 2/4
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Includes 2 chrome-plated racks
  • Gravity convection
  • APT.line preheating technology for optimal temperature uniformity and faster recovery
  • Accommodates maximum of 4 shelves
  • Ramp function, Time Delayed OFF and Adjustable exhaust air flap
  • LED Controller with timer functions
  • UL listed
  • List of Options and Accessories
  • Access port with silicone plug
  • Alarm function for overheating
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Class 3.1 independent temperature safety device
  • Data Logger Kit
  • Data Logger Software
  • Door Gasket
  • Door Lock
  • Instrument Tray
  • Interface Converter
  • Interface Converter, USB/RS422
  • Measurement of Air Exchange Rate
  • pH- Neutral Detergent
  • Pt 100 Temperature Sensor
  • Rack (Stainless Steel or Chrome-Plated)
  • RS 422 Interface
  • RS 422 Interface, Cable (15 in.)
  • RS 422 Interface, Cable (50 in.)
  • Software
  • Viewing Window and Interior Lighting
Show more

• Type: General Protocol

• Maximum Temperature: 300°C

• Material: Coated Steel

• Capacity: 14.1 cu. ft.

• Convection Type: Mechanical

• Controls: Digital

• Model: ED Series

• Manufacturer SKU: 9010-0168

• Capacity Range: 9 to 15 cubic feet

• Unit of Measure: EA

• Marks & Listings: UL

• Electrical Specifications: 208 V, 60 Hz

• Dimensions, Product: 48.7"W x 30.14"D x 40.4"H

• Weight, Shipping: 276 lb

• Dimensions, Shipping: 48.7"W x 30.14"D x 40.4"H

• Package Type: Box

Show more
Other products you may find relevant
  1. Stainless steel BioSafe Cleanroom Clipboards provide non-shedding, durable, conductive surfaces, ideal for aseptic environments | 1350-00A-2 displayed
    Group of 2 products
    BioSafe® Cleanroom Clipboards From
    As low as $81
    Some ship in 1 - 3 days
  2. Palm-Sized Temperature/Humidity Meters available with built-in or probe sensors | 1401-17 displayed
    Group of 3 products
    Palm-Sized Temperature/Humidity Meters From
    As low as $551
    Some ship in 10 - 16 days
  3. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,854
    Usually Ships in 12 - 22 days
  4. Designed with a compact and rugged enclosure, this chart recorder provides accurate record for temperature, humidity, and dew point | 4801-66 displayed
    Group of 3 products
    Chart Recorders – Temperature, Humidity, and Dew Point From
    As low as $810
    Some ship in 5 - 7 days
  5. Accuracy: 5% @ 25C from 10% to 90%RH | 5401-17 displayed
    Psychrometer; Digital, Handheld, AAA Batteries
    $126
    Usually Ships in 1 - 3 days
  6. Digital thermo-hyrometer console with humidity indicator for cleanroom application, connects to up to 8 wireless remote sensors | 5401-34 displayed
    Thermo-Hygrometer; Wireless, LCD, 8-Channel, with Remote Sensor
    $241
    Usually Ships in 1 - 3 days
  7. Terra’s hygro-thermometer offers simultaneous display of temperature and humidity in a large LCD readout | 5401-21 displayed
    Group of 2 products
    Hygro-Thermometers (Large Display) From
    As low as $54
    Some ship in 1 - 3 days
  8. Curing/Drying Cabinets provide dual HEPA/carbon filtration | 6082-43A displayed
    Group of 5 products
    HEPA/ULPA Filtered Curing/Drying Cabinets From
    As low as $4,434
    Some ship in 1 - 3 days
  9. Stores 16,382 temperature readings and 16,382 relative humidity measurements. | 9500-10 displayed
    Data Logger; Relative Humidity/Temperature
    $290
    Usually Ships in 0 - 2 days
Buy Accessories
  1. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up

Ovens

  • BINDER Classic Line ED 720 Heating and Drying Chamber BINDER Classic Line ED 720 Heating and Drying Chamber
  • BINDER Classic Line ED 23 Heating and Drying Chamber BINDER Classic Line ED 23 Heating and Drying Chamber
  • BINDER Classic Line ED 400 Heating and Drying Chamber BINDER Classic Line ED 400 Heating and Drying Chamber
BINDER Classic Line ED 720 Heating and Drying Chamber
The BINDER Class.Line Heating and Drying Chamber provides uniform drying conditions and a maximum temperature of 300 °C | 1410-03 displayed BINDER Classic Line ED 720 Heating and Drying Chamber Popular ED 720 model with double oven doors features a generous inner chamber for high throughput labs; includes 2 chrome-plated shelves and accepts up to 16.
BINDER Classic Line ED 23 Heating and Drying Chamber
BINDER Class.Line Oven includes one manual door and 2 chrome-plated racks | 1410-01 displayed BINDER Classic Line ED 23 Heating and Drying Chamber Compact ED 23 model with single door easily fits in tight lab spaces; includes 2 chrome-plated shelves and accepts a maximum of 4 shelves.
BINDER Classic Line ED 400 Heating and Drying Chamber
ED 400 model with double doors includes 2 chrome-plated shelves and accepts a maximum of 10 shelves | 1410-02 displayed BINDER Classic Line ED 400 Heating and Drying Chamber ED 400 BINDER Heating and Drying Chamber consists of a 2 door chamber with ramp function, time delayed OFF and adjustable exhaust air flap. Along with preheating technology for optimal temperature uniformity and faster recovery.

Features and Benefits

Learn More: ED Series Drying Chambers
Print Copy Copied

ED Series Drying and Heating Chambers Options and Accessories

The ED Series drying and heating chambers feature a wide range of options to satisfy numerous applications. Contact a sales engineer for pricing on the complete listing of options.



  • Access port with silicone plug
  • Alarm function for overheating
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Class 3.1 independent temperature safety device
  • Data Logger Kit
  • Data Logger Software
  • Door Gasket
  • Door Lock
  • Instrument Tray
  • Interface Converter
  • Interface Converter, USB/RS422
  • Measurement of Air Exchange Rate
  • pH- Neutral Detergent
  • Pt 100 Temperature Sensor
  • Rack (Stainless Steel or Chrome-Plated)
  • RS 422 Interface
  • RS 422 Interface, Cable (15 in.)
  • RS 422 Interface, Cable (50 in.)
  • Software
  • Viewing Window and Interior Lighting
Model ED 23 ED 400 ED 720
Electrical 120V 60Hz 208V 60Hz 208V 60Hz
Net weight of the unit (empty) 60 lbs. (27.2 kg) 276 lbs. (125.2 kg) 384 lbs. (174.2 kg)
Overall Dimensions 17.17 x 20.5 x 19.5 in.
(435 x 521 x 495 mm)		 48.7 x 30.14 x 40.4 in.
(1237 x 766 x 1026 mm)		 48.7 x 34.1 x 60.3 in.
(1237 x 866 x 1532 mm)
Internal Dimensions 8.75 x 11.82 x 13 in.
(222 x 300 x 330 mm)		 39.4 x 20.5 x 31.5 in.
(1000 x 520 x 800 mm)		 39.4 x 24.4 x 47.3 in.
(1000 x 621 x 1201 mm)
Interior volume [cu. ft.] 0.7 cu. ft. (19.82 L) 14.1. (400 L) 25.4. (719.3 L)
Temperature range 5 °C above ambient temperature to [°C] 300 300 300
Temperature variation at 150 °C [± K] 2.8 3 3.6
Temperature fluctuation at 150 °C [± K] 0.5 0.5 0.5
Heating-up time to 150 °C [min] 28 71 84
Recovery time after 30 seconds door open at 150 °C [min] 28 31 34
Air change (approx.) at 150 °C [x/h] 13 10 9
Permitted load 55 lbs. (25 kg) 198 lbs. (89.8 kg) 265 lbs. (120 kg)
Load per rack 26 lbs. (11.8 kg) 77 lbs. (34.9 kg) 99 lbs. (44.9 kg)
Energy consumption at 150 °C [Wh/h] 148 672 750
Unit doors 1 2 2
Number of shelves (std./max.) 2/4 2/10 2/16

Uniform Heating and Temperature Distribution

Select BINDER Heating and Drying Chambers feature forced air convection for efficient drying and sterilization tasks

ED Series Temperature Range

Wide temperature range from 5 °C above ambient temperature to 300 °C suitable for many heating and drying applications.

ED 720 Drying Hrating Chamber Chrome Racks

The temperature uniformity is a result of the Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm.
