Gallery

VOC-Adsorbing Activated Honeycomb Carbon Filter with Stainless Steel Frame

High quality compressed activated honeycomb carbon features a low wind resistance and strong adsorption capacity to filter fumes, odors, and other contaminants.

High-Flow vs. Standard Flow Filter Comparison

Side-by-side comparison of thickness between the high-flow filter (seen left) and the standard-flow filter (seen right). High-flow filter is 5.875" thick and standard-flow filter is 3.25" thick.

HEPA Filter with an Anodized Aluminum Extruded Frame for 4' x 4' Top-Side Fan Filter Units

The anodized aluminum extruded frame provides corrosion resistance and enhanced durability for the 4' x 4' HEPA filter.

Room-side Replaceable 4' x 4' Filter

This room-side replaceable filter is suited for 4' x 4' fan filter units. Room-side replaceable units allow for an easier replacement process than top-side units.

ULPA Replacement Filter for FFU, with Stainless Steel Frame

ULPA Replacement Filter for FFU, with durable stainless steel frame to improve corrosion resistance

High Temperature HEPA Filter, 350°C

HEPA filter rated 99.99% efficient for particulates at 0.3µm size; crucial for high temperature applications where purified air is a must but ambient air temperatures are too high for standard HEPA filters.

High Temperature HEPA Filter, 250°C

HEPA filter rated 99.99% efficient for particulates at 0.3µm size; crucial for high temperature applications where purified air is a must but ambient air temperatures are too high for standard HEPA filters.

Filter; Activated Carbon, 20" W x 20" D x 1" H, CP-150

Enhanced Filter Lifespan

MERV 7 prefilters capture particles between 3–10 microns that would otherwise strain and wear out HEPA/ULPA filters. Extend the life of your HEPA/ULPA filters to maintain optimal performance for your cleanroom or other critical environment.

Effective MERV 7 Filtration

MERV 7 pre-filters effectively capture larger particles that wear out HEPA or ULPA filters. Consistently replacing pre-filters prolongs the life of HEPA/ULPA filters.

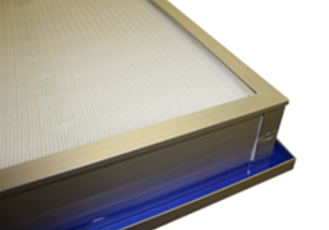

Room-Side Removable (RSR) ULPA Filter, Stainless Steel Frame

Room-side removable (RSR) ULPA filter with durable stainless steel frame to improve corrosion resistance. Allows filter to be quickly removed without dismantling FFU from the ceiling.

High-Flow HEPA Filter - 920 CFM

High-capacity HEPA filter designed with thicker media pack achieves 920 CFM airflow while maintaining 99.99% efficiency at 0.3µ particles. Aluminum frame construction ensures dimensional stability.

High-Flow HEPA Filter - Side View

High-flow design with pleated micro-glass fiber media and aluminum frame provides 920 CFM airflow with 99.999% efficiency at 0.3µm.

Stainless Steel Frame, Grille, and Mesh

Carbon filter features a sanitary, sterile stainless steel frame and grille contain compressed activated carbon media with the aid of a fine mesh

High-Flow HEPA Filter - Frame Detail

Angled view highlights the filter's robust aluminum frame construction and gasket seal design. Frame houses thicker media pack for 920 CFM capacity while maintaining standard mounting dimensions.

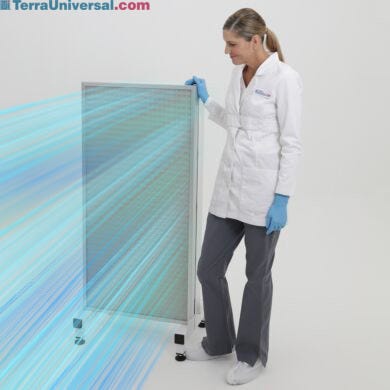

Portable Horizontal HEPA Airflow Module Visualization

Portable horizontal flow module uses HEPA filters to provide an ISO-compliant airflow to areas where ceiling space is unavailable or an overhead system is unsuitable.

Pre-Filter For Fan Filter Unit (FFU), 12 pack

MERV 7 pre-filter for Terra Fan Filter Units (FFUs) extends the life of the HEPA or ULPA primary filter), 12 pack

Pre-Filter For Fan Filter Unit (FFU), 4 pack

MERV 7 pre-filter for Terra Fan Filter Units (FFUs) extends the life of the HEPA or ULPA primary filter), 4 pack

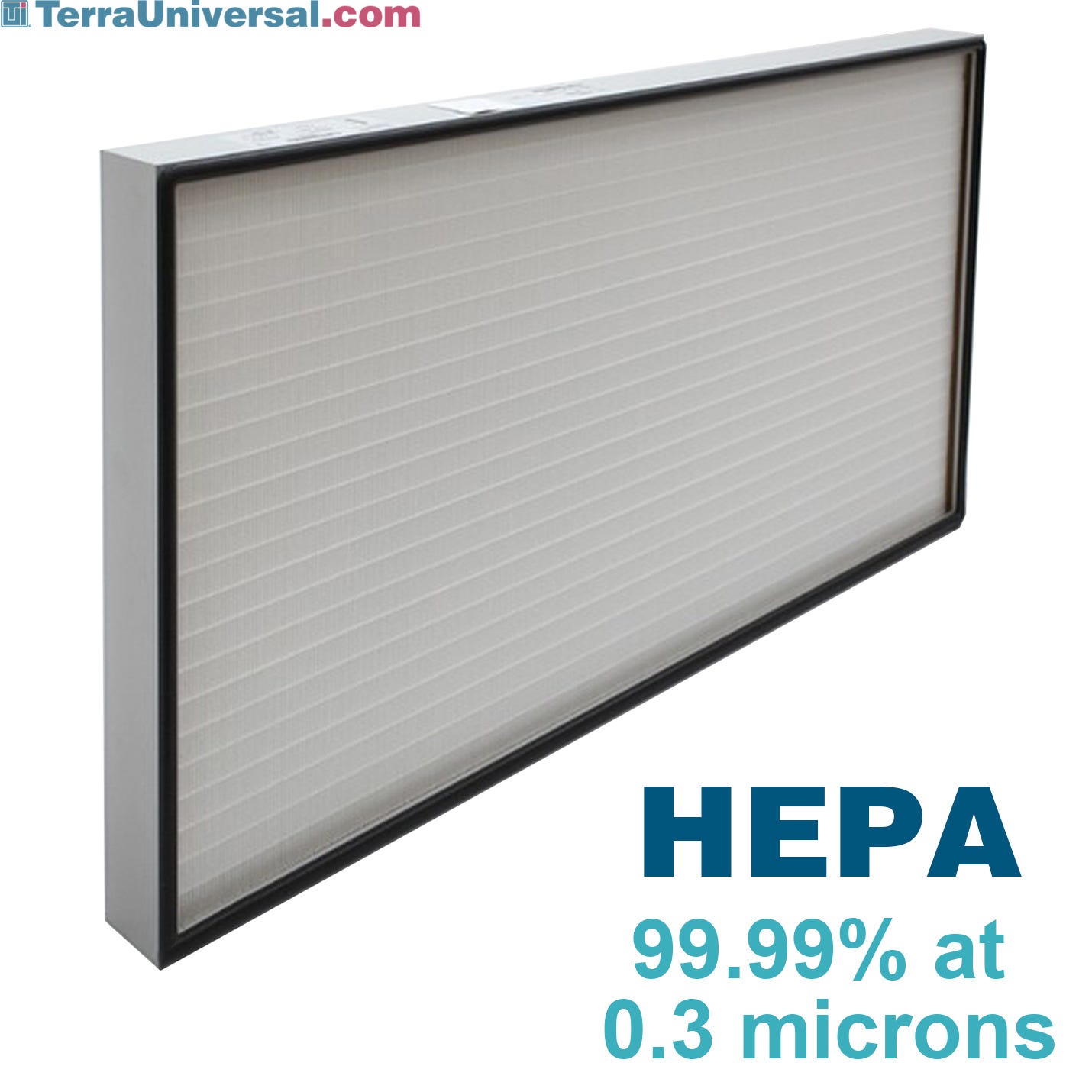

HEPA Filters Capture Micro-Contaminants

HEPA (High-Efficiency Particulate Air) Filters rated 99.99% efficient with particles 0.3 microns and larger in diameter.

ULPA Filters Capture Micro-Contaminants

ULPA (Ultra Low Particulate Air) Filters rated 99.9995% efficient with particles 0.1 microns and larger in diameter.

Filter, ULPA, Conical, 3.4" dia. x 6.75"H, for MicroVac Mini

Filter, ULPA, Conical, 3.4" dia. x 6.75"H, for MicroVac Mini provides superior filtration for controlled environments. This filter ensures that even the finest contaminants are caught.

Carbon-Prefilter for Fan Filter Units(FFU), 1 Pack

Activated Carbon Pleated Prefilter for Odor and Gas Removal provides high efficiency for adsorbing odors and controlling airborne irritants, gases, and volatile organic compounds (VOCs).

Carbon-Prefilter for Fan Filter Units(FFU), 4 Pack

4 Pack of Activated Carbon Pleated Prefilter for Odor and Gas Removal provides high efficiency for adsorbing odors and controlling airborne irritants, gases, and volatile organic compounds (VOCs).

Carbon-Prefilter for Fan Filter Units(FFU), 12 Pack

Pack of 12, Activated Carbon Pleated Prefilter for Odor and Gas Removal provides high efficiency for adsorbing odors and controlling airborne irritants, gases, and volatile organic compounds (VOCs).

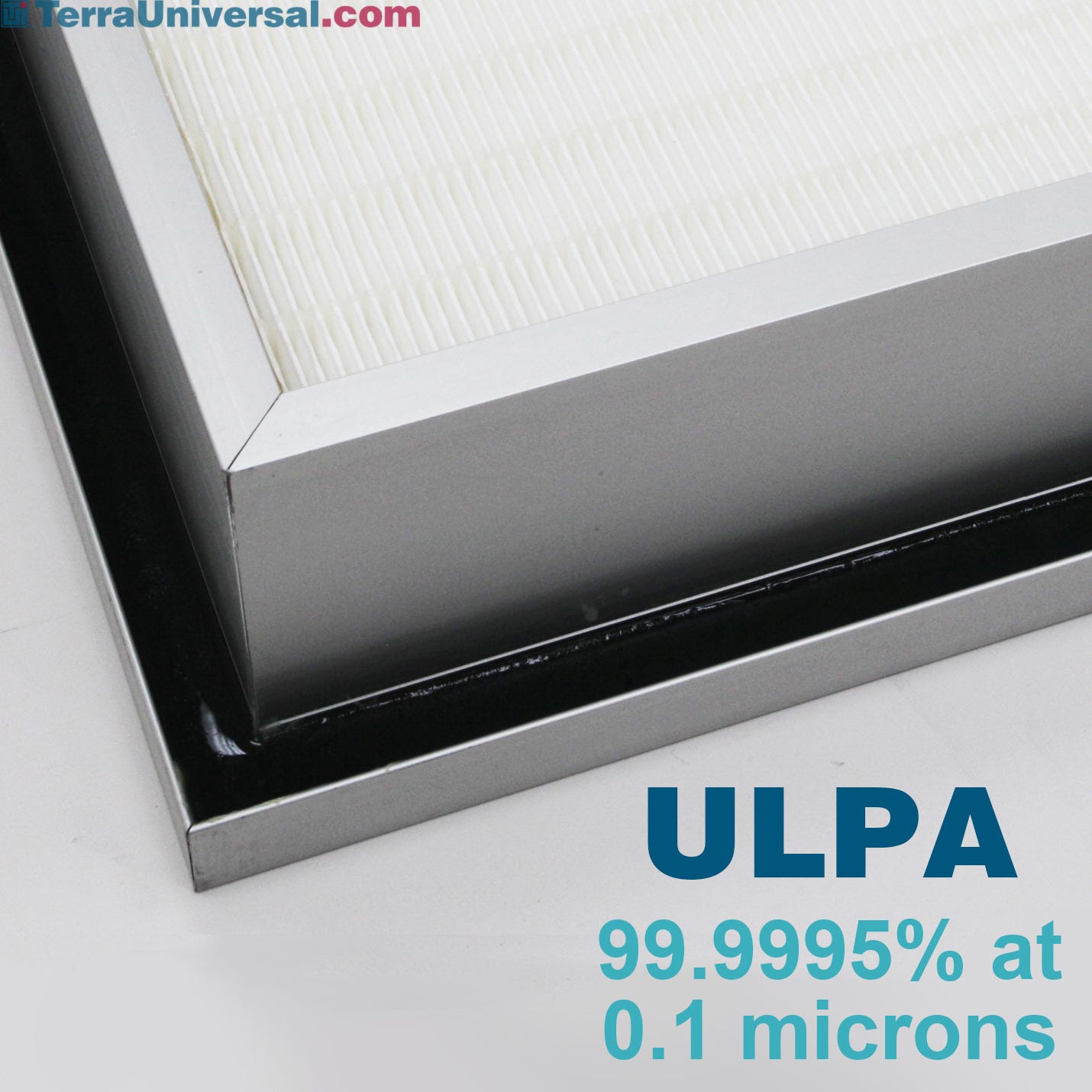

Room-Side Replaceable ULPA Filter

To simplify filter replacement, ULPA filters can be removed and replaced while the FFU remains installed; the gel-sealed filter seats securely against the "knife-edge" on the blower housing to form a tight seal.

ULPA Replacement Filter for FFU, with Stainless Steel Frame

ULPA Replacement Filter for FFU, with durable stainless steel frame to improve corrosion resistance

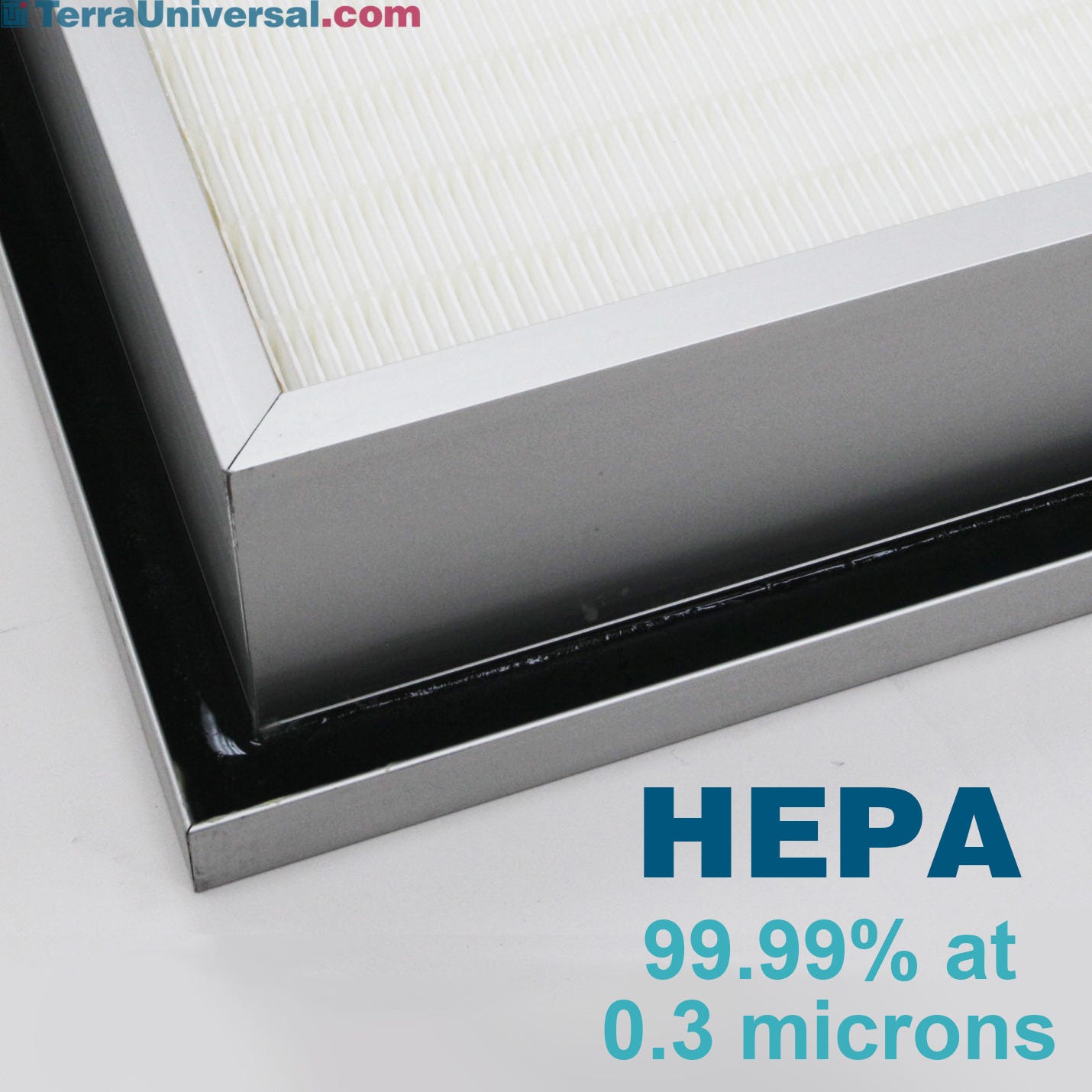

Room-Side Replaceable HEPA Filter

To simplify filter replacement, HEPA filters can be removed and replaced while the FFU remains installed; the gel-sealed filter seats securely against the "knife-edge" on the blower housing to form a tight seal.
