Photo Gallery

Gel Imaging; SmartDoc, Blue Light Illumination, 120V

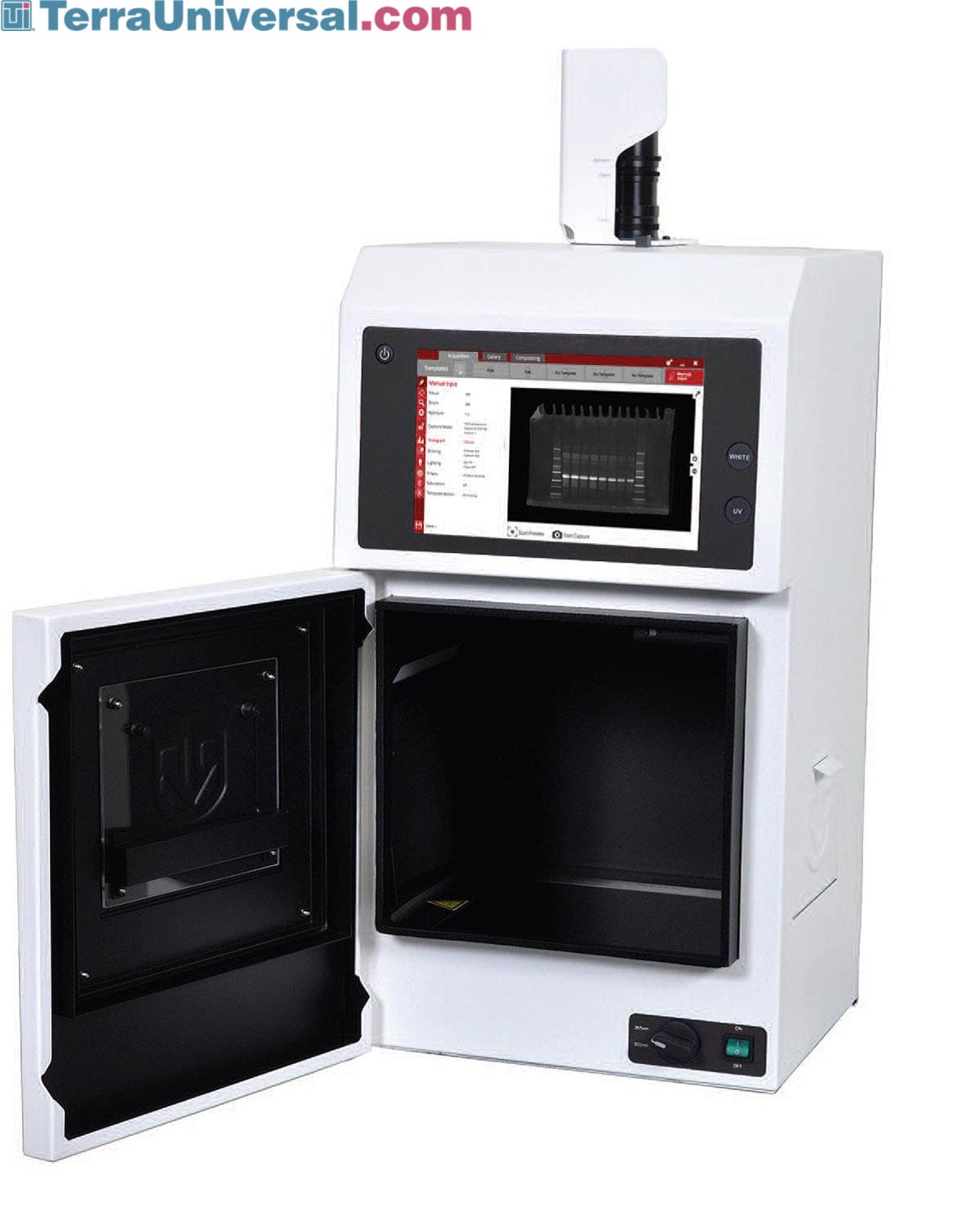

BioDoc-It Imaging System

BioDoc-It2 Imaging Systems feature a higher resolution camera, larger touchscreen, and a new software interface that streamline the gel imaging process

BioDoc-It Imaging System

Units deliver high-resolution and publication quality images of protein and nucleic acid gels without the need of an external computer.

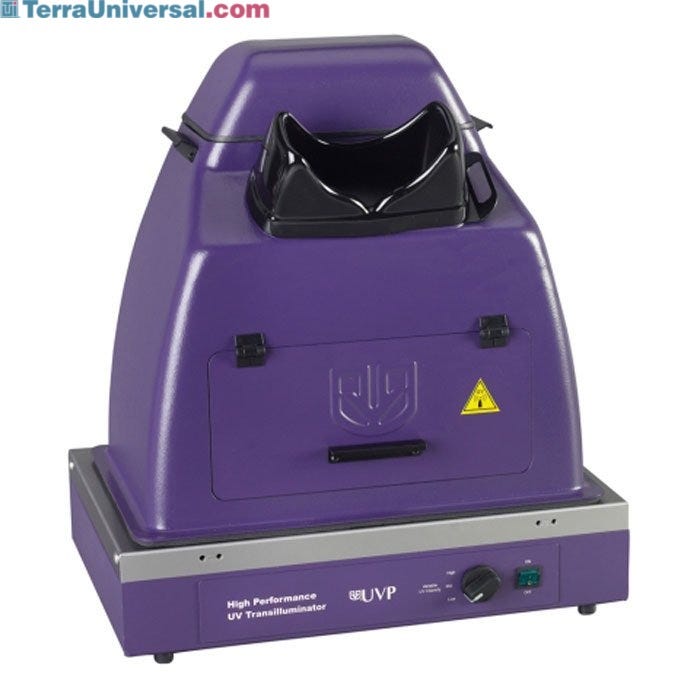

DigiDoc-It UVP Imaging System and Transilluminator

Lightweight benchtop gel imaging systems include Capture Software for automatic report generation; select models include High Performance UV Transilluminator

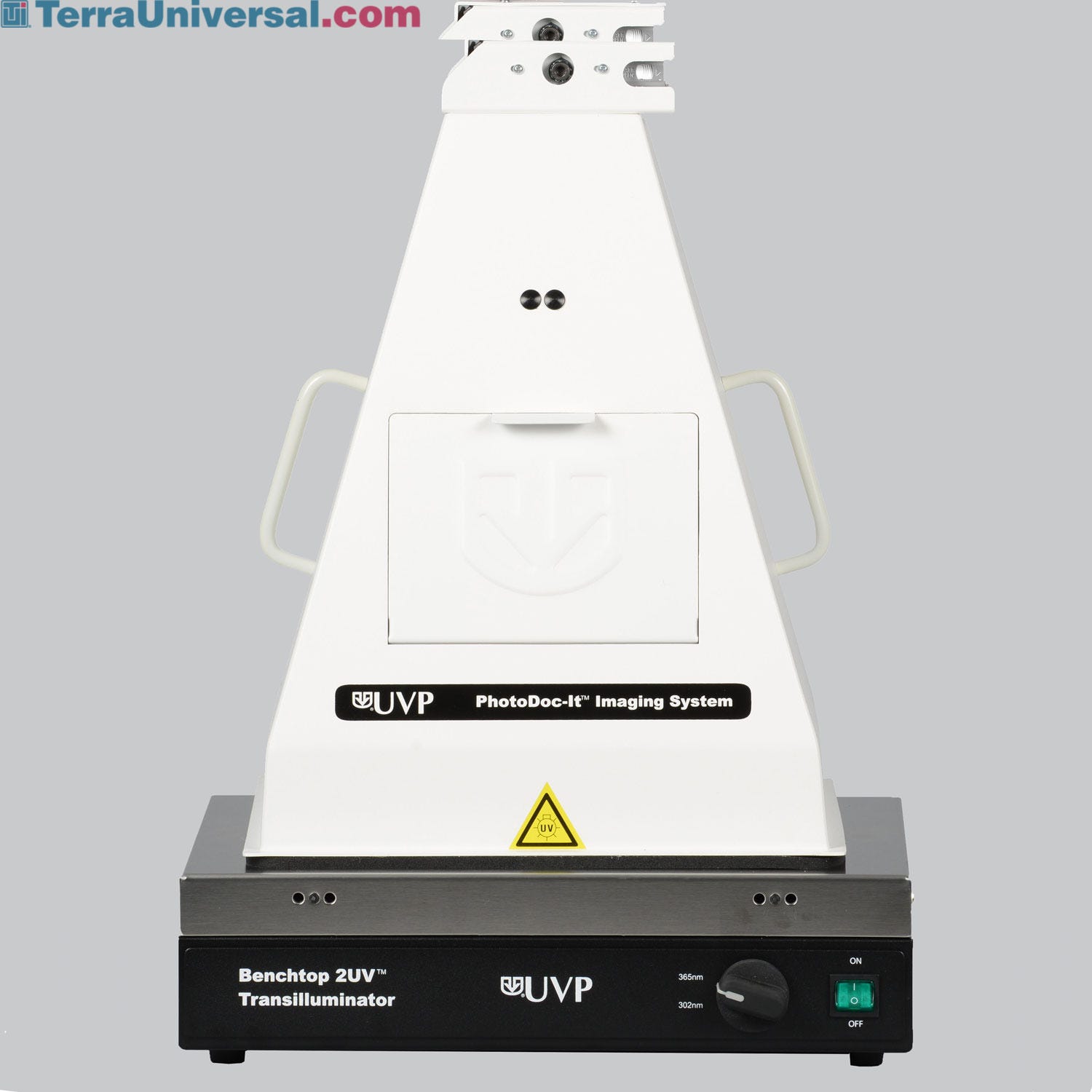

PhotoDoc-It UVP Imaging Systems

Select PhotoDoc-It Imaging Systems by UVP include a transilluminator, a 16-megapixel DigiCam 70 color camera and printer; converter plates and ink kits available

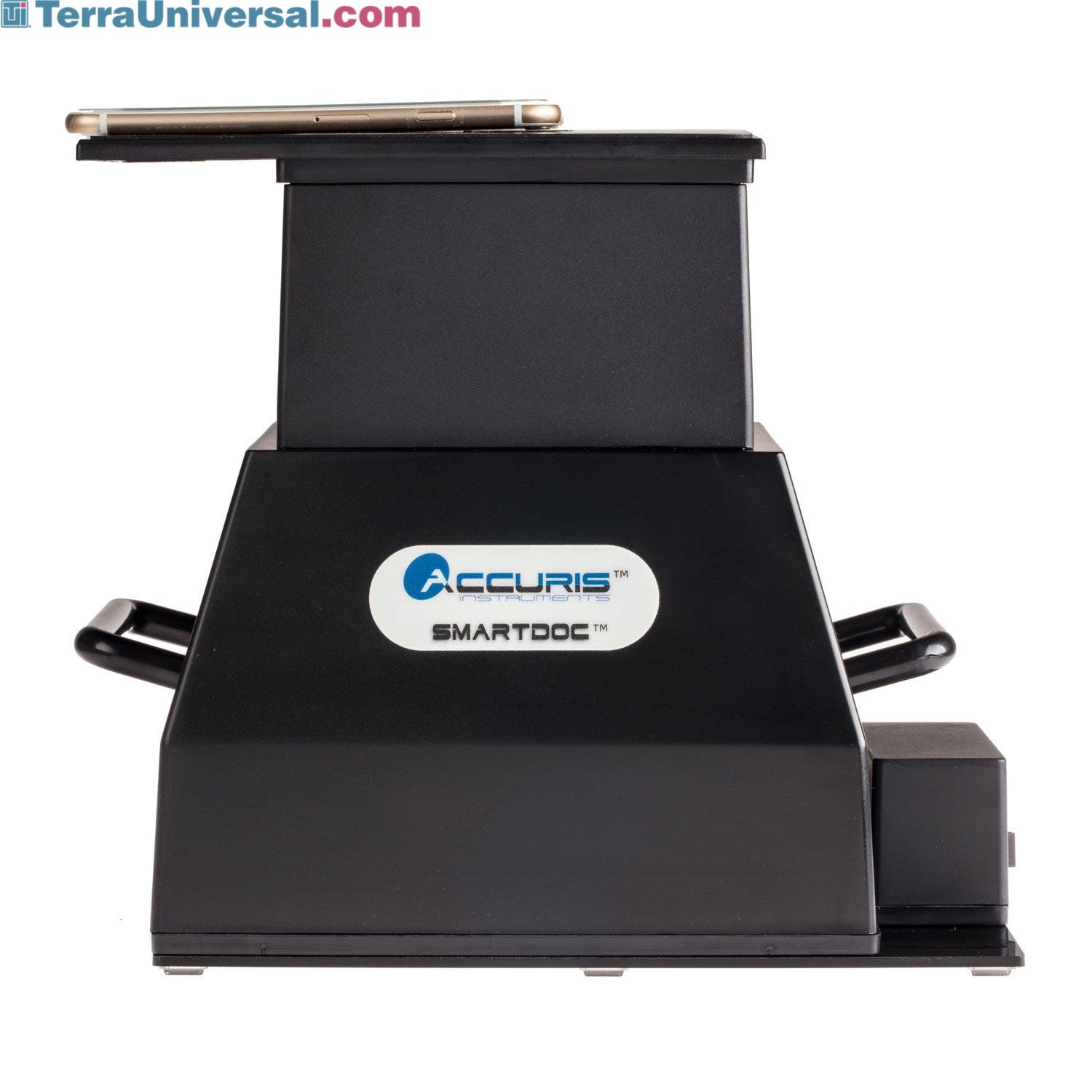

Accuris SmartDoc™ 2.0 Gel Imaging System

SmartDoc 2.0 Gel Imaging Systems by Accuris help ensure lab safety by replacing EtBr with blue light and non-toxic dyes; UV blocking mat and additional filters available

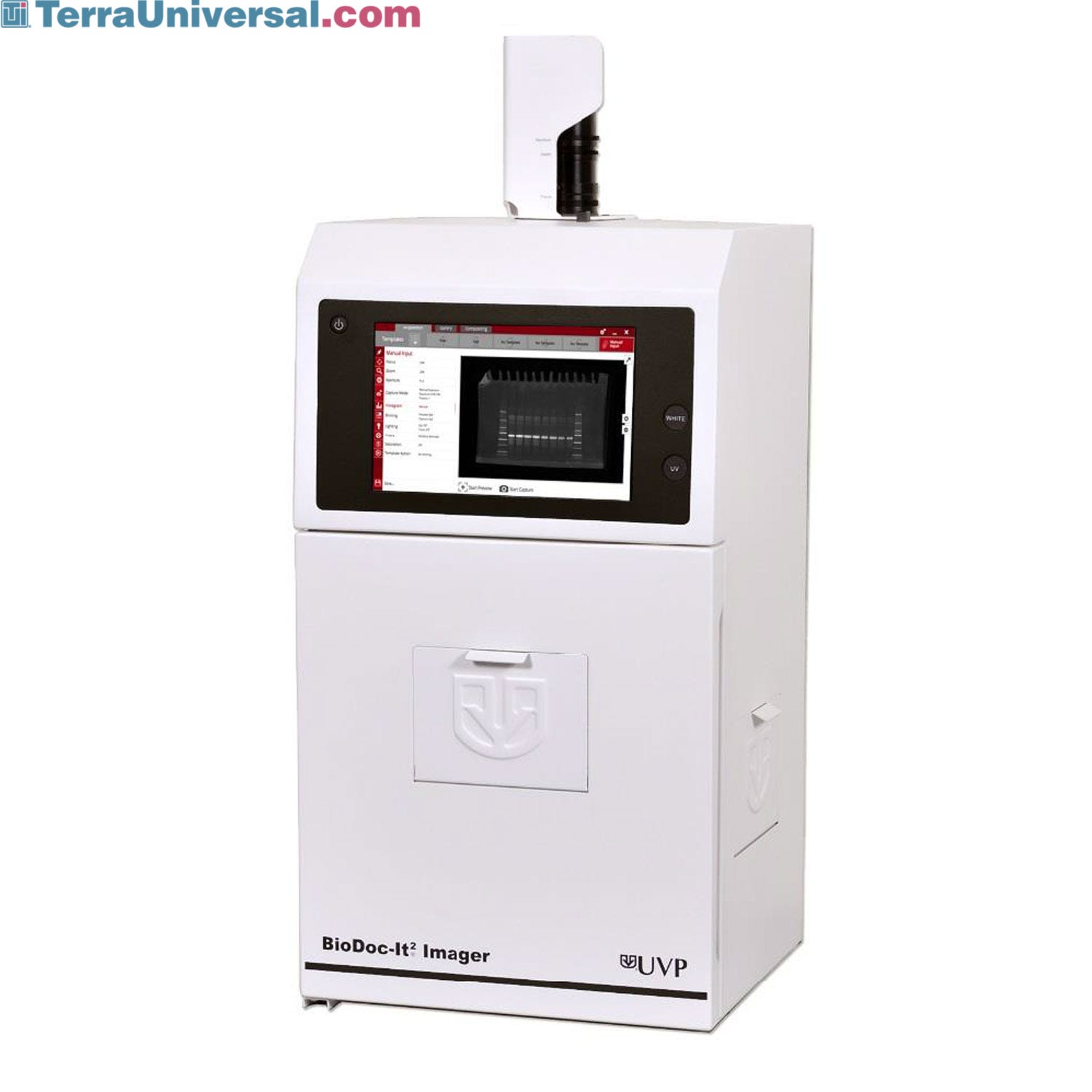

BioDoc-It Imaging System

BioDoc-It 2 Imaging Systems by UVP streamline gel documentation with integrated software that simplifies image capture and data management; accessories available

UVP GelMax Imager With Optional Visi-Blue Plate

Compact GelMax Imager by UVP includes: darkroom, 302 nm UV transillumination, epi white light, black sample plate EtBr filter and software

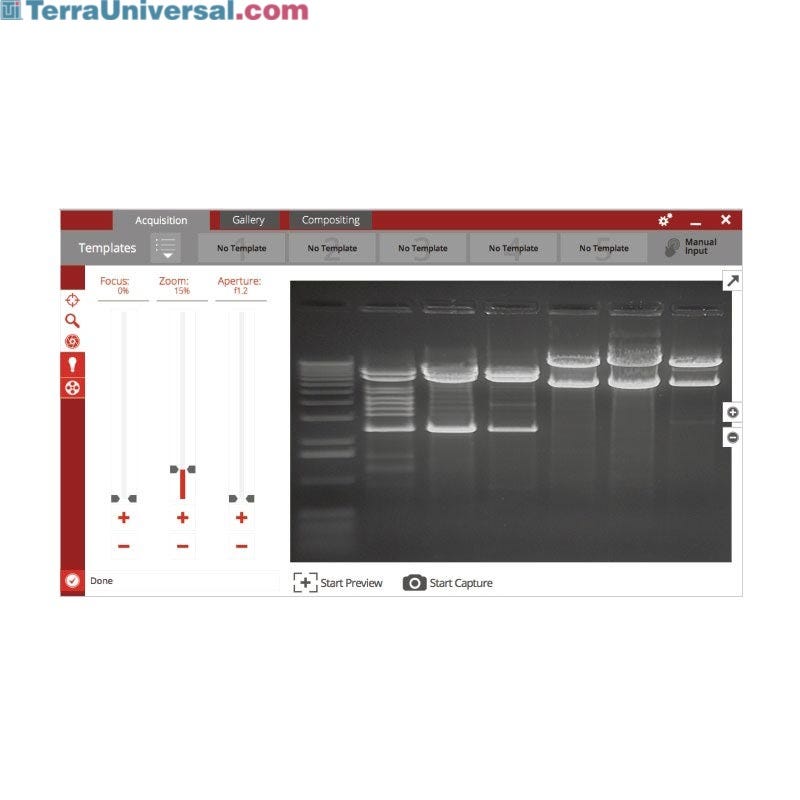

Integrated Capture Software Touch Screen

Select UVP Imaging Systems include data management software programs with saved pre-set protocols

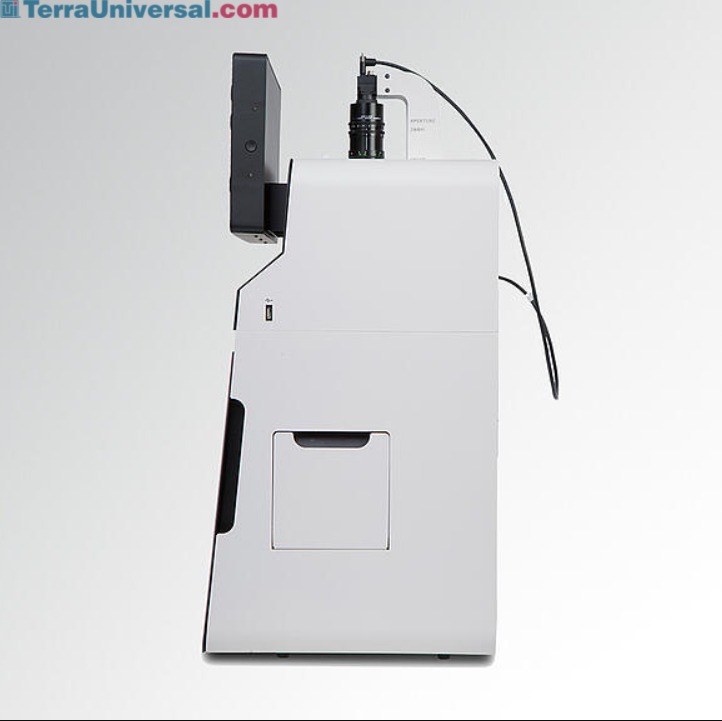

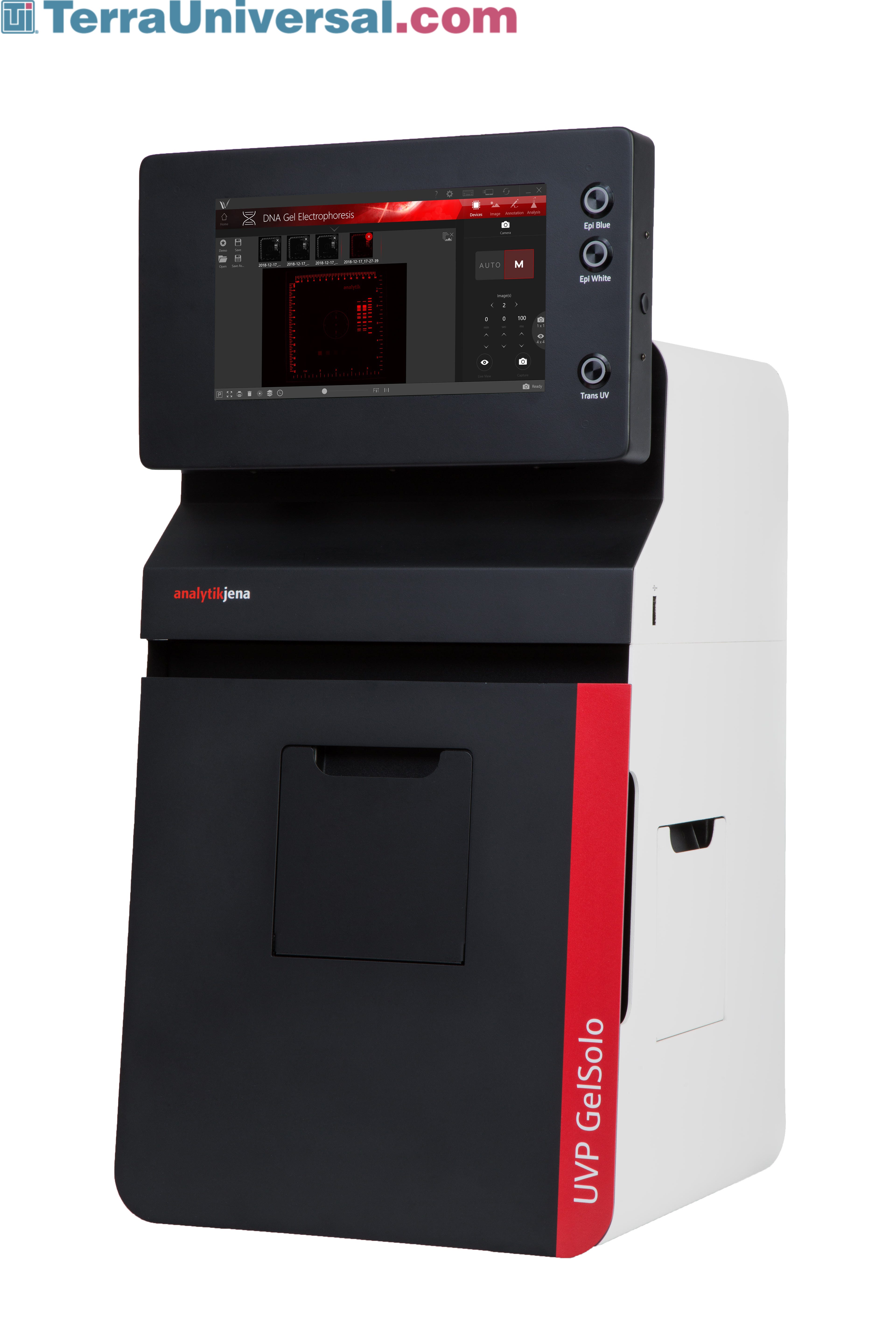

Stand-alone UVP GelSolo Gel Documentation 5MP by Analytik Jena

UVP GelSolo with a transilluminator and UV-safe gel viewing window streamlines gel imaging and analysis with VisionWorks software; 11.6” touch screen

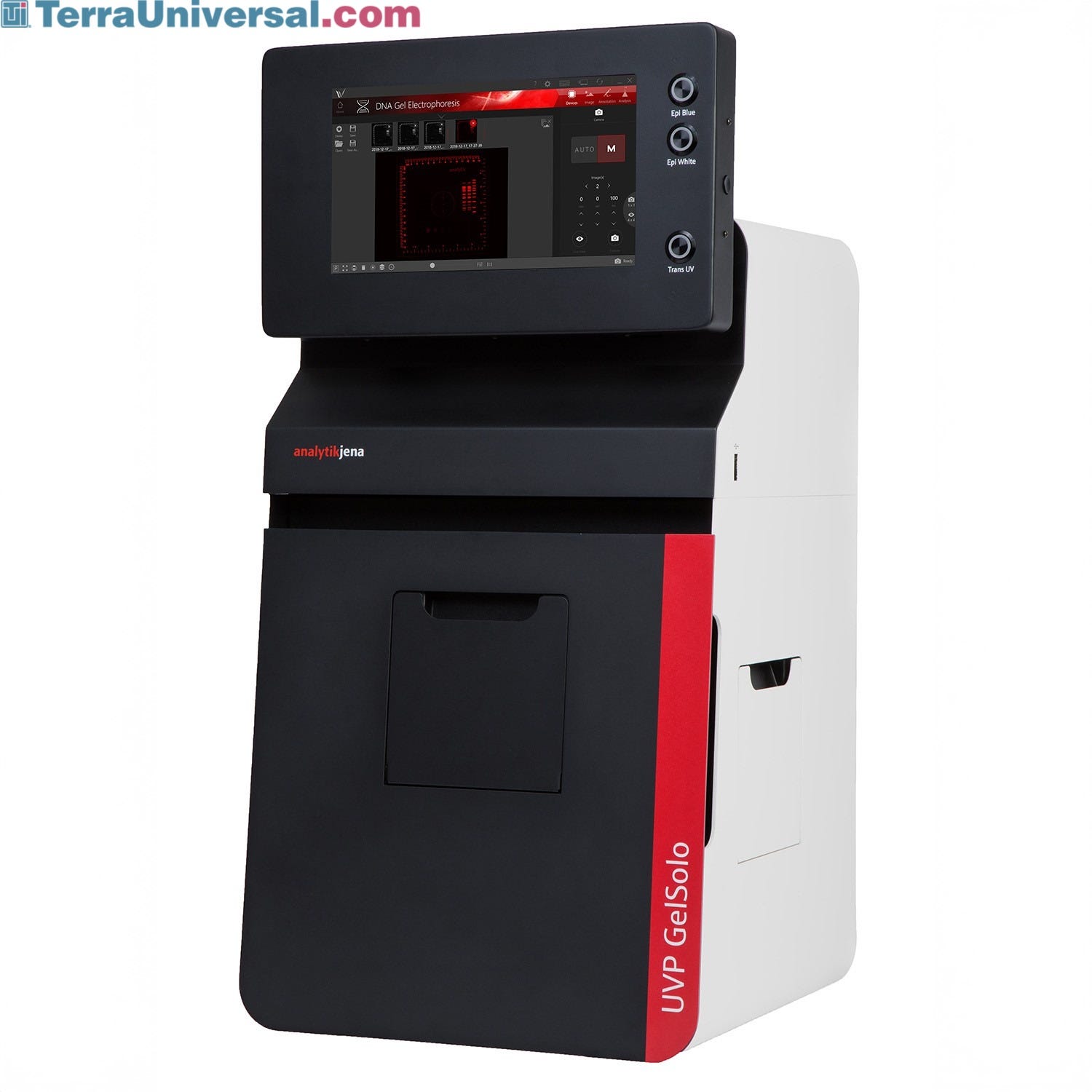

UVP GelSolo UV Gel Imaging and Analysis by Analytik Jena

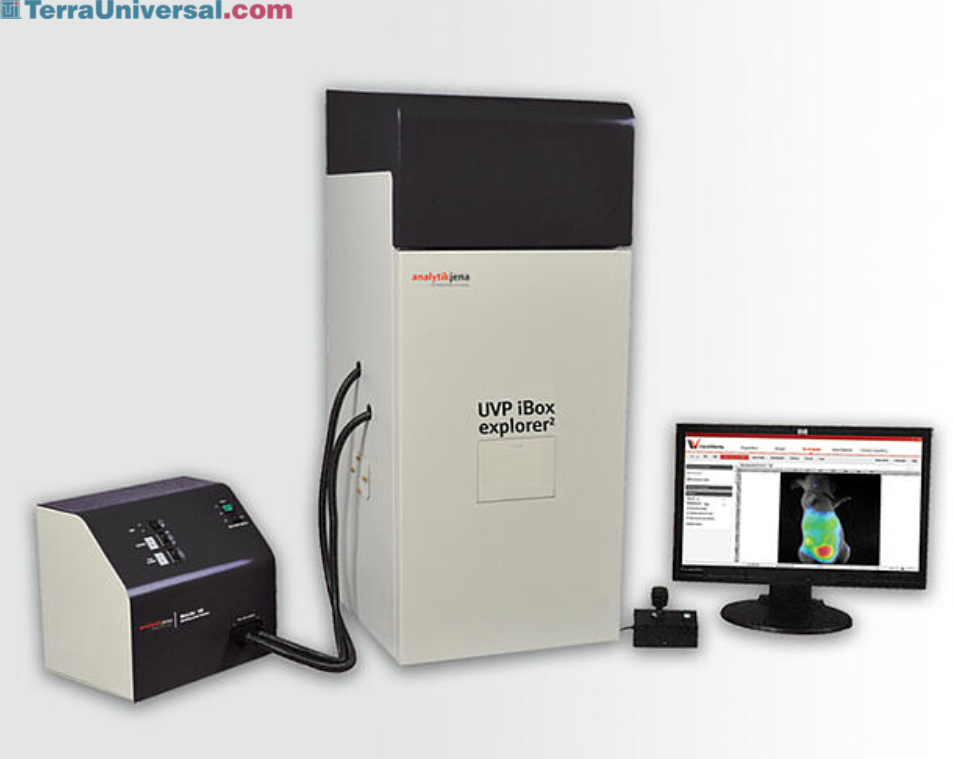

UVP iBox Explorer 2 In Vivo Fluorescence Imaging Microscope by Analytik Jena

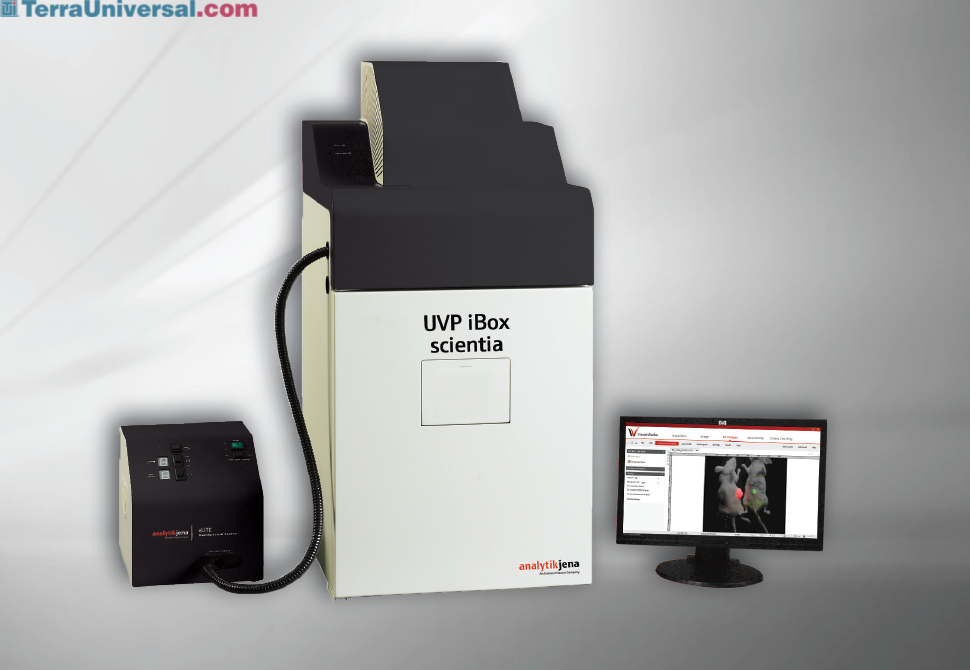

UVP iBox Scientia In Vivo Imaging Systems by Analytik Jena

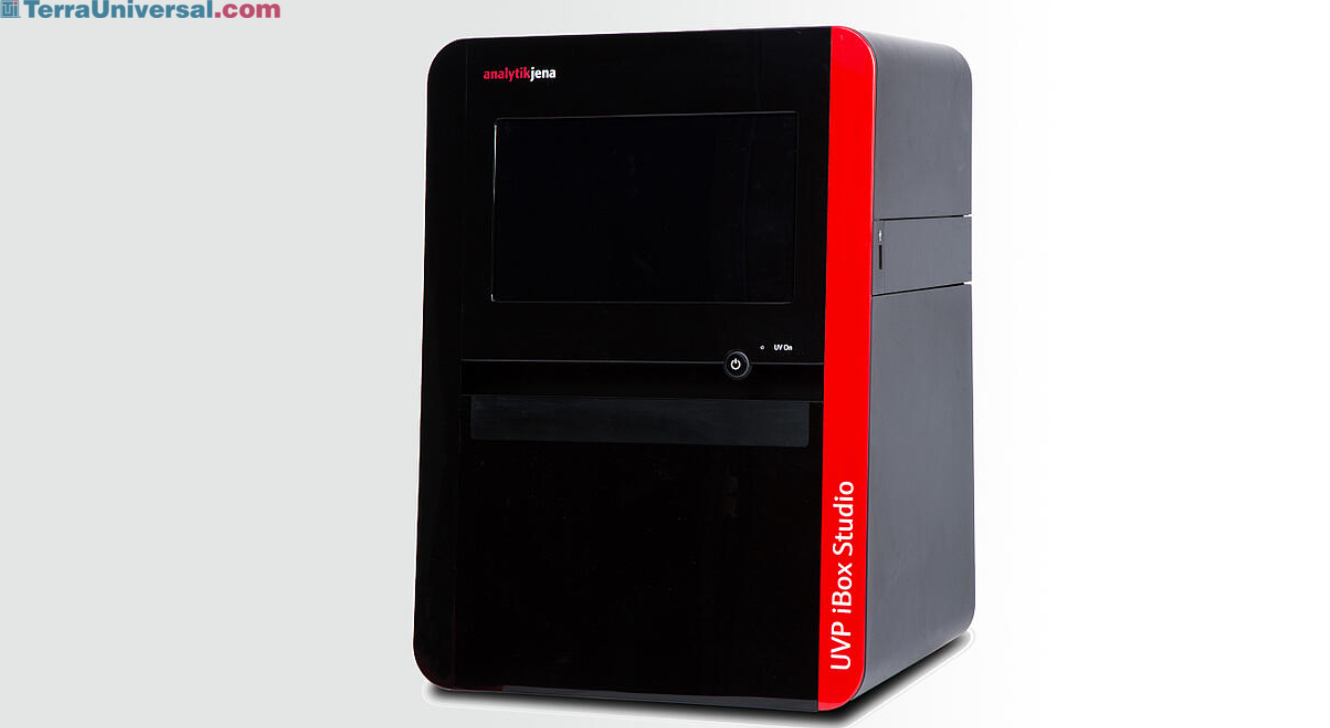

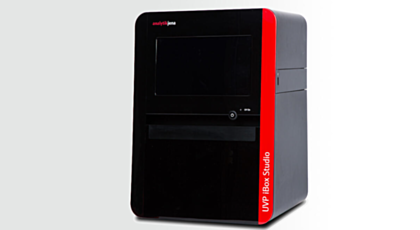

Compact UVP iBox Studio In Vivo Fluorescence Imaging Systems by Analytik Jena

Affordable UVP iBox Studio In Vivo Fluorescence Imaging Systems by Analytik Jena

NIR Imaging

Select models with NIR lasers minimize skin autofluorescence (~650 nm) and allows deeper penetration of up to 3x to 8x

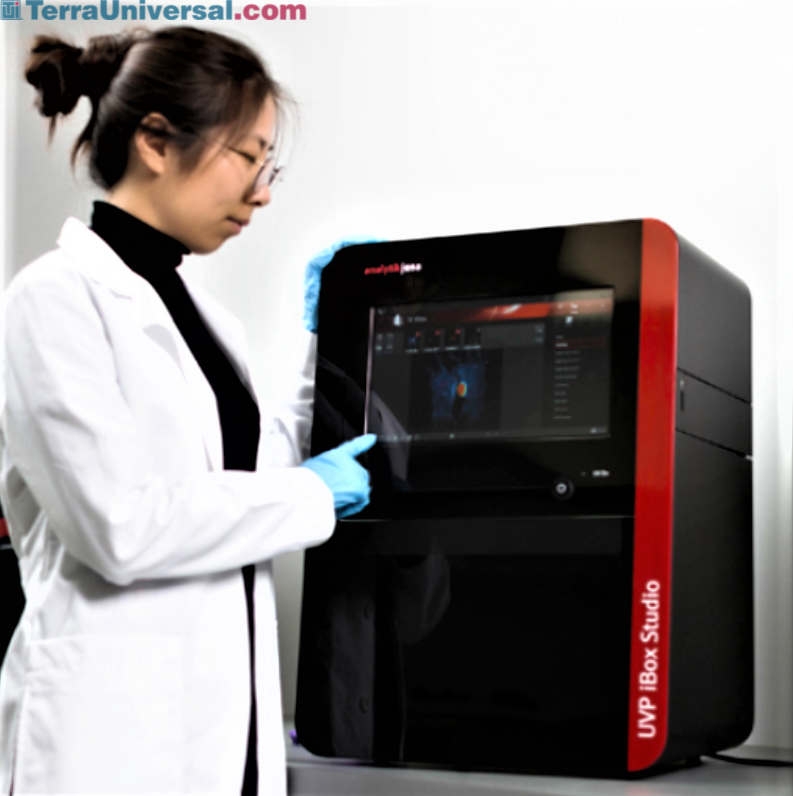

13.3” Touchscreen Computer

Provides easy visualization of fluorescent reporters and software automated controls conveniently automated at your fingertips

One-Touch Automated Workflow

VisionWorks Software streamlines workflows with preset application-based templates and image enhancement and analysis tools

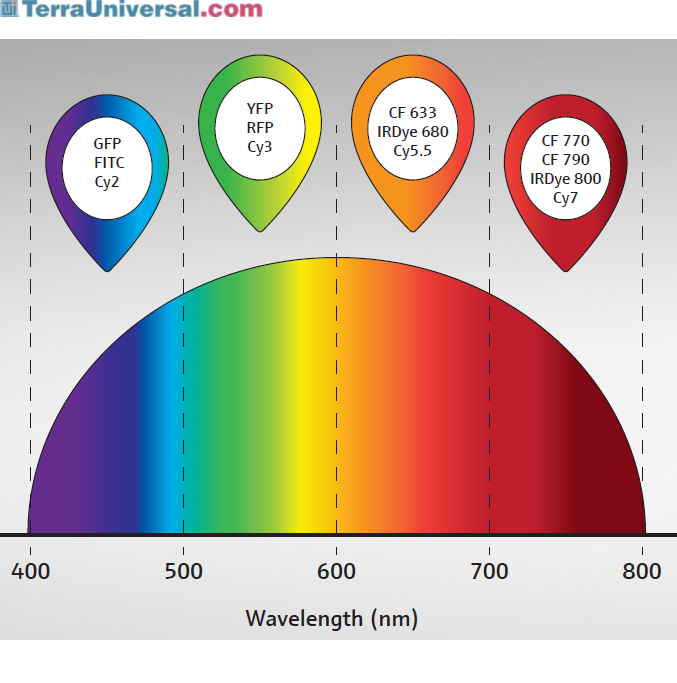

Wide Spectrum

Versatile imager supports VIS and near infrared (NIR) range from 400 nm to 900 nm and fluorescent imaging from 400 nm to 800 nm

Video of UVP iBox Studio, simplifying small animal in vivo imaging by Analytik Jena

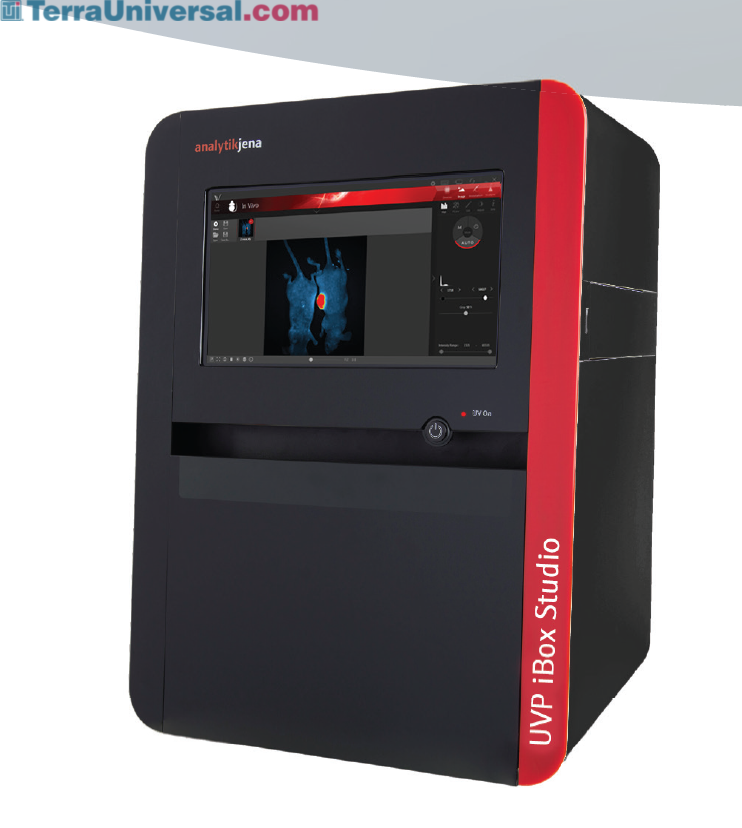

Shows all-in-one integrated design of UVP iBox Studio In Vivo Fluorescence Imaging Systems by Analytik Jena

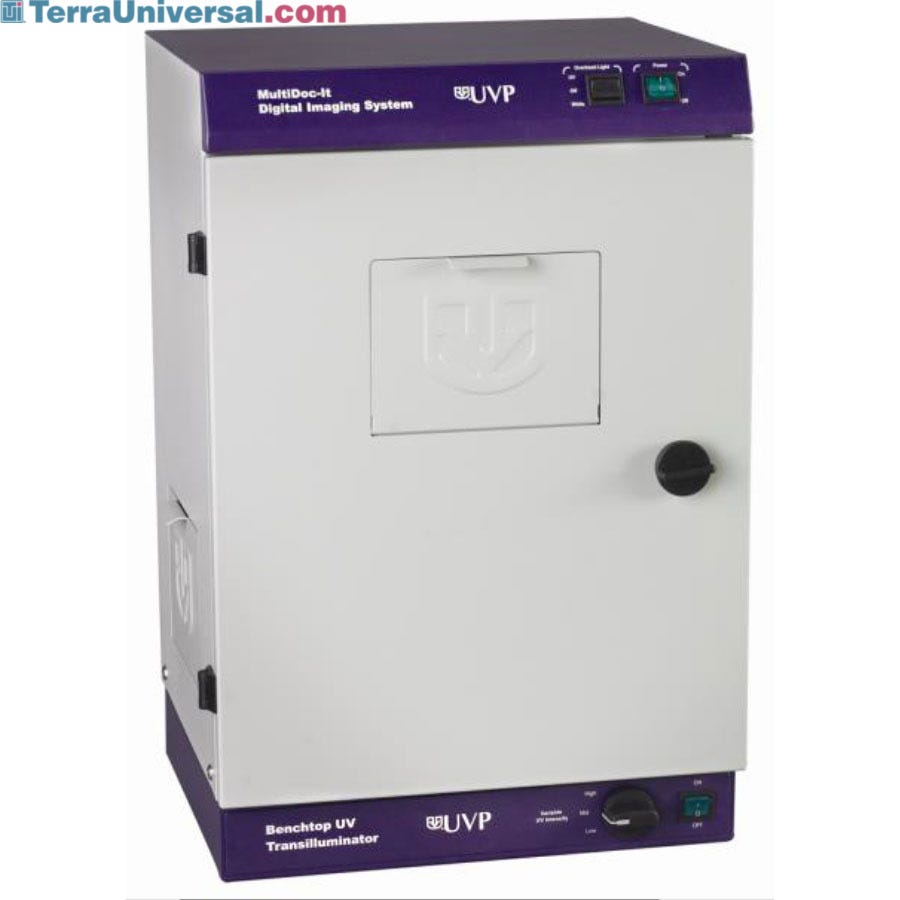

MultiDoc-It Digital Imaging System by UVP

Compact and modular MultiDoc-It Systems by UVP for colorimetric, fluorescence and Thin Layer Chromatography (TLC); optional converter plates and gel tools available

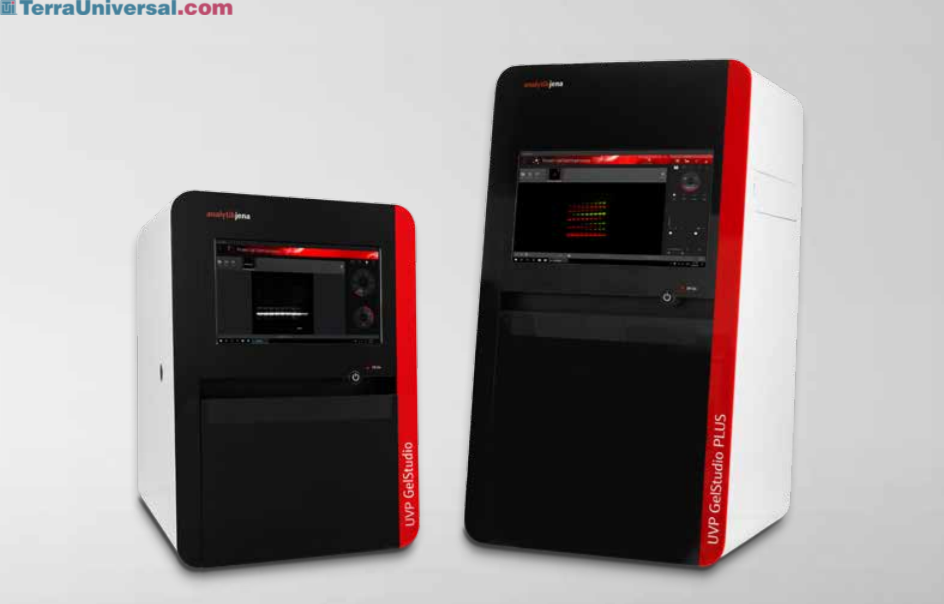

UVP GelStudio Series DNA Gel Documentation System 12MPX by Analytik Jena

UVP GelSolo Gel Documentation with Transilluminator by Analytik Jena

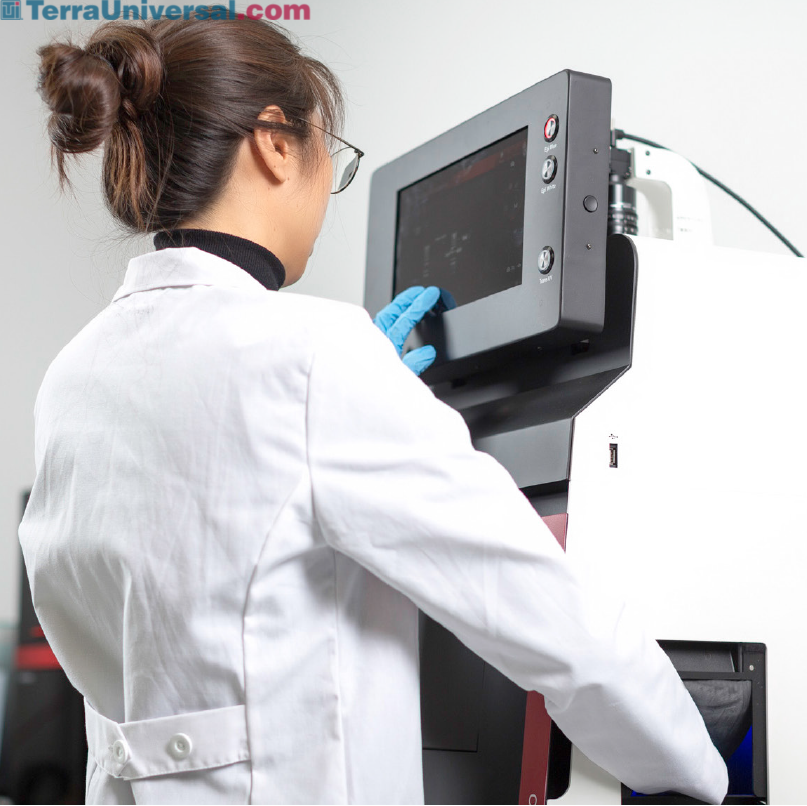

Maximum UV Protection

Safe operation by automatically turning off the UV light during door openings and UV-safe gel viewing window enables safe cutting of gels under UV illumination

Optimizes Gel Documentation

Integrated VisionWorks Software and touchscreen simplifies user interface with easy access capture controls ideal for students and beginners

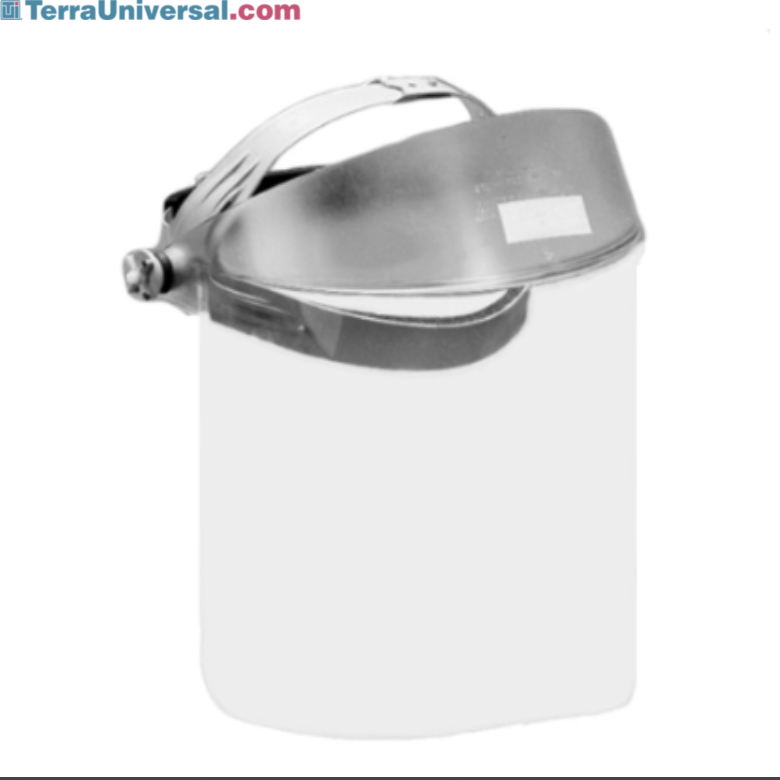

UV Light Face Protection Shield by Analytik Jena

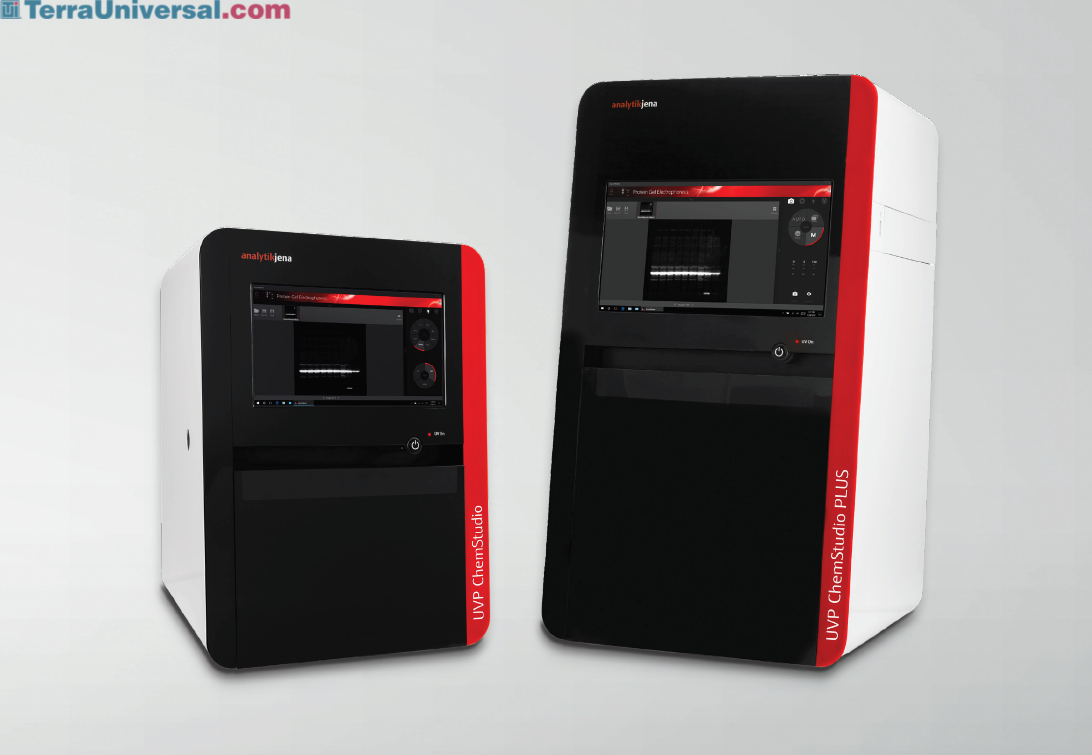

Compatible with UVP ChemStudio Series BioImaging Systems

Compatible with GelStudio DNA Gel Documentation Systems by Analytik Jena

For use with GelSolo UV Gel Documentation Systems by Analytik Jena

UVP iBox Studio In Vivo Imaging Systems Brochure by Analytik Jena

Features, benefits, specifications and ordering information for UVP iBox Studio In Vivo Imaging Systems by Analytik Jena
