Select Product

Digital Control


Manufacturer SKU

Terra Part # Price Ships in
115 V Analog 50 60 mL RapidVap 7320020 6922-91 59976 $8,652 5-7 Days 2
Ships Free Free shipping in contiguous USA In stock
230 V Analog 50 60 mL RapidVap 7320040 6922-91-220 59977 $8,652 25-29 Days 3
Ships Free Free shipping in contiguous USA
Digital Control
Maximum Sample Quantity
Maximum Sample Volume
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

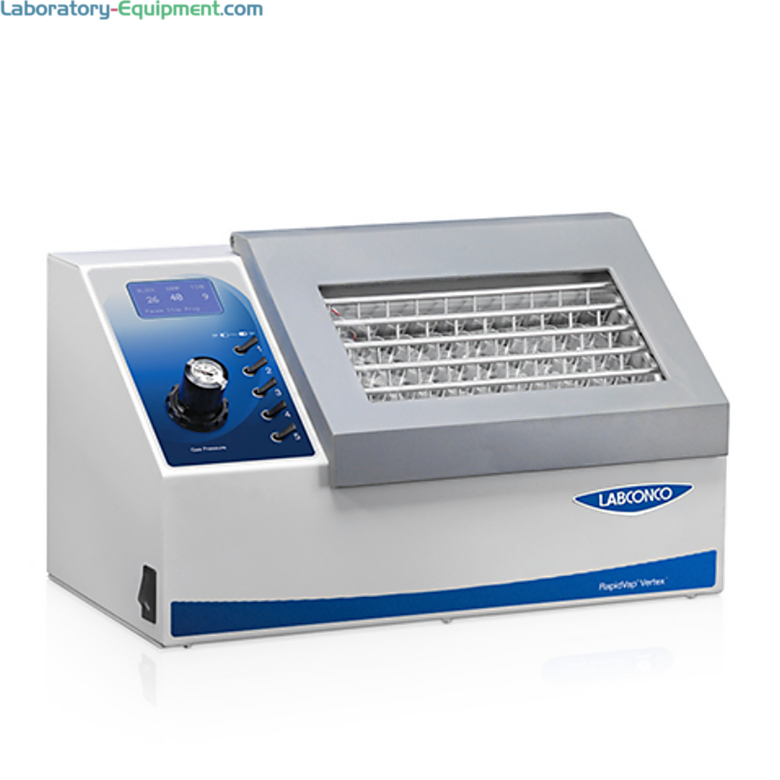

  • Compact and portable RapidVap Vertex Dry Evaporators ideal for small sample volumes; in 115V and 230V models
  • Provides fast evaporation of up to 50 samples simultaneously using dry heat and nitrogen blow down
  • LCD with touchscreen display and microprocessor store up to 10 programs for protocol consistency
  • Requires aluminum dry blocks: available in various sizes accommodate a variety of tube sizes
  • Compliance: ETL; U.S. and Canada regions
  • Applications: drug discovery, clinical analysis, environmental testing, agro-chemistry, and forensic evidence processing
  • For aqueous/solvent samples
  • Material: epoxy-coated steel exterior, glass lid
  • Dry block heater requires less maintenance and eliminates potential source of contamination compared to water baths
  • Microprocessor controlled heater supplies heat to the block and is programmable from 30° C up to 100° C in 1 degree increments
  • 60 ml maximum sample volume using #7322801 aluminum dry block for 28 mm x 140 mm, ASE vial
  • 900 watt dry block heating system
  • 50 nitrogen-dispensing nozzles in five horizontal rows of 10
  • Nitrogen control: 5 valves with on/off switches
  • Pressure regulator: front-mounted with analog display of pressure from 0 to 45 psi in 2 psi increments
  • Temperature sensor probe: monitors block or sample temperature
  • Built-in exhaust fan with blower
  • On/off switch
  • 6 feet (183 cm) of 2" (5 cm) ID polyethylene exhaust hose, with clamp
  • 6 feet (183 cm) of flexible polyethylene tubing for nitrogen supply, with John Guest fitting
  • LCD display features: touchscreen programming shows block parameters, sample and time
  • Required Accessories for Benchtop RapidVap Vertex Dry Evaporation Systems:
  • Aluminum dry blocks
  • Sample tubes
  • Nitrogen source with flow rate of 6.5 CFM/185 LPM minimum (pressure not to exceed 50 psi)
  • Options:
  • International electrical configuration
  • Extended warranty

  • Video of RapidVap Vertex Dry Evaporators by Labconco Video of RapidVap Vertex Dry Evaporators by Labconco
Video of RapidVap Vertex Dry Evaporators by Labconco
Features & Benefits

Features & Benefits

Learn More: Benefits of Dry Heat Evaporation

More Information

Benefits of Using Dry Heat in Dry Evaporation

Using dry heat helps speed evaporation and nitrogen blow-down to reduce the partial pressure directly over the liquid. RapidVap Vertex Dry Evaporators remove solvents and process up to 50 samples at the same time. Unlike water bath heaters, the dry block heater requires no distilled water or additives and adds no potential source of contamination.

Required Aluminum Blocks for RapidVap Vertex Evaporators
All RapidVap Vertex Dry

Evaporators require aluminum blocks (not included). Blocks of solid aluminum feature stainless steel handles to lift the block in and out of the evaporator. A 0.21" (0.5 cm) diameter port in the upper left-hand corner of the block is provided for insertion of the temperature probe to monitor upper block temperature. Nine aluminum blocks are available with samples sizes from 1 to 30 mL and ASE sample tubes with samples sizes from 40 to 60 mL. Custom blocks to fit special glassware are available upon request.

From 5ml to 60 ml sample volume

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

LCD Display

LCD display with touchscreen programming features nitrogen control and pressure regulator
