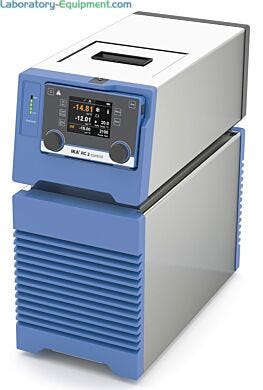

Terra Part # 6926-75
$5,088
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

Terra Part # 6926-75
63930
$5,088
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

• Pressure max.: 20 bar

• Class designation acc. DIN 12876: I

• Identification according to DIN 12876: NFL

• Cooling agent: R134a

• Cooling agent quantity: 250g

• Cooling capacity (20 °C): 400 W

• Cooling capacity (10 °C): 370 W

• Cooling capacity (0 °C): 320 W

• Cooling capacity (-10 °C): 240 W

• Cooling capacity (-20 °C): 130 W

• Operating temperature min.: -20 °C

• Working temperature min.: -20 °C

• Working temperature max.: room temp

• Temperature stability DIN 12876 [±K]: 0.05

• Temperature display: yes

• Temperature control: PT 100

• Working temperature sensor: PT 100

• Working temperature display: LED

• Display resolution : 0.1 ±°C

• Display for operation with ext. Sensor: yes

• Warning function optical/acoustic/excess temp: yes/yes/yes

• Warning function insufficient temperature: no

• Sub-level protection: yes

• Bath volume min/max: 1.4 l/4.0 l

• Pump type: Pressure- / suction pump

• Pump capacity adjustable: yes

• Pump pressure max. (0 liters discharge flow): 0.3 bar

• Pressure pump (suction side) (0-liter flow): 0.2 bar

• Pump pressure max. (0 bar backpressure): 18 l/min

• Calibration option : yes

• Technical data complies with DIN EN 60529: IP 21

• Permissible ON time: 100%

• Permissible ambient temperature: 5-32°C

• Permissible relative humidity: 80%

• RS 232 and USB: yes

• For use with C 6000 Calorimeters

• Includes: feed hopper and bleed valve

• 4 liter bath reservoir allows up to 2.5 L of thermofluid in external cooling circle without refilling

• Powerful 400 W cooling capacity cools applications up to -20 °C

• Indirect continuous adjustment of max pressure and flow rate with speed-controlled PEEK PUMP

• Measures and controls temperature directly in working medium with Pt100 temperature sensor connection

• WiCo wireless controller operates RC2 independent of device position

• 10 programmable temperature ramps with 10 steps

• Easy to open front hood

• DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])

Manufacturer SKU: 4173001

Unit of Measure: EA

Electrical Specifications: 115 V, 2.6 A, 300 W, 50/60 Hz

Weight, Product: 62.83 Lbs

Dimensions, Product: 8.7"W x 18.7"D x 20.7"H

Weight, Shipping: 85 lb

Package Type: Box
