1620-97
Terra Part # 1620-97
$655
Usually ships in 5-10 business days

Want it faster ? Read about FasTrak

Terra Part # 1620-97
82772
$655
Usually ships in 5-10 business days

Want it faster ? Read about FasTrak

Product Details

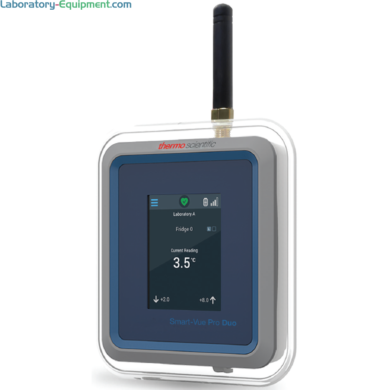

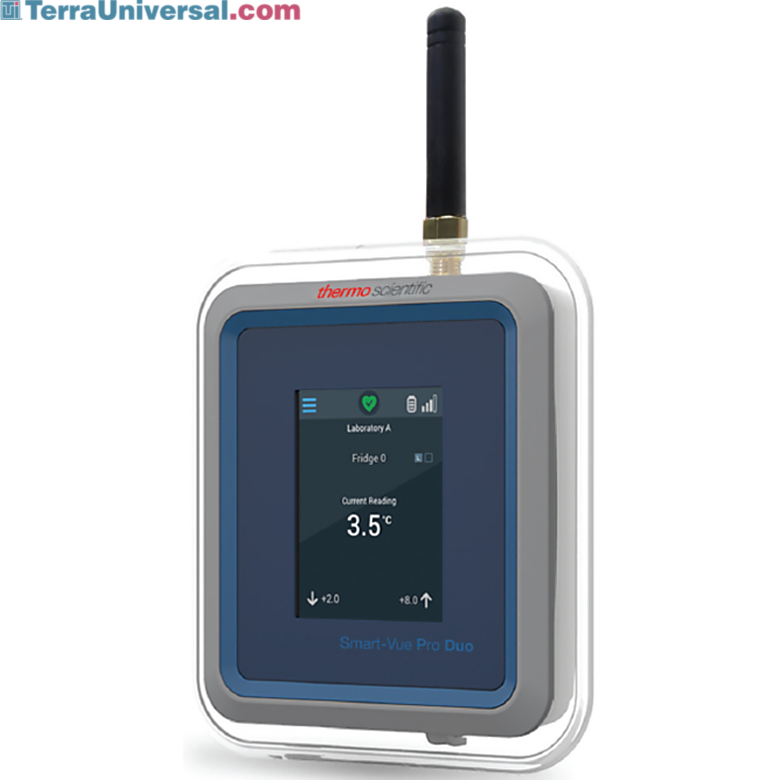

  • Smart-Vue Pro Duo Remote Monitoring System with two sensor channels enables simultaneous monitoring of multiple equipment ideal for use in compliant labs
  • LoRaWAN (Long Range wireless Area Network) a stand-alone dedicated network with a connectivity range up to 9 km
  • •  Compliance: 21 CFR Part 11 guidelines, cGxP and SOP
  • Compatible with Thermo Fisher Scientific Refrigerators, Freezers and multiple other brands
  • •  Includes: two 3.6 V lithium batteries, one sensor mounting kit, one mounting holder, one antenna and one 5-foot flat cable
  • Instant alerts enable proactive response before out-of-range samples are compromised
  • Remote monitoring ideal for compliant labs:  automatic and continuous data logging for a permanent audit trail
  • Supports asset/cost optimization by preventing replacement of samples and equipment
  • LoRaWan Network features:
  • LoRa (Long Range) technology enables scalability with single gateway enabling coverage of large areas; eliminates the need for repeaters
  • Each gateway supports up to 300 data-logging parameters
  • Dedicated wireless network
  • Setup requires minimal IT support
  • Gateway pushes data to cloud via a local network connection (Ethernet or Wi-Fi)
  • Supports sample protection, compliance and asset/cost optimization
  • Bright 2.4” color touchscreen LCD display features:
  • Enables multiple viewing of multiple sensors simultaneously
  • Battery, wireless signal name
  • Red-light diffuser alarm
  • Easy-to-see key information and status
  • Audio/visual alarms for local notification
  • Low AC power consumption via USB port access
  • Automatic sensor detection (choice of wired or wireless)
  • Allows direct connection via 4–20 mA output
  • Lab Monitoring:
  • Ambient monitoring: Temperature with external sensor; temperature and relative humidity (RH) with external sensor
  • Ultra low-temperature freezers –100°C to +150°C
  • Auto-cascade ultra low-temperature freezers –155°C to –100°C
  • Thermo Scientific™ LN2 Phase Separator/CryoPlus™ Storage Systems –196°C to –100°C
  • Refrigerators (single-, double-, and triple-door) 0°C to +10°C
  • Freezers –40°C to 0°C
  • Refrigerator-freezer combinations per chamber (i.e., top/bottom, left/right) –30°C to +8°C
  • Cold rooms –30°C to +8°C; –40°C or colder
  • Incubators Ambient to +100°C, +120°C; and relative humidity (RH): 0–99.9%, non-condensing
  • Water baths Ambient to +120°C
  • 4–20 mA current loop (0–5 V and 0–10 V) 4–20 mA; device with a 4–20 mA self-powered output
  • Gateway options
  • Smart-Vue Pro LoRaWAN 915 (#SVPHWRLGW001): 915 MHz LoRaWAN platform–enabled Ethernet/Wi-Fi connectivity
  • receiver with universal power supply
  • Smart-Vue Pro LoRaWAN 865-868 (#SVPHWRLGW002): 865–868 MHz LoRaWAN platform–enabled Ethernet/Wi-Fi connectivity receiver with universal power supply
  • Accessories:
  • Wireless Data logger #SVPWSENTCS001
  • Wired Temp Sensor -40/+80°C; 3.5M #SVPSENTUE001
  • Replacement battery
  • Smart Sensors

Manufacturer SKU: SVPHWRMOD012

Model: Smart-Vue Pro Duo

Manufactured by: Thermo Fisher Scientific

Unit of Measure: EA

Refrigerators (4°C)

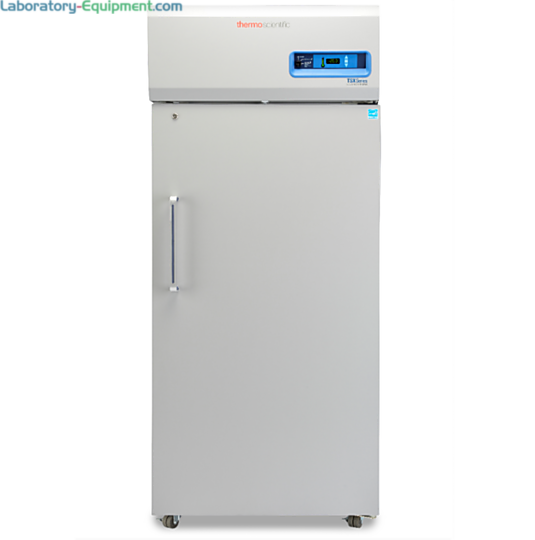

  • TSX High Performance -20°C Manual Defrost Enzyme Freezers by Thermo Fisher Scientific TSX High Performance -20°C Manual Defrost Freezers by Thermo Fisher Scientific
  • TSX High-Performance -20°C Manual Defrost Enzyme Freezers by Thermo Fisher Scientific TSX High-Performance -20°C Manual Defrost Enzyme Freezers by Thermo Fisher Scientific
  • Thermo Fisher Scientific Value Lab Undercounter Freezers Thermo Fisher Scientific Value Lab Undercounter Freezers
  • Marvel Scientific Undercounter Refrigerator with Solid Door Marvel Scientific Undercounter Refrigerator with Solid Door
  • 3.5 cu. ft. Undercounter Freezers by Thermo Fisher Scientific Value Lab Undercounter Freezer 3.5 cu. ft.
  • 5 cu. ft. Undercounter Freezers by Thermo Fisher Scientific Value Lab Undercounter Freezer 5 cu. ft.
  • Flammable Materials Cold Storage Solutions by Thermo Fisher Scientific Flammable Materials Cold Storage Solutions by Thermo Fisher Scientific
  • TSV Series General Purpose Convertible Refrigerators and Freezers by Thermo Fisher Scientific TSV Series General Purpose Convertible Refrigerators and Freezers by Thermo Fisher Scientific

Features and Benefits

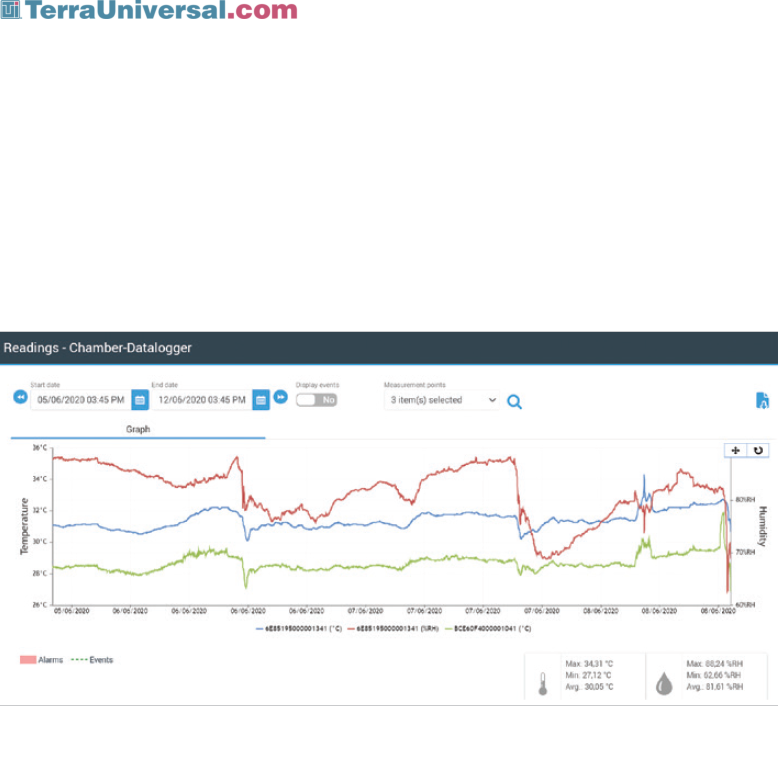

Security and Data Traceability

User-defined measurement and transfer protocols securely transmitted in digital format with backup; automatic and continuous data logging for a permanent record of changes with user traceability

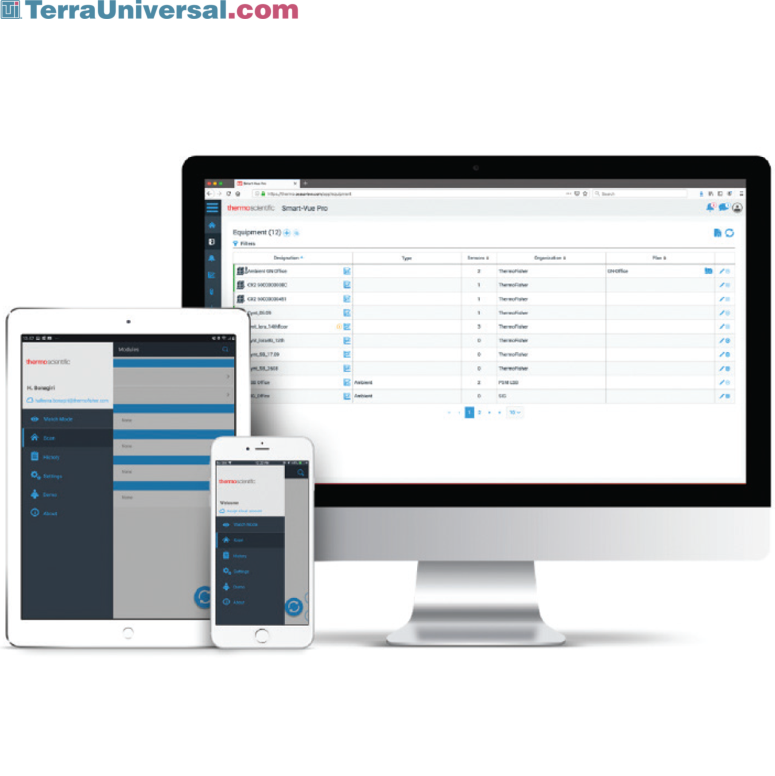

Cloud Data Access

Convenient data access via cloud enables users to check status anytime and anywhere using a desktop, tablet or smart phone for real-time 21 CFR Part 11–compliant data-logging and monitoring of critical parameters

Long-Range Wireless Wide Area Network (LoRaWan)

Stand-alone dedicated LoRaWan network increases connectivity range by up to 9 km, supports up to 300 data-logging per gateway, pushes data to cloud, and enables a single gateway to cover a large area
