1621-25
Terra Part # 1621-25
$9,226
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1621-25
77944

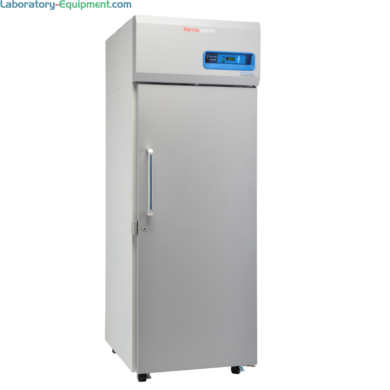

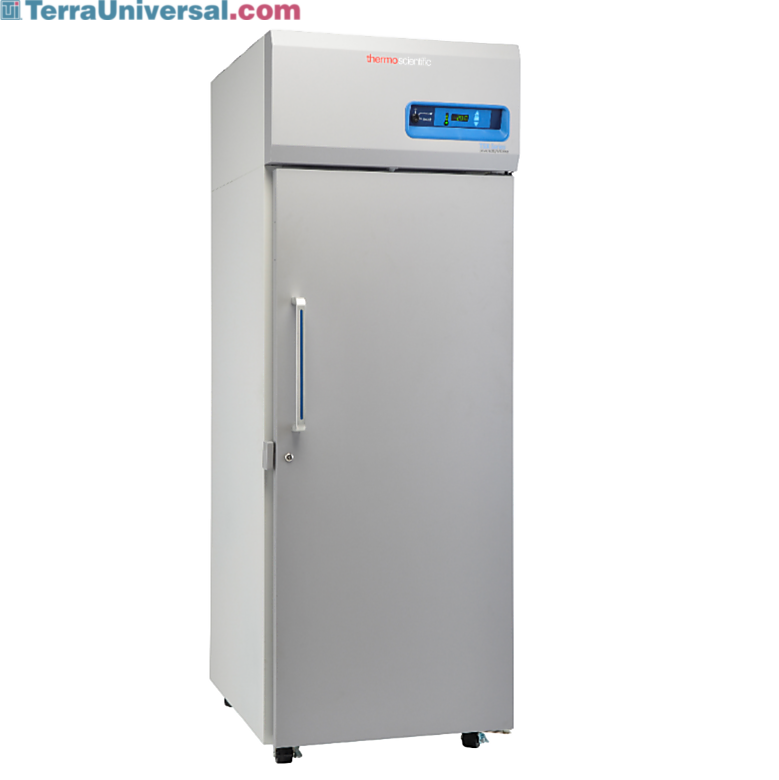

Refrigerator; 23.3 cu. ft., TSX High-Performance, Auto Defrost, Thermo Fisher, 115 V, TSX2330FA
Product Details
  • Minus 30°C auto defrost freezer with V-Drive for clinical, vaccines and lab-grade storage
  • Non-invasive automatic defrost feature time and temperature guided cycle
  • Suited for storing SARS-CoV-2 virus vaccine requiring a -30°C setpoint
  • •  Energy-efficient model uses up to 50% less energy usage compared to other models
  • Includes four shelves and four 2" casters (two lockable)
  • Features: intuitive microprocessor control with setpoint security and alarms, includes shelves, solid doors, ergonomic door handle, door lock, interior lighting, self-closing door with 90° stop and manufactured in an award-winning zero-waste to landfill facility
  • Stores reagents, pharmaceuticals, biological, siRNA molecules, primers, COVID-19 specimens and fetal bovine serum (FBS)
  • V-Drive technology saves energy and provides maximum protection by detecting door opening and other usage patterns requiring variance of compressor speed for temperature stability required in COVID-19 vaccine development, testing and sample processing
  • Non-invasive auto defrost prevents ice build-up supporting sample protection and sustainability objectives
  • Certifications/Compliance: UL, cUL, SNAP and EnergyStar
  • Forced-air circulation delivers temperature uniformity and quick temperature recovery
  • SNAP Compliant Refrigerants: Natural, R290 refrigerant and water-blown foam
  • GMP Clean Room Class A / ISO 6 (ISO EN 14644-1) compatible with appropriate pre-install preparation
  • Whisper quiet operation: 52 dBA
  • Lower HVAC costs due to less heat emission into the environment*
  • Options: chart recorder, alarm and recorder monitoring, Smart-Vue
  • Also available in 208V-230V freezer models

Internal Dimensions: 24" W x 28.5" D x 58" H

Capacity Range: 18 to 24 cubic feet

Manufacturer SKU: TSX2330FA

Capacity: 23.3 cu. ft.

Configuration: Upright

Brand: TSX High-Performance

Door Style: Single Solid

Plug Type: US Plug

Specialty: Auto Defrost

Type: Freezer

Set Point Temperature: -30°C

Freezer Temperature Range: -35°C to -15°C

Unit of Measure: EA

Marks & Listings: CE, UL, ULC

Electrical Specifications: 115 V, 15 A, 60 Hz

Dimensions, Product: 28" W x 37.9" D x 78.5" H

Weight, Shipping: 423 lb

Buy Accessories
  1. Full-Size Epoxy-Coated Shelf for 23.0, 29.2, 45.8 and 51.1 cu. ft. refrigerators and freezers by Thermo Fisher Scientific; compatible with REVCO models
    $143
    Increase Down Increase Up
  2. Half-Size Epoxy-Coated Adjustable Shelf for 23.0, 29.2, 45.8 and 51.1 cu. ft. refrigerators and freezers by Thermo Fisher Scientific
    $128
    Increase Down Increase Up
  3. Complete Set and Single SS Roll-Out Drawers for 11.5, 23.0, 29.2, and 51.1 cu. ft. refrigerators, freezers, and REVCO legacy models by Thermo Fisher Scientific
    $3,437
    Increase Down Increase Up
  4. Complete Set and Single SS Roll-Out Drawers for 11.5, 23.0, 29.2, and 51.1 cu. ft. refrigerators, freezers, and REVCO legacy models by Thermo Fisher Scientific
    $687
    Increase Down Increase Up
  5. Casters, 3" Casters for Refrigerators and Freezers, Qty 4, Thermo Fisher Scientific, 6041-1
    $496
    Increase Down Increase Up
  6. Ideal when ultra-low temperature freezers need to meet validation and regulatory requirements.  |  1536-65 displayed
    $2,537
    Increase Down Increase Up
  7. Chart Paper, Replacement Chart Paper for Chart Recorder, Box of 50, Thermo Fisher Scientific, 6184
    $119
    Increase Down Increase Up
  8. Alarm, Deluxe Remote Electronic Alarm for Refrigerators and Freezers, Thermo Fisher Scientific, 6224TA
    $1,927
    Increase Down Increase Up
  9. Transmitter, 4-20 Milliamp Transmitter, Refrigerators and Freezers Accessory, Thermo Fisher Scientific, 6907-2
    $426
    Increase Down Increase Up

  • Compare TSX Series High-Performance -30°C Auto Defrost Freezers by Thermo Fisher Scientific Comparison chart for TSX Series High-Performance -30°C Auto Defrost Freezers by Thermo Fisher Scientific

Features and Benefits

Learn More: Revco Plasma Freezers

Industry and Applications for -30°C Revco High-Performance Plasma Freezers

Lockable doors option available on all Revco Plasma Freezers

Ideal for use in hospitals, physician's offices, blood banks and clinical labs, Revco Plasma Storage Freezers provide reliable short-term and long-term storage of plasma bags and samples. These units are an ideal storage solution for blood banks performing blood separation. The positive airflow system enables optimum temperature stability and models recover factory-preset temperature quickly after door openings.

Safety features such as audio/visual alarms and lockable doors give labs an added layer of safety and security.

Model UFP430A UFP1230A UFP2330A UFP3030A UFP5030A
Type Undercounter Space-Saver Upright Upright Upright
Capacity 4.9 cu. ft./139L 11.5 cu. ft./326L 23.3 cu. ft./659L 29.2 cu. ft./826L 51.1 cu. ft./1447L
Cabinet Type Undercounter Space Saver Upright Upright Upright
Plasma Box
Capacity (250ml)
78 273 532 665 1064
Drawer Dividers 2 Included 7 Included 7 Included 7 Included 14 Included
Doors/Type Single/Solid Single/Solid Single/Solid Single/Solid Double/Solid
Internal
Dimensions*
20"W x 20.5"D x 20"H
(508 x 521 x 508 mm)
20"W x 21"D x 52.4"H
(508 x 533 x 1331 mm)
24"W x 29"D x 58"H
(610 x 229 x 1473 mm)
30"W x 29"D x 58"H
(762 x 737 x 1473 mm)
52.5"W x 29"D x 58"H
(1336 x 737 x 1473 mm)
External
Dimensions
24"W x 29"D x 34"H
(610 x 734 x 864 mm)
24"W x 29.3"D x 73.6"H
(610 x 744 x 1869 mm)
28"W x 37.2"D x 79.2"H
(711 x 945 x 2012 mm)
36.4"W x 37.2"D x 79.2"H
(925 x 945 x 2012 mm)
56.5"W x 37.2"D x 79.2"H
(1435 x 945 x 2012 mm)
Plug 5-15P 5-15P 5-20P 5-20P 5-20P
Access Port 1" Access Port - - - -
Inkless
Chart  Recorder
- Yes Yes Yes Yes
Operating Temp. -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F)
Compressor Heavy-duty, industrial-grade, hermetically sealed
Cabinet/Chamber
Material
High impact powder paint coating
Defrost Automatic
Insulation CFC-Free
Temp. Control Microprocessor
Refrigerant CFC Free
Compliance Meet UL requirements; TUV criteria; AABB, ANRC, and FDA guidelines
Electrical 115 volts, 60 Hz
Warranty 2-year warranty on parts and labor with an additional 2-years on compressor only
*Height dimensions without caster installation

V-Drive Technology

Quick temperature recovery and energy efficient cold storage for pharmaceutical, vaccines and medical samples

Ergonomic Usage

Ergonomic door handle designed with a soft touch grip

Non-Invasive Defrost

Prevents ice build-up by defrosting freezer without impacting the internal temperature to protect sample integrity
