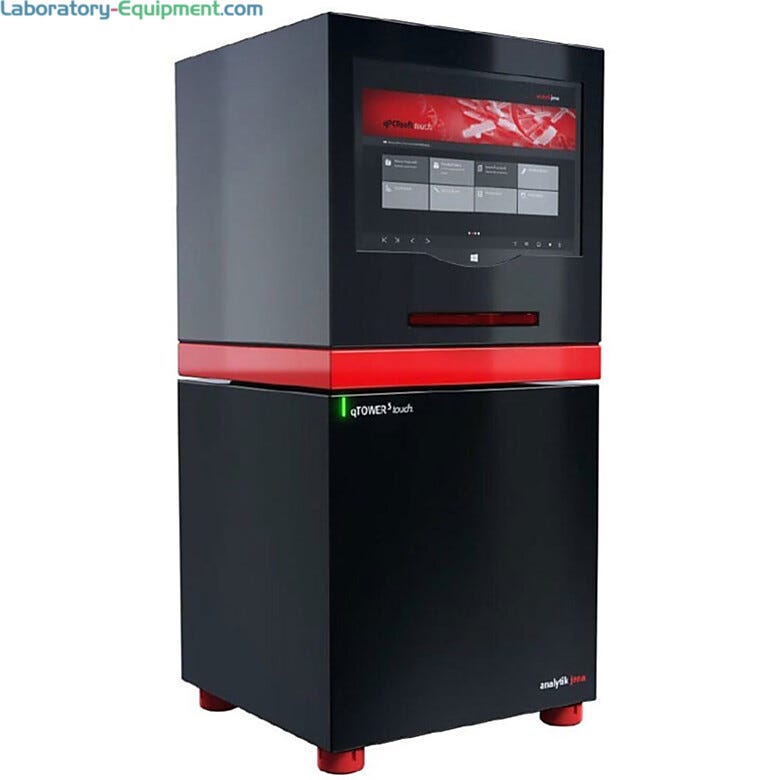

qTOWER 3 Real-Time PCR Thermal Cyclers by Analytik Jena

• qTOWER 3 G Gradient Function: delivers highest specificities and easily adjusts for different assays, defines temperature in whole numbers for simple and intuitive operation
• qTOWER 3 touch 10” Tablet Features: delivers standalone operation and enhanced PC control
• qPCTsoft: enhances PC control or provides stand-alone operation via integrated tablet control (select models), license-free, multilingual software covers a broad range of analysis tools from Ct values to ddCT method and multi plate analysis
• qPCR Application: Sensitivity: Detects 1 copy of target sequence in human genomic DNA
• qPCR Application: Dynamic range: 10 orders of magnitude
• Provides outstanding control accuracy with silver block technology
• Patented high-performance optics with 9 filters and 4 different LEDs
• Capacity: 96 Well á 0.2 ml for 96 x 0.2 m
• Sample size: 10 – 80 μl
• Heating/Cooling: Up to 8 °C/sec (max.) / Up to 6 °C/sec (max.)
• Adjustable temperature range: 4 °C to 99 °C
• Temperature uniformity: 55 °C ± 0.15 °C after 15 sec
• Temperature control accuracy: ± 0.1 °C
• Reads 96 wells in 6 seconds
• Provides homogeneous excitation and detection
• Models do not include PC

Color Modules and FRET Modules Compatible with qTOWER 3 PCR Thermal Cyclers

Configurable Filter Module Systems deliver optimized excitation and emission filters for detecting various fluorescent dyes. The qTOWER 3 easily adapts to a variety of available filter modules that facilitate various excitation and read out wavelengths

• Block capacity 96 Well á 0.2 ml for 96 x 0.2 ml
• Sample size 10 – 80 μl
• Heating/Cooling Up to 8 °C/sec (max.) / Up to 6 °C/sec (max.)
• Adjustable temperature range 4 °C to 99 °C
• Temperature uniformity 55 °C plus/minus 0.15 °C after 15 sec
• Temperature control accuracy plus/minus 0.1 °C
• Heated Lid
• Lid temperature: 30 °C to 110 °C
• Contact pressure: 30 kg, automated
Optics:
• Fiber optic shuttle system with 8-fold scanner and color modules
• 4 long-life, high-power LEDs (RGBW)
• high sensitive PMT (Photo Multiplier Tuber)
• 12 color, FRET- and protein modules (6 positions)
• reads 96 wells in 6 seconds
• Gradient Function Features
  • Interface: USB for data transfer, barcode reader
  • Linear Gradient Tool: 40 °C max / 0.1 °C min gradient
• 10” Tablet Feature Display: Patented fiber optic shuttle system for fast read out of 96 wells
