Select Product
Voltage

Amplification Method

Plate Capacity

Plug Type

Block Capacity

Manufacturer SKU

Terra Part # Price Ships in
100/240 V Standard PCR 1 x 384 EU Plug 384 Well No No T5000-384-E 2829-42 56039 $5,932 5-7 Days 2
In stock
100/240 V Standard PCR 1 x 384 US Plug 384 Well No No T5000-384 2829-41 56038 $5,932 5-7 Days 3
In stock
100/240 V Standard PCR 1 x 96 EU Plug 96 Well No No T5000-96-E 2829-39 56035 $5,096 5-7 Days 4
In stock
120/240 V Standard PCR 1 x 96 US Plug 96 Well No No T5000-96 2829-38 56034 $5,096 5-7 Days 5
In stock
Voltage
Amplification Method
Plate Capacity
Plug Type
Block Capacity
Table with qPCRSoft
Gradient Function
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Intuitive touch screen controls
  • Easy-to-use program wizard
  • Unique multi-block format: 0.2 ml tubes or strips, 0.5 ml tubes, 96-well plate
  • Fully adjustable heated lid prevents sample evaporation
  • Optional 384-well microplate adapter
  • Features multi-use block instead of numerous interchangeable blocks
  • Intuitive, icon-driven interface provides quick access to stored programs
  • Programmable adjustable lid prevents condensation and evaporation of samples by delivering precise heating and cooling
  • Ideal for medium- and high-throughput labs
  • Large, color touchscreen with full virtual keyboard for alphanumeric naming of programs and folders
  • Programming wizard provided for easy protocol setup
  • Aluminum block with Peltier heating/cooling element
  • 10 pre-installed programs can be stored in public folders, in private (password-protected) folders, or on a flash drive (not included)
  • Automatic lid shutoff when block temperature is below 35°C
  • Temperature accuracy of ±0.2°C
  • Heating and cooling rates of 4°C/second (maximum)
  • Multi-format block format: 0.2ml tubes or strips (96), 0.2ml tubes or strips (96), 0.2ml tubes or strips (96)
  • Programmable heated lid automatically shuts off when block temperature reaches below 35°
  • In-situ adapter for 4 slides sold separately

  • TC 9639 Thermal Cycler by Benchmark Scientific TC 9639 Thermal Cycler
  • In-Situ Adapter for Thermal Cycler TC 9639
  • Thermal Cycler TC 9639, with multi-format block, universal power, with US plug
Features & Benefits

Features and Benefits

Learn More: TC 9639 PCR Thermal Cycler

Specifications and Additional Features of TC 9639 Thermal Cycler

  • Aluminum block with Peltier heating/cooling element
  • 10 pre-installed programs
  • Programs can be stored in public folders, in private (password-protected) folders, or on a flash drive (not included)
  • Programs are shown graphically and are easily edited
  • Unlimited storage capacity (with flash drive, not included)
  • Full virtual keyboard is available for alphanumeric naming of programs and folders
  • Automatic lid shutoff when block temperature is below 35°C
  • Temperature accuracy of ±0.2°C
  • Heating and cooling rates of 4°C/second (maximum)
  • CE-marked
TC 9639 Thermal Cycler Specifications:
  • Temperature Control Range: 0°C to 100°C
  • Temperature Control Modes: Block control or simulated sample control
  • Temperature Accuracy: ±0.2°C
  • Temperature Uniformity: ±0.2°C
  • Heating Rate (Ramping Rate): 4°C/second (maximum)
  • Cooling Rate: 4°C/second (maximum)
  • Increments/Decrements: Yes, both time and temperature
  • Lid Temperature: 30°C to 112°C, user adjustable
  • Program Memory: Unlimited with flash drive
  • Multiuser Login: Yes, with password protection
  • Communication: USB, LAN, and RS232
  • Power Supply: Universal, 75 to 275 V, 50 to 60 Hz
  • Power Restart Feature: Yes
  • CE-marked: Yes
  • Product Dimensions W x D x H in. (mm): 70% humidity
  • Shipping Weight: Max. 2000 m (6561 ft.) above sea level
  • Product Weight: 16 lbs. (7.3 kg)
  • Product Dimensions W x D x H in. (mm): 10.2 x 14.2 x 9.9 in. (260 x 360 x 250 mm)
  • Shipping Weight: 21.6 lbs. (9.8 kg)
  • Shipping Dimensions W x D x H in. (mm): 17 x 13.5 x 13.5 in. (25.4 x 343 x 343 mm)
  • Warranty: 2 years on parts and labor

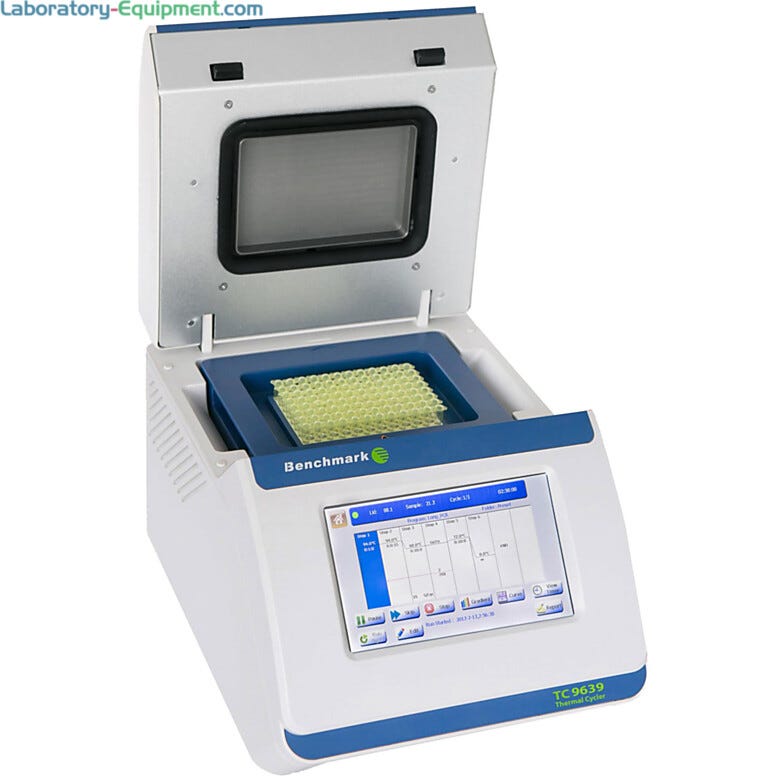

TC 9639 (Thermal Cycler)

The Multi-Format Block on the TC 9639 Thermal Cycler can accept: 96 x 0.2 ml tubes/strips (left), 1 x 96-well unskirted PCR plate (middle) and 39 x 0.5 ml tubes (right).

Special Benchmark Pricing & Promotions

Terra offers special pricing and promotions on Benchmark products. Ask your sales specialist for more information.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • In-Situ Adapter

    Thermal Cycler adapter kit holds four slides of the block to prevent movement during the scanning process
