Select Product

Amplification Method

Plate Capacity

Plug Type

Block Capacity

Gradient Function

Manufacturer SKU

Terra Part # Price Ships in
115 V Standard PCR 1 x 96 US Plug 96 Well No No 846-4-070-311 1014-80 66577 $7,136 7-9 Days 2
Ships Free Free shipping in contiguous USA In stock
115 V Standard PCR 1 x 96 US Plug 96 Well No Yes 846-4-070-301 1014-81 66578 $7,424 7-9 Days 3
Ships Free Free shipping in contiguous USA In stock
Amplification Method
Plate Capacity
Plug Type
Block Capacity
Table with qPCRSoft
Gradient Function
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Economical, quiet operation
  • Suitable for routine lab work as well as complex PCR optimization
  • Controls sample block temperature without under- or over-shooting programmed target temperature
  • High Performance Smart Lid (HPSL) Technology uses predefined pressure control for highly reproducible conditions
  • Linear Gradient Tool for easy gradient programming using the primer annealing temperature
  • Fast Ramping with heating and cooling rates up to 4°C/sec.
  • Sealed sample block prevents condensation from contacting instrument components
  • Low noise emission of max. 45 dB
  • Includes 96-well sample blocks (0.2 ml)
Features & Benefits

Features and Benefits

Learn More: Biometra Tone PCR System

Additional Features

  • Automatically restarts after power failure
  • Automatic lid opening mechanism
  • 7" color touchscreen display and intuitive software interface
  • Preprogrammed templates meet a wide variety of applications
  • Intuitive multi-step programming allows users to easily design novel thermal cycling protocols
  • Direct spreadsheet and graphical programming allow users to quickly modify cycling parameters
  • Built-in extended self-testing quickly assesses the thermal cycler performance and summarizes results in a storable report format
  • Provides optimum contact pressure regardless of PCR tubes
  • Heated lid opens at a 90° angle for easy sample access and user safety
Technical Specifications for Biometra TOne 96 and 96G (with Linear Gradient Tool)
Model Biometra TOne 96 Biometra TOne 96G
Gradient Span N/A 0.1 to 20.0°C
Dimensions 10.2 x 16.9 x 8.3 in. (260 x 430 x 210 mm)
Block Capacity 96 x 0.2 ml, 96-well microtiter plates, 12 x 8 well strips 0.2 ml
Block Coating Special alloy
Block Material Aluminum
Max. Heating Rate 4.0°C/sec
Average Heating Rate 3.8°C/sec
Temperature Uniformity 95°C ± 0.60°C after 15s
70°C ± 0.30°C after 15s
55°C ± 0.20°C after 15s
Control Accuracy ± 0.1°C
Display 7“ color touchscreen
Noise emission Approx. 45 dB max.
Interfaces USB A, Ethernet
Software User-specific quick start option for the five most recent programs; program preview before start; option for toggling between table and graph programming mode; linear gradient tool; service info file (SINF) generation; expanded self-test; adjustable heating and cooling rates; gradient temperature diagram view; Ethernet-based PC control; comprehensive user administration tool

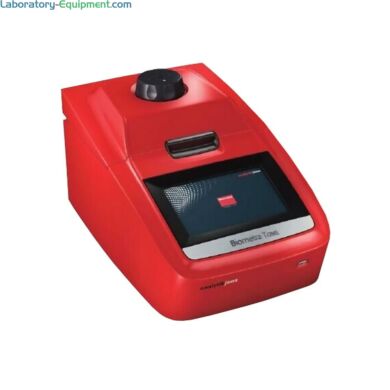

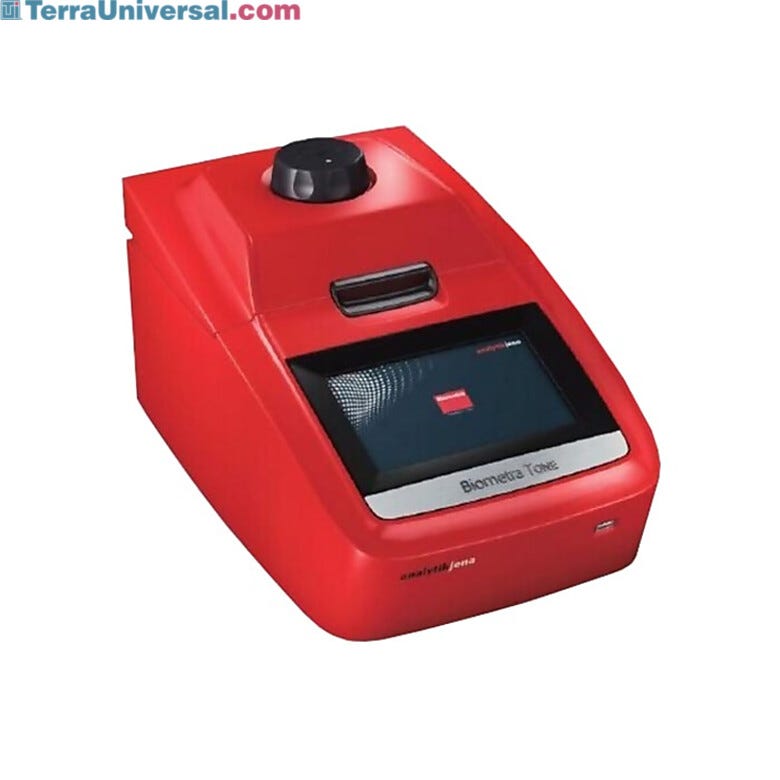

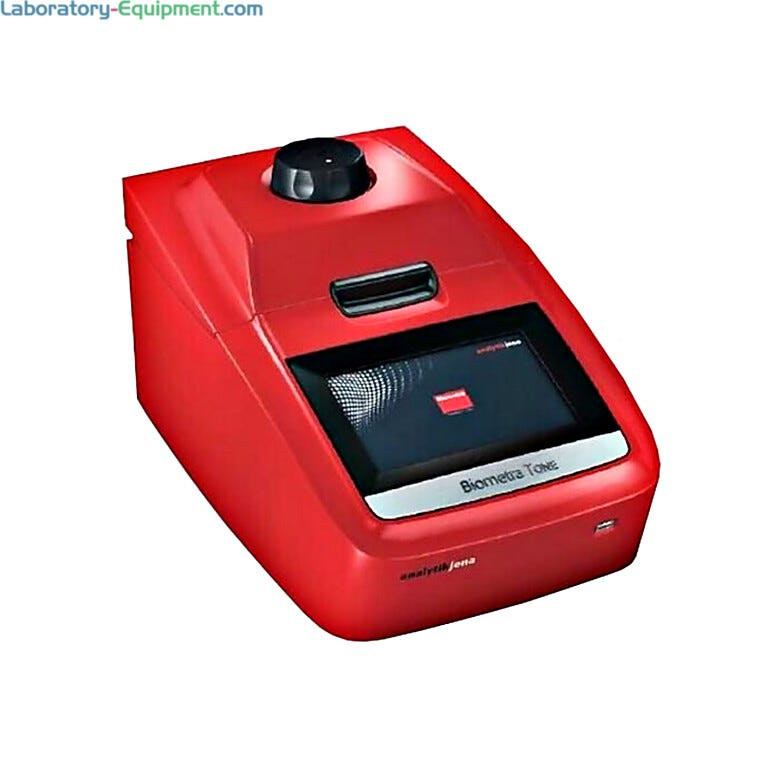

Biomera Tone Thermal Cycler

Lid opens at a 90° angle for easy access to sample block and the high-performance smart lid features a slip clutch that maintains constant contact pressure with any size plastic ware

Biometra TOne Heating Blocks

Biometra's heating blocks increase product life span by preventing condensation from forming on the heating elements.

Biometra TOne Thermal Cycler Gradient Function

Biometra Tone Thermal Cycler allows users to program defined temperature intervals between each row of the sample block for optimum annealing temperature under experimental conditions and subsequently apply the optimum temperature value to routine applications.
