1017-50
Terra Part # 1017-50
$5,755
Usually ships in 0-10 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1017-50
81009
SmartDrop L Nano Spectrophotometers by Accuris Instruments
Product Details
  • Affordable SmartDrop Nano L Spectrophotometer ideal for basic microvolume DNA/RNA/protein quantification and purity
  • UV LED light source and UV Silicon Photocell detector
  • Fixed 0.5mm path length detects up to 2500ng/µl of dsDNA
  • Wavelength: 260,280,600 nm
  • Includes: 7” color touchscreen, built-in printer and cuvette port
  • Displays DNA and RNA protein concentrations and purity in seconds
  • 7” full color touchscreen display with menu-drive icons for easy navigation
  • Cuvette port with two optical glass cuvettes for OD600 readings
  • Integrated printer for convenient printing of resulting data
  • SmartDrop onboard memory saves data for exporting via USB drive as an Excel file
  • Convenient design requires no external computer
  • Quartz pedestal for placement of small sample droplets
  • Arm of liquid column drops to stretch sample droplets
  • USB Port for data export
  • Specifications:
  • Sample size: 1.0µl-2.0µl
  • Path length:0.05mm, 0.2mm, 1.0mm
  • Light source: UV Led
  • Wavelength: 260, 280, & 600nm
  • Detection time: < 6 seconds
  • Absorbance range: 0.2 - 50 A (10mm equivalent)
  • Absorbance precision: 0.005 A
  • Lower limit of detection: dsDNA: 10ng/μl
  • Upper limit of detection: dsDNA: 2,500ng/μl
  • Cuvette OD600 detection:
  • Absorbance range: 0.0 - 4.0 A
  • Absorbance stability: [0,3) ≤ 0.5%, [3,4) ≤ 2%
  • Absorbance repeatibility: [0,3) ≤ 0.5%, [3,4) ≤ 2%
  • Absorbance repeatibility: [0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%
  • Optional Accessories:
  • NS1020-HS-100: High Sensitivity DNA Quantitation Kit, 100 assays
  • NS1020-BR-100: Broad Range dsDNA Quantitation Kit, 100 assays
  • NS1000-C: Additional Standard-Size Cuvettes, pack of 2
  • NS1020-T: 0.5mL Fluorescence Detection Tubes, pack of 250
  • NS1000-PA: Extra Paper Roll for SmartDrop internal printer, pack of 3

Manufacturer SKU: NS1000

Unit of Measure: EA

Electrical Specifications: 24 V, 2 A, 25 W

Weight, Product: 7.9 lb

Dimensions, Product: 8.2"W x 11.0"D x 7.3"H

Weight, Shipping: 20.9 lb

Dimensions, Shipping: 20"W x 20"D x 13"H

Buy Accessories
  1. High Sensitivity DNA Quantification Kit, 100 assays
    High Sensitivity DNA Quantification Kit, 100 assays Ships Free Free shipping in contiguous USA
    $120
    Increase Down Increase Up
  2. Broad Range dsDNA Quantification Kit, 100 assays
    Broad Range dsDNA Quantification Kit, 100 assays Ships Free Free shipping in contiguous USA
    $120
    Increase Down Increase Up
  3. Each bag of fluorescence detection tubes contains 250 tubes
    0.5mL Fluorescence Detection Tubes, pack of 250 Ships Free Free shipping in contiguous USA
    $53
    Increase Down Increase Up
  4. The additional standard-size cuvettes come as a pack of 2
    Additional Standard-Size Cuvettes, pack of 2 Ships Free Free shipping in contiguous USA
    $48
    Increase Down Increase Up
  5. The extra paper roll for the SmartDrop internal printer includes a pack of 3 rolls
    Extra Paper Roll for SmartDrop Internal Printer, Pk 3 Ships Free Free shipping in contiguous USA
    $39
    Increase Down Increase Up

Features and Benefits

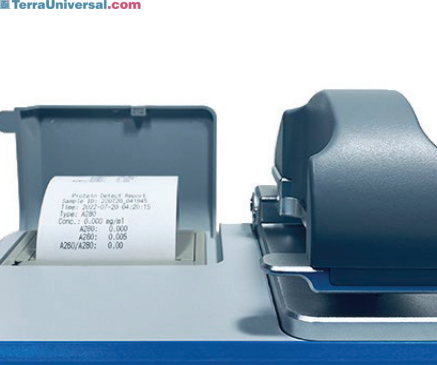

Integrated Printer

SmartDrop Nano Spectrophotometers feature a built-in printer for convenient and quick results documentation

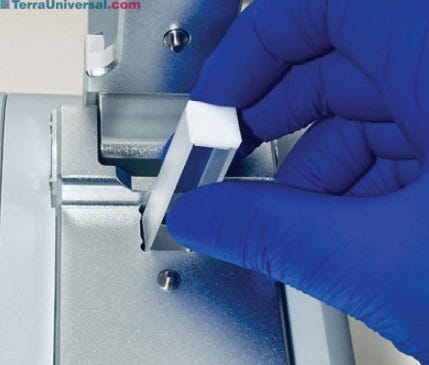

Cuvette Port for OD600 Readings

All SmartDrop models feature a cuvette port and two optical glass cuvettes for OD600 readings

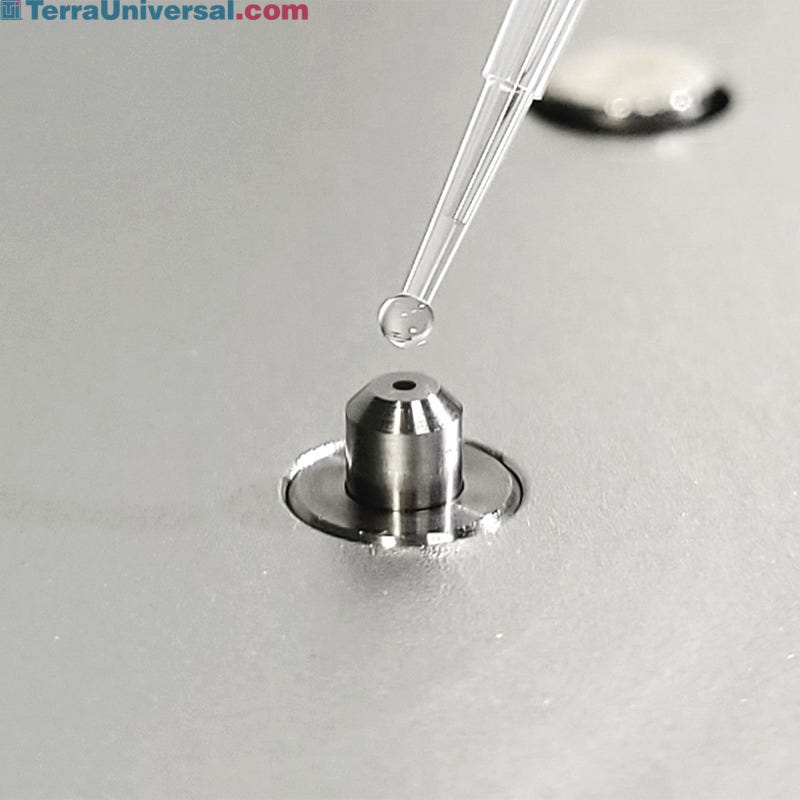

Small Sample Requirements

SmartDrop models utilize small sample volumes of DNA, RNA, and protein concentrations that eliminate the need for dilutions for more accurate results

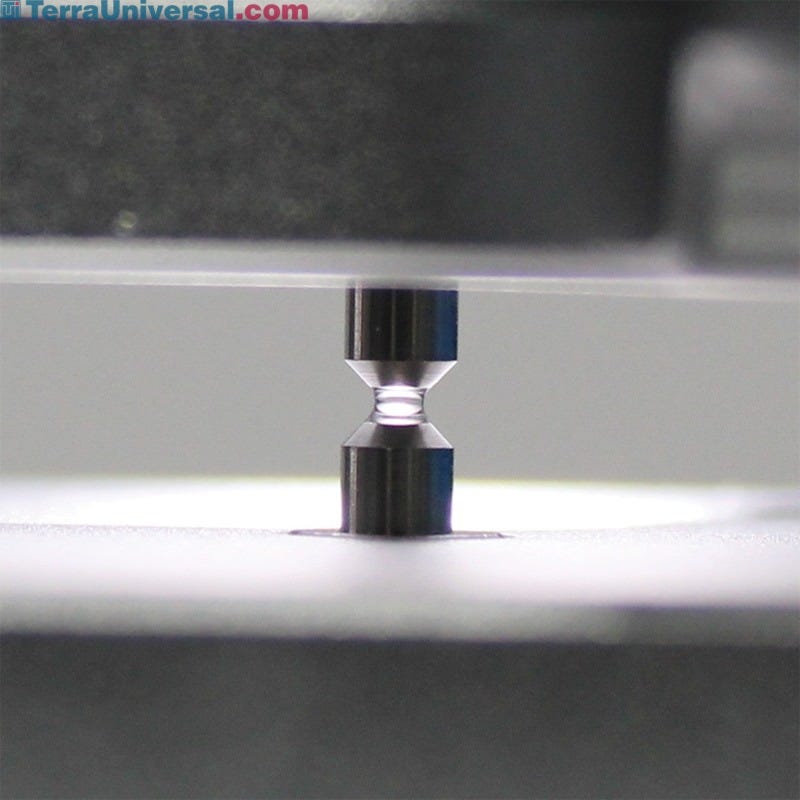

Liquid Column Sample

Featured quartz pedestal stretches the microvolume sample, when the arm is lowered, to the specified length needed for spectral analysis displaying results in seconds

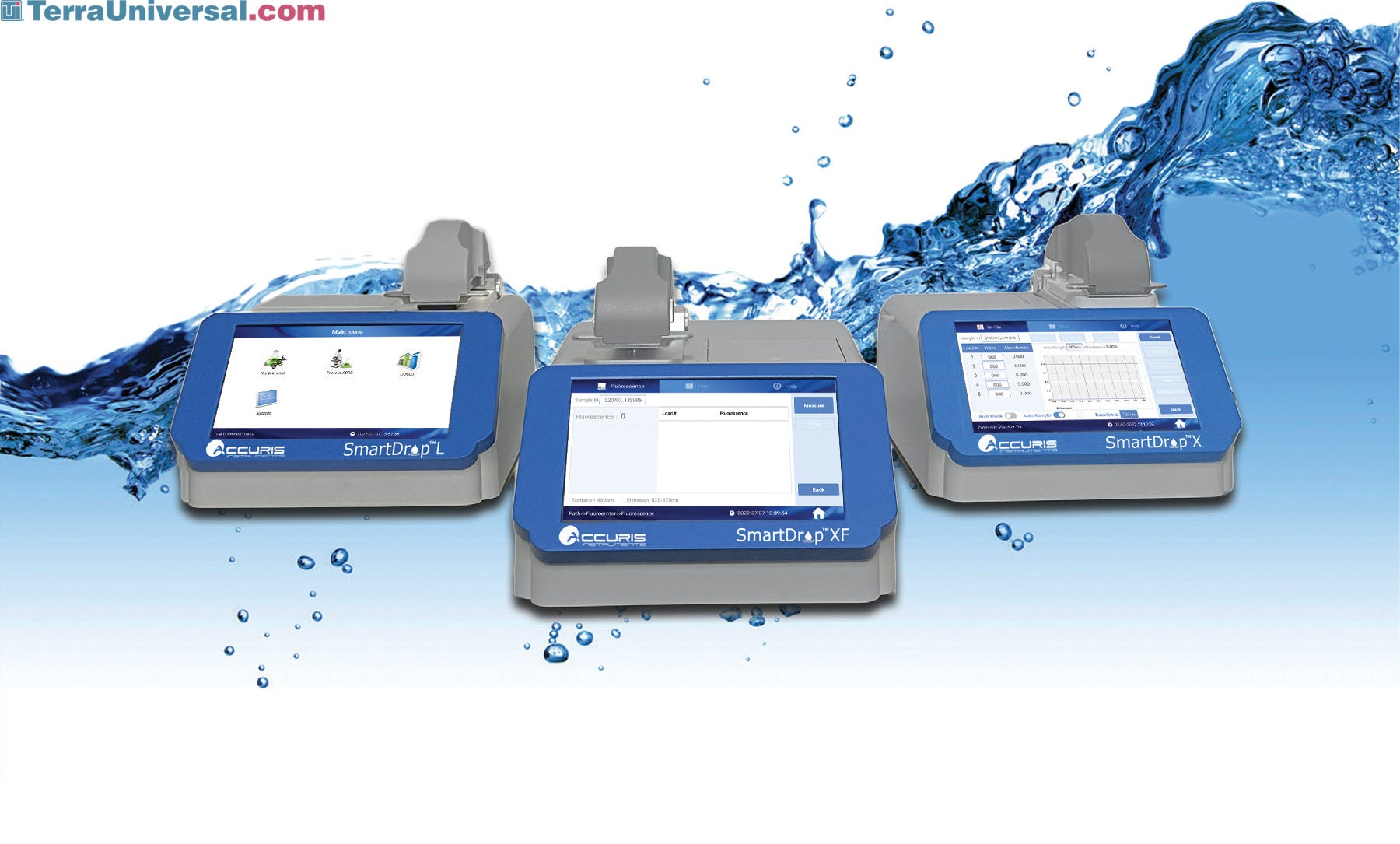

SmartDrop Nano Spectrophotometers for Microvolume Analysis of DNA, RNA and Protein by Accuris
