Select Product

Assay Type

Slide Capacity

Chiller Bath

Manufacturer SKU

Terra Part #PriceShips in
NoProtein16 Pins14 SlidesNoSBX 3031-00 61020 $40,50125-31 Days2
NoProtein16 Pins14 SlidesYesSBXPRO 3031-01 61021 $50,77325-31 Days3
Complete Hybridization Station
Assay Type
Number of Printing Pins
Slide Capacity
Chiller Bath
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

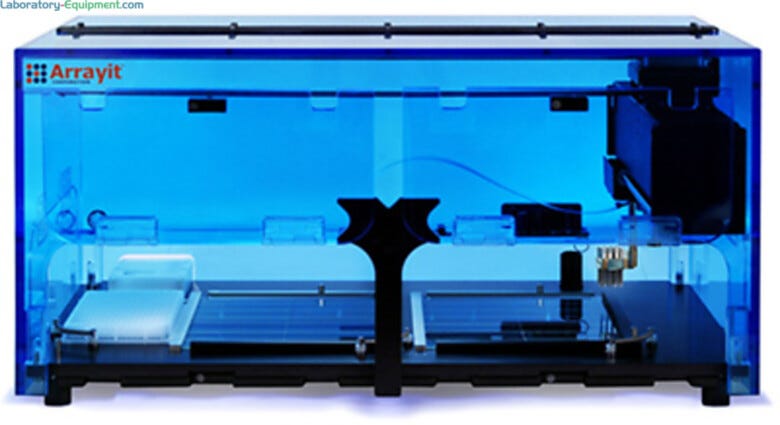

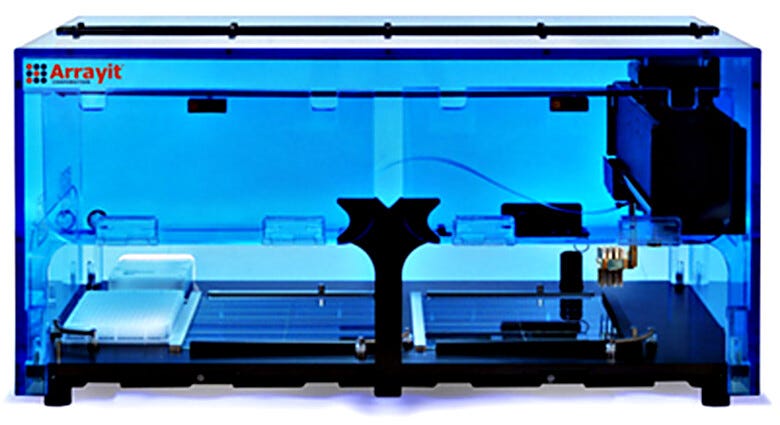

  • SpotBot Extreme Microarray Spotters are available in Standard(SBX) and Protein (SBXPRO) systems
  • Ideal for core research facilities and microarray manufacturing applications
  • Recommended for all ex situ microarray manufacturing applications, including oligonucleotides, cDNA, carbohydrate, antigen, antibody, peptide, and reverse-phase microarrays
  • SBXPRO equipped with chiller bath that has platen cooling to 4°C for maximum cooling uniformity, speed and efficiency; enables antigen, antibody, peptide, lysate and reverse phase protein microarrays
  • Compatible with entire line of Arrayit Microarrayers
  • 2 printing zones of 14 substrate slides each
  • Deck capacity of 2 standard microplates (96-well or 384-well), 28 glass substrates (25 x 76 mm)
  • Prints up to 10,000 samples onto glass substrate slides in less than 12-hours
  • Prints up to 50,000 samples onto each 25 mm x 76 mm substrate slide
  • Printhead holds 16 microarray pins (4 x 4 grid) at 4.5 mm spacing
  • Unsurpassed printhead precision, micro-machines to ± 1.3 µm
  • Low buffer consumption of less than 1 liter per hour
  • SBX and SBXPRO models include: Arrayit BioBlue mini computer humidity control from 10-80% relative humidity, megasonic wash station, LED flat panel display
  • Optional Extended Warranty: One-Year, Two-Year and Three-Year

Features & Benefits

Features & Benefits

Features and Specifications

More Information

  • Recommended for all ex situ microarray manufacturing applications, including oligonucleotides, cDNA, carbohydrate, antigen, antibody, peptide, and reverse-phase microarrays
  • Compatible with human, rat, Drosophila, Arabidopsis, C. elegans, yeast, bacteria, and viruses
  • Supports VIP genotyping and other diagnostic applications
  • Improved precision, speed and durability with heavy duty overhead gantry
  • Printing routines allow up to 5 technical replicates per sample
  • Low buffer consumption of less than 1 liter per hour
  • Printed microarrays are compatible with Arrayit microarray scanners, labeling-and-purification kits, hybridization, and wash-and-blocking buffers
  • Printhead compatible with entire line of Stealth, 946, Green, and professional microarray pins
  • All systems arrive pre-calibrated and ready-to-use
  • 1-hour customer installation time; comprehensive technical support
  • Superior axis resolution and repeatability provide uniform spot-spacing for easy quantification
  • Forced air stream pin drying for improved pin cleaning and sample loading
  • Advanced robotics for performance and reliability; Micro-robotics for low thermal emission, energy savings and quiet operation
  • On-board humidity control module tightly controls system humidity within 1% relative humidity at steady-state and minimizes sample evaporation
  • Sample evaporation also minimized due to low air turbulence
  • Private label and OEM agreement available for volume purchases
  • Instrument and accessory vibration dampeners allows printing in any lab setting
  • Utilizes Windows 7 operating system
Blue Bio Mini shown with the SBXPRO SpotBot Extreme Protein Edition

ADA compliant and undercounter models feature a microprocessor based controller and an LED digital display interface.

Robot Dimensions (H x L x W)21" x 12" x 10" (540 x 300 x 270 mm)
Electrical Requirements110V or 220V, 50-60Hz
Deck Capacity2 microwell plates (96-well or 384-well)
Substrate Deck Capacity2 decks of fourteen 25 mm x 76 mm glasssubstrates
Printhead Configuration16 microarray printing pins in a 4 x 4 pattern
Printhead Pin Spacing4.5 mm
Axis Resolution± 10 µm
Humidity Control10 – 80% RH
Humidity Control Speed5% RH per minute and ± 1% at steady-state
SBXPRO Cooling Deck CapacityAmbient to 4°C
Cleanroom CompatibilityISO 3
Robot Weight24 lbs. (11.4 kg)
