Cleanroom Recommended Gowning Protocol Dirty Link in the Ultra-Clean Chain?

Manufacturers invest hundreds—even thousands—of dollars per square foot of cleanroom space to meet ISO-proscribed particle counts. Shouldn't the same standards be required of the people who enter and potentially contaminate this ultra-clean environment?

Proper cleanroom garments, including hoods, face masks, booties and gloves, help to contain particles that people emit. Yet improper gowning procedures can negate your investment in cleanliness and threaten yields of sensitive semiconductor devices. Once a garment is contaminated—violated by contact with a dirty surface—it spreads particles everywhere it goes.

Sure, you can train personnel on proper garmenting procedures, but how do you guarantee compliance? A violated garment doesn't set off alarms, and few facilities can afford quality control monitors to supervise every person through every washing and dressing stage. Yet if strict controls are not observed, dirty gloves and coveralls almost certainly will come in contact with clean operations.

A Gowning Area that Supports Clean Protocol

The simplest and most economical approach to this dilemma is a correctly designed gowning area, complete with well-designed change room products, that keeps personnel on a clean track.

This design starts with a room with pressure greater than that of the outside air, but lower than the cleanroom. This cascading pressure differential reduces the opportunity for contaminants to enter each controlled space. It includes a laminar flow of HEPA-filtered air, typically emitted through ceiling filter/fan units. This continuous wash of clean air immediately removes personnel-emitted contaminants, as well as particles present even in cleanroom-laundered garments (see Figure 1). Failure to maintain the desired particle standard in the change area will lead to contaminating clean garments.

Activity	No. of particles (>= 0.3µm)
Person emits during garmenting process	3,000,000/min.
Cleanest skin (hands)	10,000,000/ft2
Employee street clothes	10,000,000 to 30,000,000/ft2
Floor and bench surfaces	> 10,000,000/ft2
Garments supplied by cleanroom laundry	1,000,000/ ft2
Figure 1: Gowning Area Particle Generators Source: Encyclopedia of Clean Rooms, Bio-Cleanrooms and Aseptic Areas, Dr. Philip Austin, P.E., 2000

The Change Room illustration depicts an effective floor plan that places the proper gowning stations in appropriate locations. Although many variations on this layout are possible, they should support these key garmenting guidelines:

Don't Touch! Most cleanliness violations occur when a garment is touched by dirty hands, or when it touches a dirty floor. Hands and gloves should therefore be washed and dried frequently. Select washers and dryers with no-touch IR sensors to minimize the chance of violating gloves. Maintain ultraclean, unviolated surfaces where garments can be donned without contamination. Properly placed gowning benches or use of a special gowning platform helps maintain “not step” areas where a coverall may touch the ground during gowing.
Dress from the Head Down! That way, released particles won't fall on clean garments or booties.
Understand Garment Design! In most instances, gloves and booties are worn over coverall sleeves and cuffs, and hoods are tucked inside collars. Make sure that personnel are trained on how to seal these gaps between clothing, and include a mirror to allow final self-inspection. Hang a photo of a correctly garbed person next to the mirror as a "how-to" guide.
Minimize Motion! As Figure 2 indicates, people wearing cleanroom garments emit thousands of particles per minute even when sitting still! People in street clothes, walking from one change room location to another, release millions of particles. Change room plans should therefore minimize motion, especially during the final stages of dressing, by efficiently organizing the flow of personnel from one station to another.
Minimize Maintenance! Do you have dedicated, trained personnel to peel off adhesive shoe mats, wipe down gowning benches, keep "clean zones" regularly scrubbed, empty waste receptacles, restock garb dispensers, and perform other upkeep with the absolute regularity that your protocol requires? If not, look for ways to minimize reliance on humans—through automation, careful product positioning, choice of materials, and so forth. Initial cost may be higher, but reduced maintenance and greater compliance provide a rich return on your investment!
Train and Reinforce! A good change room design supports proper protocol, but it doesn't teach it. Make sure that personnel complete a formal training program, and stress protocol by hanging reminder posters at every gowning station that reinforce proper procedures.

Personnel Activity	Snap Smock	Standard Coverall	2-Piece Coverall	Tyvek® Coverall	Membrane Coverall
No Movement	100,000	10,000	4,000	1,000	10
Light Movement	500,000	50,000	20,000	5,000	50
Heavy Movement	1,000,000	100,000	40,000	10,000	100
Change Position	2,500,000	250,000	100,000	25,000	250
Slow Walk	5,000,000	500,000	200,000	50,000	500
Fast Walk	10,000,000	1,000,000	400,000	100,000	1,000
Figure 2: Austin Contamination Index Particles >= 0.3µm emitted per minute in garment indicated Source: Encyclopedia of Clean Rooms, Bio-Cleanrooms and Aseptic Areas, Dr. Philip Austin, PE, 2000 Note: Light/heavy movement refer to partial body movements (motioning with arm, tapping toes, etc.). Change of position refers to whole body motion (standing up, sitting down, etc.).

Mirrors Photo Gallery

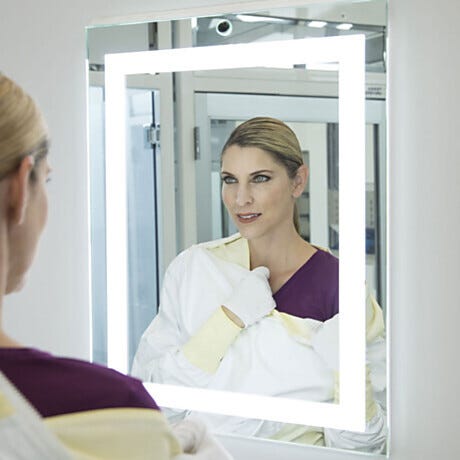

BioSafe® Cleanroom Mirrors with Integrated LED
Group of 3 products
5252-PP-02
From
$1,192
Some ship in 0 - 2 days
BioSafe classic logoStockedISO 6 Icon
1 Design1 Configuration2 Width2 Height1 ISO Class
Save For Later
Available ISO Ratings: ISO 6, ISO 7, ISO 8
Backlit LED surrounds entire mirror perimeter, providing full illumination with clear, even light
Integrated adjustable motion sensor saves energy and eliminates hassle of turning LED on/off
Frameless mirrors mount flush against the wall to eliminate cracks that promote contaminate growth
Provides a visual check of proper garmenting for personnel in gowning area
Designed for life science applications, such as systems biology, genomics and biologics
Design: Wall Mount
Configuration: Frameless
Width: 24", 18"
Height: 36", 24"
ISO Class: ISO 6
Stocked
BioSafe® Cleanroom Mirrors
Group of 17 products
5252-PP-01
From
$789
Some ship in 0 - 2 days
StockedBioSafe classic logoISO 6 Icon
1 Design2 Configuration3 Width5 Height1 ISO Class2 Corner Style
Save For Later
Available ISO Ratings: ISO 6, ISO 7, ISO 8
Seals against wall to eliminate uncleanable gaps housing contminate growth
Free of crevices between mirror and wall that harbor dust and promote microbial colonization
Frameless mirrors mount flush against the wall to eliminate cracks and seams
Compatible with Federal Standard 209E Class 1 (ISO 3) cleanrooms
Designed for life science applications, such as systems biology, cell biology and proteomics
Design: Wall Mount
Configuration: Frameless, Framed
Width: 18", 36", 24"
Height: 24", 72", 36", 48", 60"
ISO Class: ISO 6
Corner Style: Square, Radius
Stocked

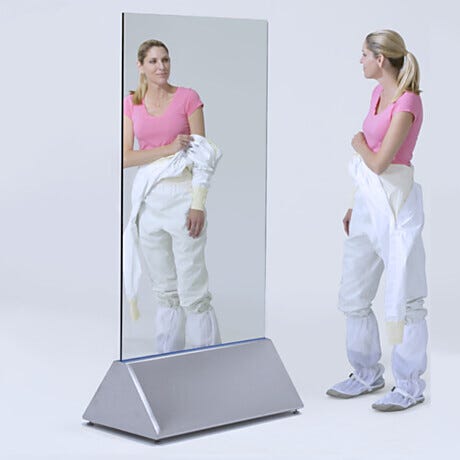

Free-Standing Double-Sided Cleanroom Mirror; BioSafe®, 36" W x 72" H (5252-65A)
$3,336
Usually ships in 1 - 3 days
BioSafe classic logoStockedISO 6 IconQuickBuild

Save For Later
Stocked
Mirror; BioSafe®, Oval, 18" W x 36" H, Wall Mount, Frameless (5254-00)
$1,180
Usually ships in 1 - 3 days
BioSafe classic logoStockedISO 6 Icon

Save For Later

Features and Benefits

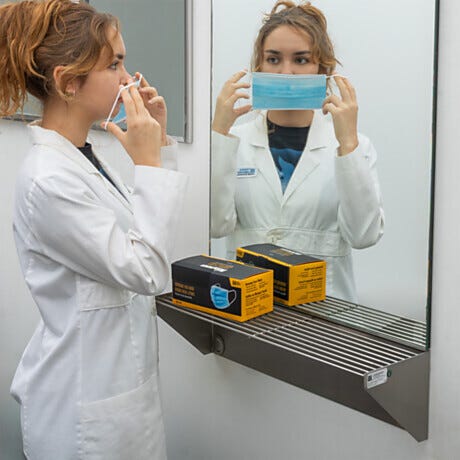

woman garbing in front of wall-mounted cleanroom mirror with round corners

Mirror Design Reduces Cleanroom Bio-Burden

Crevices between the mirror and the wall are prone to dust and microbial colonization. Terra’s ISO 5-compliant mirrors hermetically seal against the wall, eliminating uncleanable gaps that harbor contaminant growth.

Dual-Side Viewing

Dual-sided floor mirror with sloping stainless steel base offers viewing from both sides to speed up multi-personnel gowning.

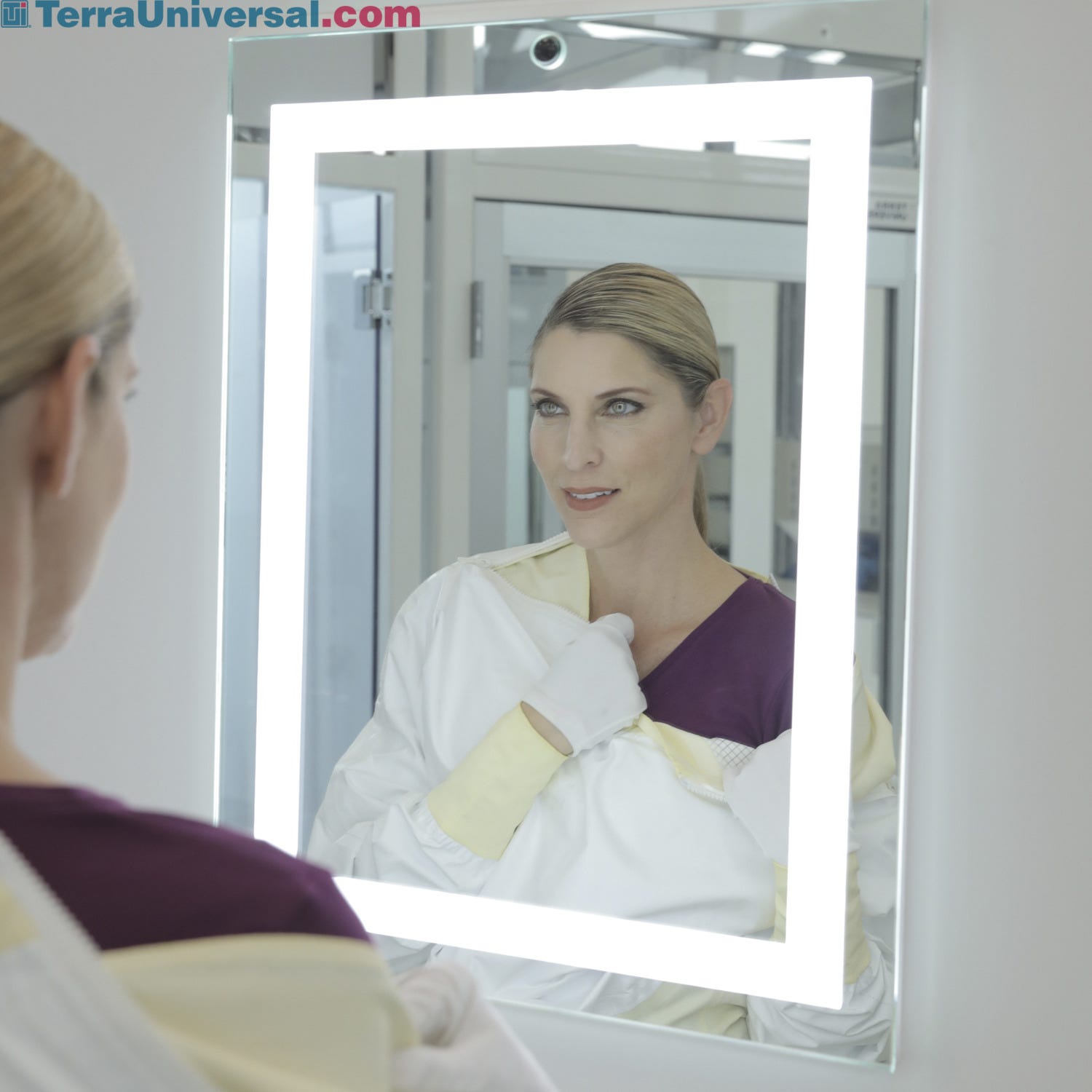

Frameless Cleanroom Mirror with LED Lighting

LED Lighting Enhances Viewing

Frameless cleanroom mirror with LED backlighting includes adjustable motion sensor for optimal viewing in dimly lit locations

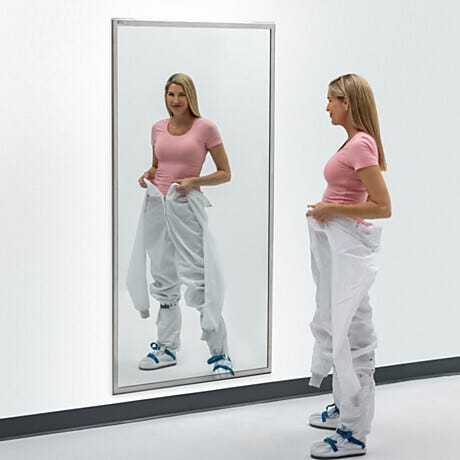

Cleanroom Gowning Framed Mirror with Model

Mirror-Finish Frame Provides Professional Aesthetic

Cleanroom mirrors with mirror-finished stainless steel frames provide an ISO-compliant, professional, aesthetic appearance

Dedication to Business Ethics

Terra is committed to conducting business according to the highest standard of professional ethics and conduct. To review Terra’s ethics code, please visit: https://www.terrauniversal.com/ethics-policy/

Mirror Designs

Frameless Gowning Room Mirror
Gowning Procedures
Dual Side Cleanroom Mirror
ISO-Rated Frameless Cleanroom Mirror with LED Lighting
ISO-Rated Framed Mirror

Cleanroom Mirror Provides a Visual Self-Check to Enhance Compliance with Gowning Protocol | 5252-59B displayed Frameless Gowning Room Mirror Frameless wall-mount full-length mirror mounts tight against cleanroom wall to eliminate particle and germ accumulation

Gowning Procedures Proper gowning protocol supports compliance with cleanliness standards. We explain and demonstrate these recommendations.

Terra's dual-sided cleanroom mirror speeds up gowning in multi-personnel facilities | 5252-65A displayed Dual Side Cleanroom Mirror Dual-Sided Mirror, at a 45-degree angle to wall-mount mirror, allows 360-degree visual inspection to ensure thorough adherence to gowning protocol.

Frameless wall mounted cleanroom mirror with motion sensor LED lighting | 5252-74 displayed ISO-Rated Frameless Cleanroom Mirror with LED Lighting Frameless Clean Room Mirror with LED Backlighting includes adjustable motion sensor for optimal viewing in dimly lit locations

ISO-Rated Mirror Supports Easy Cleaning and Minimizes Particle Retention | 5252-54B displayed ISO-Rated Framed Mirror Framed Wall-Mount Mirror features stainless steel frame that fits tight against wall for easy cleaning.
