Incubators
3901-PP-01
3901-PP-01 72105
B.O.D. Thermoelectric Cooled Incubators by Shel Lab
Read more
Manufactured By: Shel Labs
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
- Energy-efficient B.O.D. Thermoelectric Cooled Incubators by SHEL LAB are designed for use in sewage and wastewater testing
- Peltier cooled incubators meet APHA requirements
- For biochemical oxygen demand measurements of water samples
- P.I.D. Temperature Control
- LED display of temperature set point and current chamber temperature
- Mechanical convection for uniform air distribution
- Fan assisted forced air circulation
- Independent over temperature thermostat
- Alarms: over temperature and door ajar
- Reduces room air conditioning loads by 75%
- Uses 70% less energy than compressor based incubators
- Safety Certifications UL 61010-1, EN 61010-1, CSA 61010-1, CE
- NRTL certified
BOD Thermoelectric Peltier Cooled Incubator- BODThermoelectric Peltier Cooled Incubator sr120p
- Biochemical Oxygen Demand (B.O.D.) Incubators

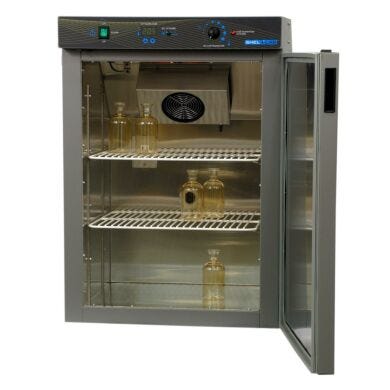

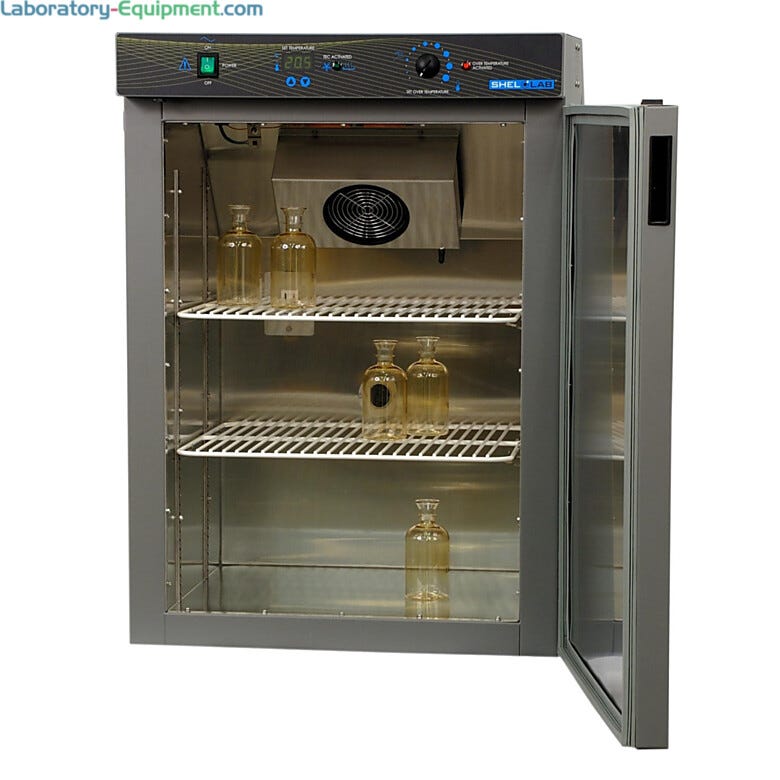

Shel Lab B.O.D.Thermoelectric Cooled Incubator accepts 120 BOD bottles; includes 2 adjustable shelves with a 75 lb. load capacity | 3901-34 displayed BOD Thermoelectric Peltier Cooled Incubator Designed with Peltier cooling technology, B.O.D. Thermoelectric Cooled Incubators eliminate the need for a refrigerated compressor.
Shel Lab B.O.D. Thermoelectric Cooled Incubator accepts 300 BOD bottles; includes 5 adjustable shelves with a 75 lb. load capacity | 3900-27 displayed BODThermoelectric Peltier Cooled Incubator sr120p With outstanding temperature uniformity, these units ensure that samples are under stable temperature control regardless of where they are in the inner chamber.
B.O.D. Thermoelectric Cooled Incubators by Shel Lab in 3.0, 6.5 and 19.3 cu. ft. capacities for use in sewage and wastewater testing | 3901-PP-01 displayed Biochemical Oxygen Demand (B.O.D.) Incubators Energy efficient units meet APHA specifications for BOD testing; mechanical convection units in 3 capacity sizes have a microprocessor and Peltier coolings
Features & Benefits
Features & Benefits
Learn More: B.O.D. Incubator Features
Print Copy Copied
Energy-Efficient B.O.D. Thermoelectric Cooled Incubators for Wastewater Testing
Designed with a Peltier cooling technology and an innovative microprocessor, B.O.D. Thermoelectric Cooled Incubators by Shel Lab use up to 71% less energy because eliminate the need for a refrigeration compressor. Units provide excellent temperature uniformity throughout the incubator chamber ensuring that samples are under stable temperature conditions regardless of where they are in the inner chamber. These B.O.D. incubators help water treatment plants meet American Public Health Association requirements during wastewater testing procedures.
Note: Model SRI20P received a testimonial from the Clean Water Services (a water resources management utility in Tualatin River Watershed) for the unit's "amazing temperature uniformity" and energy efficiency.
Note: Model SRI20P received a testimonial from the Clean Water Services (a water resources management utility in Tualatin River Watershed) for the unit's "amazing temperature uniformity" and energy efficiency.
| Model | SRI3P | SRI6P | SRI20P |
|---|---|---|---|
| Capacity | 3 cu. ft. (85 L) | 6.5 cu. ft. (185 L) | 19.3 cu. ft. (546 L) |
| B.O.D. Bottle Capacity | 84 | 120 | 300 |
| Internal Dims (WxDxH) | 19.0 x 16.2 x 26.2 in. (483 x 411 x 665 mm) | 25.5 x 24 x 18.5 in. (647 x 609 x 469 mm) | 25.5 x 24 x 54.5 in. (647 x 609 x 1384 mm) |
| External Dims (WxDxH) | 23.5 x 21.0 x 33.7 in. (597 x 534 x 856 mm) | 30 x 31.5 x 33.5 in. (762 x 801 x 851 mm) | 30 x 31.5 x 69.5 in. (762 x 801 x 1766 mm) |
| Electrical | 115 volts, 60Hz | 115 volts, 60Hz | 115 volts, 60Hz |
| Number of Shelves | 2, adjustable | 2, adjustable | 5, adjustable |
| Shelf Capacity | 35 lbs. | 75 lbs. | 75 lbs. |
| Temperature Range | 15°C to 30°C | 15°C to 40°C | 15°C to 40°C |
| Max. Energy Consumption | 360 watts | 480 watts | 660 watts |
| Circulation Technology | Forced-Air Circulation | ||
| Electrical Outlets | 1 | ||
| Temperature Increments | 1°C | ||
| Material | Interior: Aluminum Exterior: Painted Cold Roll Steel Shelves: Painted Mild Steel | ||
| Warranty | 2-year limited warranty | ||
