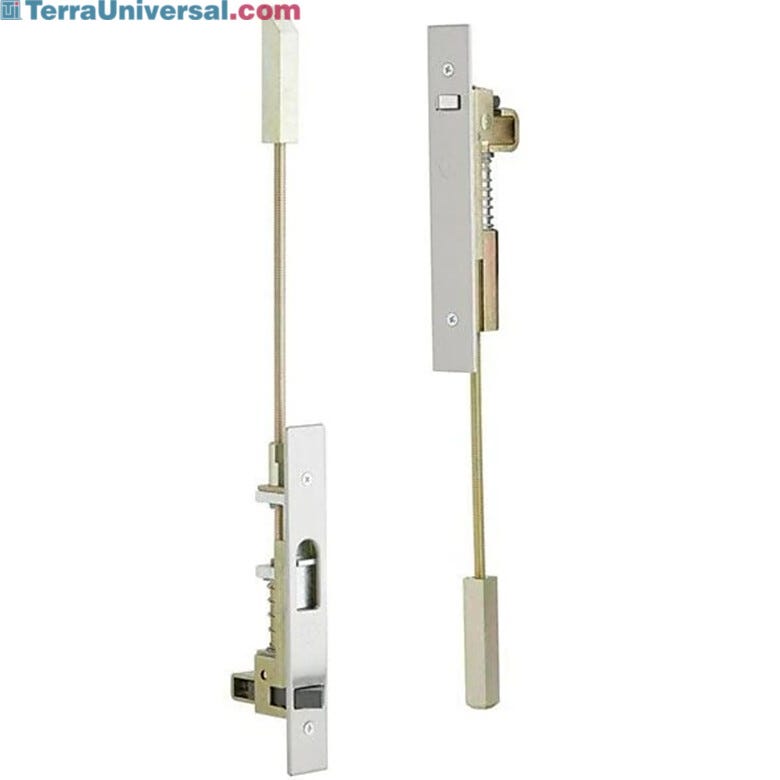

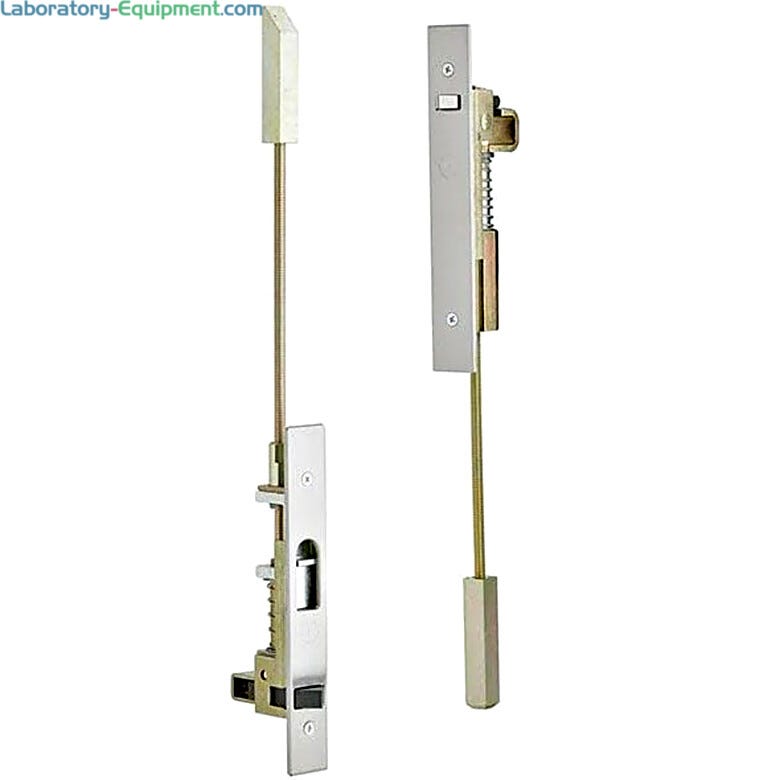

Constant latching keeps the inactive door locked at the top and bottom until the active door opens, triggering automatic bottom-bolt release | 5050-15 displayed
Door Accessories,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components

Constant Latching Top and Bottom Flush Bolt Pair for Metal Doors

Custom-configured product: Please request quote. Terra will contact you for requirements.
Warranty: 1 year parts, 90 days labor
  • The inactive door stays securely latched at the top and bottom until the active door opens, automatically releasing the bottom bolt and allowing manual release of the top bolt
  • Both bolts relatch automatically when the inactive door is closed
  • Crafted from durable stainless steel with a sleek satin finish for lasting corrosion resistance and a polished appearance
  • Bolt throw is 3/4" (19 mm) with a 7/8" (22 mm) vertical adjustment
  • Bolt backset is 3/4" (19 mm)
Read more
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
5050-15
Terra Part # 5050-15
Request Quote
Terra Part # 5050-15
90095
Request Quote
Save For Later
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Terra Part # 5050-15 $0
Save For Later
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Usually ships in 2-4 business days

Want it faster ? Read about FasTrak

Usually ships in 2-4 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • The inactive door stays securely latched at the top and bottom until the active door opens, automatically releasing the bottom bolt and allowing manual release of the top bolt
  • Both bolts relatch automatically when the inactive door is closed
  • Crafted from durable stainless steel with a sleek satin finish for lasting corrosion resistance and a polished appearance
  • Bolt throw is 3/4" (19 mm) with a 7/8" (22 mm) vertical adjustment
  • Bolt backset is 3/4" (19 mm)
  • Made for metal doors only
  • Meets ANSI A156.3 for Type 27
  • Fits standard ANSI A115.4 door frames
  • Meets UL listing requirements for trusted, code-compliant performance
  • Dimensions:
  • Body size: 1"  W x 6-3/4" L x 2" D (25 mm x 172 mm x 51 mm)
  • Guide size: 1" W x 1-27/32" L x 27/32" H x 3/32" D (25 mm x 47 mm 2 mm)
  • Strike size: 15/16" W x 2-1/4" L x 1/16" D (8 mm x 57 mm x 2 mm)
  • Rub plate size: 1-1/4" W x 1-11/16" L x 3/64" D (32 mm x 43 mm x 1 mm)
  • Not available for use with single doors
  • Cannot be combined with 5050-14

• Marks & Listings: UL
