Select Product

Voltage

Material

Capacity

Temperature Range

Convection Type

Manufacturer SKU

Terra Part #PriceShips in
120 VEpoxy-Coated Steel2.3 cu. ft.Ambient +5°C to 105°CDual Convection51028069 1798-36 54351 $3,30110-20 Days2
120 VEpoxy-Coated Steel3.7 cu. ft.Ambient +5°C to 105°CDual Convection51028070 1798-38 54352 $3,77110-20 Days3
120 VEpoxy-Coated Steel6.3 cu. ft.Ambient +5°C to 105°CDual Convection51028111 1799-73 54353 $4,06610-20 Days4
120 VEpoxy-Coated Steel6.3 cu. ft.Ambient +5°C to 105°CDual Convection51028327 1799-83 54362 $4,38610-20 Days5
120 VStainless Steel2.3 cu. ft.Ambient +5°C to 105°CDual Convection51028264 1799-79 54361 $3,73010-20 Days6
120 VStainless Steel3.7 cu. ft.Ambient +5°C to 105°CDual Convection51028535 1729-40 57374 $4,22310-20 Days7
240 VEpoxy-Coated Steel13.4 cu. ft.Ambient +5°C to 105°CMechanical51029325 1799-76 54357 $6,36010-20 Days8
Voltage
Material
Capacity
Temperature Range
Convection Type
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

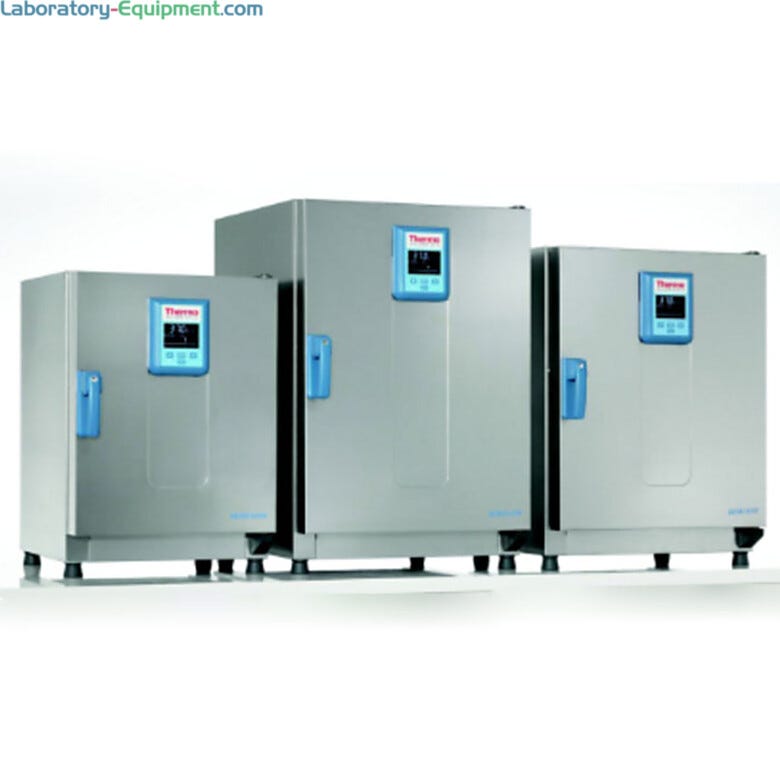

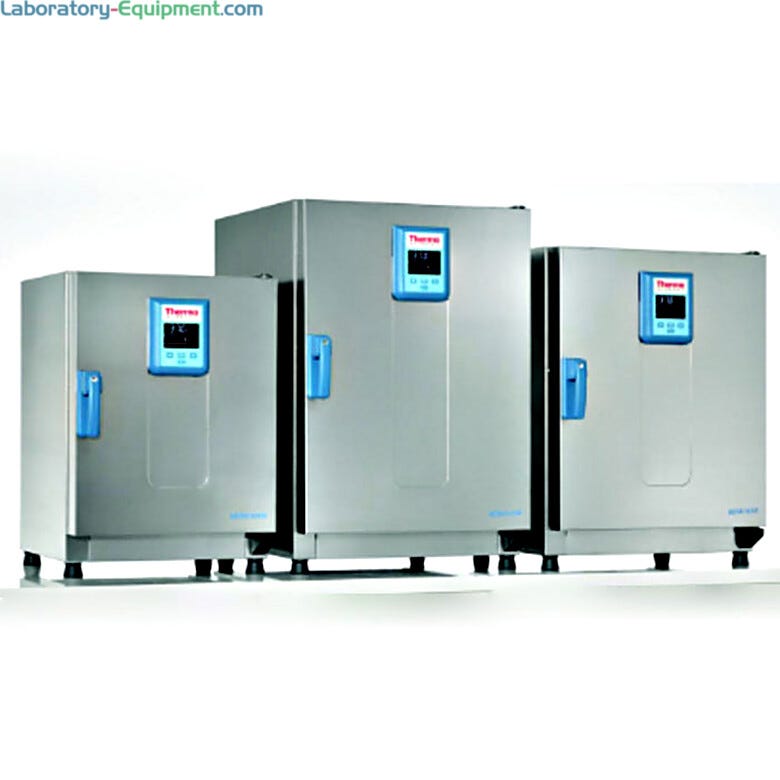

  • Heratherm Advanced Protocol Security Microbiological Incubators have a decon cycle ideal for use in pharmaceutical and clinical labs working with dangerous pathogens
  • Available in stainless steel or epoxy-coated exterior
  • Dual Convection Technology (gravity and convection modes) with an adjustable fan from 0-100% delivers gravity and mechanical convection features
  • 140°C decontamination cycle is certified by an accredited microbiological institute ideal for pharma and clinical labs
  • Advanced digital timer allows specific time settings: weekly/ real time or hourly cycles
  • Includes: two removable shelves (additional shelves sold separately)

  • Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
  • Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
  • Heratherm Large Capacity General Protocol Microbiological Incubators Heratherm Large Capacity Microbiological Incubators
  • Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific Thermo Scientific Microbiological Incubators
Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific

Features & Benefits

Features and Benefits

Features, Specs and Applications

Dual Convection Technology of Heratherm Advanced Protocol Security Incubators

Dual Convection Technology combines the function of gravity convection and mechanical convection systems to create a high-performing, efficient and widely adaptable incubation platform. The featured adjustable fan speed allows users to specify operating parameters to optimize their individual experiments. When the fan is switched off, the evaporation occurring in the incubator is at its lowest. When the fan is set to 100%, the temperature stability and uniformity is optimized.
Heretherm Gravity Convection Diagram
Gravity Convection

Gravity convection introduces heated air into the bottom of the incubator and gravity causes the warmer air to rise and be distributed throughout the incubator. With less air being displaced, there is no need for a fan because gravity provides the force needed to distribute the warm air that gently heats samples. This convection mode prevents samples from drying out during incubations. Gravity convection technology is ideal for incubation of bacterial and eukaryotic cell cultures, but is limited by the degree to which air can be heated and the time it takes for an incubator to recover after the door is opened.

Heretherm Mechanical Convection Diagram
Mechanical Convection

Mechanical convection utilizes a fan that delivers heated air throughout the incubator creating a uniform temperature distribution throughout the unit. This method provides optimal temperature uniformity and stability due to the rapid distribution of air, which is ideal for bacterial cultures. In addition, mechanical convection is capable of quickly warming samples that have been transferred directly from the refrigerator to the incubator. Many laboratories choose mechanical convection incubators during sample drying to prevent the evaporation of growth media.

Applications for Heratherm Advanced Protocol Security Microbiological Incubators
  • Clinical and Medical labs: microbiological diagnostic testing
  • Pharmaceutical: quality control testing, safety and testing efficacy of manufactured products
  • Food: screening for bacterial contamination
  • Research and biotech labs: bacterial growth, gene expression studies, production of recombinant proteins
Part Number51028069
51028264
51028070
51028535
51028111
51028327
ModelIMH60-S
IMH60-S SS
IMH100-S
IMH100-S SS
IMH180-S
IMH18-S SS
External Dimensions22.2"W x 20.9"D x 28.3"H
(565 x 530 x 720 mm)
25.2"W x 32.3"D x 22.2"H
(640 x 820 x 565 mm)
25.2"W x 36.2"D x 29.1"H
(640 x 920 x 738 mm)
Internal Dimensions14.5"W x 13.9"D x 20"H
(368 x 354 x 508 mm)
18.3"W x 23.9"D x 14.5"H
(464 x 608 x 368 mm)
18.3"W x 27.9"D x 21.4"H
(464 x 708 x 543 mm)
Energy Consumption
at 37°C
23 Watts30 Watts36 Watts
Footprint3.2 sq. ft. (0.3m2)3.9 sq. ft.(0.9m2)5.1 sq. ft. (0.47m2)
Chamber Volume2.3 cu. ft. (66L)3.67 cu. ft. (104L)6.3 cu. ft. (178L)
Number of Shelves2 included (13 max)2 included (16 max)2 included (19 max)
Max Shelf Load55 lbs. (25kg)55 lbs. (25kg)65lbs. (30kg)
Rated power1390 Watts
Max Current11.6 amps
Temperature RangeAmbient 5 °C to 105 °C
Convection TechnologyDual Convection
Spatial Temperature Deviation± 0.6°C at 37°C (uniformity)
Electrical (plug standard)100 - 240 50/60hz (NEMA 5-15)
Temperature Deviation Over Time (Stability)± 0.1°C
Certified Decontamination CycleYes
Material
  • Epoxy-Coated exterior: 51028069, 51028070, 51028111
  • Stainless Steel exterior: 51028264, 51028535, 51028327
  • Inner Chamber: Stainless Steel on all models
InterfaceRS232
Certifications/CompliancecCSAus, CE
WarrantyTwo-Year Manufacturer Warranty

Large Capacity Heratherm Microbiological Incubator Small, Left Access Port

Small Access Left Port (0.94” diameter) compatible with Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific: 1711-46 Large Access Left port with 2.28” diameter also available.

Heratherm Large Capacity Microbiological Incubator Top Access Port

Top Access Port for Heratherm Large Capacity Microbiological Incubators.

Rounded Inner Chamber Corners

Heratherm Microbiological Incubators by Thermo Fisher Scientific feature a corrosion-resistant stainless steel inner chamber with rounded corners for easy cleaning

Adjustable Shelving System

Thermo Fisher Scientific designed Heratherm Microbiological Incubators with an adjustable shelving system for optimum storage capacity; additional stainless steel perforated shelves are sold separately.

Fluorescent Vacuum Display

Heratherm Series Microbiological Incubators by Thermo Fisher Scientific feature a vacuum fluorescent display that shows temperature setting and timer

Internal Duplex Outlet

Internal socket connects electrical devices such as stirrers and shakers.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • SS Perforated Shelves for Heratherm Microbiological Incubators
    2.3 cu. ft. Heratherm Advanced Protocol Security Microbiological Incubators accommodate a maximum of 13 shelves with a 55 lb. shelf load; additional shelf sizes available.
  • Particle filter for External Sample Sensor
    Particle Filter for External Sample Sensor ensures compliance by providing independent verification of sample temperatures; compatible with all Heratherm Advanced Protocol Microbiological Incubators.
  • Fresh Air Particle Filter for Heratherm Microbiological Incubators
    Fresh Air Particle Filter reduces contaminants and maintenance by filtering fresh air into Heratherm Advanced Protocol Security Microbiological Incubator prior to heating.
