120 V Security Stainless Steel 13.5 cu. ft. Ambient +5°C to 105°C Mechanical Heratherm 51029323 5324-03 64643 $8,459 10-20 Days 2
120/240 V General Protocol Stainless Steel 14.3 cu. ft. Ambient +5°C to 75°C Gravity Heratherm 51029321 5324-01 64641 $5,985 10-20 Days 3
120/240 V General Protocol Stainless Steel 26.4 cu. ft. Ambient +5°C to 75°C Gravity Heratherm 51029333 5324-02 64642 $7,901 10-20 Days 4
120/240 V Security Stainless Steel 13.5 cu. ft. Ambient +5°C to 105°C Mechanical Heratherm 51029324 5324-05 64644 $9,092 10-20 Days 5
120/240 V Security Stainless Steel 24.8 cu. ft. Ambient +5°C to 105°C Mechanical Heratherm 51029335 5324-04 64645 $10,831 10-20 Days 6
120/240 V Security Stainless Steel 24.8 cu. ft. Ambient +5°C to 105°C Mechanical Heratherm 51029336 5324-06 64646 $10,910 10-20 Days 7
Voltage
Type
Material
Capacity
Temperature Range
Convection Type
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

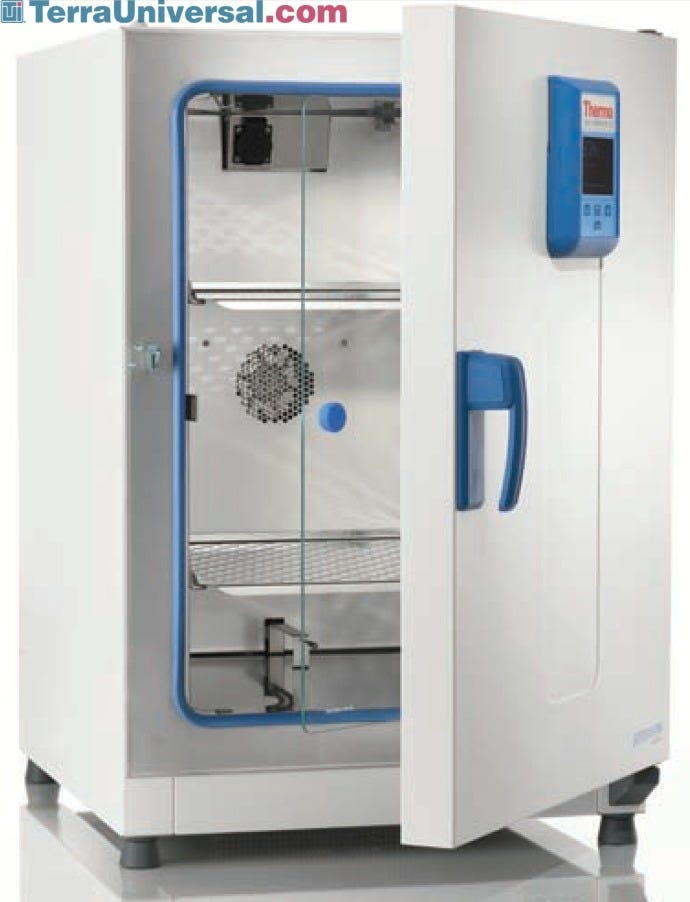

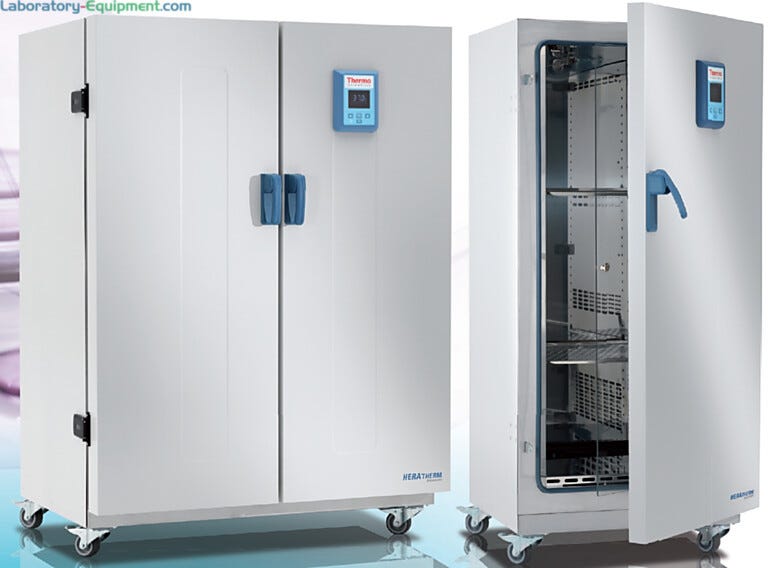

  • Heratherm Large Capacity Microbiological Incubators are available in General Protocol and Advanced Protocol Security models
  • Large capacity models are suited for large samples or high sample volume in pharmaceutical, medical, food and research labs conducting large-scale drug discovery experiments
  • Delivers high degree of temperature uniformity, stability and accuracy
  • General Protocol models feature gravity convection for gentle heating
  • Advanced Protocol Security models: feature dual convection, lockable door, RS232 port, door alarms and 140 °C decontamination system

  • Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
  • Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
  • Heratherm Large Capacity General Protocol Microbiological Incubators Heratherm Large Capacity Microbiological Incubators
  • Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific Thermo Scientific Microbiological Incubators
Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific
Features & Benefits

Features and Benefits

Learn More: General & Advanced Models

Compare Features and Specifications of General and Advanced Protocol Security Heratherm Microbiological Incubators

General Protocol
  • For Microbiological applications from ambient +5 to 75 °C
  • Gravity convection heating gently warms samples without over drying
  • Flexible shelving system accommodates samples of all sizes
  • Lockable casters for easy set-up and moving of instrument
Advanced Protocol
  • For applications from ambient +5 to 105 °C
  • Dual convection for even temperature distribution and temperature uniformity
  • Lockable door and RS232 port, audible open door alarm and Audible under or over temperature alarm and advanced timer
  • Independently verified 140 °C decontamination system
  General Protocol Advanced Protocol
Part Number 51029321 51029333 51029323
51029324
51029335
51029336
Chamber Volume 14.3 cu ft. (405L) 26.4 cu ft. (747L) 13.5 cu ft. (381L) 24.8.cu ft. (381L)
Model IGS400 IGS750 IMH400-S
IMH400-S SS
IMH750-S
IMH750-S SS
Convection Gravity Convection Gravity Convection Mechanical Convection Mechanical Convection
External Dimensions 30.6"W x 30.3"D x 60.8"H
(778 x 770 x 1545 mm)
49.7"W x 30.3"D x 60.8"H
(1261 x 770 x 1545 mm)
30.6"W x 30.3"D x 60.8"H
(778 x 770 x 1545 mm)
49.7"W x 30.3"D x 60.8"H
(1261 x 770 x 1545 mm)
Internal Dimensions 21.4"W x 22.4"D x 51.5"H
(544 x 569 x 1307 mm)
39.5"W x 22.4"D x 51.5"H
(1004 x 569 x 1307 mm)
21.4"W x 20.6"D x 52.6"H
(544 x 524 x 1335 mm)
39.5"W x 20.6"D x 52.6"H
(1004 x 524 x 1335 mm)
Footprint 6 sq. ft. (0.56m2) 9.8 sq. ft.(0.91m2) 6 sq. ft. (0.56m2) 9.8 sq. ft.(0.91m2)
Rated power 1080 Watts 1500 Watts 1380 Watts 1560 Watts
Max Current 9.0 amps 12.5 amps 11.5 amps 13 amps
Energy Consumption
at 37°C
55 Watts 80 Watts 94 Watts 161 Watts
Temperature Range Ambient +5 to 75 °C Ambient +5 to 75 °C Ambient +5 to 105 °C Ambient +5 to 105 °C
Spatial Temperature Deviation ± 0.4°C at 37°C (uniformity) ± 0.4°C at 37°C (uniformity) ± 0.2°C at 37°C (uniformity) ± 0.2°C at 37°C (uniformity)
Number of Shelves 2 included (39 max)
Max Shelf Load 66 lbs. (30kg)
Electrical
(plug standard)
120V, 50/60hz (NEMA 5-15)
Warranty Two-Year Manufacturer Warranty
Applications for Heratherm Large Capacity Microbiological Incubators
Clinical and Medical labs: microbiological diagnostic testing
Pharmaceutical: quality control testing, safety and testing efficacy of manufactured products
Food: screening for bacteria contaminants
Research and biotech labs: bacterial growth, gene expression studies, production of recombinant proteins

Large Capacity Heratherm Microbiological Incubator Small, Left Access Port

Small Access Left Port (0.94” diameter) compatible with Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific: 1711-46 Large Access Left port with 2.28” diameter also available.

Heratherm Large Capacity Microbiological Incubator Top Access Port

Top Access Port for Heratherm Large Capacity Microbiological Incubators.

Rounded Inner Chamber Corners

Heratherm Microbiological Incubators by Thermo Fisher Scientific feature a corrosion-resistant stainless steel inner chamber with rounded corners for easy cleaning

Adjustable Shelving System

Thermo Fisher Scientific designed Heratherm Microbiological Incubators with an adjustable shelving system for optimum storage capacity; additional stainless steel perforated shelves are sold separately.

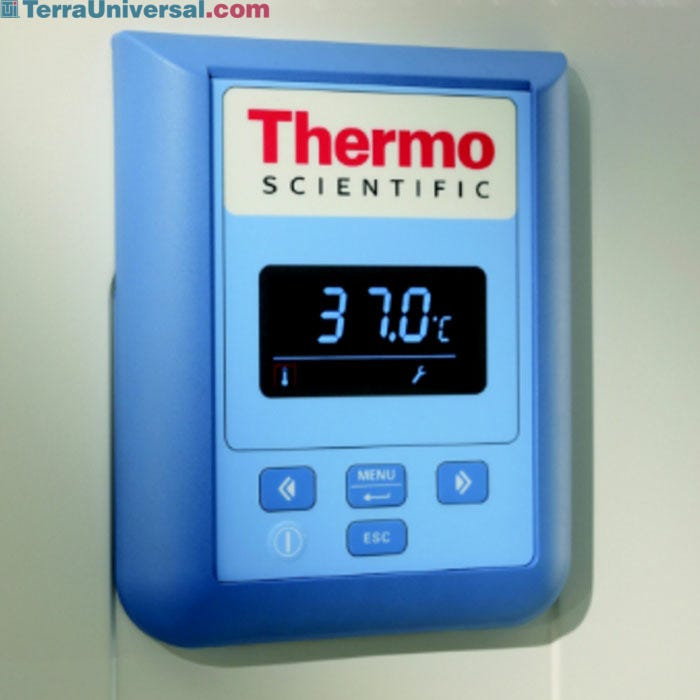

Fluorescent Vacuum Display

Heratherm Series Microbiological Incubators by Thermo Fisher Scientific feature a vacuum fluorescent display that shows temperature setting and timer

Internal Duplex Outlet

Internal socket connects electrical devices such as stirrers and shakers.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • SS Perforated Shelves for Heratherm Microbiological Incubators

    2.3 cu. ft. Heratherm Advanced Protocol Security Microbiological Incubators accommodate a maximum of 13 shelves with a 55 lb. shelf load; additional shelf sizes available.
  • Particle filter for External Sample Sensor

    Particle Filter for External Sample Sensor ensures compliance by providing independent verification of sample temperatures; compatible with all Heratherm Advanced Protocol Microbiological Incubators.
  • Fresh Air Particle Filter for Heratherm Microbiological Incubators

    Fresh Air Particle Filter reduces contaminants and maintenance by filtering fresh air into Heratherm Advanced Protocol Security Microbiological Incubator prior to heating.
