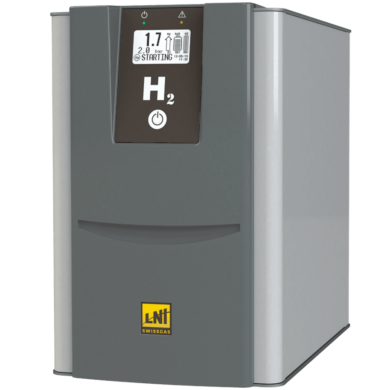

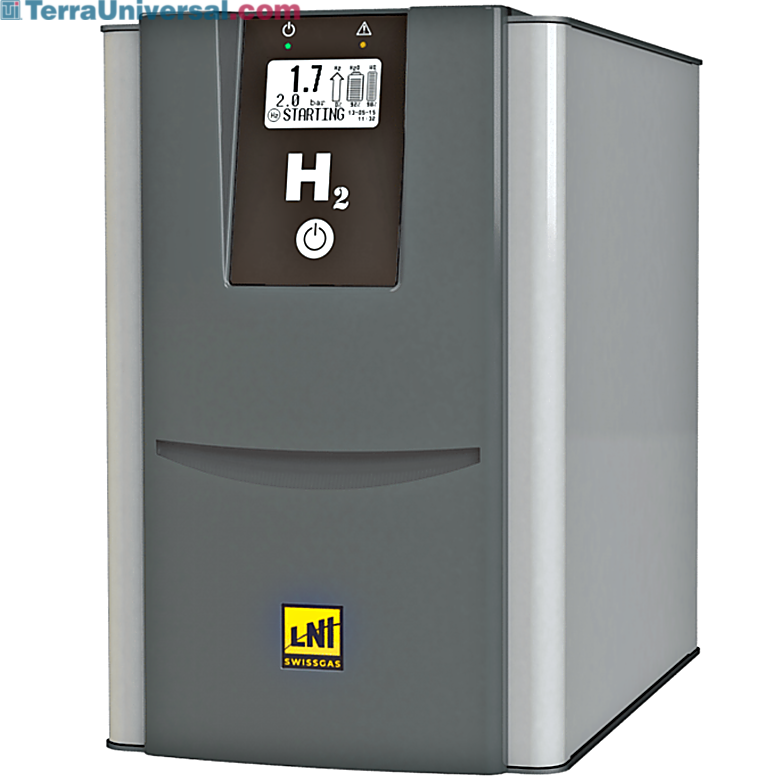

HG Basic PEM Hydrogen Generators by LNI Swissgas with up to 300 cc/min flowrate, 10 bar (145 psi), a 3L tank, and an electrolytic cell with a polymeric membrane | 7200-PP-02 displayed
Nitrogen, Oxygen, Hydrogen Generators,Nitrogen, Oxygen, Hydrogen Generators,Nitrogen, Oxygen, Hydrogen Generators,Nitrogen, Oxygen, Hydrogen Gas Generators
Product Group:
7200-PP-02
7200-PP-02 81668

HG Basic PEM Hydrogen Generators by LNI Swissgas

  • Available ISO Ratings: ISO 8
  • HG Basic PEM Hydrogen Generators with a flowrate up to 700 cc/min, high pressure up to 10 bar (145 psi) and high purity up to 99.9999%
  • Long life multilayer electrolytic cell with polymeric membrane (PEM) eliminates the need for acid or alkaline solutions
  • Maintenance-free gas generators continuously operate 24 hours a day
  • Connects up to 20 units in parallel mode using an external control box (sold separately)
  • Features a static dryer, 3-liter internal tank, a touch-screen LCD interface an on-board CPU, and a 3L internal tank

• ISO Class: ISO 8

• Available ISO Ratings: ISO 8

• Unit of Measure: of 1

Read more
ISO 8 Icon<br/>
Warranty: One-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Flow Rate

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:
Certified ISO Graded Design

Sort Order:
Pressure

Sort Order:

 Terra Part # Price Ships in
100-240V 120 cc/min HG BASIC 120 6920.10.012 ISO 8 10 bars (145 psi) 7200-37 81669 Request Quote 15-20 Days 2
100-240V 180 cc/min HG BASIC 180 6920.10.018 ISO 8 10 bars (145 psi) 7200-38 81673 Request Quote 15-20 Days 3
100-240V 260 cc/min HG BASIC 260 6920.10.026 ISO 8 10 bars (145 psi) 7200-39 81674 Request Quote 15-20 Days 4
100-240V 350 cc/min HG BASIC 350 6920.10.035 ISO 8 10 bars (145 psi) 7200-40 81675 Request Quote 15-20 Days 5
100-240V 500 cc/min HG BASIC 500 6920.10.050 ISO 8 10 bars (145 psi) 7200-41 81676 Request Quote 15-20 Days 6
100-240V 700 cc/min HG BASIC 700 6920.10.070 ISO 8 10 bars (145 psi) 7200-42 81677 Request Quote 15-20 Days 7
Voltage
Flow Rate
Model
Manufacturer SKU
Certified ISO Graded Design
Pressure
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Product Details
Product Details
  • Available ISO Ratings: ISO 8
  • HG Basic PEM Hydrogen Generators with a flowrate up to 700 cc/min, high pressure up to 10 bar (145 psi) and high purity up to 99.9999%
  • Long life multilayer electrolytic cell with polymeric membrane (PEM) eliminates the need for acid or alkaline solutions
  • Maintenance-free gas generators continuously operate 24 hours a day
  • Connects up to 20 units in parallel mode using an external control box (sold separately)
  • Features a static dryer, 3-liter internal tank, a touch-screen LCD interface an on-board CPU, and a 3L internal tank
  • Applications: GC-FID / GC-NPD / GC-FPD / THA, ICP-MS collision gas, refilling metal hydride tanks for use with fuel cells Purity: 99.9999% (dew point <-20°C (< -4°F)
  • Internal tank capacity: 3 liters eliminates the use of cylinders
  • Communication: RS-232, USB, RS-485, Digital I/O; (optional LAN)
  • High pressure GLS electronically controlled (patented)
  • On-board CPU (automatically checks for internal leaks and constantly controls parameters for full safety)
  • Static drying system ensures maximum grade of hydrogen purity, and humidity safeguard protects GC
  • Intuitive LCD interface manages all functions of unit
  • Required water quality:
  • Deionized, ASTM II, <0.1uS
  • Supply pressure (min, Max): 0.1 bar (1.45 psi), 0.5 bar (7.25 psi)
  • Supply flow rate (min, Max) 0.2 l/min, 1.5 l/min
  • Software functions: parallel mode (ready on board), and automatic tank refill
  • Hydrogen outlet: 1/8" compression fitting
  • Water Quick release push-in fitting
  • Operating/storage conditions:
  • Working Temperature: 5-40°C (41-104°F)
  • Storage Temperature: 1-50°C (34-122°F)
  • Humidity (max, non-condensing): 70%
  • Noise: < 35dB(A)
  • IP rating: IP20
  • Pollution degree rating: 2 (with no aromatic compounds)
  • Altitude: < 2000m
  • Consumable: #6930.00.091 Deionizer water filter
  • Options: 5L and 10 L external tanks, LAN
Show more

• ISO Class: ISO 8

• Available ISO Ratings: ISO 8

• Unit of Measure: of 1

Show more

Nitrogen, Oxygen, Hydrogen Generators

  • Compare PEM Hydrogen Generators by LNI Swissgas Compare PEM Hydrogen Generators by LNI Swissgas
Compare PEM Hydrogen Generators by LNI Swissgas
PEM hydrogen Gas Generators with a multilayer PEM cell include an internal tank and choice of static dryer, desiccant column of PSA and PSA/TSA drying systems Compare PEM Hydrogen Generators by LNI Swissgas
Features & Benefits

Features and Benefits

Products Compliant With Your Cleanroom ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

Stackable Design

Space-saving HG Basic models are stackable with other LNI SwissGas Hydrogen Generator models: AG-OFCAS35; NG-EOLO; AG-ZA-Fid
