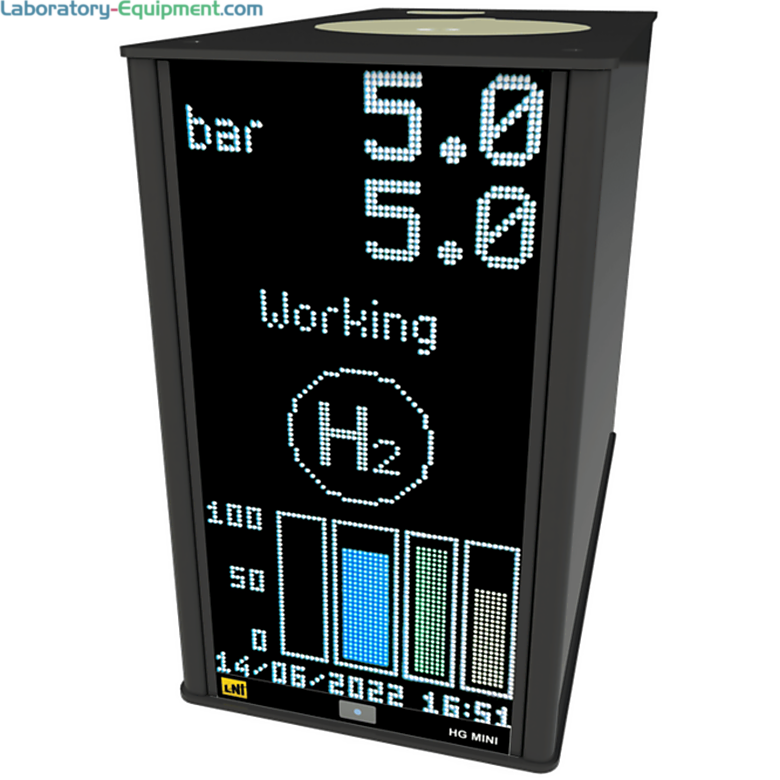

HG Mini PEM Hydrogen Generators by LNI Swissgas with up to 300 cc/min flowrate, 10 bar (145 psi), a 1L tank,, and an electrolytic cell with a polymeric membrane | 7200-PP-01 displayed
Gas Generators,Gas Generators,Gas Generators
Product Group:
7200-PP-01
7200-PP-01 81662

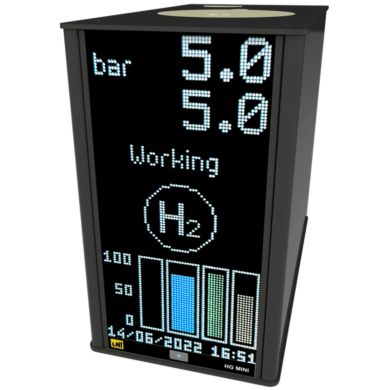

HG Mini PEM Hydrogen Generators by LNI Swissgas

  • Available ISO Ratings: ISO 8
  • Compact HG Mini PEM Hydrogen Generators with a patented 1 liter integrated tank eliminate the use of cylinders as a carrier gas
  • Electrolytic cell with polymeric membrane (PEM) eliminates the need for acid or alkaline solutions
  • H2 Flowrate: 150 cc/min; 300 cc/min
  • Outlet Pressure: up to 10 bar (145 psi)
  • Drying System: Static Dryer, or Static dryer and Desiccant column

• ISO Class: ISO 8

• Available ISO Ratings: ISO 8

• Unit of Measure: of 1

Read more
ISO 8 Icon<br/>
Warranty: One-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:
ISO Class

Sort Order:
Drying System

Sort Order:
Dew Point

Sort Order:
Pressure

Sort Order:
H2 Flowrate

Sort Order:

 Terra Part # Price Ships in
100-240V HG Mini 150 6920.20.015 ISO 8 Static Dryer -30°C 10 bars (145 psi) 150 cc/min 7200-33 81663 Request Quote 15-20 Days 2
100-240V HG Mini 150 D 6920.20.015.1 ISO 8 Static Dryer and Desiccant System -60°C 10 bars (145 psi) 150 cc/min 7200-34 81664 Request Quote 15-20 Days 3
100-240V HG Mini 300 6920.20.015 ISO 8 Static Dryer -30°C 10 bars (145 psi) 300 cc/min 7200-35 81665 Request Quote 15-20 Days 4
100-240V HG Mini 300 D 920.20.030.1 ISO 8 Static Dryer and Desiccant System -60°C 10 bars (145 psi) 300 cc/min 7200-36 81666 Request Quote 15-20 Days 5
Voltage
Model
Manufacturer SKU
ISO Class
Drying System
Dew Point
Pressure
H2 Flowrate
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Product Details
Product Details
  • Available ISO Ratings: ISO 8
  • Compact HG Mini PEM Hydrogen Generators with a patented 1 liter integrated tank eliminate the use of cylinders as a carrier gas
  • Electrolytic cell with polymeric membrane (PEM) eliminates the need for acid or alkaline solutions
  • H2 Flowrate: 150 cc/min; 300 cc/min
  • Outlet Pressure: up to 10 bar (145 psi)
  • •  Drying System: Static Dryer, or Static dryer and Desiccant column
  • Purity better than 99.999%
  • Dew Point (ADP): <-30°C (-22°F), <-60°C (-76°F)
  • Integrated tank capacity: 1 liter
  • Required water quality: Deionized, ASTM II, <0.1uS (optional water refill available)
  • Applications: GC-FID, GC-NPD, GC-FPD, GC-PFPD, THA, Gas sensing
  • Features:
  • High pressure GLS electronically controlled (patented)
  • On-board CPU (automatically checks for internal leaks and constantly controls parameters for full safety)
  • Static drying system ensures maximum grade of hydrogen purity and humidity safeguard protects GC
  • LED matrix displays unit status
  • Communication: USB port’ (optional RS485)
  • Able to connect up to 20 units in parallel mode using an external control box (sold separately)
  • Electrical:
  • Type of connection: IEC 320-C13 (desktop adapter)
  • Power supply voltage: 100-240 (±10%) Vac 50/60 Hz
  • Power (Max): 160W
  • Connection:
  • Hydrogen outlet 1/8” compression fitting
  • Water Quick release push-in fitting
  • Operating/storage conditions:
  • Working Temperature: 5-40°C (41-104°F)*3
  • Storage Temperature: 1-50°C (34-122°F)
  • Humidity (max, non-condensing:) 70%
  • Noise :< 35dB(A)
  • IP rating: IP20
  • Pollution degree rating: 2 (with no aromatic compounds)
  • Altitude: < 2000m
  • Options and Consumables for HG Mini Gas Generators:
  • Autorefill for HG MINI 6930.00.053
  • RS 485 for HG MINI 6930.00.054
  • N. 3 Refill for desiccant column 6930.00.093
  • Deionizer water filter for HG MINI 6930.00.055
Show more

• ISO Class: ISO 8

• Available ISO Ratings: ISO 8

• Unit of Measure: of 1

Show more

Gas Generators

  • Video for HG Mini PEM Hydrogen Generators by LNI SwissGas Video for HG Mini PEM Hydrogen Generators by LNI SwissGas
  • Compare PEM Hydrogen Generators by LNI Swissgas Compare PEM Hydrogen Generators by LNI Swissgas

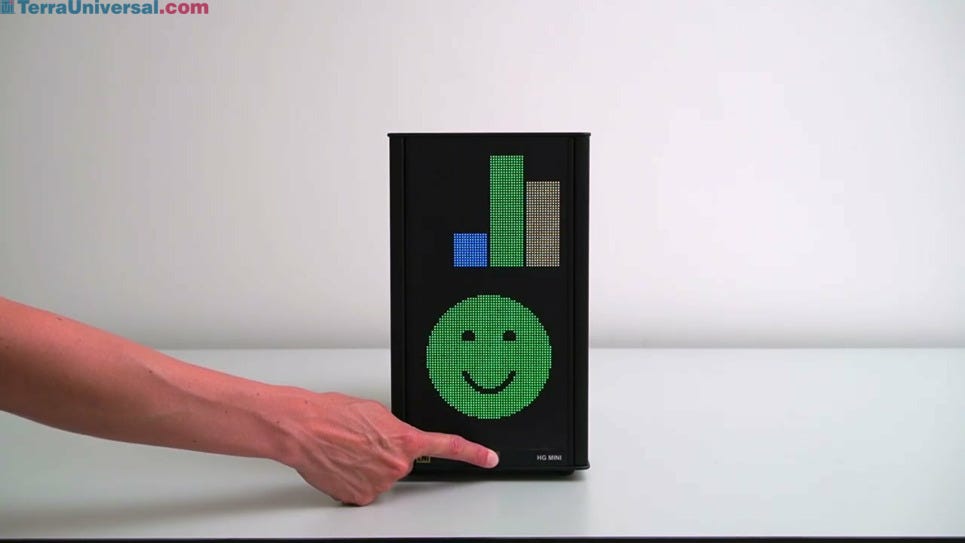

Video for HG Mini PEM Hydrogen Generators by LNI SwissGas
Video of product features of HG Mini PEM Hydrogen Generators by LNI SwissGas Video for HG Mini PEM Hydrogen Generators by LNI SwissGas Video highlights the features and benefits of HG Mini PEM Hydrogen Generators by LNI SwissGas

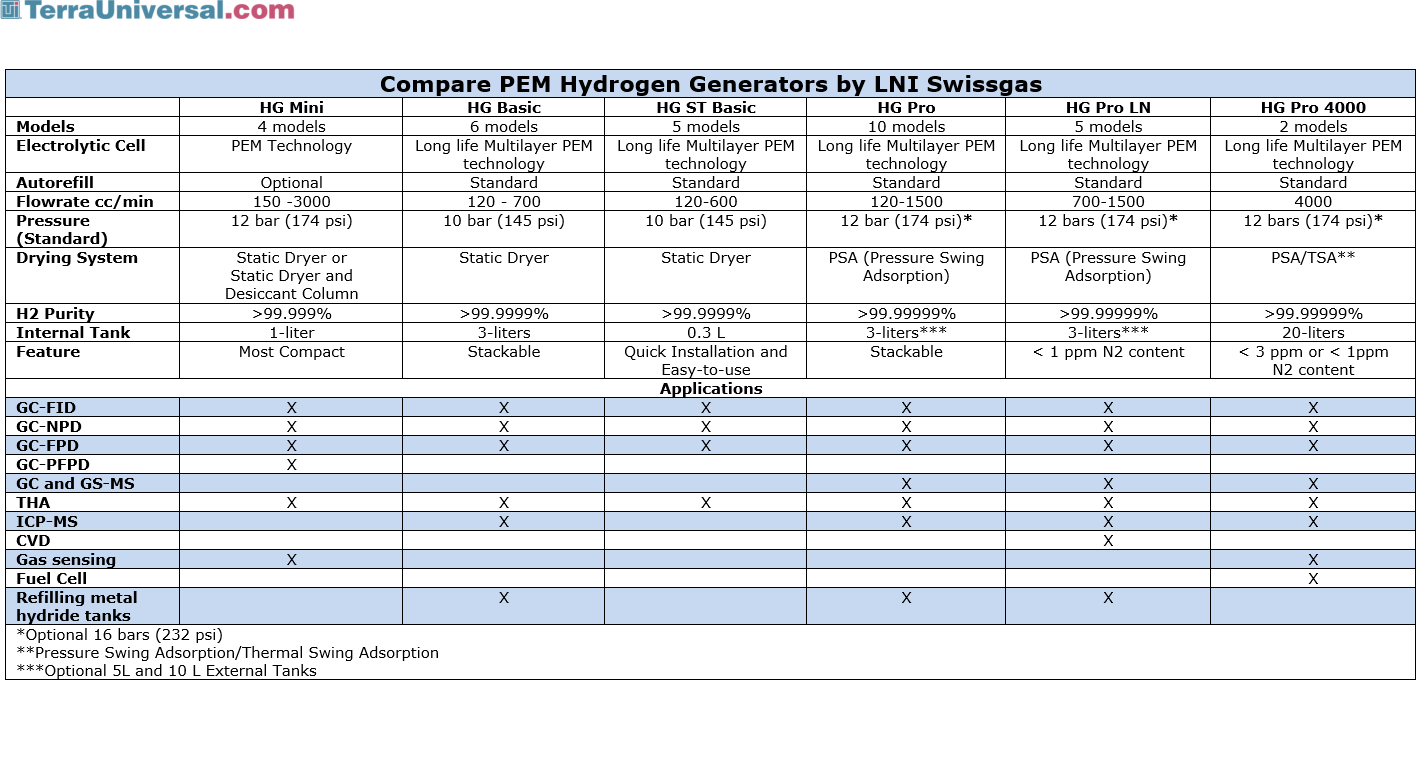

Compare PEM Hydrogen Generators by LNI Swissgas
PEM hydrogen Gas Generators with a multilayer PEM cell include an internal tank and choice of static dryer, desiccant column of PSA and PSA/TSA drying systems Compare PEM Hydrogen Generators by LNI Swissgas
