- Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
- All-in-one nitrogen gas generators feature built-in compressor and gas cylinders
- Storage cylinder and compressor will support high-volume, on-demand gas supply
- Nitrogen membrane technology produces up to 99% pure medical grade dry nitrogen
- Gives user control of production rate and purity
- Economical: Typical R.O.I. of 1 to 2 years when compared to N2 cylinder purchases
- Talk to an Expert +1 (714) 578-6100
Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Nitrogen Generators,Glovebox Accessories,Glovebox Accessories,Glovebox Accessories,Glovebox Accessories,Glovebox Accessories,Glovebox Accessories,Glovebox Accessories,Glovebox Accessories,Desiccator Accessories,Desiccator Accessories,Desiccator Accessories,Desiccator Accessories,Desiccator Accessories,Desiccator Accessories,Desiccator Accessories,Desiccator Accessories,Desiccator Accessories,Nitrogen, Oxygen, Hydrogen Gas Generators,Nitrogen, Oxygen, Hydrogen Gas Generators,Nitrogen, Oxygen, Hydrogen Gas Generators,Nitrogen, Oxygen, Hydrogen Gas Generators,Nitrogen, Oxygen, Hydrogen Gas Generators
2700-PP-05
2700-PP-05
Portable Nitrogen Generators
Read more
New Product - Highlighted Features
- Built-in compressor and tank
- Produces medical-grade nitrogen gas
- 304 Stainless steel construction
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
Nitrogen Generators
Terra's Nitrogen Generators- Maximum Drying Power in a Nitrogen Desiccator Cabinet
- Terra's BioSafe® Sliding Glides

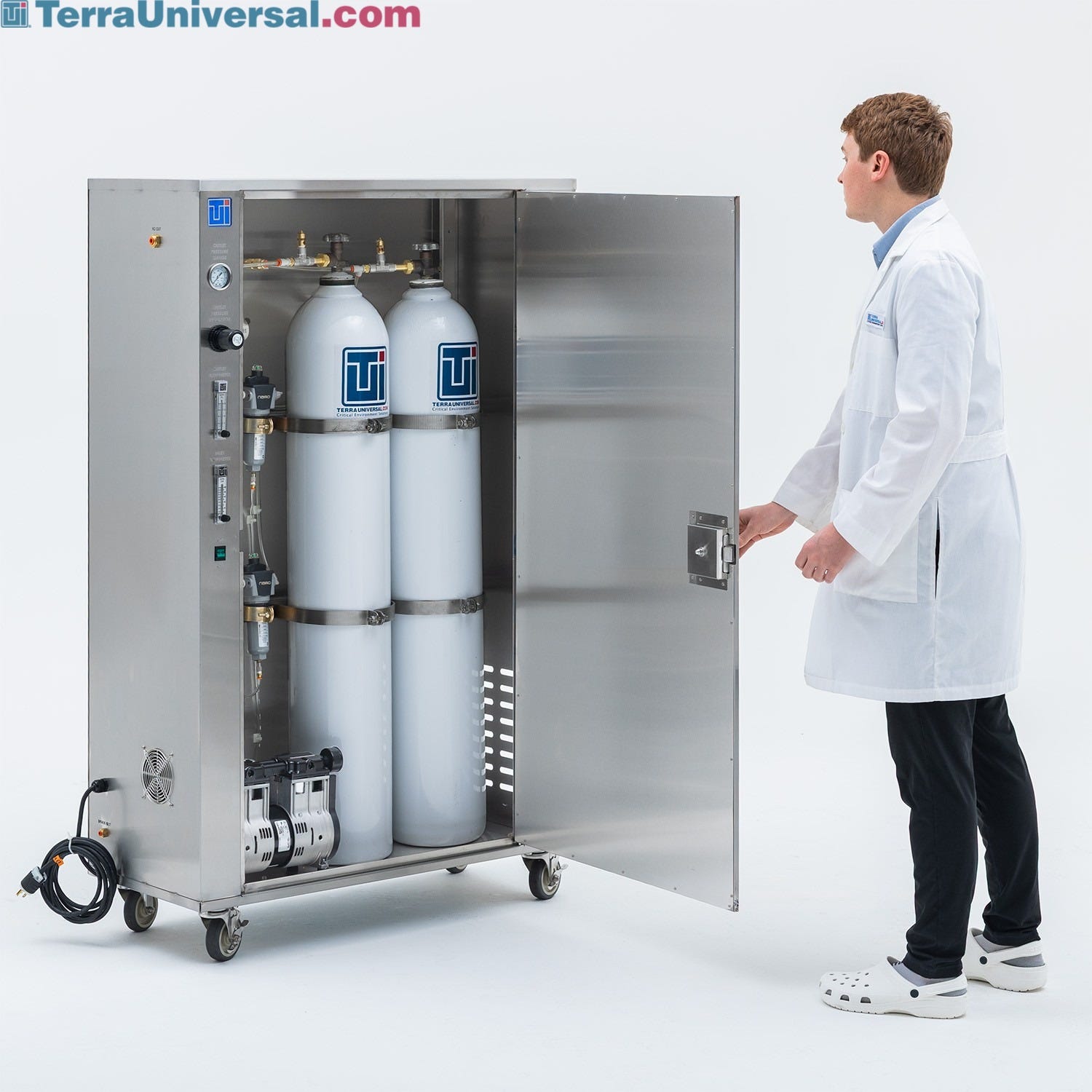

304 stainless steel construction with 3 different sizes of portable nitrogen generators | 2700-PP-01 displayed Terra's Nitrogen Generators On-site nitrogen generation eliminates the need for third-party suppliers, offering control over the quantity and quality of nitrogen produced. Nitrogen generators operate using one of two key technologies: membrane-based or Pressure Swing Adsorption systems.
Maximum Drying Power in a Nitrogen Desiccator Cabinet In this video we experiment and demonstrates the rapid drying power of the Terra's desiccator cabinet and nitrogen generator.
BioSafe Sliding Glide with PTFE bottom and 316L Stainless Steel stem | 2807-07 displayed Terra's BioSafe® Sliding Glides See how Terra's BioSafe® Sliding Glides are expertly designed to help you move equipment and furniture effortlessly while protecting your floors. These glides ensure smooth movement without causing abrasive damage like scratches, scuffs, or microfractures. Ideal for making furniture and equipment relocation easy, while preserving the integrity of your surfaces!
Features & Benefits
Features and Benefits
Accessible Front-Facing Controls
Portable Two Cylinder N2 Generator's acessible front-facing controls simplify adjustements and maintenance to produce up to 99% pure medical grade dry nitrogen.

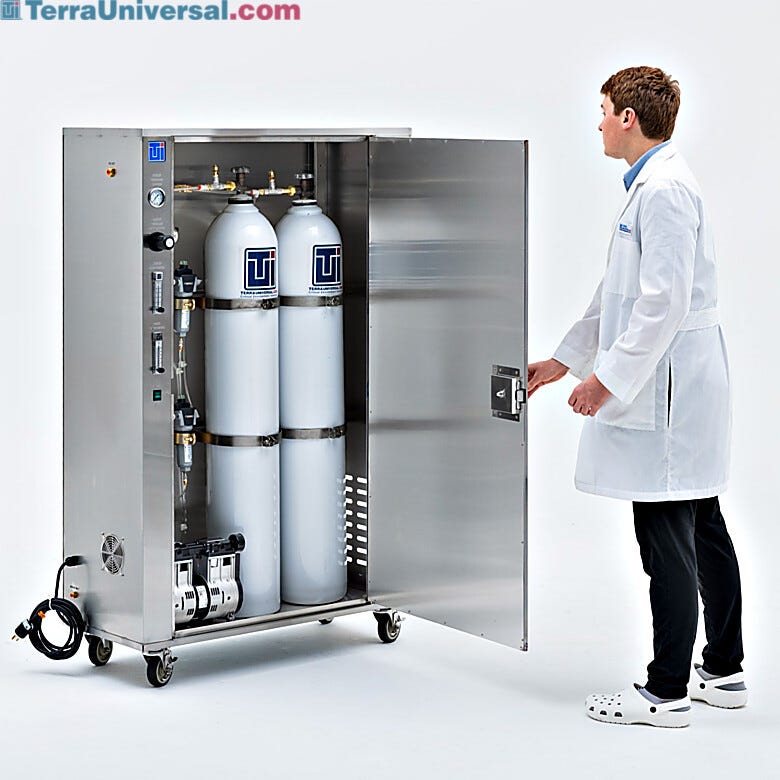

Two N2 Cylinders for Increased Capacity
Portable N2 Generator two gas cylinder capacity provides a reliable, on-demand solution, significantly reducing the need for costly tank exchanges and cumbersome cylinder management.
Reduced Noise Levels
The compact enclosed cabinet reduces noise levels to 60dB measured from 3ft away.
Adjustable Purity to Meet Your Needs
Adjust the inlet flow rate to meet your N2 purity requirements. A low flow rate of 10 SCFH provides the highest purity of up to 99.9%. Simply increase the flow rate for applications that have lower purity requirements. Note that this test data is without the use of a gas cylinder.
Gas Purity and Time to Fill Gas Cylinder
This chart shows purities for different flow rates, and time to fill the gas cylinder. Note that gas purity is affected by any residual gas in the cylinder.
20x Storage Capacity
4'H Gas cylinder holds 12 Cu.Ft. pressurized N2 @ 100 PSI, 20x more compared to smaller 1'H tanks holding 0.61 Cu.Ft. pressurized N2 80 PSI
Compact Portable Nitrogen Generator Includes Compressor and Tank
All-in one system features prefilters, nitrogen membrans, oil-free compressor, and gas cylinder
Built-in Quiet and Efficient Oil-Free Compressor
Oil-free rocking piston compressor is thermally protected and rated for a 10,000+ hour lifespan. A cooling fan and heat sink allow longer compressor run times.
Pressure Booster Regulator Increases Tank Capacity
Included pressure booster regulator multiplies air pressure by 2 to 4 times to increase nitrogen capacity
Different N2 Generator Options to Meet Your Needs
Choose among 4 different sizes of portable nitrogen generator designs to meet your N2 requirements. Suitable for both industrial and commercial applications.
Nitrogen Membrane Airflow Diagram
No power required! Simply connect to compressed air supply. Nitrogen membranes and filters separate oxygen, moisture, and particles to produce up to 99.5% pure medical grade Nitrogen gas.
USP Compliant Medical Grade Nitrogen
Terra's Nitrogen gas generator is third-party certified to USP 30 NF 25 for ≥ 99% pure medical grade nitrogen
Eliminate Nitrogen Tank Rental Costs
Nitrogen generators eliminate long term operating costs from Nitrogen tank rental services.
No Supply Constraints!
Terra's membrane Nitrogen generators supply a continuous flow of pure Nitrogen gas.
Low Maintenance
The Nitrogen membrane module is designed to operate maintenance-free as long as the pre filters are clean. Pre filter replacement will vary and can last approximately 2 years (20,000 hours)
Compact and Portable
With a small unchanging foot print, these Nitrogen generators are easy to move and take up less floor space than a set of pre-filled canisters.
Increased Safety
Nitrogen generators avoid special storage protocols required for compressed prefilled Nitrogen cylinders.
Portable Nitrogen Generator, Medium Size for Multiple Desiccator Cabinets or Gloveboxes
Nitrogen membrane separation technology produces up to 99% pure dry nitrogen, eliminating the need for expensive nitrogen tank services. This medium size N2 generator provides output suitable for two 10-chamber desiccators or two 4-port gloveboxes.
Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
Gloveboxes can easily mount to an automatic height adjusting table (28"-43"H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
