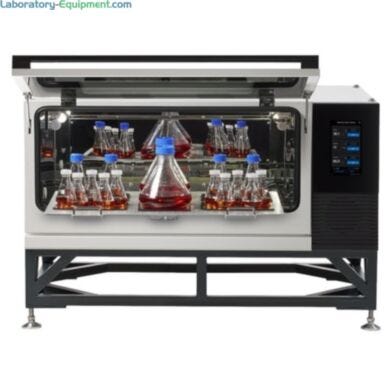

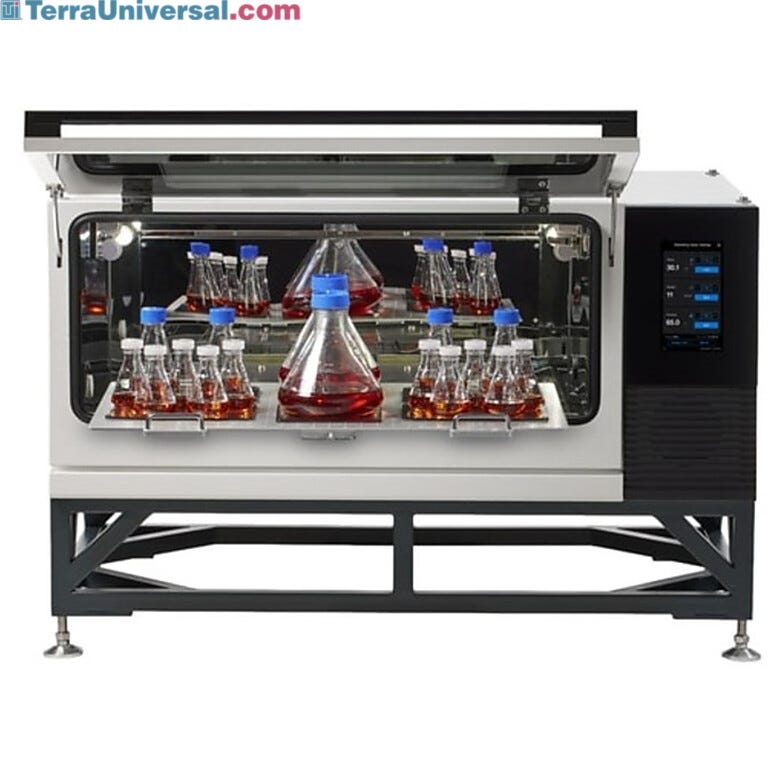

- Large-capacity IntelliStack CO2 Incubator Shakers provide an integrated solution that incubates, humidifies and shakes samples with precision in a stackable unit available in up swing or down-swing door configurations
- Choice of 25 mm or 50 mm orbits
- Flexible stacking design: Stack up to three CO2 and non-CO2 units with 25 mm or 50 mm orbits
- Features intuitive touchscreen display, low energy consumption, accommodates new Nalgene 5L Shake Flasks, enhanced sample security, real-time monitoring, easy-to-use design and quiet operation ideal when multiple units are stacked and running simultaneously
- Models include: required stacking bolts, CO2 Gas inlet, CO2 Gas Control on display
Shakers,Shakers,Shakers,Shakers,Shakers,Shakers
1729-PP-03
1729-PP-03
IntelliStack CO2 Incubator Shakers by Thermo Fisher Scientific
Read more
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Box to bench and setup video: Unboxing the Thermo Scientific IntelliStack CO2 Incubator Shaker- How to operate: Thermo Scientific IntelliStack Incubator Shaker Series touch program interface
- Video Introduction of Thermo Scientific IntelliStack Shakers and CO2 Incubator Shakers
Step-by-step unboxing and set-up for IntelliStack CO2 Incubator Shakers by Thermo Fisher Scientific Box to bench and setup video: Unboxing the Thermo Scientific IntelliStack CO2 Incubator Shaker Unboxing video of IntelliStack CO2 Incubator Shaker by Thermo Fisher Scientific shows unpacking, inspecting, moving, positioning and operating conditions
Video highlights navigation of user-friendly large 10" touchscreen display of IntelliStack Incubator Shaker Series by Thermo Fisher Scientific How to operate: Thermo Scientific IntelliStack Incubator Shaker Series touch program interface Detailed instructions on how to operate and navigate the large 10" touchscreen display of IntelliStack Incubator Shaker Series by Thermo Fisher Scientific
Video shows product overview of IntelliStack Shakers and CO2 Incubator Shakers by Thermo Scientific Video Introduction of Thermo Scientific IntelliStack Shakers and CO2 Incubator Shakers Video highlights the user-friendly design, capacity, and general product features and benefits of IntelliStack Shakers and CO2 Incubator Shakers by Thermo Fisher Scientific
Features & Benefits
Features and Benefits
Learn More: Benefits of Copper and SS Chambers
Print Copy Copied
Features of HERAcell 150i and 240i CO2 Direct Heat Incubators with Copper and Stainless Steel Chambers
Designed to provide optimal growth conditions to enhance cell growth, the HERAcell 150i and 240i CO2 Incubators have a range of features for accurate, uniform and reliable culturing conditions. Units are available with thermal conductivity or infrared sensors, located inside the chamber, for precise environmental measurements. The fan-assisted convection provides samples with a uniform temperature, CO2 and humidity within the incubator. Because constant humidity is paramount for cell protection and optimal growth, the patented floor heating system directly transfers heat to the humidity reservoir for optimal humidity and allows for rapid recovery of moisture levels after doors are opened. The water level sensor alarms when later levels are low and the iCAN touchscreen clearly displays performance trends of your culturing process and monitors the progress of the ContraCon decontamination routine. Designed with a pan-less system to reduce handling, recovery rates are up to five times faster than standard tray humidified incubators.
The ContraCon 90°C moist heat decontamination cycle eliminates variability in disinfection. It eliminates disassembly of sensors, hardware and other components. This feature is effective against:
The tarnishing effects on copper increase with age thus increasing the antimicrobial efficiency. Because copper ions are not airborne, they do not effect or interfere with the integrity of cultures.
Since copper is easy to clean, maintenance is minimal and eliminates the need to use toxic chemical cleaners or UV light.
The ContraCon 90°C moist heat decontamination cycle eliminates variability in disinfection. It eliminates disassembly of sensors, hardware and other components. This feature is effective against:
- Bacillus subtilis
- Bacillus stearothermophilus (USP 23)
- Enterococcus faecalis
- Escherichia coli
- Pseudomonas aeruginosa
- Staphylococcus epidermidis
- Corynebacterium xerosis
- Aspergillums niger
Benefits of Copper Inner Chamber in HERAcell 150i and 240i CO2 Incubators
Copper has a natural antimicrobial feature that delivers non-stop bactericidal and fungicidal protection to samples on contact. As the choice of many cell culture professionals, copper maximizes productivity and minimizes contamination especially in shared-use environments.The tarnishing effects on copper increase with age thus increasing the antimicrobial efficiency. Because copper ions are not airborne, they do not effect or interfere with the integrity of cultures.
Since copper is easy to clean, maintenance is minimal and eliminates the need to use toxic chemical cleaners or UV light.
| Model | HERAcell 1501 | HERAcell 240i |
|---|---|---|
| Exterior Dimensions W x D x H | 25.1 x 30.8 x 24.1 in. (638 x 782 x 612 mm) | 30.7 x 32.8 x 36.8 in. (780 x 833 x 935 mm) |
| Interior Dimensions W x D x H | 18.5 x 20.9 x 23.9 in. (470 x 531 x 607 mm) | 23.9 x 23.0 x 26.4 in. (607 x 584 x 671) |
| Internal Volume | 150L (5.3 cu. ft.) | 240 (8.4 cu. ft.) |
| Weight | 154 lbs. (70 kg) | 178 lbs. (81 kg) |
| Shelves Dimensions W x D | 16.7 x 18.3 in. (423 x 465 mm) | 22.0 x 19.7 (560 x 500 mm) |
| No. of Shelves Standard/Maximum | 3 Standard 10 Maximum | 3 Standard 12 Maximum |
| Max. Load per Shelf | 22 lbs. (10 kg) | |
| Total Load per Shelf | 66 lbs. (30 kg) | |
| Shelves Half Width W x D | — | 10.2 x 19.7 in. (260 x 500 mm) |
| No. of Shelves Standard/Maximum | — | 6 Standard 16 Maximum |
| Max. Load per Shelf | — | 11 lbs. (5 kg) |
| Total Load per Shelf | — | 66 lbs. (11 kg) |
| Interior Chamber | Solid Copper/Stainless Steel | |
| Shelves and Fan Impeller | Solid Copper/Stainless Steel | |
| ContraCon decontamination routine | verified by accredited laboratories | |
| Decontamination phase, on all surfaces °C/hrs. | 90/9 | |
| Period (ambient temperature 20°C) | 25 hours | |
| Efficiency spectrum | bacteria, fungi, spores (USP 23), mycoplasma | |
| Temperature | Air Jacket Temperature Control | |
| Temperature Control Range °C | TA* +3 … 55 | |
| Temperature deviation, time**/spatial** | ± 0.1/± 0.5 K | |
| Ambient temperature range °C | +18 … 33 | |
| Constant humidity*** %rH | 95 ± 3 | |
| Fill amount/water quality | Max. 3 distilled/autoclaved and demineralized | Max 4.5 distilled/autoclaved and demineralized |
| Measure and control range Vol. – % | 0 … 20 | |
| Control accuracy Vol. – % | ± 0.1 | |
| Inlet pressure bar | 0.8 … max. 1 | |
| Gas purity % | 99.5, medical quality min. | |
| Measure and control range Vol. – % | 1..21/5..90 | |
| Control accuracy Vol. – % | ±0.2 | |
| Inlet pressure bar | 0.8…max. 1 | |
| Gas purity % | 99.5; medical quality min. | |
| Rated voltage V | 1/N/PE AC; 230 (120) | |
| Rated output kW | 0.58 (0.62) | 0.64 (0.65) |
| Rated frequency Hz | 50/60 | |
| Heat emission to environment at 37°C kWh/h | 0.06 | 0.07 |
| With ContraCon, kWh/h | 0.11 | 0.25 |
| *Ambient Temperature **Determined according to DIN 12880 for the standard configuration. Refer to calibration instructions for details. ***Relative humidity inside incubator may increase during incubation of open culture vessels | ||
Stackable
Flexible space-saving design enables stacking of up to three units in various door configurations; stacking bolts included with each unit
Slide-Out Platform
Easily load and unload consumables with the slide-out platform design, and locking handle ensures that platform stays in place during operation
Easy-to Operate
Intuitive large 10" color touchscreen with independently operated parameters activated by the press of a single button, performance chart, and anti-reflective coating enables easy viewing in brightly lit labs
