Select Product
Type

Design

Window Material

Material

Certified ISO Grade Design

Width

Depth

Height

Number of Doors

Terra Part # Price Ships in
High Capacity Free Standing SDPVC Powder-Coated Steel ISO 7 40" 26.5" 79" 2 Doors 9600-91 82902 $2,985 25-30 Days 2
High Capacity Free Standing SDPVC Stainless Steel ISO 6 40" 26.5" 79" 2 Doors 9600-92 82905 $6,975 25-30 Days 3
In stock
Type
Design
Window Material
Material
Certified ISO Grade Design
Width
Depth
Height
Number of Doors
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Unobstructed double-swing doors promote easy transfer of large equipment or components
  • Cabinet designed to house bulky products that require a moisture-free storage environment
  • Static-dissipative viewing windows afford full visibility while controlling static charges and particles
  • Clean, low-humidity high capacity storage environment for sensitive parts. designed for nitrogen gas purging
  • Cabinet housing is sealed with silicone to minimize leakage and improve RH control
  • Housing available in powder-coated steel or stainless steel
  • Features (3) adjustable, solid stainless steel shelves for storing various box sizes
  • LiftLatch™ system ensures effective locking of doors, extending door life and gaskets
  • Includes powder-coated steel/stainless steel stand with leveling feet, thermo-hygrometer, RB valve, Flowmeter
  • Front windows are made of static-dissipative PVC, which safely dissipates static charges to ground.
  • By dissipating surface charges, this material also eliminates particle attraction
  • Note: ValuLine™ High capacity cabinet is not compatible with Dual Purge™ and NitroWatch™ gas purge systems

Window Material: SDPVC

Design: Free Standing

Available ISO Ratings: ISO 6, ISO 7, ISO 8

ISO Class: ISO 6

Unit of Measure: of 1

Marks & Listings: CE, UL, ULC

Weight, Product: 655 lb

Dimensions, Product: 47" W x 20" D x 72" H

Weight, Shipping: 700 lb

Dimensions, Shipping: 77" W x 58" D x 28" H

Package Type: Crate

Stainless Steel Desiccator Cabinets

  • Maximum Drying Power in a Nitrogen Desiccator Cabinet
  • Smart® Humidity Module upgrade tutorial Installing Terra's ValuLine™ Desiccator Smart® Controller
Smart® Humidity Module upgrade tutorial
Features & Benefits

Features and Benefits

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Spacious Aseptic Storage

Stainless steel instrument cabinets offer sterile, easy-to-clean interiors suitable for storage of materials used in hospitals, medical device manufacturing, and bio/pharmaceutical processing. The static-dissipative windows are ESD safe, chemical resistant, and minimize static cling to protect against particle contamination.

Fully Adjustable, Easy-To-Clean Shelf System

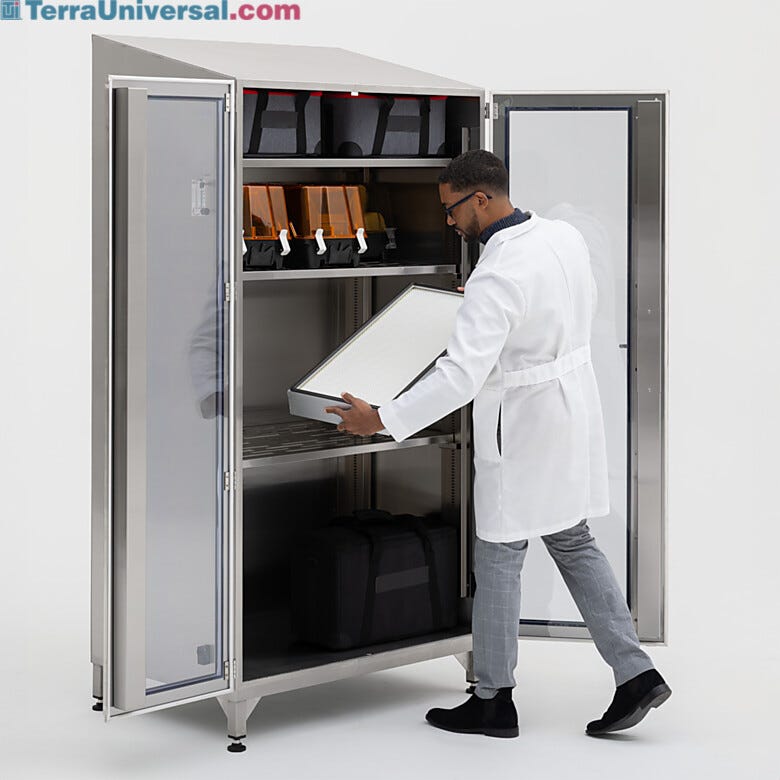

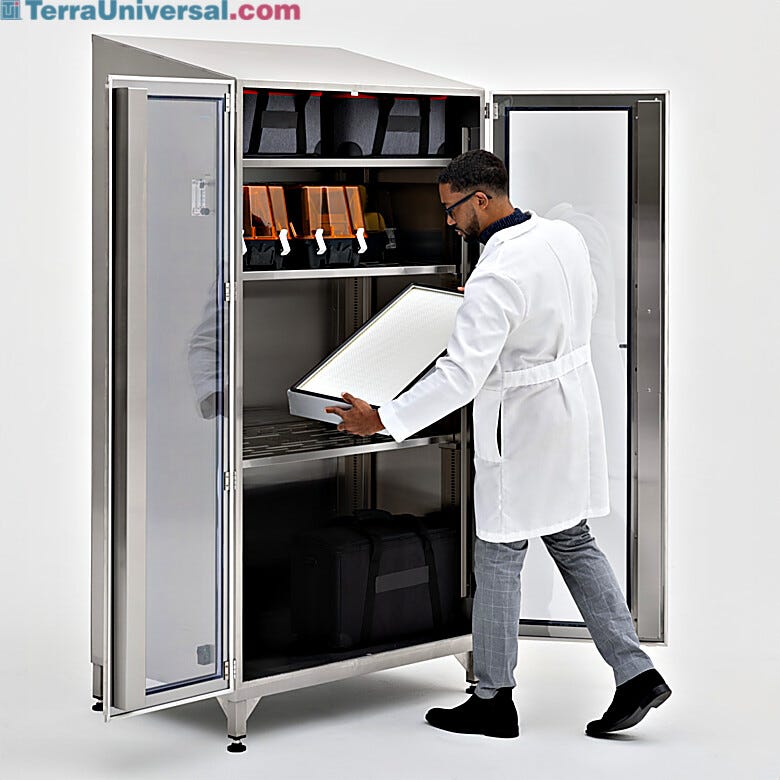

Stainless steel equipment cabinet provides adjustable, easy-to-clean shelving. Adjustable shelves allow for custom height in 1” increments to efficiently store materials and tools of various sizes.

Locking Doors for Secure Storage

High-quality stainless steel operating room cabinet features locking handles to safe-guard important surgical equipment or medical supplies.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Leak Test: Flow Rate vs Internal Pressure

Description: Leak test data of High Capacity Dry Storage Cabinets (9600-PP-13 family)

Rapid Drying of Hygroscopic Material

Terra's gas-purged desiccators utilize a rapid flow of inert nitrogen to quickly dry hygroscopic samples and components
