Terra Part # 5102-30
$12,070
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 5102-30
62799

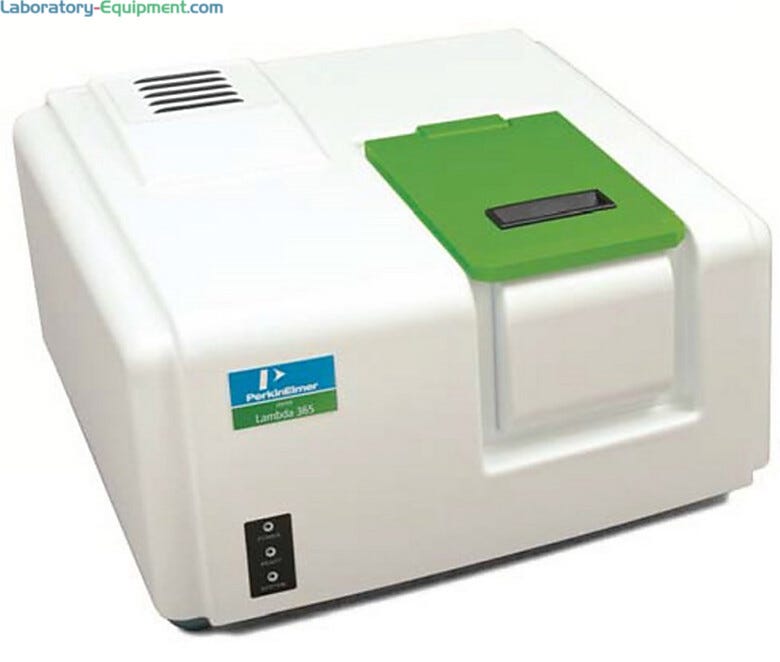

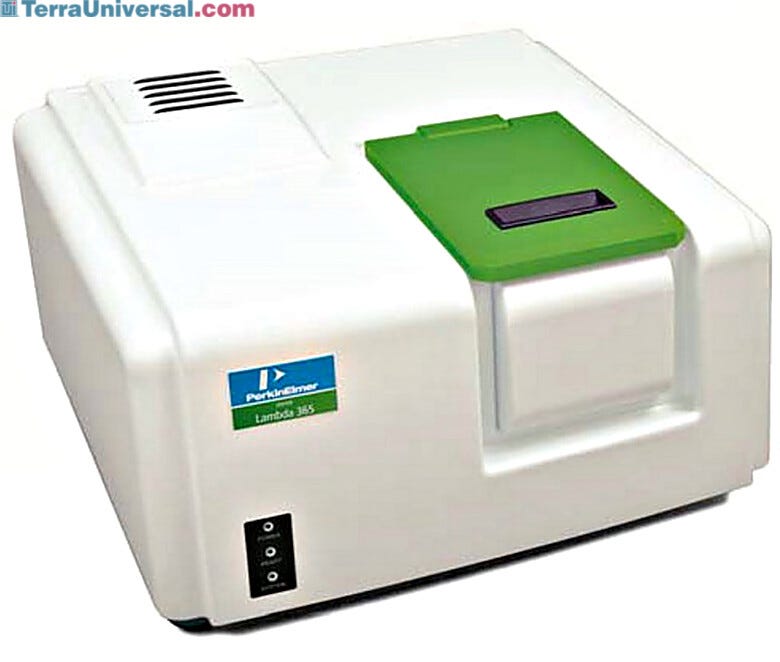

Lambda 365 UV/Vis Spectrophotometer with UV Lab Software

• Requires connection to PC for operation

• Includes: UV Express Software #N4108000 auto aligns optional multi-cell changers

• Dimensions: 19.5 x 19.7 x 10.6in (495 x 500 x 270 mm)

• Electrical: 100‐240 V 50/60 Hz

• Source Lamp: Tungsten/Deuterium

• Monochromator Blazed holographic grating with 1200 gr/mm, Czerny‐ Turner with 0.2 m focal length

• Detector: Si diodes, Sample and Reference

• Photometric System: Double Beam Optics

• Wavelength Range: 190‐1100 nm

• Spectral Bandwidth: 0.5, , 1, 2, 5, 20 nm

• Data Interval: 0.05, 0.1, 0.5, 1, 2 nm

• Wavelength Accuracy: ±0.1 nm at D2 peak @ 656.1 nm, +/‐ 0.3 nm for full range

• Wavelength Reproducibility: ±0.1 nm

• Photometric Range: +/‐ 4 A

• Photometric Accuracy: +/‐ 0.002A (0‐.5 Abs), +/‐ 0.004A (.5‐1 Abs)

Photometric Reproducibility: <0.001AU @ 0.5 and 1.0 AU, <0.002AU(60 mg/L Potassium Dichromate)

Stray Light: < 1.0% ( 198 nm KCL ); <0.02% (220 nm Nal); <0.02% (340 nm NaNO2 )

Photometric Noise: < 0.00005 Abs (at 700 nm, RMS )

• Interface: USB

• Compact and modular UV/Vis Spectrophotometer

• Double beam optics for high stability and low stray light

• Extremely high signal to noise ratio

• Modular design and a large number of accessories provides for maximum usability

• Large sample compartment fits more than 10 sampling accessory combinations

• Ideal for use in biotechnology, environmental, genetics, manufacturing, pharmaceutical QA/QC and academic labs

• Use in: applications requiring regulatory compliance, kinetic measurements, determination of nucleic acid concentration, determining the thickness and reflectance/transmission of films

• Accessories sold separately: Transmission and Reflectance Holders, Variable and Fixed Angle Reflectance Accessories and Base Plates, Peltier Controlled Systems, Lambda 365 Software

Wavelength Range: 190-1100 nm

Samples per Run: 8 Samples

21 CFR Part 11: Yes

Spectral Resolution: 0.5 nm

Manufacturer SKU: N4100020

Type: Manual

Unit of Measure: EA

Electrical Specifications: 120/240 V, 1 Ph, 50/60 Hz

Weight, Product: 55 lb

Dimensions, Product: 19" W x 19" D x 10" H

Weight, Shipping: 75 lb

Dimensions, Shipping: 22" W x 22" D x 15" H

Package Type: Box

Buy Accessories

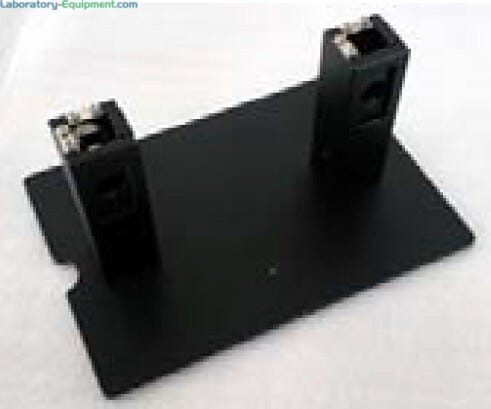

  1. Accommodates any standard 10 mm cells | 5102-31 displayed
    Single Cell Holder, 10 mm for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

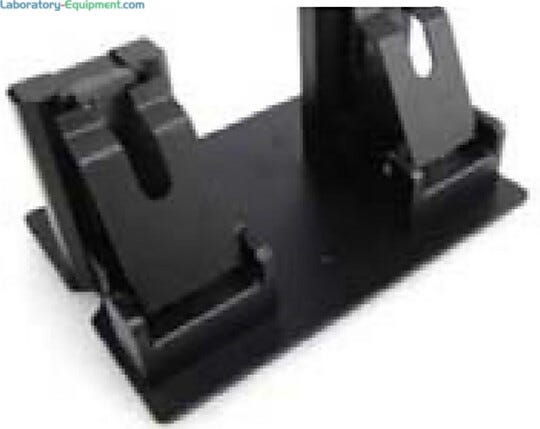

  2. Measures transmittance of various sample types such as films, glass, plates and more | 5102-32 displayed
    Advanced Transmission Holder for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

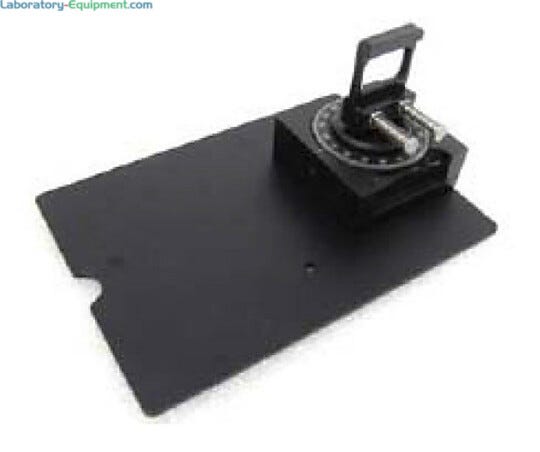

  3. Adjusts angle of solid samples for transmission measurements | 5102-33 displayed
    Variable Angle Transmission Holder, 0-75 for LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

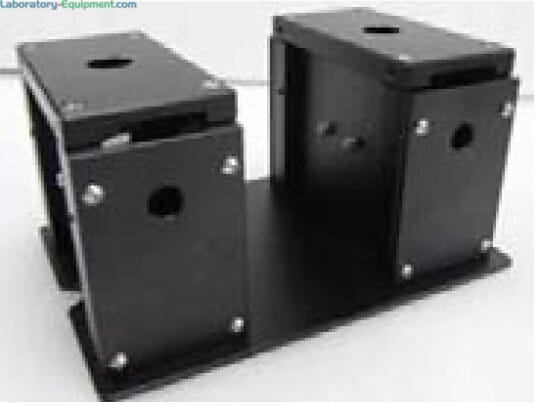

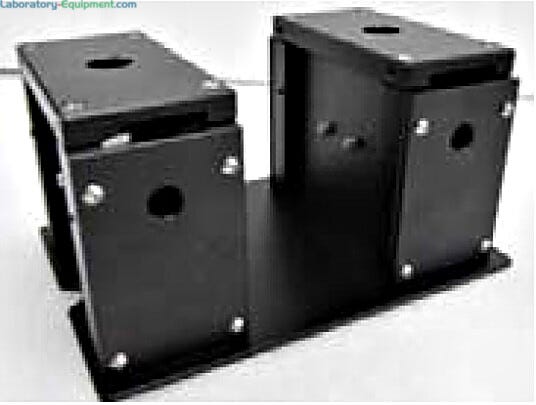

  4. Used for film thickness measurements | 5102-34 displayed
    Fixed Angle Reflectance Holder for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

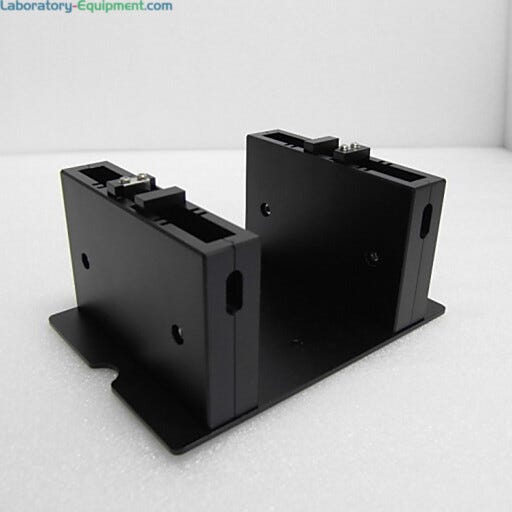

  5. Varying length cuvette holder for Perkin Elmer’s Lambda 365 spectrophotometer | 5102-35 displayed
    Variable Pathlength Cuvette Holder for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

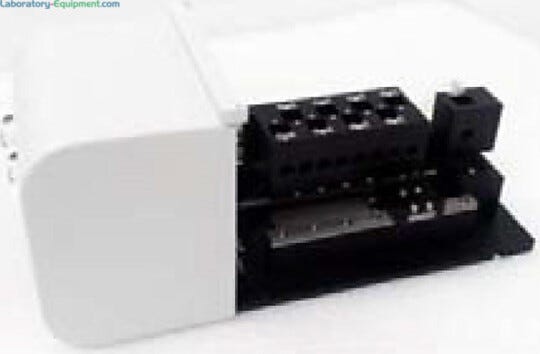

  6. Uses recirculating liquid to maintain temperature control over standard 10 mm cells | 5102-36 displayed
    Water Jacketed 8-Position Multi-Cell Holder for LAMBDA 365 UV/Vis Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

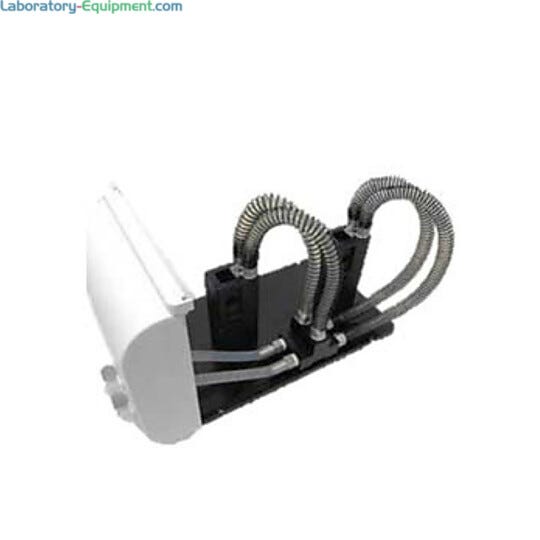

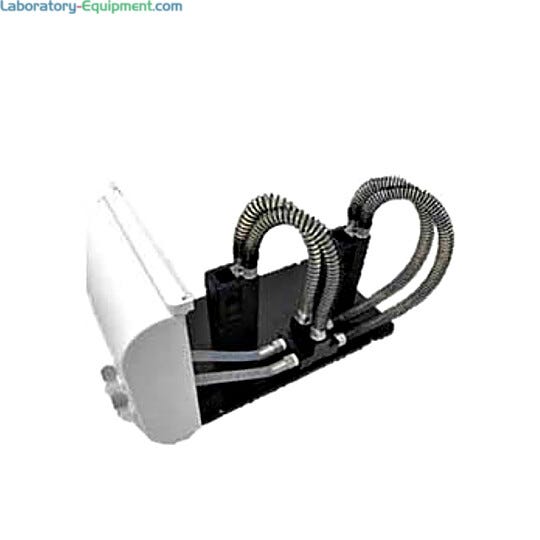

  7.  | 5102-37 displayed
    Water Jacketed Single Cell Holder for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

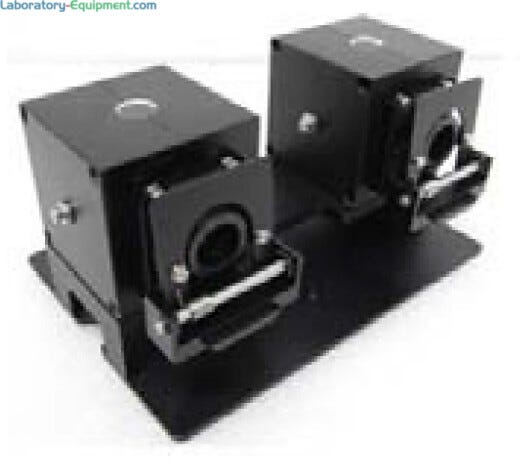

  8. Measures diffuse reflectance, total transmittance, diffuse transmittance and performs color analysis | 5102-38 displayed
    50 mm Transmission/ Reflectance Sphere, High Sensitivity for LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  9. Used for connecting Dip Prove Fiber Optic with the system | 5102-40 displayed
    Fiber Coupling Module for Lambda 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

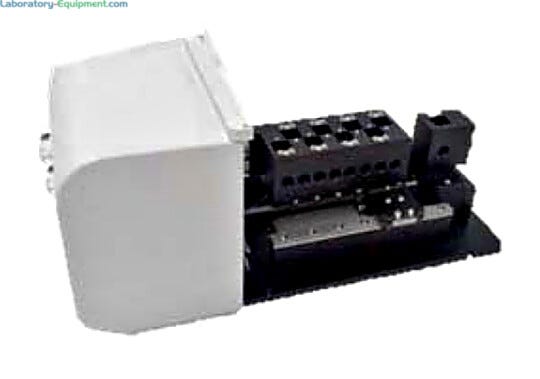

  10. Accommodates any standard 10 mm cells; up to 8 samples | 5102-41 displayed
    8-Position Multicell Holder for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

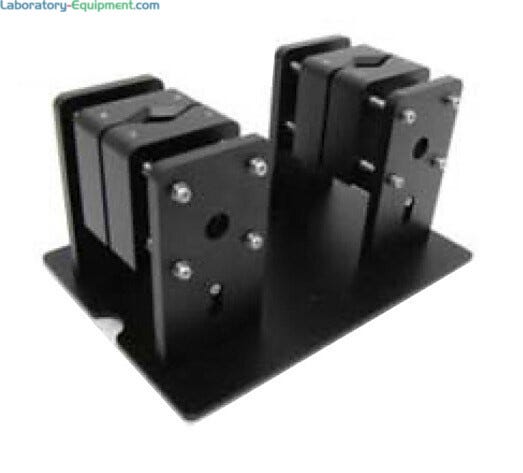

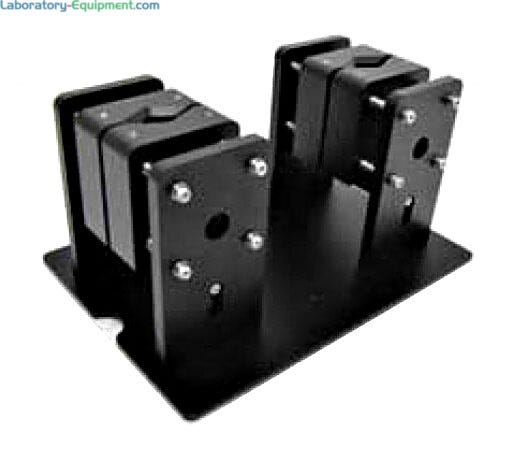

  11. Designed for test tubes, vials, ampules, cylinder type, cuvette, etc. | 5102-44 displayed
    Test Tube Holder for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

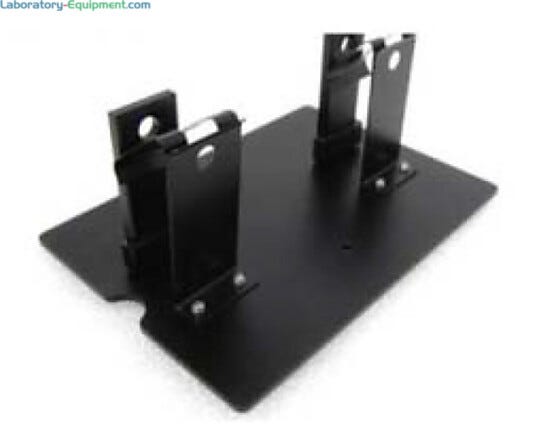

  12. Measures transmittance of various features of thin samples such as film, glass and plate | 5102-45 displayed
    Film Holder for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

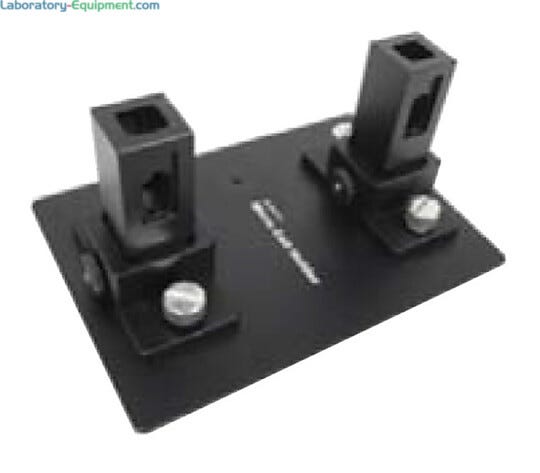

  13. Accurately positions small volume cuvettes | 5102-50 displayed
    Micro Cell Holder, 10mm Cuvettes for LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  14.  | 5102-04 displayed
    Magnetic Stirrer Assy, Manual for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  15.  | 5102-04 displayed
    Magnetic Stirrer Assy, Automatic, 2 Ch for LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  16.  | 5102-04 displayed
    Variable Angle Reflectance Accessory for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

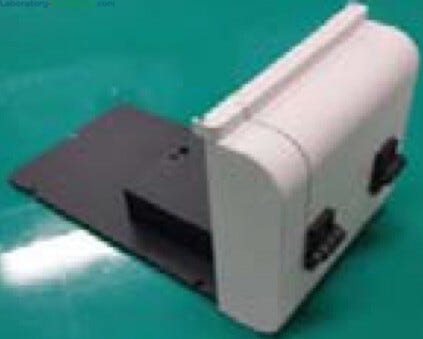

  17. Used for installing Variable Angle Reflectance Accessory | 5102-47 displayed
    Base Plate for Variable Angle Reflectance Accessory for LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  18.  | 5102-04 displayed
    Fixed Angle Reflectance Accessory (6) for LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

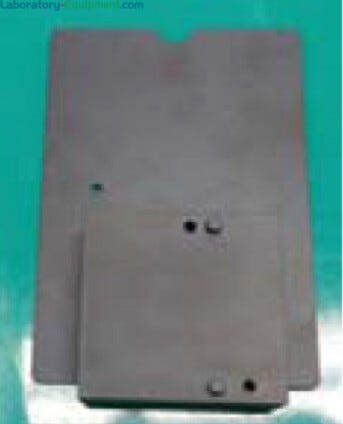

  19. Used for installing Fixed Angle Reflectance Accessory | 5102-49 displayed
    Base Plate for Fixed Angle Reflectance Accessoryfor LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  20. Peltier Controlled Single Cell, with Peltier Controller for LAMBDA 365
    Peltier Controlled Single Cell, with Peltier Controller for LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  21. For thermal denaturation, kinetics and precise temperature control applications | 5102-15 displayed
    6-Position Peltier Controlled Cell Changer, controller (withoutheated reference) Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  22. For thermal denaturation, kinetics and precise temperature control applications | 5102-15 displayed
    6-Position Peltier Controlled Cell Changer, controller (with heated reference) Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  23. For thermal denaturation, kinetics and precise temperature control applications | 5102-61 displayed
    Peltier Control Multi-Cell (8), with Peltier Controller for LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

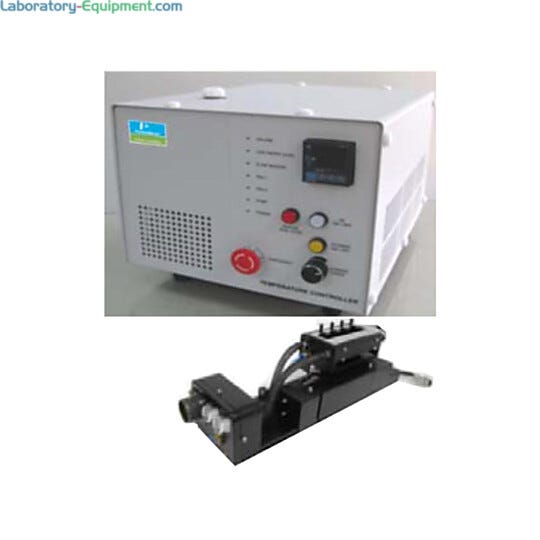

  24. For thermal denaturation, kinetics and precise temperature control applications | 5102-15 displayed
    Peltier Temperature Controller (without cell) Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  25.  | 5102-04 displayed
    Multi-Component Analysis Software for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  26. ColorMaster Viewer Software for LAMBDA 365 UV/Vis Spectrophotometer
    ColorMaster Viewer Software for LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  27.  | 5102-04 displayed
    System Performance Validation Software for Lambda 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  28.  | 5102-04 displayed
    Security Software, LAMBDA 365 UV/Vis Spectrophotometer Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  29.  | 5102-04 displayed
    12 Month Extended Warranty, Lambda 365 with Software Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  30.  | 5102-04 displayed
    12 Month Extended Warranty + 1 Preventative Maintenance, Lambda 365 with Software Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  31.  | 5102-04 displayed
    12 Month Extended Warranty + 2 Preventative Maintenance, Lambda 365 with Software Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  32. Nano Stick-D, Z 15, Black
    Nano Stick-D, Z 15, Black Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  33. Nano Stick-D, Z 15, Blue
    Nano Stick-D, Z 15, Blue Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  34. Nano Stick-D, Z 15, Red
    Nano Stick-D, Z 15, Red Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  35. Nano Stick-D, Z 15, Gold
    Nano Stick-D, Z 15, Gold Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  36. Nano Stick-D, Z 15, Silver
    Nano Stick-D, Z 15, Silver Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  37. ASX-260 Autosampler 110/220V 50/60 Hz
    ASX-260 Autosampler 110/220V 50/60 Hz Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  38. Automate sample analysis and automatically deliver samples to cuvette | 5102-25 displayed
    ASX-520 Autosampler 110V/60 Hz Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  39. Auto Sipper Accessory
    Auto Sipper Accessory Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up

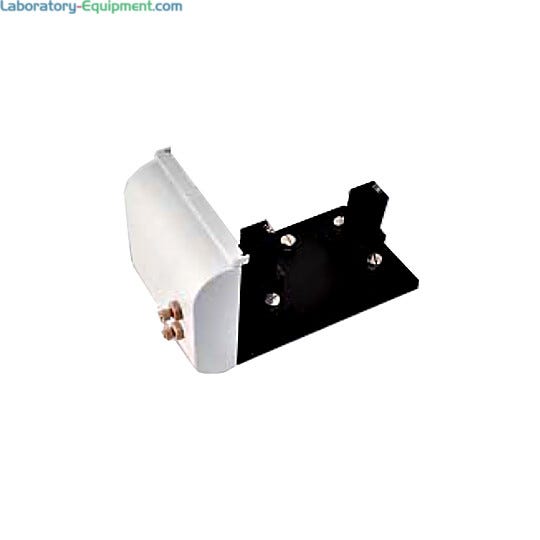

  40. Used with auto sipper accessory (N4101012) | 5102-39 displayed
    Front Plate for Auto Sipper Accessory (for N4101012), LAMBDA 365 Stocked Item is in stock and ready for immediate shipping
    Request Quote
    Increase Down Increase Up
  41. Extended Product Warranty
    Request Quote
    Increase Down Increase Up
  42. Equipment Testing and Certification
    Request Quote
    Increase Down Increase Up

Features and Benefits

Applications and Specifications

Applications and Specifications for LAMBDA 365 UV/Vis Spectrophotometer

Plug-and-play accessories: Transmission and Reflectance Holders, Variable and Fixed Angle Reflectance Accessories and Base Plates, Peltier Controllers, Software, LAMBDA Warranties, Nano Sticks, and Autosamplers

The LAMBDA 365 UV/Vis Spectrophotometer has a large sampling compartment that accepts more than 10 different sample accessory combinations. Accessories easily snap into place and self-align in three easy steps for a true plug-and-play unit that performs a wide array of applications in pharma, manufacturing QA/QA, analytical chemistry and genetic research labs.

LAMBDA 365 Spectrophotometer Applications by Industry
  • Pharmaceuticals and Life Sciences: quantification of DNA and Proteins, DNA melting experiments, enzyme kinetics, USP method compliance, solvent analysis
  • Industrial: QA/QC in development and production of dyeing reagents, inks and paints, measures color difference values and color indices, analysis of multicomponent and chemicals
  • Environmental: quantifies heavy metals (nanomaterials in freshwater, seawater, air and soil), soil contamination from organic materials, sunscreen efficacy, water and waste analysis
  • Food and Beverage: Enzymatic determination of alcohols, aldehydes and malic acid, browning index of fruit juices, wine color and intensity, packaging characterization, color testing, purity of olive oil
Source LampTungsten/Deuterium
MonochromatorBlazed holographic grating with 1200 gr/mm
Czerny-Turner with 0.2 m focal length
DetectorSi diodes, Sample and Reference
Photometric SystemDouble Beam Optics
Wavelength Range190-1100 nm
Spectral Bandwidth0.5, 1, 2, 5, 20 nm
Data Interval0.05, 0.1, 0.5, 1, 2 nm
Wavelength Accuracy± 0.1 nm at D2 peak @ 656.1 nm, ± 0.3 nm for full range
Wavelength Reproducibility± 0.1 nm
Photometric Range± 4A
Photometric Accuracy± 0.002A (0 - 0.5 Abs)
± 0.004A (0.5 - 1 Abs)
Photometric Reproducibility< 0.001 AU @ 0.5 and 1.0 AU
Stray Light< 1.0% (198 nm KCL)
< 0.02% (220 nm Nal)
< 0.02% (340 nm NaNO2)
Baseline Stability< 0.0003 Abs/h (700 nm, after one hour warm up)
Baseline Flatness± 0.00005 Abs (after one hour warm up)
Photometric Noise< 0.00005 Abs (at 700 nm, RMS)
Photometric StabilityN/A
Maximum Scan Rate3000 nm/min
Maximum Slew Rate8000 nm/min
InterfaceUSB
Dimensions19.5"W x 19.7"D x 10.6"H (495 x 500 x 270 mm)
Electrical100-240 V 50/60 Hz (Contact us about 240V models)
Environmental RequirementsTemperature: 15-35°C
Humidity: 30 - 80%
Non-condensing
